General |
|
| Dimension | 26.4" x 25.3" (670 x 642 mm) |
|---|---|
| Height | 18.1" (460 mm) |
| Weight | 52 lbs (23.6 kg) |
| Accuracy (+/-) | <2.5% |
Connectivity |
|
| Wireless communication | ANT+ connectivity, BLUETOOTH wireless technology |
|---|---|
| Control by | Smartphone, tablet, ANT+ bike computers, stand alone, computer connection via ANT+ antenna |
| Read out on | Bike computer, computer with ANT+ antenna, smartphone, sports watch, tablet |
| Connection indicator (ANT+/Bluetooth) | 2 LEDs |
Indoor Training Features |
|
| Magnets | 8 permanent ferrite magnets and 8 electromagnets |
|---|---|
| Electrical requirement | 110-240 V |
| Suitable cassettes | Shimano/SRAM 9 to 11 speed Campagnolo SRAM XD and XDR body (sold separately) Not suitable for specialized SCS system. Shimano 12-speed Hyperglide+ |
| Suitable axles | Direct Drive quick release axle (130 mm/135 mm X 5 mm) for bikes with quick release axle Thru axle end caps (142 mm/148 mm X 12 mm) for bikes with thru-axle For bike dimensions outside of the industry standard, Garmin offers this adapter set as an additional accessory: 135 mm Thru-Axle Adapter Set [10 x 135 Non-drive Side (NDS), 12 x 135 NDS and 10 x 135 Drive-side (DS)]. |
| Max power | 2000 Watt |
| Max incline | 16% |
| Max torque | 41 Nm |
| Max brake force | 120 N |
| Flywheel | 16.8 lbs (7.6 kg) |
| Mass inertia | 68.8 lbs (31.2 kg) |
| Calibration | Spin down |
| Output | Speed, cadence, power |
| Measured Speed | |
| Measured Cadence | |
| Measured Power | |

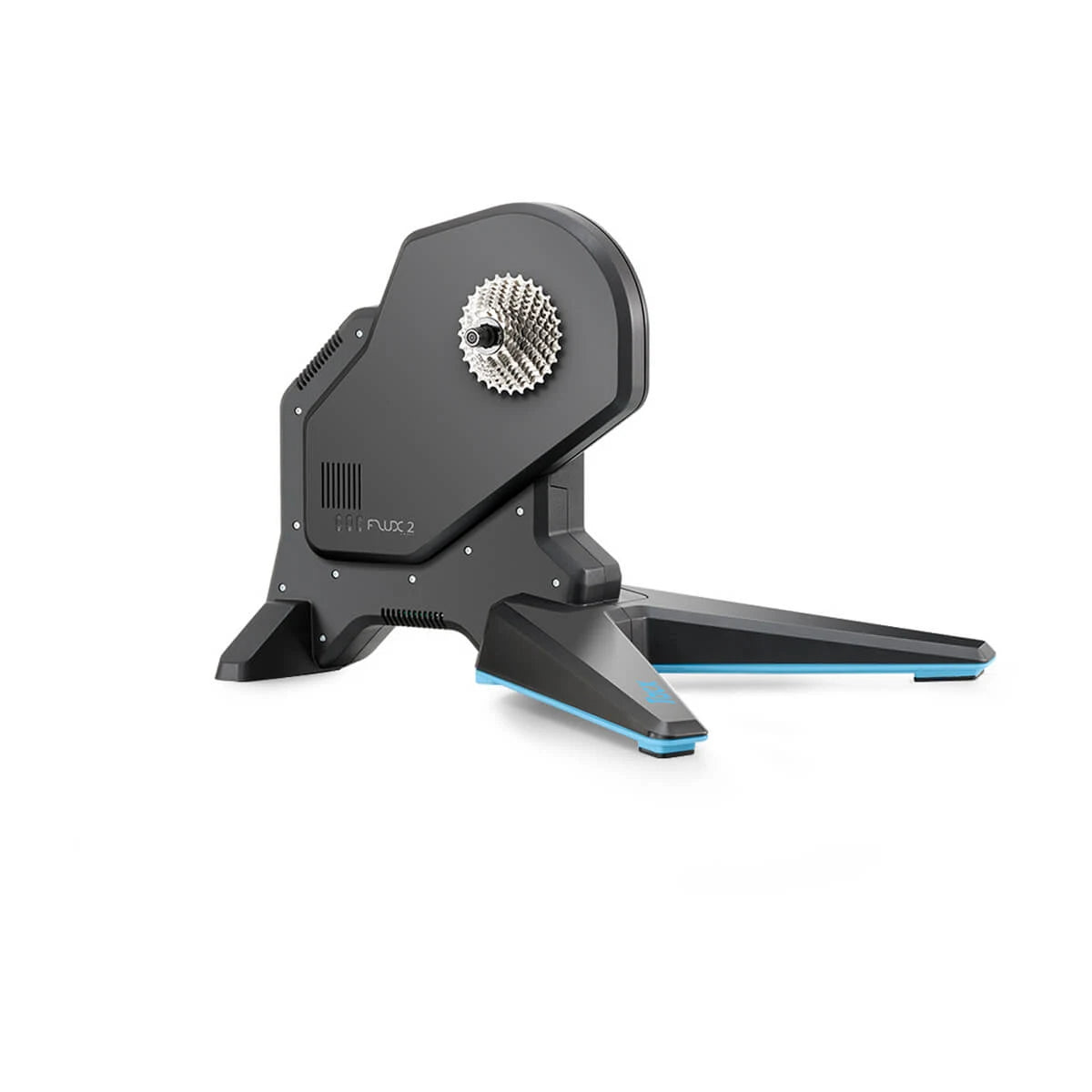

Tacx® FLUX 2 Smart Trainer
