General |
|
| Antenna Length | 72" (182.9 cm) |
|---|---|
| Rotation speed (RPM) | 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower) |
| Dimension | Pedestal: 16.6" x 14.3" x 10.7"Pedestal: 42.1 x 36.4 x 27.1 cmFull assembly: 15.9" height x 75.2" diameterFull assembly: 40.3 cm height x 190.9 cm diameter |
| Weight | Array: 16 lb (7.3 kg) |
| Water rating | IPX6 |
| Max Wind Load | 80kt |
| Beam width | 1.25° horizontal, 23° vertical |
| Maximum range | 96 nm |
| Minimum range | 6 meters |
| Radar type | Open-Array |
Electrical Features |
|
| Power Input | 10-32 V DC |
|---|---|
| Transmit power | 120 W |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | |
| MotionScope | |
| Programmable antenna parking | |
| Target size | |
| Scan averaging | |

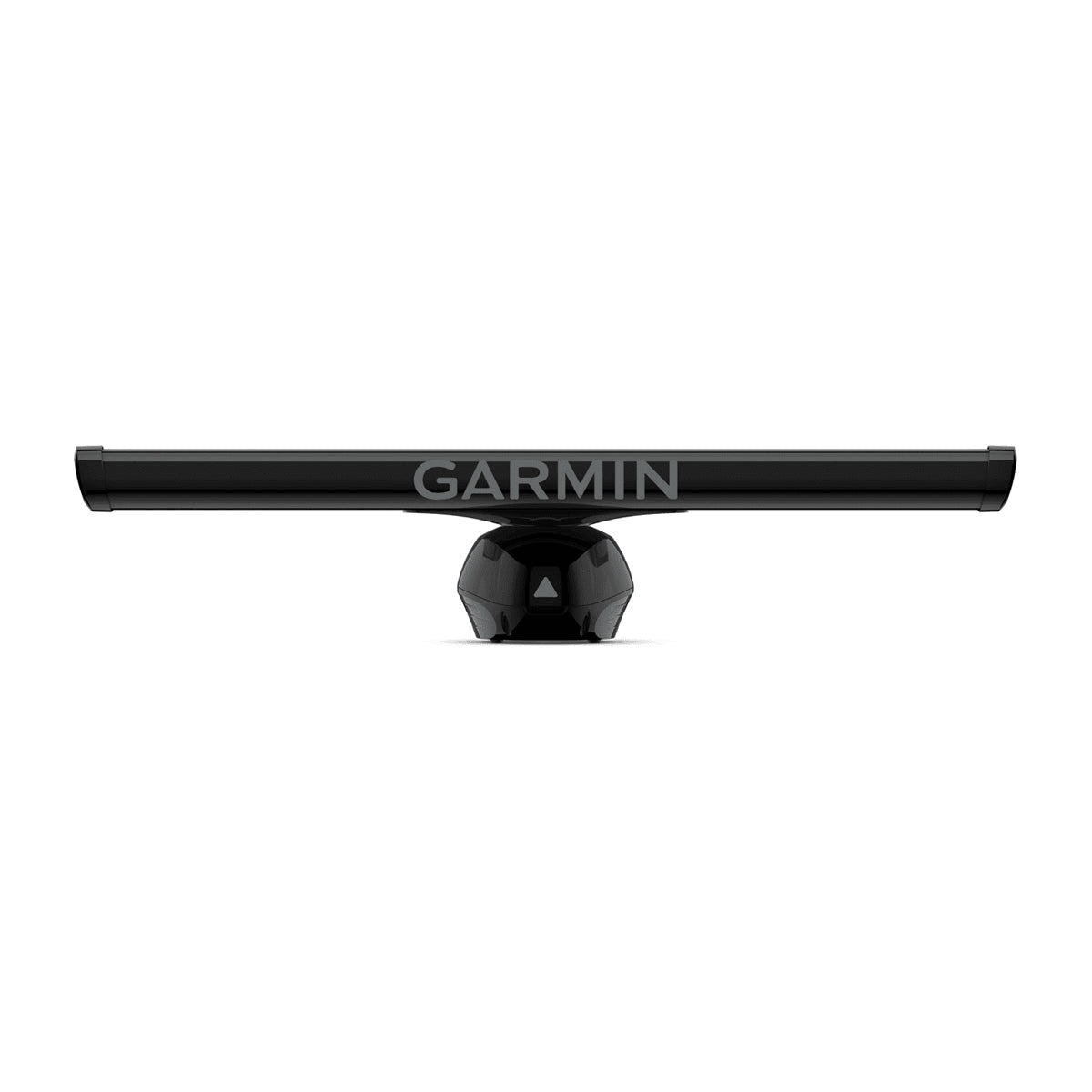

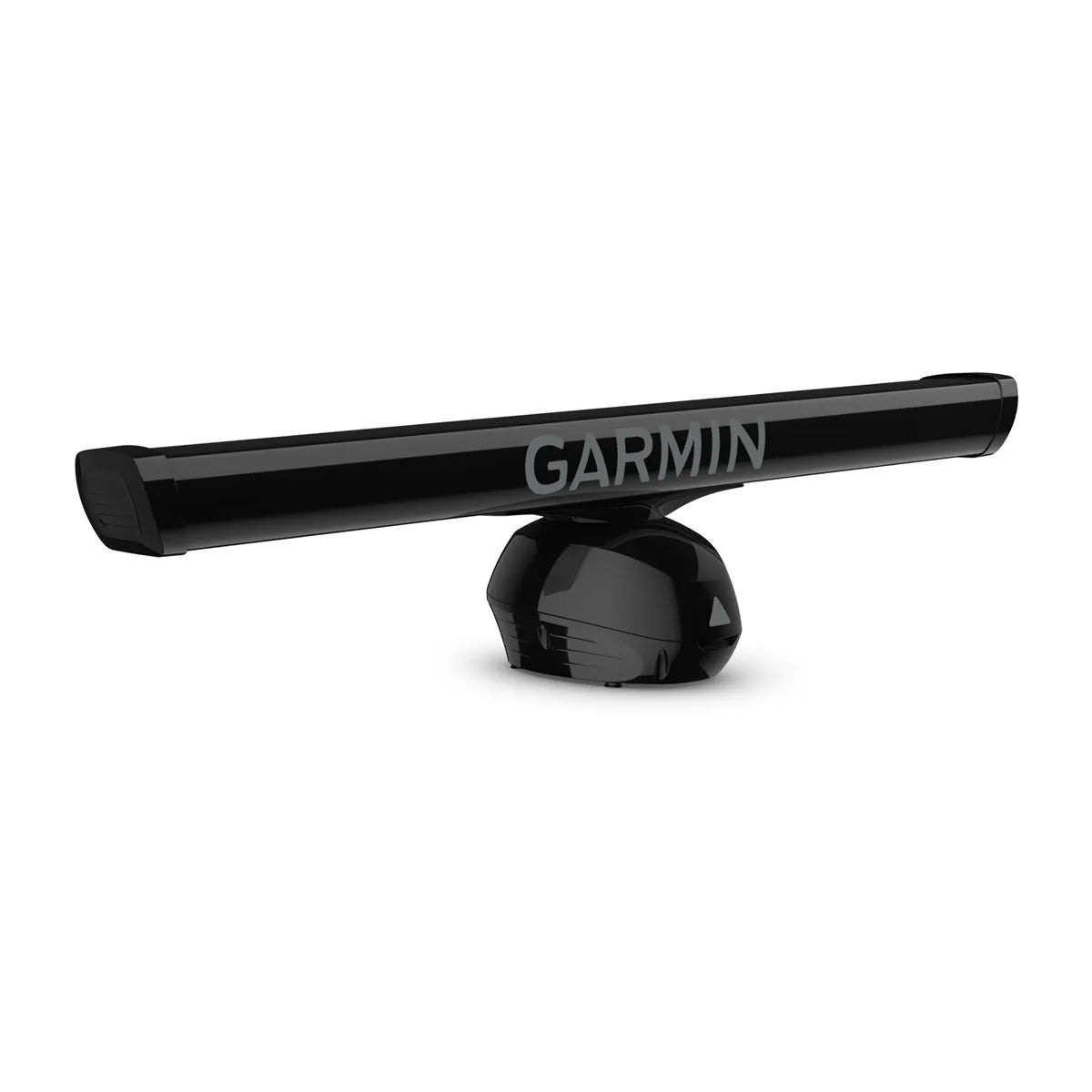

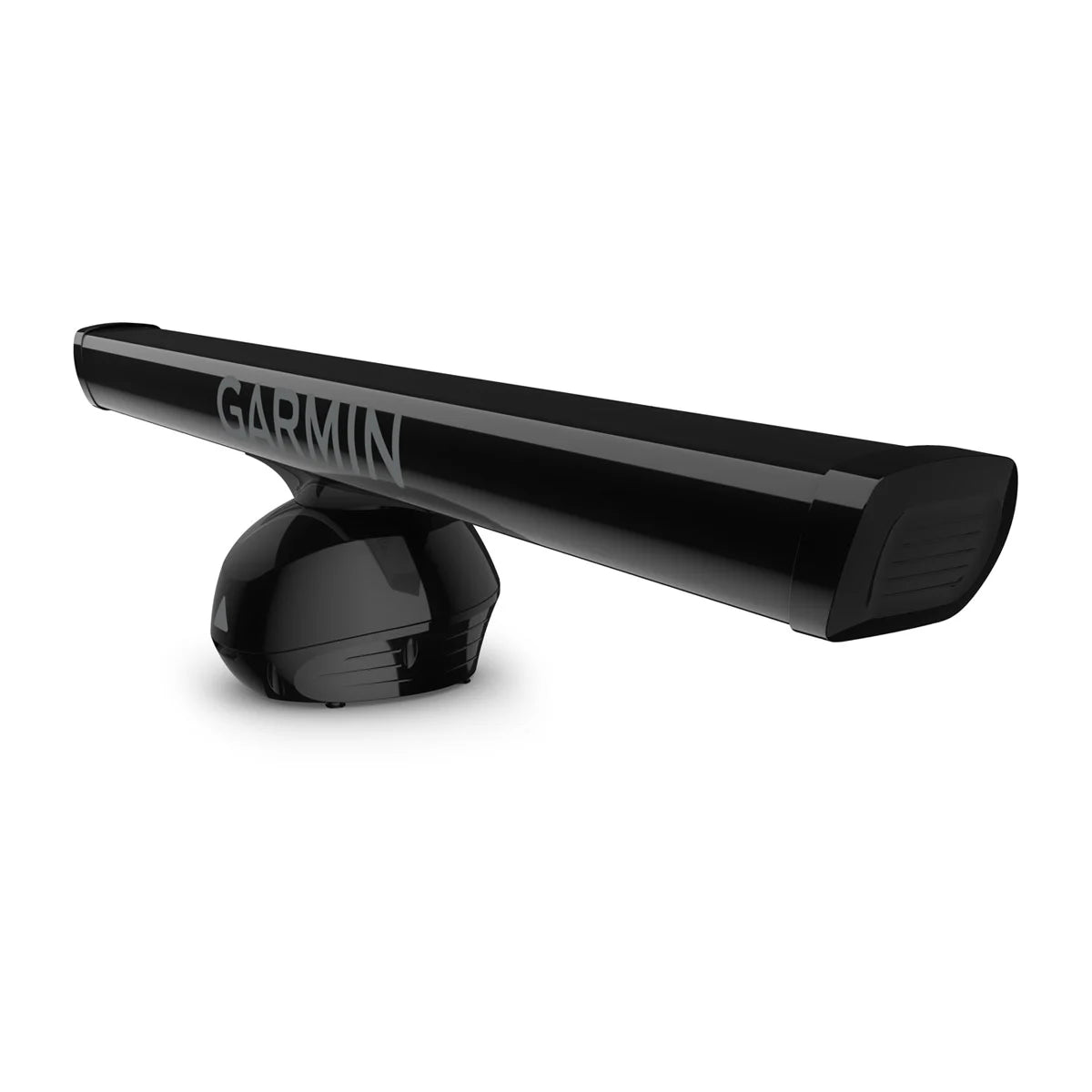

Open Array and Pedestal, Black
