General |
|
| Antenna Length | 4' array: 48" (122 cm) 6' array: 72" (183 cm) |
|---|---|
| Rotation speed (RPM) | 24 and 48 rpm |
| Dimension | 4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7") 6' array: 1938 x 122 x 170 mm (76.5" x 4.8" x 6.7") Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4") |
| Weight | 4' array and pedestal: 27.6 kg |
| Water rating | IPX6 |
| Max Wind Load | 80kt (100kt with optional voltage converter upgrade) |
| Beam width | 4' array: 1.8° horizontal, 23° vertical 6' array: 1.1° horizontal, 23° vertical |
| Maximum range | 72 nm |
| Minimum range | 20 meters |
| Radar type | Open-array |
Electrical Features |
|
| Power Input | 11-32 V DC |
|---|---|
| Power Consumption (standby) | 18 W |
| Typical power consumption, transmitting (normal mode) | 55 W |
| Transmit power | 4 kW |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | True |
| Programmable antenna parking | |
| Target size | |
| Scan averaging | |

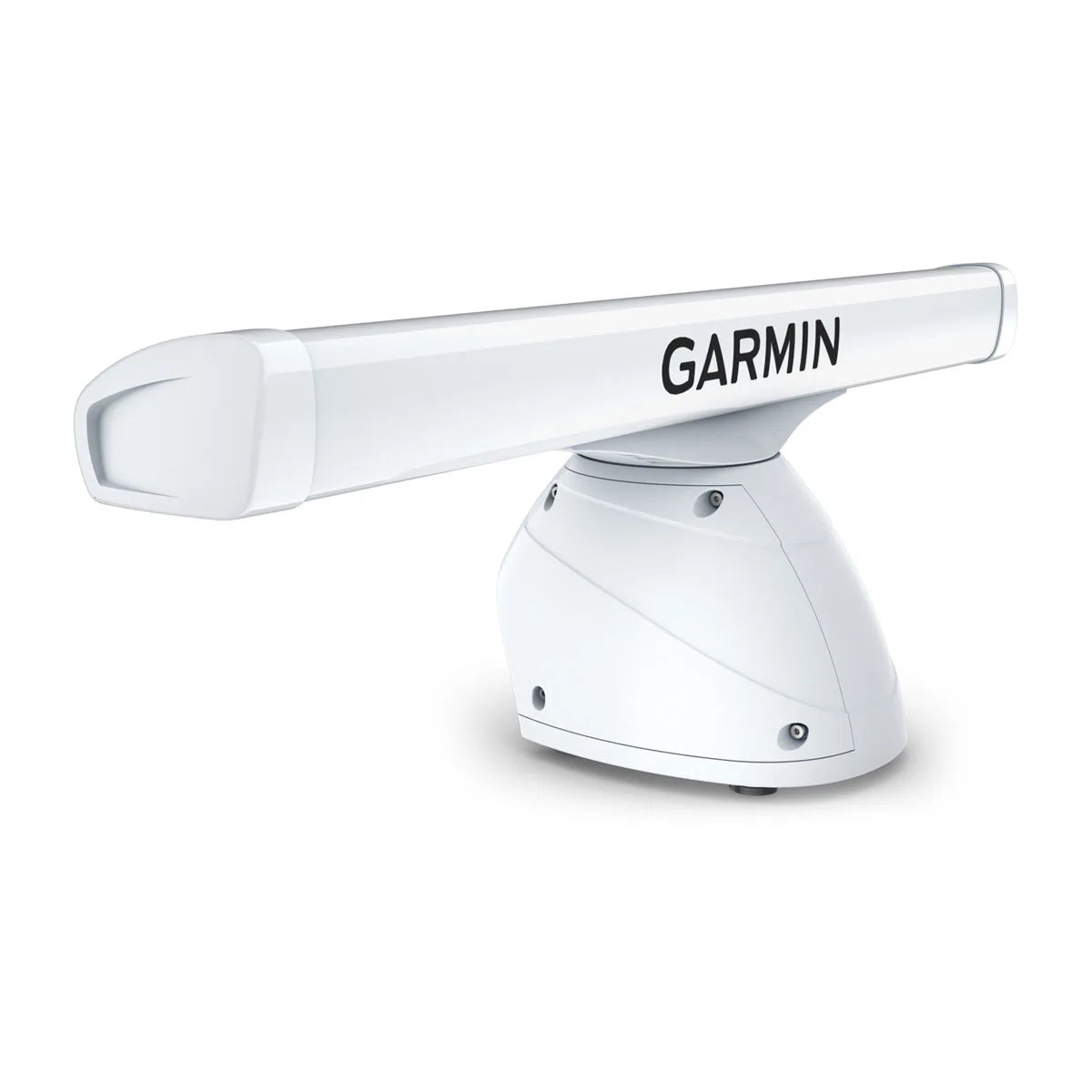

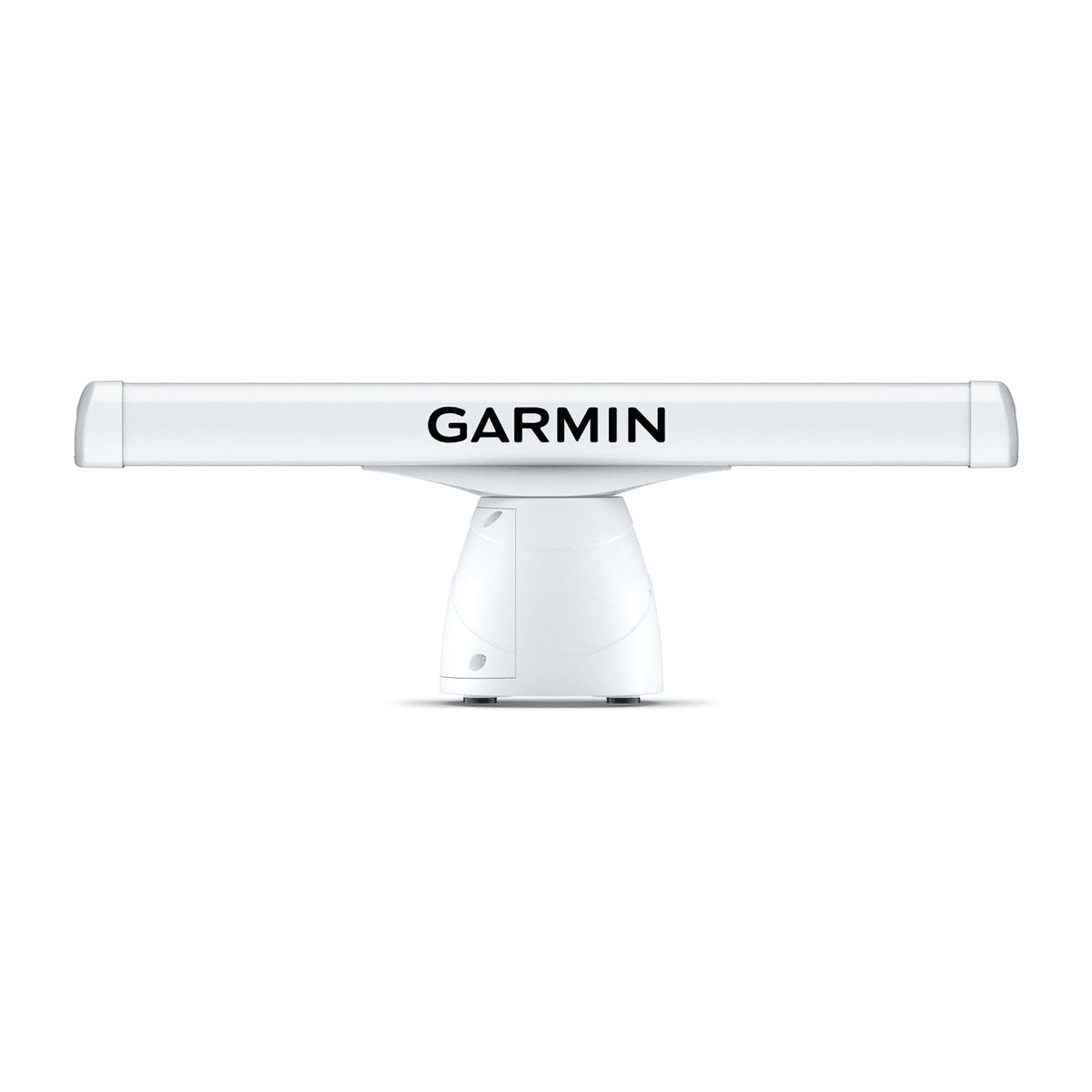

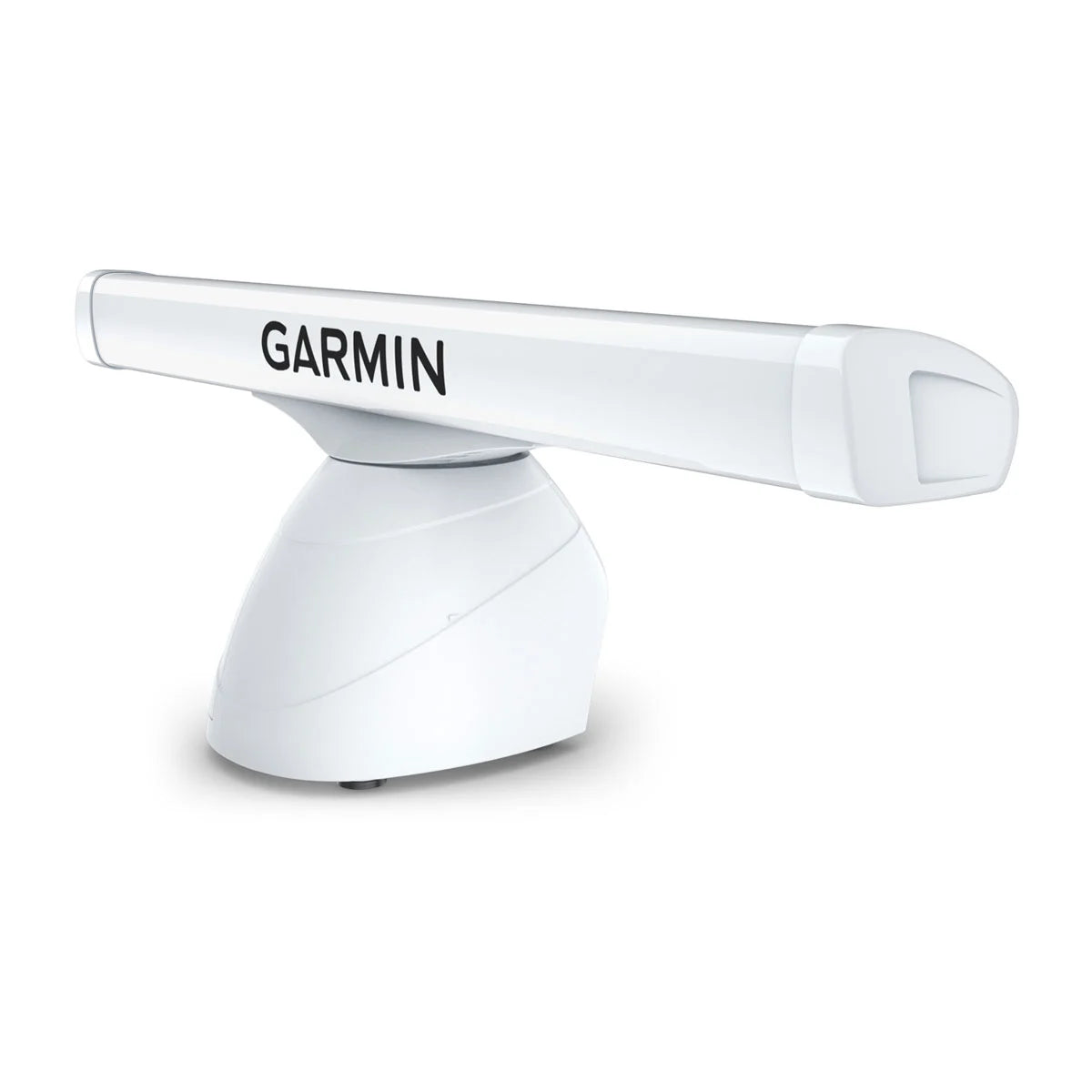

Open Array Radar and Pedestal
