General |
|
| Dimension | 24.8" x 31.5" (630 x 800 mm) |
|---|---|
| Height | 23.4" (595 mm) |

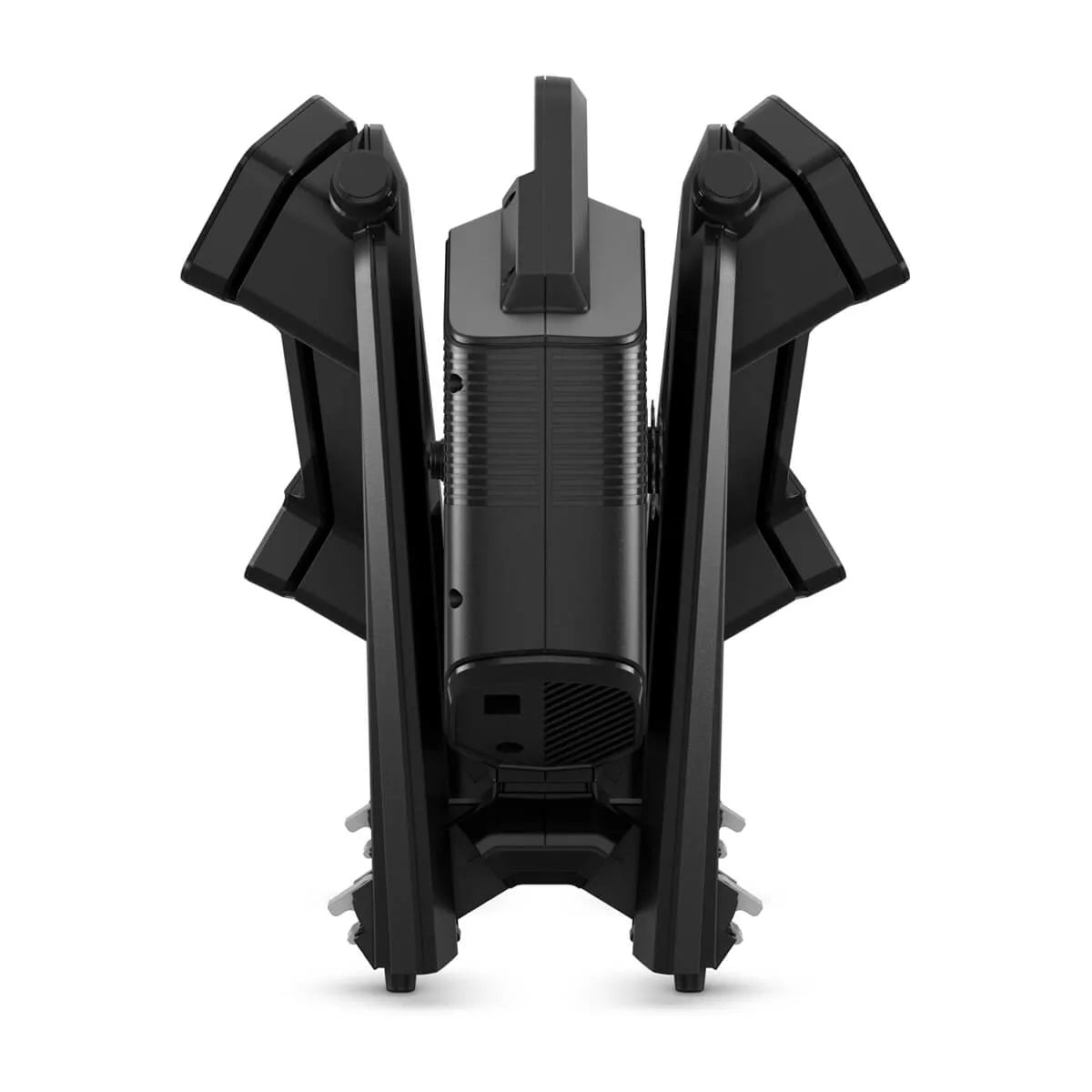

| Dimensions when folded | 27.4" x 14.0" (695 x 355 mm) |
| Weight | 52.0 lbs (23.6 kg) |
| Accuracy (+/-) | <1% |
Connectivity |
|
| Wireless communication | ANT+ connectivity, dual BLUETOOTH wireless technology connection support |
|---|---|
| Tacx smart network adapter compatibility | yes (provides Wi-Fi® and Ethernet connectivity option) |
| Control by | Smartphone, tablet, ANT+ bike computers, stand alone, computer connection via ANT+ antenna. |
| Read out on | Smartphone, tablet, bike computer, compatible smartwatch, computer with ANT+ antenna |
| Connection indicator (ANT+/Bluetooth) | Multicolor LED |
| Power indicator | Multicolor LED, spot on floor |
Indoor Training Features |
|
| Magnets | 32 neodymium magnets |
|---|---|
| Electrical requirement | 100-240 VAC 50/60Hz (with integrated power adapter) |
| Suitable cassettes | Shimano/SRAM 9 to 11 speed (compatible, 11-speed cassette included) Campagnolo (compatible, requires special cassette body) SRAM 12 speed/XDR (compatible, requires special cassette body) Shimano 12-speed Hyperglide+ |
| Suitable axles | Direct Drive quick release axle (130 mm/135 mm X 5 mm) for bikes with quick release axle Thru axle end caps (142 mm/148 mm X 12 mm) for bikes with thru-axle For bike dimensions outside of the industry standard, Garmin offers this adapter set as an additional accessory: 135 mm Thru-Axle Adapter Set [10 x 135 Non-drive Side (NDS), 12 x 135 NDS and 10 x 135 Drive-side (DS)]. |
| Max power | 2200 Watt |
| Max incline | 25% |
| Simulation of descent | |
| Max torque | 88 Nm |
| Max brake force | 260 N |
| Flywheel | Virtual |
| Mass inertia | Variable to 275.6 lbs (125 kg) |
| Calibration | No calibration needed |
| Output | Speed, cadence, power |
| Measured Speed | |
| Measured Cadence | |
| Measured Power | |
| Integrated motion plates | |
| Works without mains connection | |

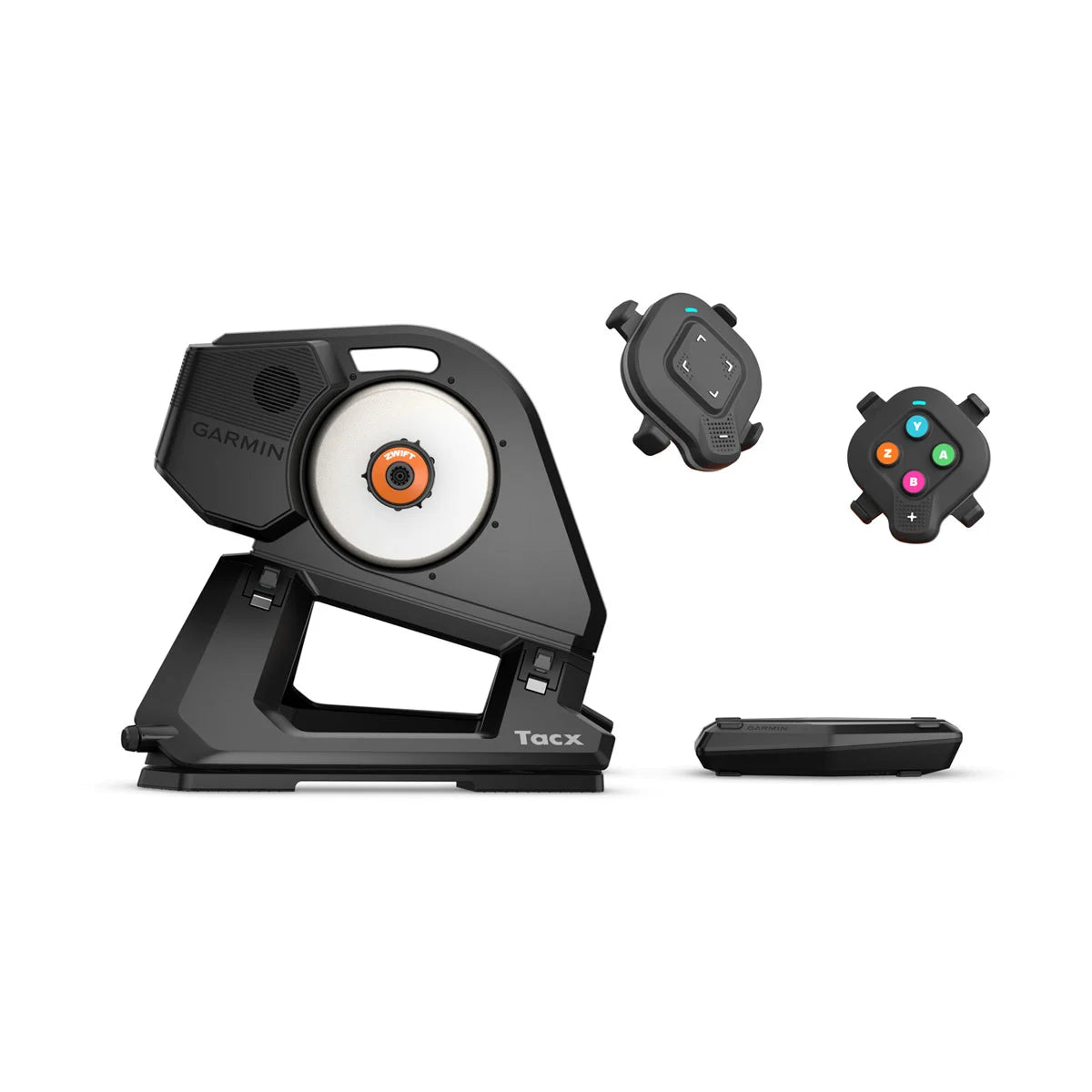

With Zwift Cog and Click and Pre-installed SHIMANO/SRAM 11-speed Cassette
