General |
|
| Dimension | 2.7 x 6.4 x 1.3” (6.8 x 16.2 x 3.4 cm) *dimensions do not include antenna |
|---|---|
| Weight | 9.9 oz (280 g) with standard antenna and battery |
| Water rating | IPX7 |
| Touchscreen | |
| Display Type | transflective, color TFT touchscreen |
| Display Size | (WxH) 4.7 cm x 7.7 cm, 3.5" diag (88.9 mm) |
| Display resolution | 282 x 470 pixels |
| Battery Type | rechargeable lithium-ion (included) |
| Battery life | up to 55 hours |
| Memory/History | 16 GB |
| Interface | high-speed USB-C |
Maps & Memory |
|
| Preloaded maps | yes (TOPOActive) |
|---|---|
| Ability to add maps | yes (see Additional) |
| Automatic routing (turn by turn routing on roads) for outdoor activities | Yes (with optional mapping for detailed roads) |
| Satellite Imagery | yes (direct to device; no annual subscription required) |
| External memory storage | microSD card (not included) |
| Waypoints/favorites/locations | 10,000 |
| Tracks | up to 20 assets (any combination of compatible dog devices and handhelds) |
| Navigation Track Log | 20,000 points, 250 saved spx tracks, 300 saved fit activities |
| Navigation Routes | 250 |
| Stored contacts | 250 dogs |
| Group management | |
Sensors |
|
| GPS | |
|---|---|
| Galileo | |
| Barometric altimeter | |
| Compass | Yes (tilt-compensated 3-axis) |
| High-sensitivity receiver | |
Safety and Tracking Features |
|
| LiveTrack | |
|---|---|
Tactical Features |
|
| XERO™ Locations | |
|---|---|
Outdoor Recreation |
|
| Point-to-point navigation | |
|---|---|
| Area calculation | |
| Fish forecast | |
| Sun and moon information | |
| Custom maps compatible | |
Radio Features |
|
| Frequency band | MURS |
|---|---|
| Channels | 5 |
| Range | 9 miles with compatible dog devices |
| Location reporting (send and receive GPS positions) | |
| Vibration alert | |
| Contacts | |
Outdoor Applications |
|
| Compatible with Garmin Explore™ app | |
|---|---|
| Garmin Explore website compatible | |
| Dog tracking | |
Networking & Connections |
|
| Wireless Connectivity | yes (Wi-Fi®, BLUETOOTH® Low Energy and ANT+®) |
|---|---|
Additional |
|
| Additional |
|
|---|---|

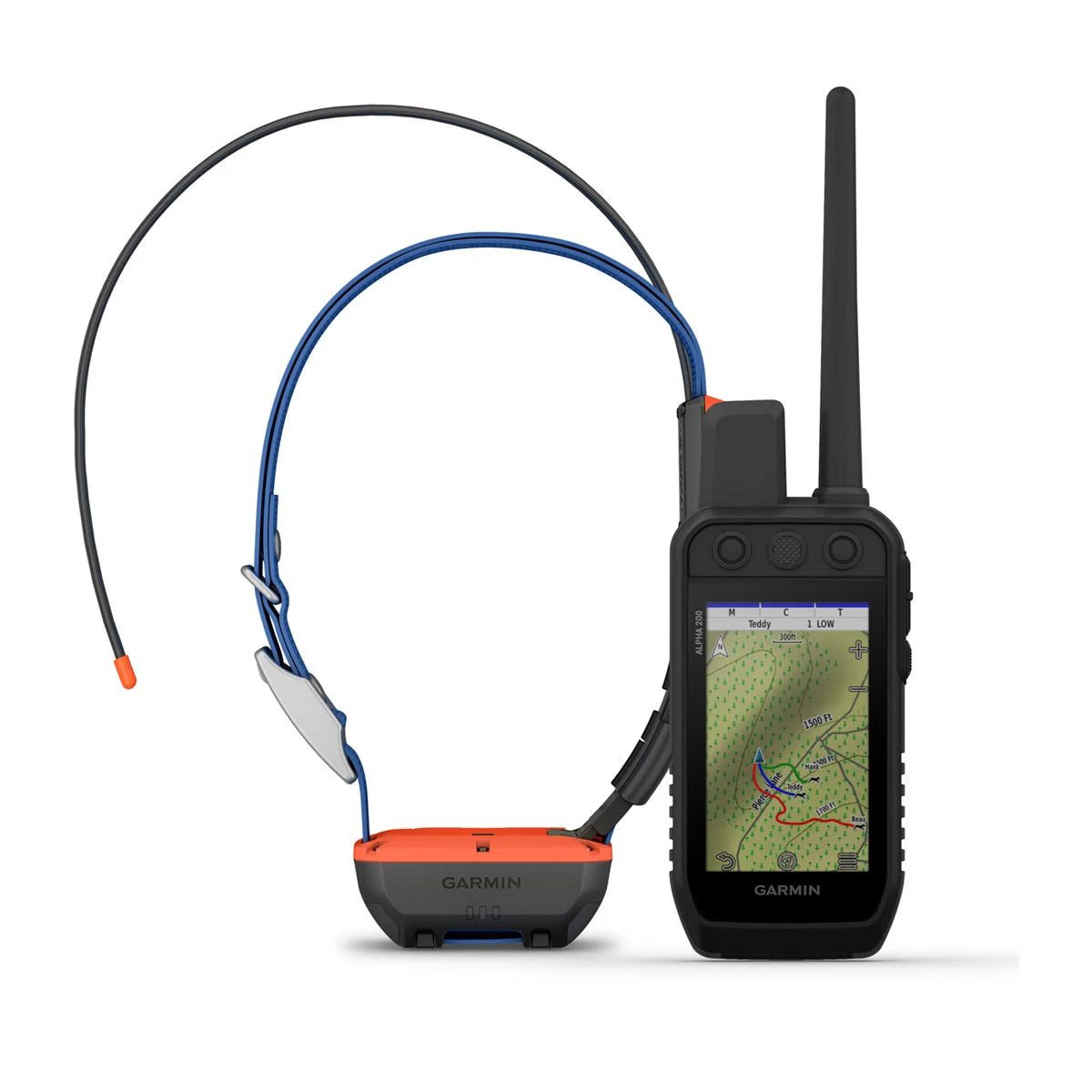

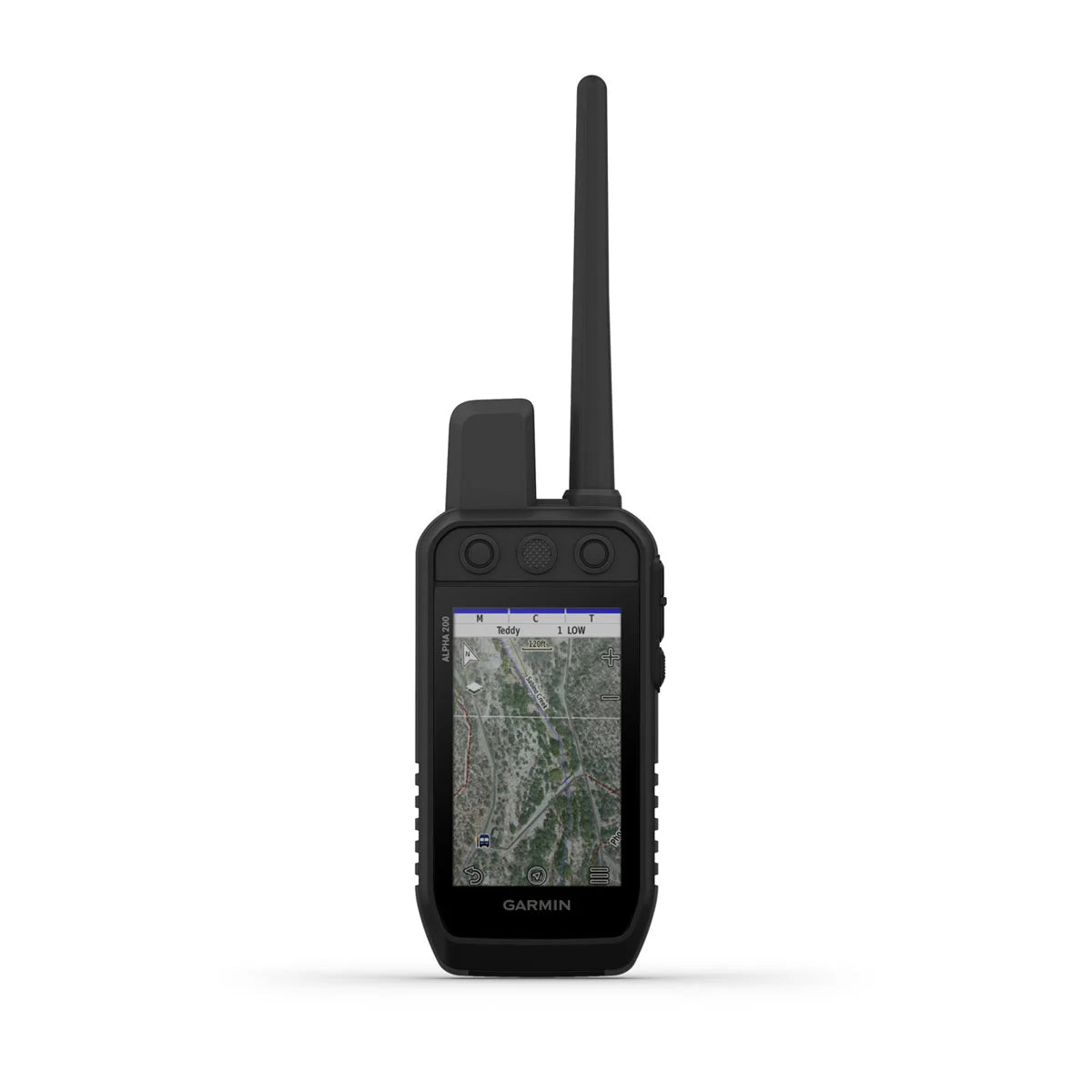

Handheld and Alpha® T 20 Dog Tracking Collar
