General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | 5.4” x 3.8” x 1.8” (13.7 x 9.7 x 4.6 cm) |
| Weight | 1.9 lbs (0.9 kg) |
| Temperature range | Operating: 0° C to 40° C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
Sonar Features |
|
| Frequency | 530 - 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @100' | 22" |
Networking & Connections |
|
| Garmin Marine Network Ports | 1 (small connector) |
|---|---|

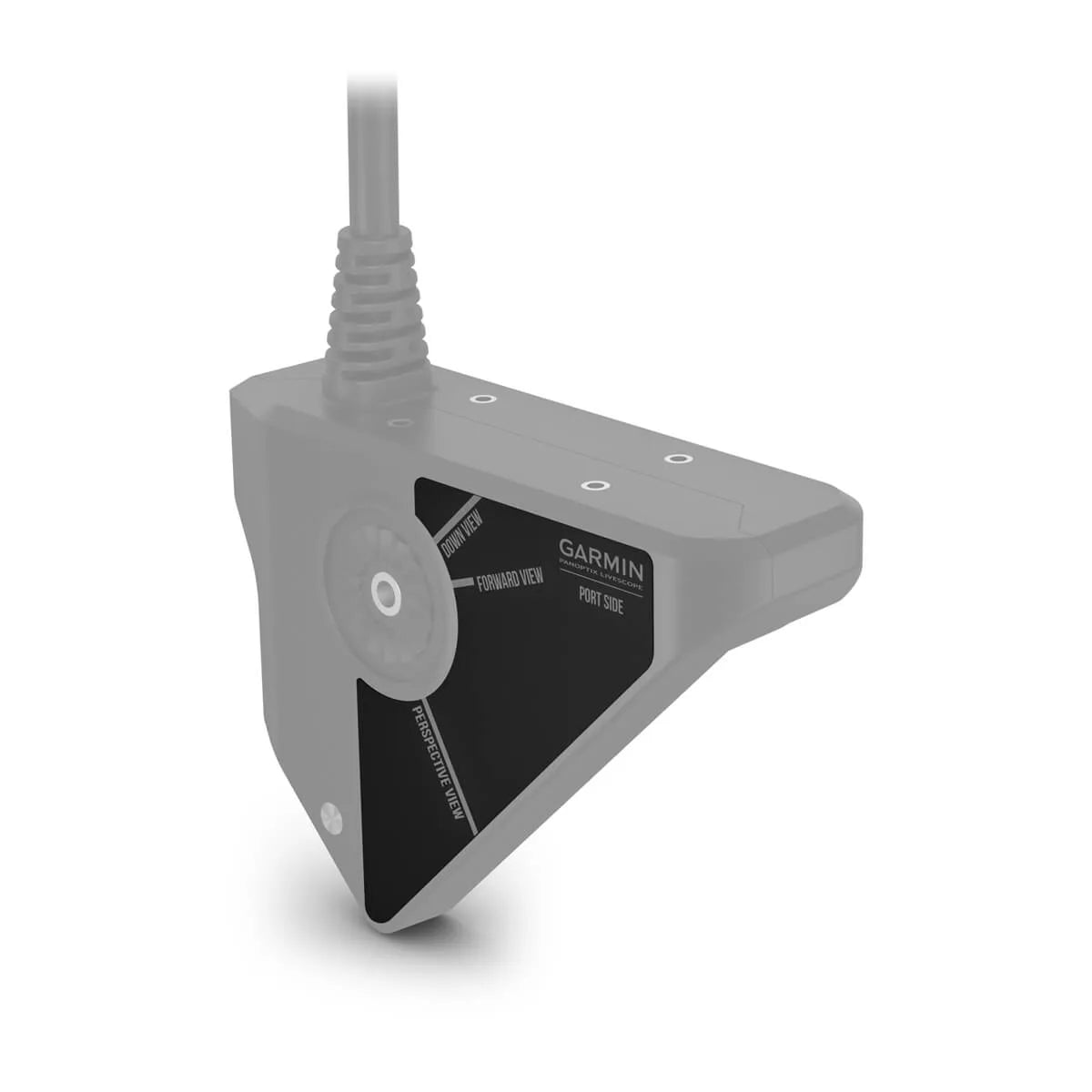

Sonar Modes |
|
| LiveVü Down | |
|---|---|
| LiveVü Forward | |
| Perspective mode | |
| Traditional sonar source | |
