General |
|
| Warranty | 3 years |
|---|---|
| LED colors | Full spectrum RGB, Blue, Blue and White (5000 K), White (5000 K) |
| LED type | RGB: 2 x 0.5 W Red/2 x 0.5 W Blue/2 x 0.5 W Green Blue: 3 x 0.5 W Blue Blue and White: 3 x 0.5 W Blue/3 x 0.5 W White White: 3 x 0.5 W White |
| Beam angle | ultra wide |
| Number of lights via direct power | Not limited |
| Number of lights per Eclipse Comand Center/Expansion module zone | 32 |
| Electrical installation | 2 wire |
| Operating voltage | 10-15 VDC |
| Current consumption 12 V (max) | 0.1 A |
| Average power draw | 1.2 W |
| Construction | Clear acrylic body, chrome fInish, stainless steel bezel (fitting bezel is optional) |
| Water and dust rating | IP68 |
Control Options |
|
| Direct power via on/off switch | Blue/Blue and White/White: yes |
|---|---|
| Momentary switch | yes (via ECLIPSE Command Center) |
| Eclipse Command Center | |
| Compatible MFD | yes (via ECLIPSE Command Center) |
| Smart device | yes (via ECLIPSE Command Center) |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 1.77" (45 mm) |
|---|---|
| Mounting diameter clearance (without bezel) | 1.3" (33 mm) |
| Mounting depth clearance | 1.04" (26.5 mm) |
| Frontal protrusion (profile) | 0.15" (3.8 mm) |
| Frontal protrusion (without bezel) | 0.144" (3.66 mm) |
| Mounting hole | 0.9" (23 mm) |
| Mechanical installation | Marine adhesive (not supplied) |

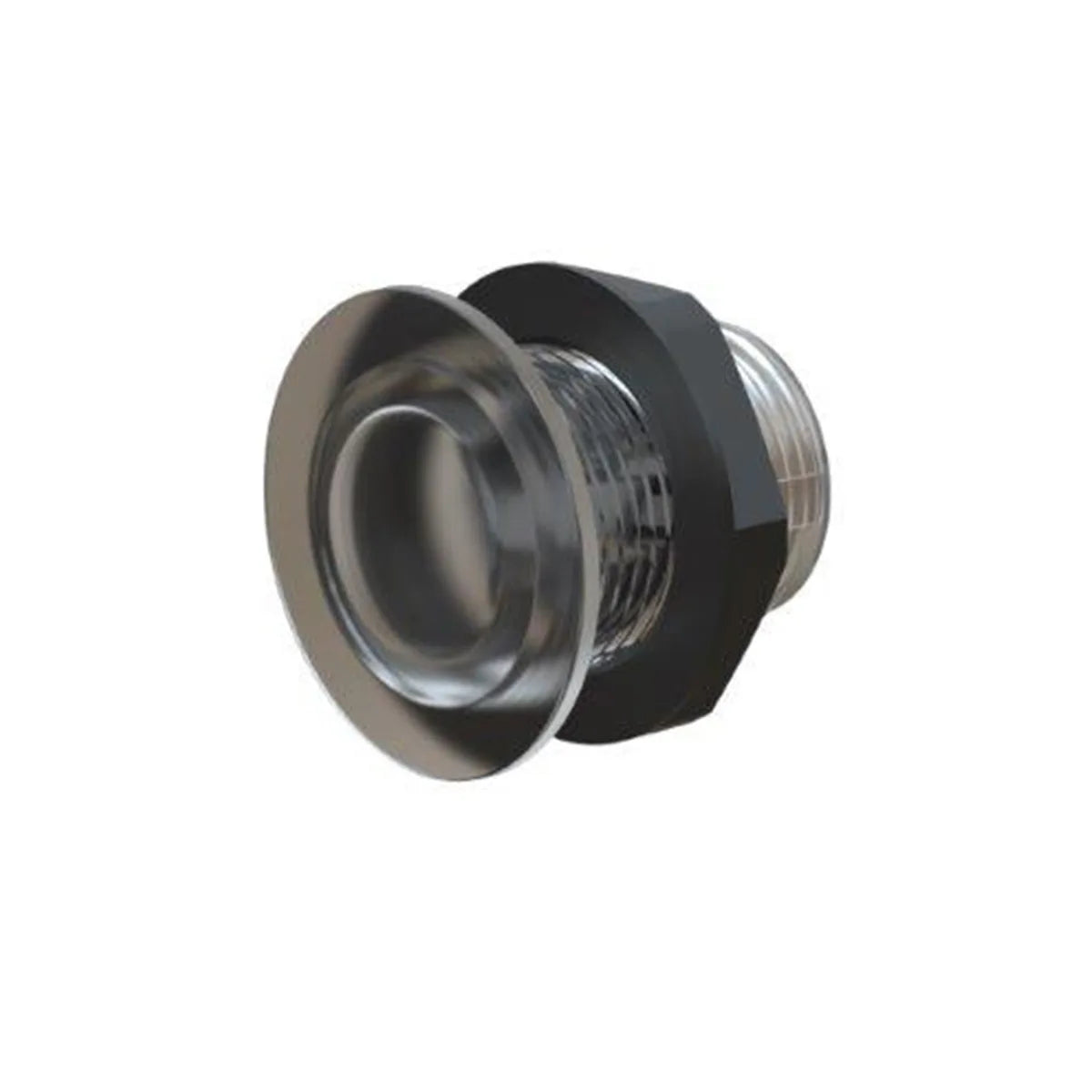

RGB Courtesy Light
