General |
|
| Warranty | 3 years |
|---|---|
| LED colors | White (6500K) + Full spectrum RGB Dual Color: Blue and White (6500K) |
| LED type | RGB: 48 x 3 W Red/36 x 3 W Green/36 x 3 W Blue/36 x 10 W White Blue and White: 108 x 3 W Blue/48 x 10 W White |
| Fixture lumens | RGB: 17,500 Blue and White: 20,000 |
| Beam angle | 110° |
| Electrical installation | RGB: Plug and Play (data), simple 2 wire connection (power) Blue and White: Plug and Play |
| Operating voltage | 24 V |
| Operating voltage range | 20-31 VDC |
| Current consumption 24 V (max) | 6.5 A |
| Average power draw | 156 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Hub or via SUPRA Bridge with SUPRA Hub) |
|---|---|
| EOS-LUX Command Center | RGB: yes |
| SUPRA Bridge | Blue and White: yes |
| SUPRA i-Connect Hub | Blue and White: yes |
| Hub required | SUPRA only |
| Compatible MFD | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub) |
| Smart device | RGB: yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub) |
Lighting Functionality |
|
| Applicable Controllers/Hubs | SUPRA i-Connect Hub/EOS i-Connect Hub/SUPRA Bridge/EOS-LUX Command Center |
|---|---|
| External DMX/RDM | EOS only |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 5.51" (140 mm) |
|---|---|
| Mounting depth clearance | 7.24" (184 mm) |
| Frontal protrusion (profile) | 0.43" (11 mm) |
| Mounting hole | 3.63" (92 mm) |
| Dimensions (width) | 5.51" (140 mm) |
| Dimensions (depth) | 7.67" (195 mm) |
| Dimensions (height) | 5.5" (140 mm) |
| Mechanical installation | Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately). |

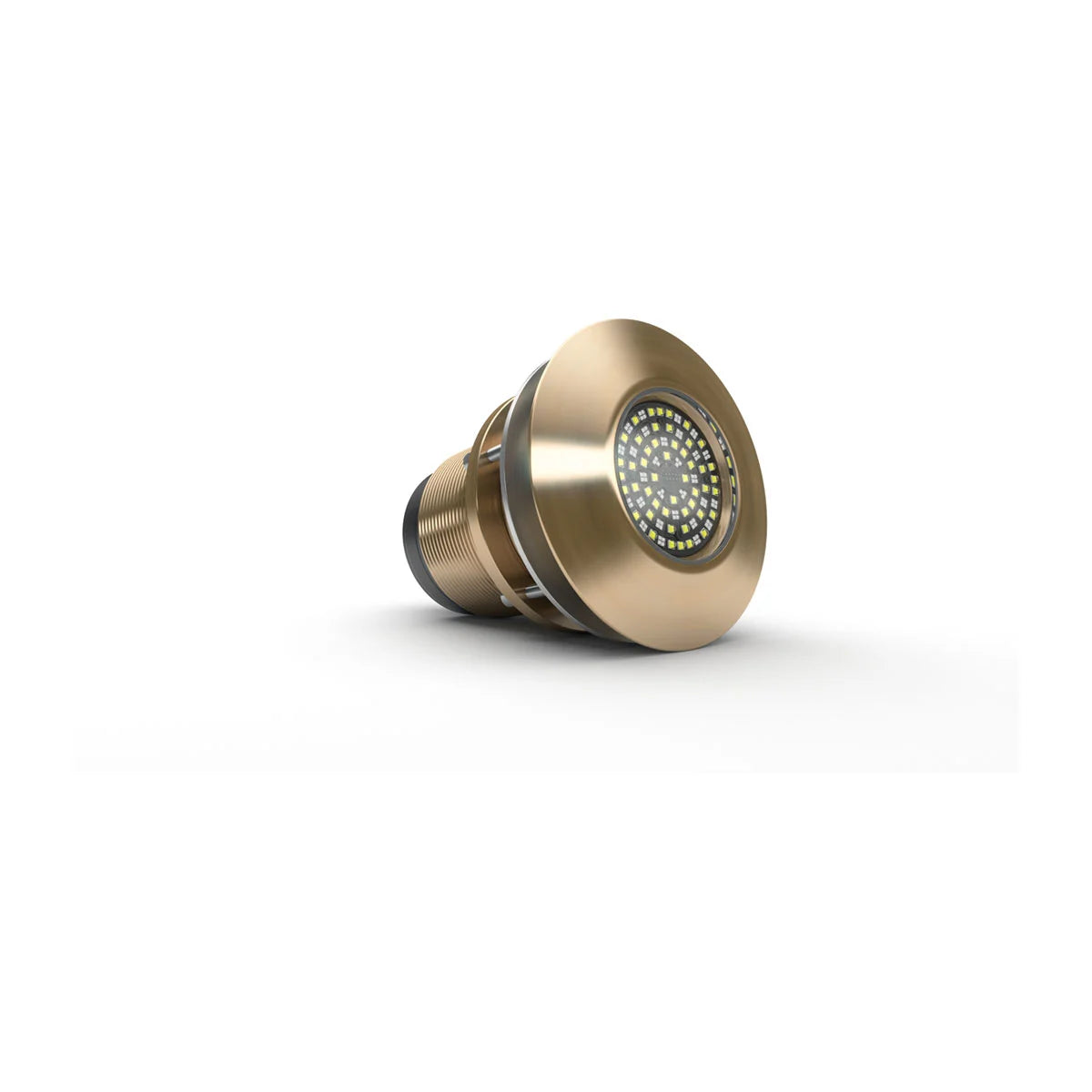

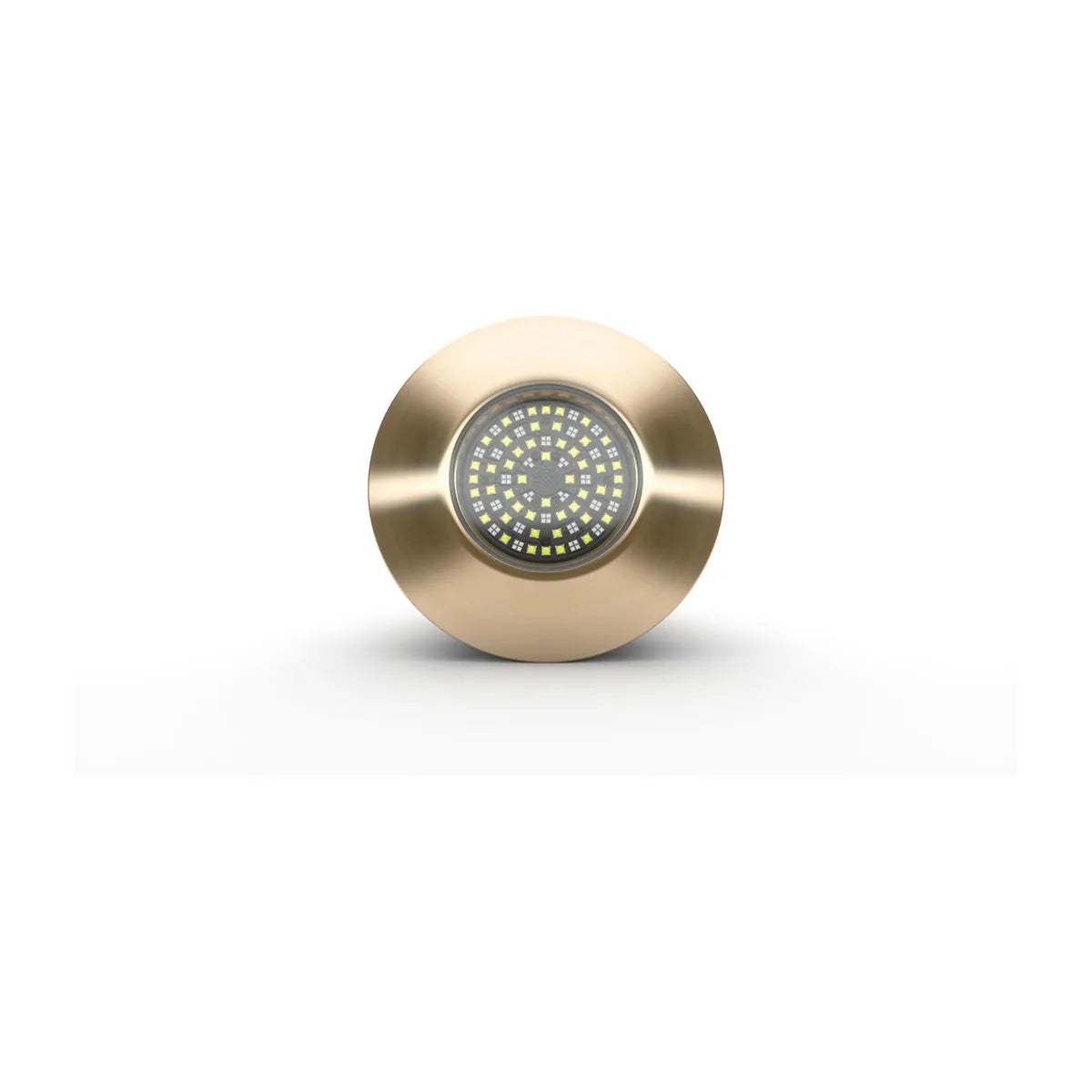

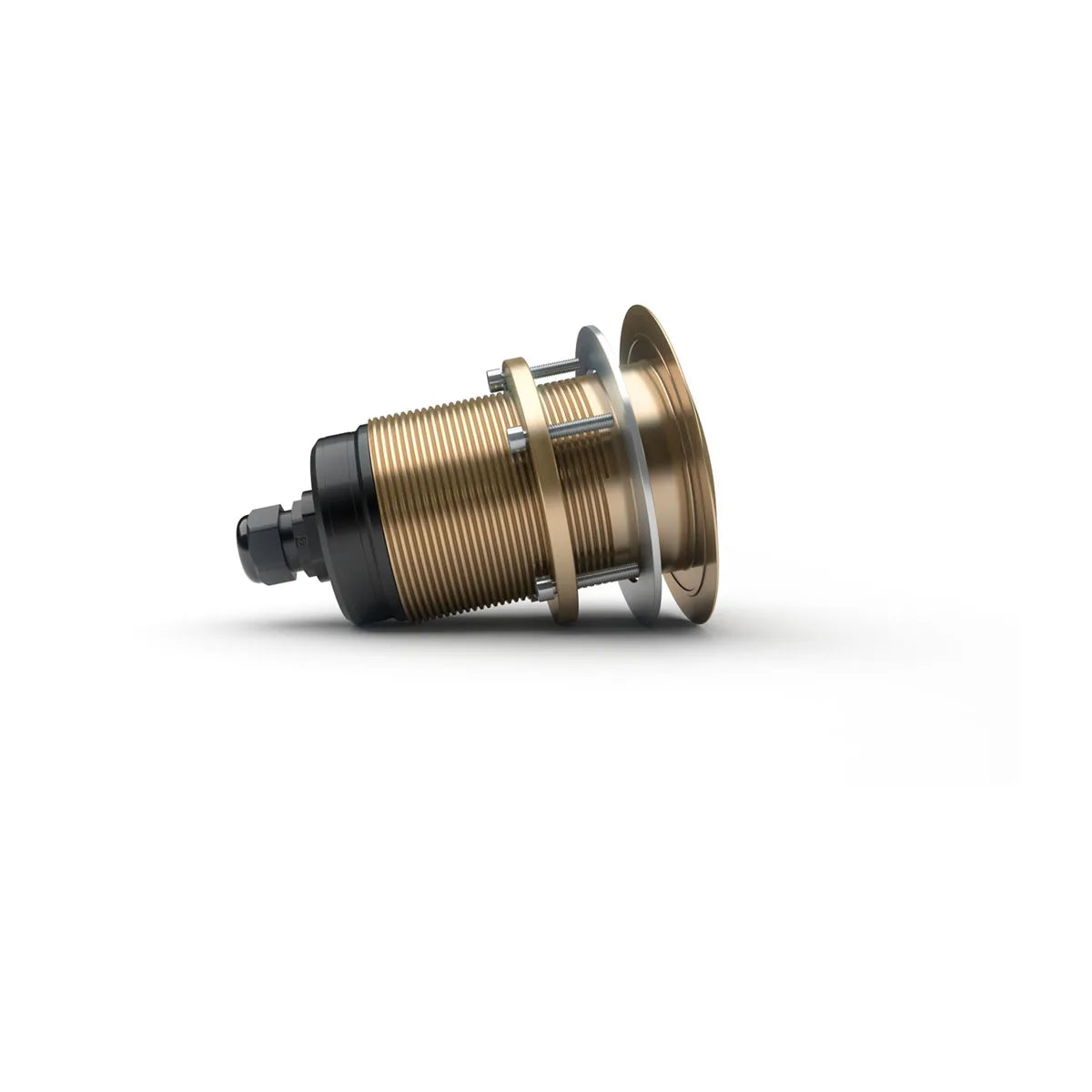

Blue/White Dual Color Light
