General |
|
| Warranty | 3 years |
|---|---|
| LED colors | Dual Color: Blue and White (6500K) |
| LED type | 24 x 3 W Blue/12 x 10 W White |
| Fixture lumens | 8,150 |
| Beam angle | 110° |
| Electrical installation | Plug and Play |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 6.4 A |
| Current consumption 24 V (max) | 3.2 A |
| Average power draw | 77 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | yes (via Supra Hub or via SUPRA Bridge with SUPRA Hub) |
|---|---|
| SUPRA Bridge | |
| SUPRA i-Connect Hub | |
| Hub required | yes (SUPRA i-Connect Hub) |
| Compatible MFD | yes (via SUPRA Bridge with SUPRA Hub) |
| EOS-LUX-SUPRA Display | yes (via SUPRA Bridge with SUPRA Hub) |
Lighting Functionality |
|
| Applicable Controllers/Hubs | SUPRA i-Connect Hub/SUPRA Bridge |
|---|---|
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 3.39" (86 mm) |
|---|---|
| Mounting depth clearance | 5.51" (140 mm) |
| Frontal protrusion (profile) | 0.43" (11 mm) |
| Mounting hole | 1.06" (27 mm) |
| Dimensions (width) | 3.39" (86 mm) |
| Dimensions (depth) | 5.93" (151 mm) |
| Dimensions (height) | 3.39" (86 mm) |

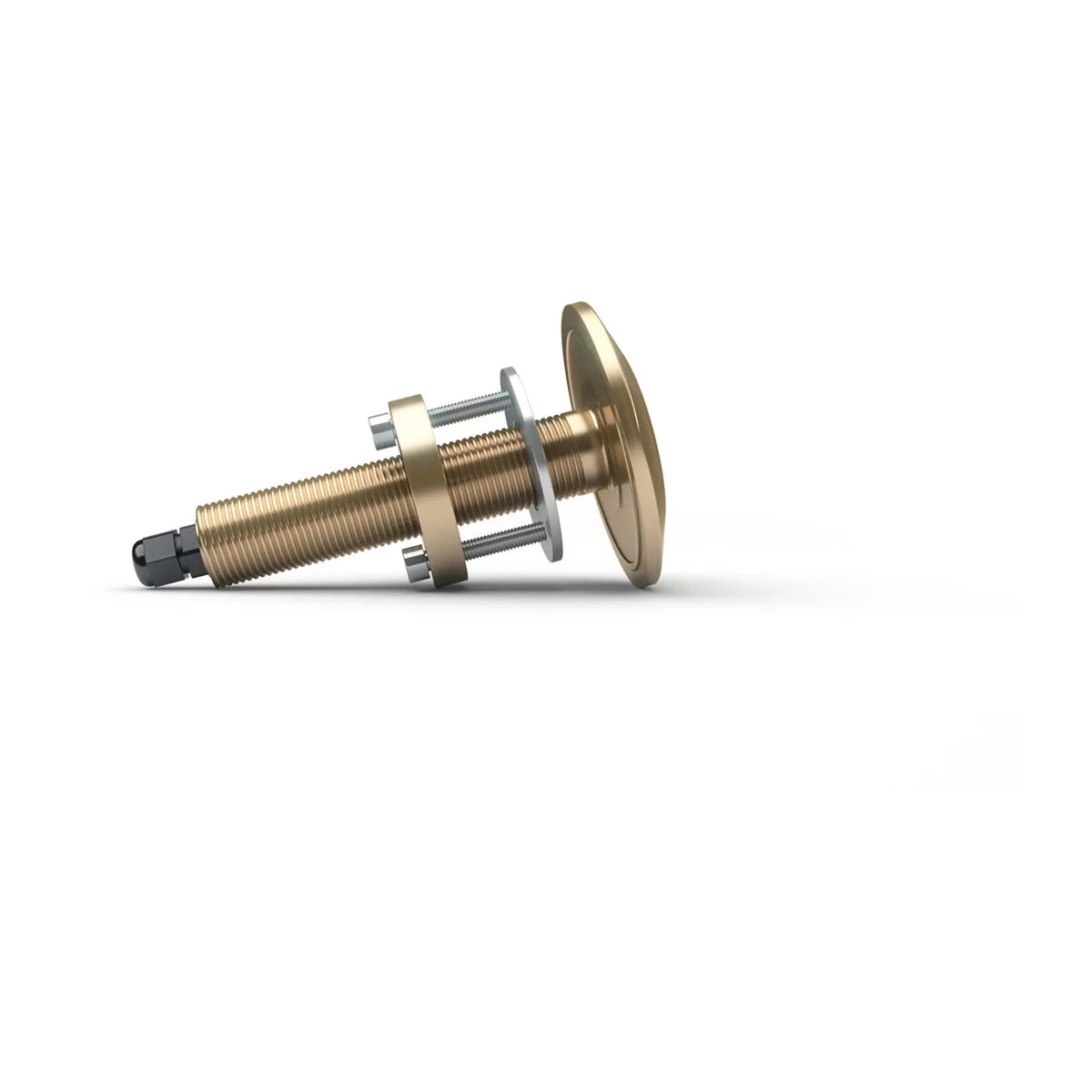

| Mechanical installation | Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately). |

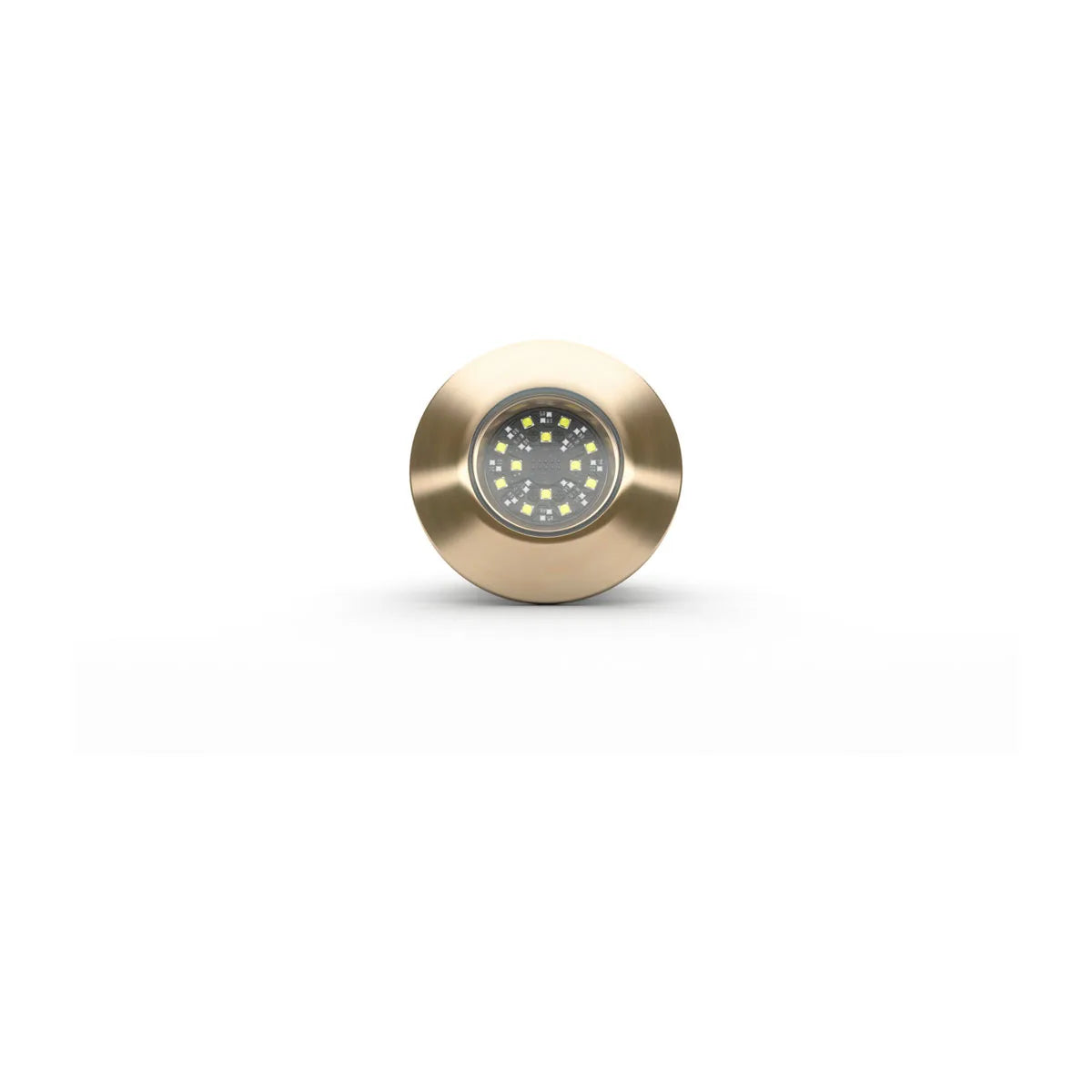

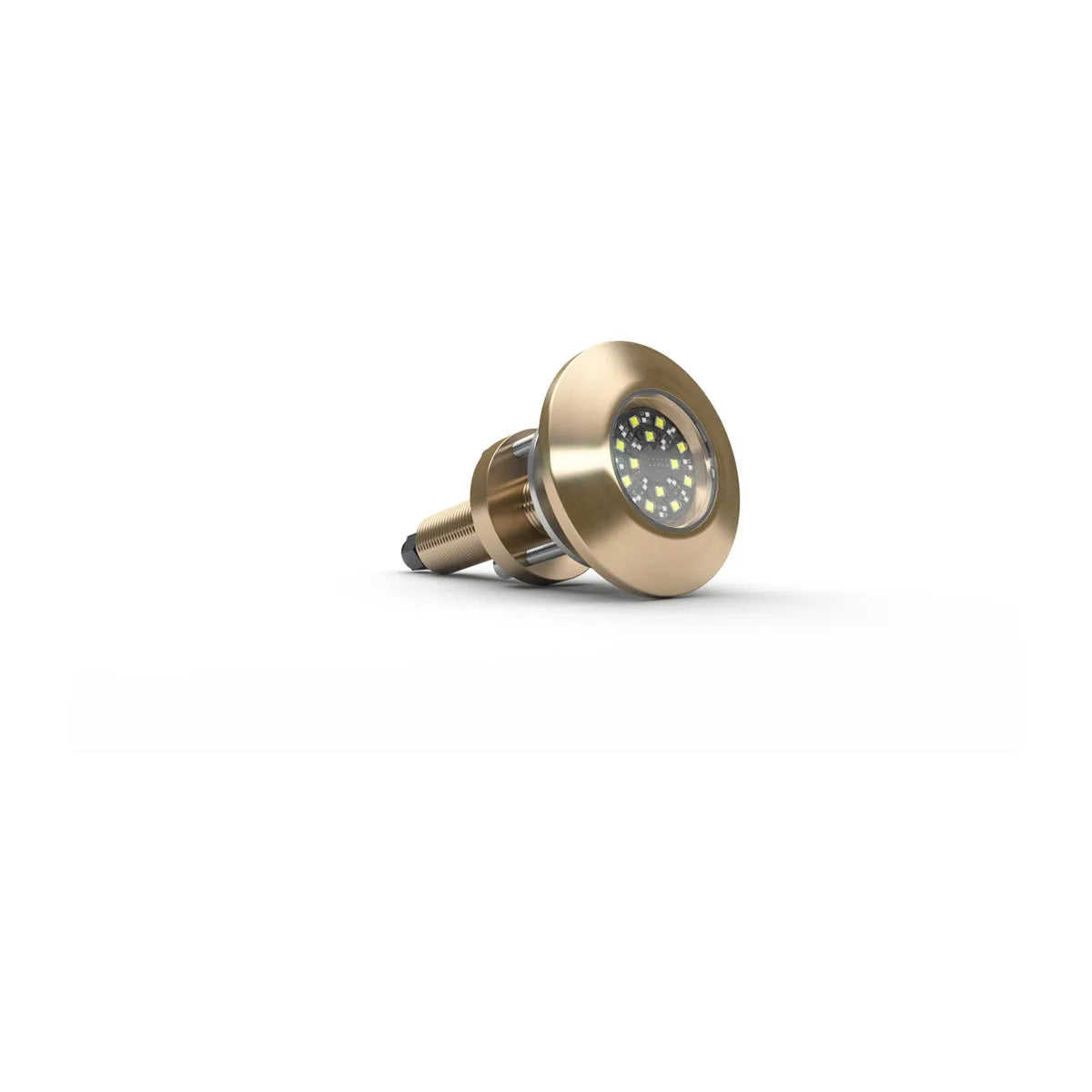

Blue/White Dual Color Light & External Driver
