General |
|
| Warranty | 3 years |
|---|---|
| LED colors | White (6500K) + Full spectrum RGB |
| LED type | 16 x 3 W Red/12 x 3 W Green/12 x 3 W Blue/12 x 10 W White |
| Fixture lumens | 7,000 |
| Beam angle | 90° |
| Electrical installation | Plug and play |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 4 A |
| Current consumption 24 V (max) | 2 A |
| Average power draw | 48 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | yes (via EOS-LUX Command Center) |
|---|---|
| EOS-LUX Command Center | |
| Hub required | yes (EOS i-Connect Hub) |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Lighting Functionality |
|
| Applicable Controllers/Hubs | EOS-LUX Command Center/EOS i-Connect Hub |
|---|---|
| External DMX/RDM | yes (EOS i-Connect Hub) |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 3.7" (94 mm) |
|---|---|
| Frontal protrusion (profile) | 0.7" (18 mm) |
| Mounting hole | 0.53" (13.5 mm) |
| Dimensions (width) | 3.7" (94 mm) |
| Dimensions (depth) | 0.7" (18 mm) |
| Dimensions (height) | 3.7" (94 mm) |
| Mechanical installation | Three marine bronze screws (included). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately). |

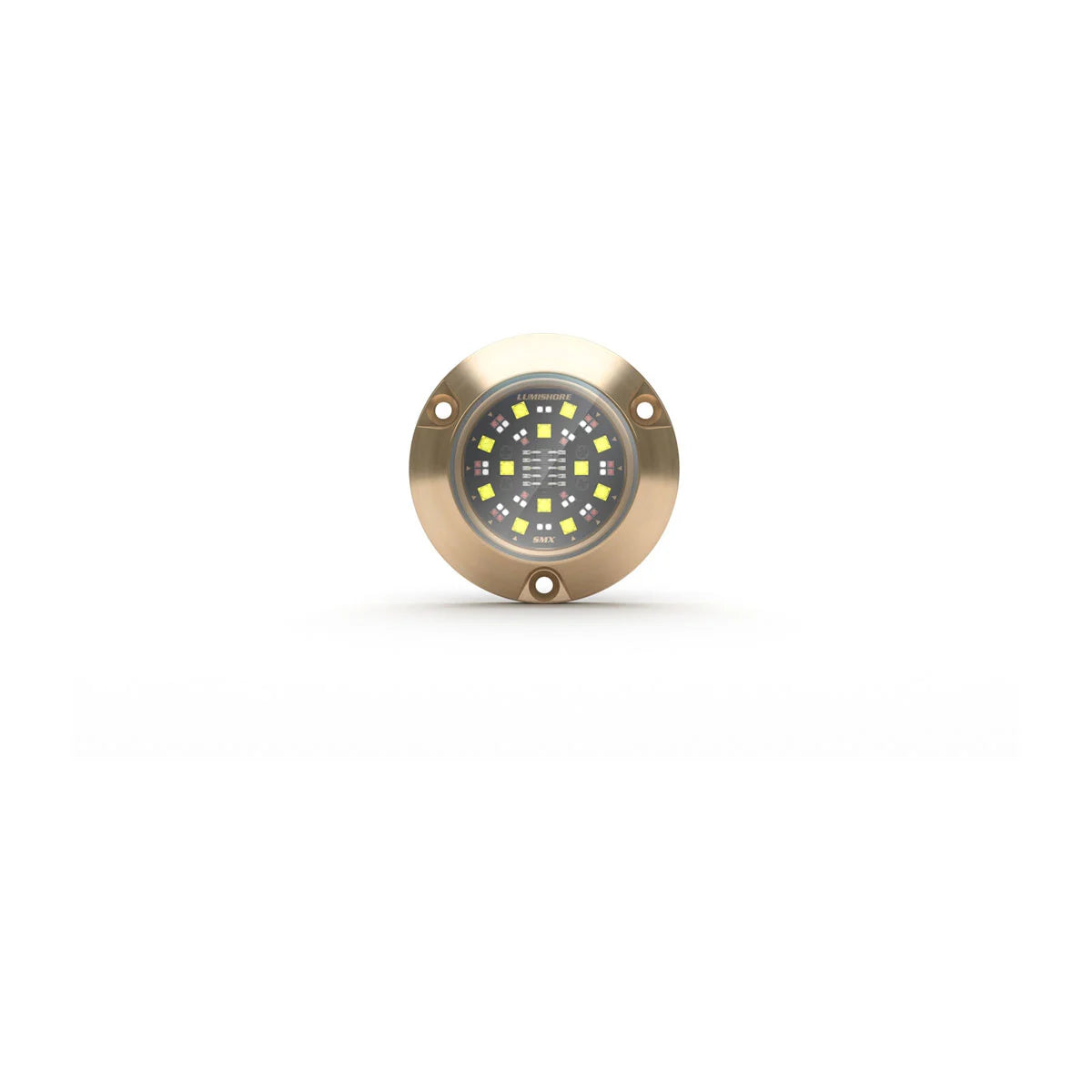

RGBW Full Color Light
