General |
|
| Warranty | 3 years |
|---|---|
| LED colors | White (6500K) + Full spectrum RGB Dual Color: Blue and White (6500K) Single Color, White (6500K) |
| LED type | RGB: 16 x 3 W Red/12 x 3 W Green/12 x 3 W Blue/12 x 10 W White Blue and White: 24 x 3 W Blue/12 x 10 W White White: 12 x 10 W White |
| Fixture lumens | RGB: 7,500 Blue and White: 8,150 White: 5,100 |
| Beam angle | 110° |
| Electrical installation | RGB/Blue and White: Plug and Play White: Simple 2 wire connection |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | RGB: 5.8 A Blue and White: 6.4 A White: 4 A |
| Current consumption 24 V (max) | RGB: 2.9 A Blue and White: 6.4 A White: 2 A |
| Average power draw | RGB: 70 W Blue and White: 77 W White: 48 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water and dust rating | IP68 |
Control Options |
|
| Direct power via on/off switch | White: yes |
|---|---|
| Momentary switch | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Hub or via SUPRA Bridge with SUPRA Hub) |
| EOS-LUX Command Center | RGB: yes |
| SUPRA Bridge | Blue and White: yes |
| SUPRA i-Connect Hub | Blue and White: yes |
| Hub required | |
| Compatible MFD | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub) |
| Smart device | RGB: yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub) |
Lighting Functionality |
|
| Functionality with direct power | White: startup in white |
|---|---|
| Applicable Controllers/Hubs | SUPRA i-Connect Hub/EOS i-Connect Hub/SUPRA Bridge/EOS-LUX Command Center |
| External DMX/RDM | EOS only |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 3.47" (88 mm) |
|---|---|
| Mounting depth clearance | 5.35" (136 mm) |
| Frontal protrusion (profile) | 0.32" (8 mm) |
| Mounting hole | 2.25" (57 mm) |
| Dimensions (width) | 3.47" (88 mm) |
| Dimensions (depth) | 5.67" (144 mm) |
| Dimensions (height) | 3.47" (88 mm) |
| Mechanical installation | Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately). |

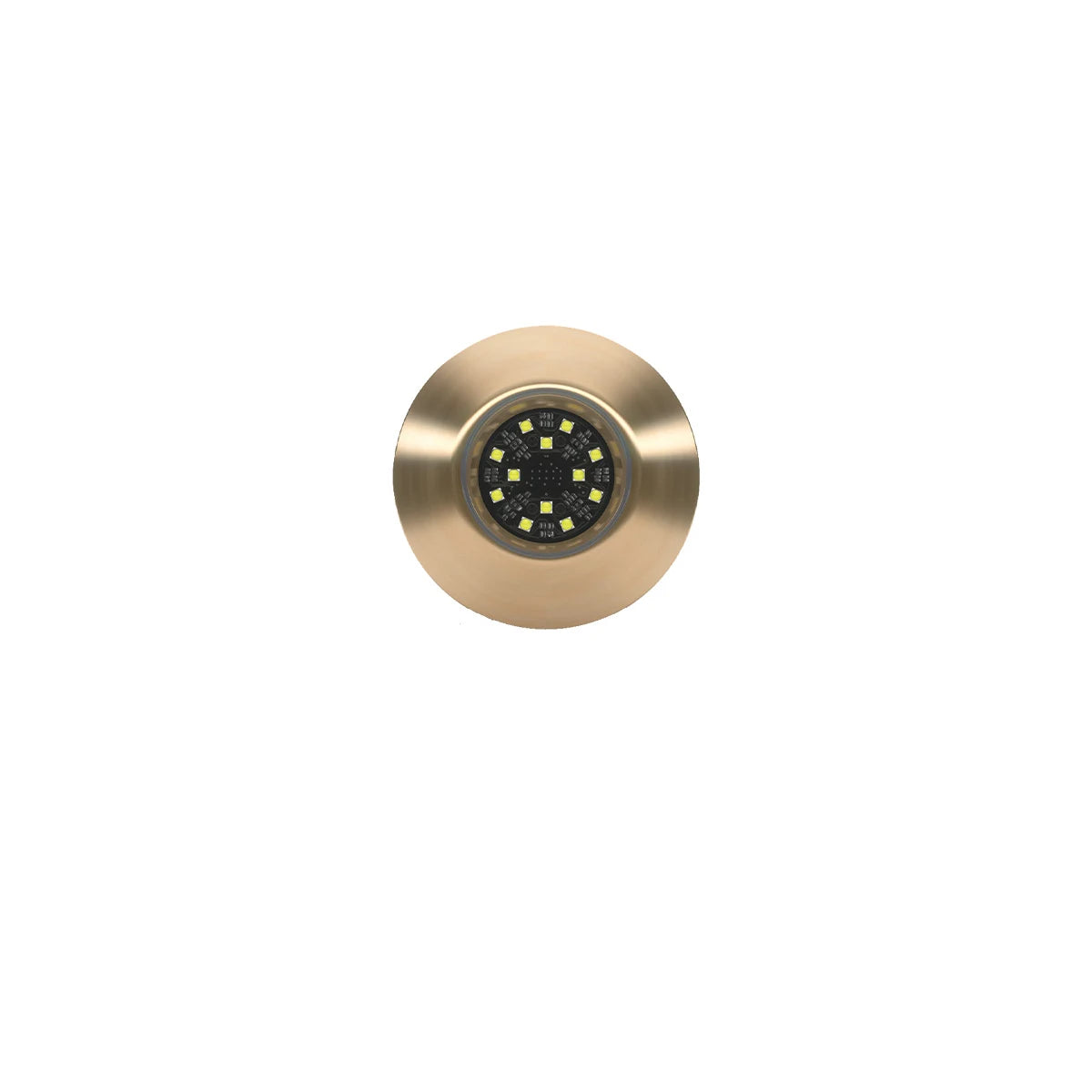

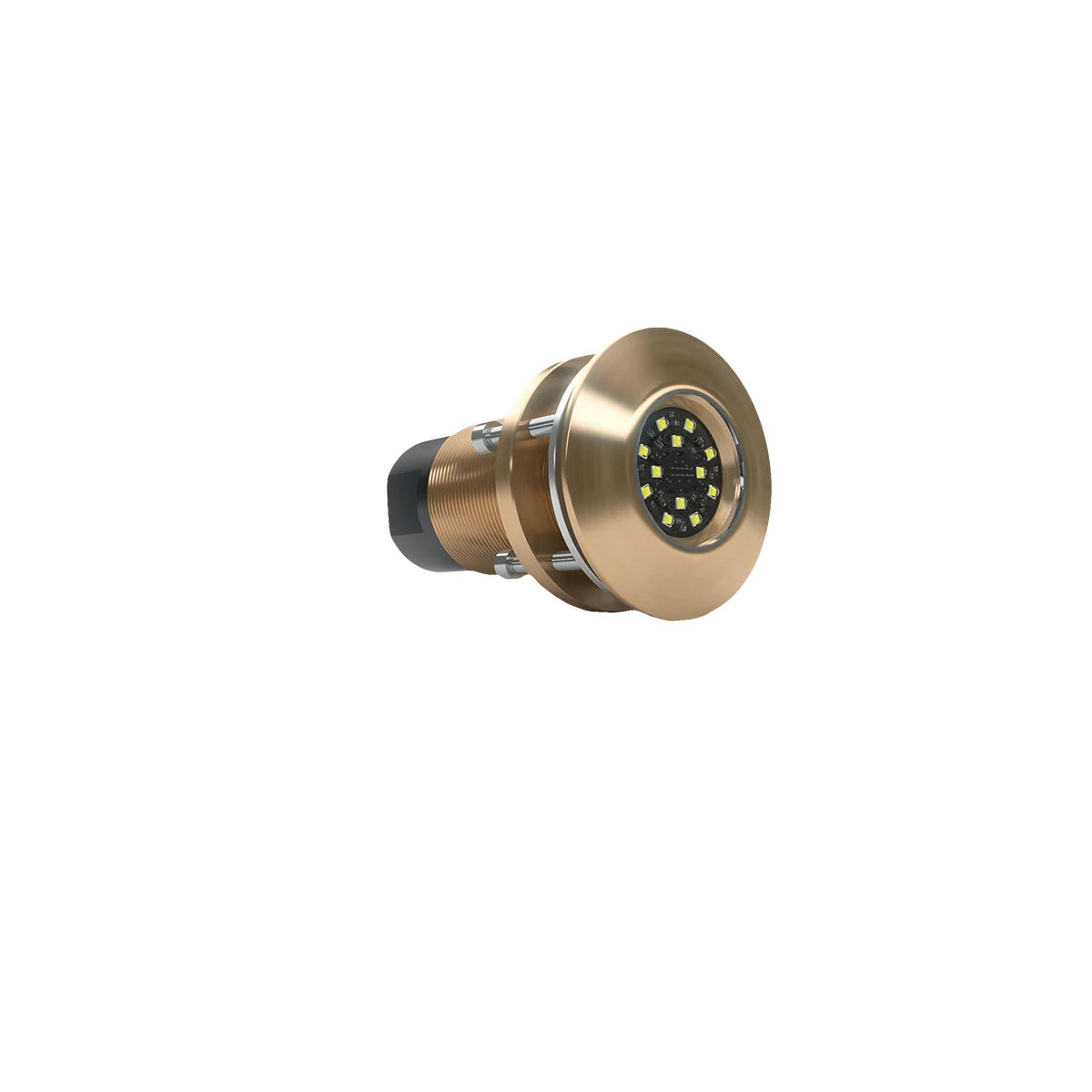

White Single Color Light
