General |
|
| Warranty | 3 years |
|---|---|
| LED colors | White (5000 K) |
| LED type | 4": 3 x 10 W White 18": 12 x 10 W White |
| Fixture lumens | 4": 1,500 18": 10,000 |
| Beam angle | 70°-90° oval beam |
| Number of lights via direct power | Not limited |
| Number of lights per Eclipse Comand Center/Expansion module zone | 16 max. More than one light-Vin and Gnd are supplied separately to Command Center/Expansion Module |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 2 wire connection (3 wires when used with ECLIPSE Command Center or LUX Control Module) |
| Operating voltage | 10.5-31 VDC |
| Current consumption 12 V (max) | 4": 1.7 A 18": 9.2 A |
| Current consumption 24 V (max) | 4": 0.9 A 18": 4.6 A |
| Average power draw | 4": 22 W 18": 110 W |
| Construction | Powder coated aluminum body with forsted lens |
| Water and dust rating | IP68 |
Control Options |
|
| Direct power via on/off switch | |
|---|---|
| Momentary switch | yes (via ECLIPSE Command Center OR LUX Control Module) |
| Eclipse Command Center | |
| EOS-LUX Command Center | |
| Compatible MFD | yes (via ECLIPSE Command Center or EOS-LUX Command Center) |
| Smart device | yes (via ECLIPSE Command Center or EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 4" (flush fit): 1.89" x 4.89" (48 mm x 124 mm) |
|---|---|
| Mounting depth clearance | 4" (flush fit): 1.42" (36 mm) |
| Frontal protrusion (profile) | 4" (flush fit): 0.34" (9 mm) |
| Mounting hole | 4" (flush fit): 1.52" x 4.1" (38.6 mm x 104 mm) |
| Dimensions (width) | 4" (flush fit): 4.89" (124 mm) 4": 4.21" (107 mm) 18": 15.5" (394 mm) |
| Dimensions (depth) | 4" (flush fit): 1.76" (45 mm) 4": 2.2" (55.8 mm) 18": 2.68" (68 mm) |
| Dimensions (height) | 4" (flush fit): 1.89" (48 mm) 4": 1.77" (45 mm) 18": 2.08" (53 mm) |
| Mechanical installation | 4" (flush fit): Marine sealant and screws (not supplied) 4"/18": Stainless steel fixing brackets (supplied) |

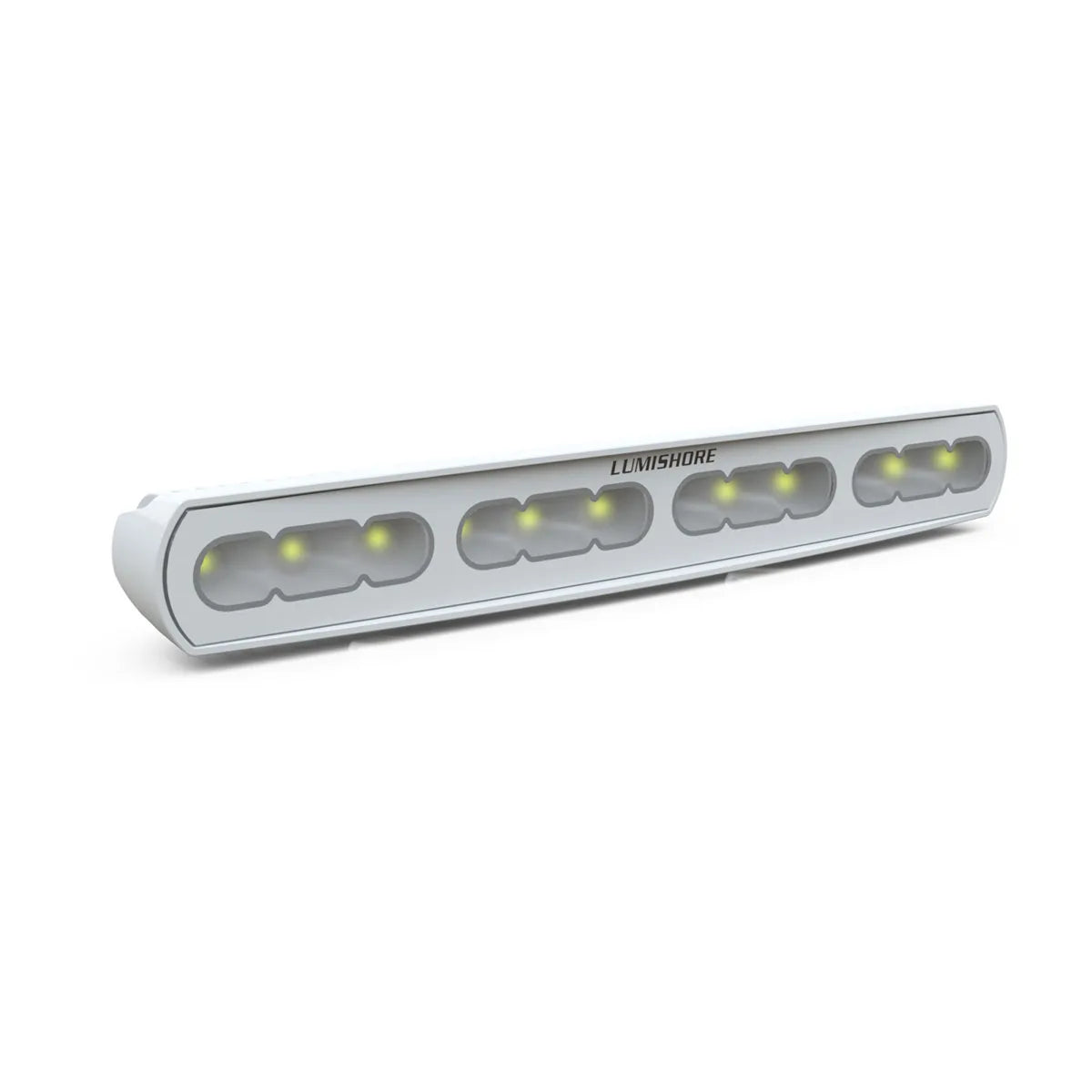

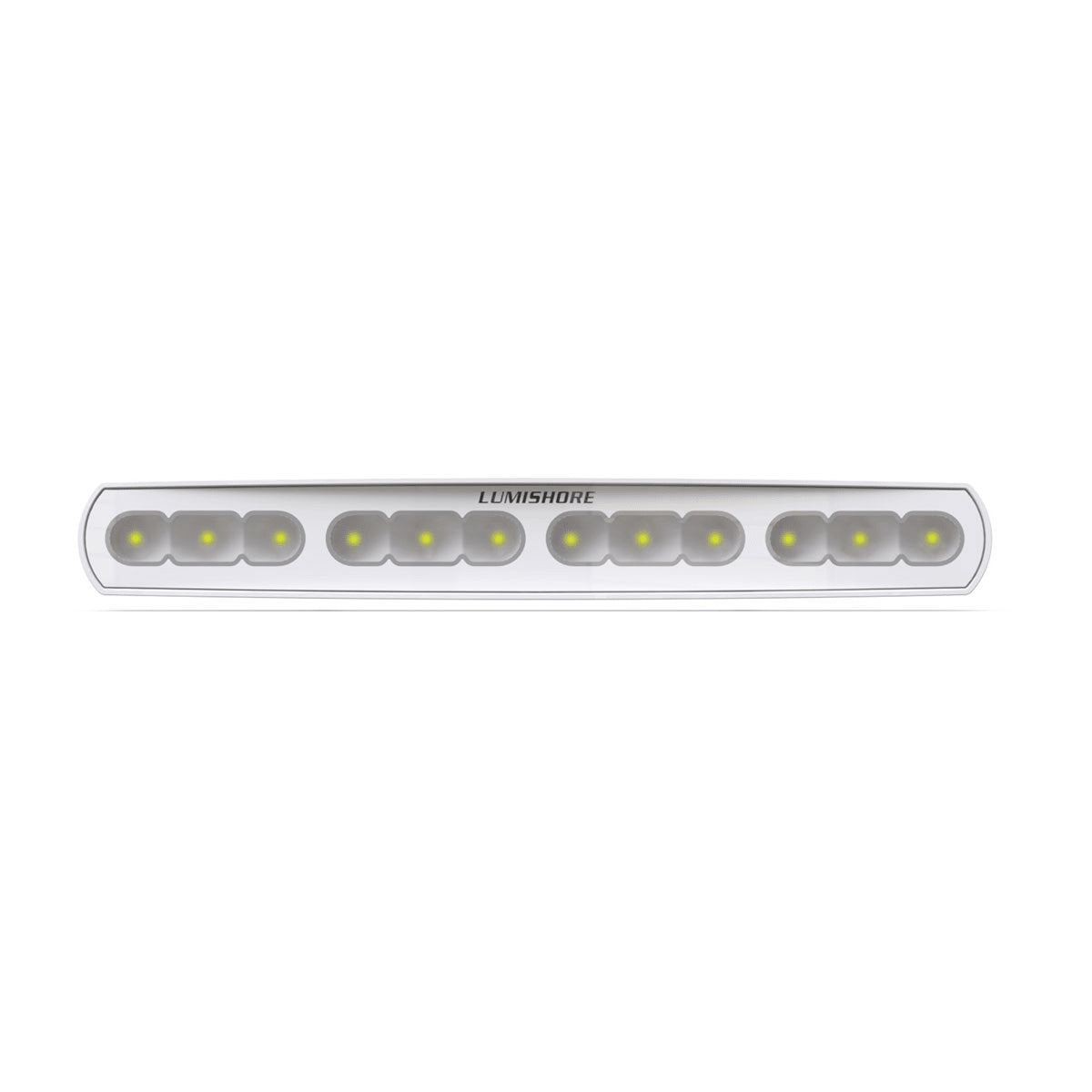

White 18"
