General |
|
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 60 CRGBW/m |
| Length of strip per strip driver | up to 10 m total |
| Electrical installation | Plug and play |
| Operating voltage | 10.5-31 VDC (via LUX Control Module) |
| Current consumption 12 V (max) | 0.6 A/m (via strip driver) |
| Current consumption 24 V (max) | 0.36 A/m (via strip driver) |
| Average power draw | 8.7 W/m |
| Construction | Fully encapsulated and potted |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | yes (via Strip Driver) |
|---|---|
| EOS-LUX Command Center | |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Dimensions (depth) | 0.197" (5 mm) |
|---|---|
| Dimensions (height) | 0.571" (14.5 mm) |
| Mechanical installation | Cut to length and seal cut end before installation with silicone (supplied). Mount with adhesive strips, screw clips (supplied) or stainless steel clips (optional). |

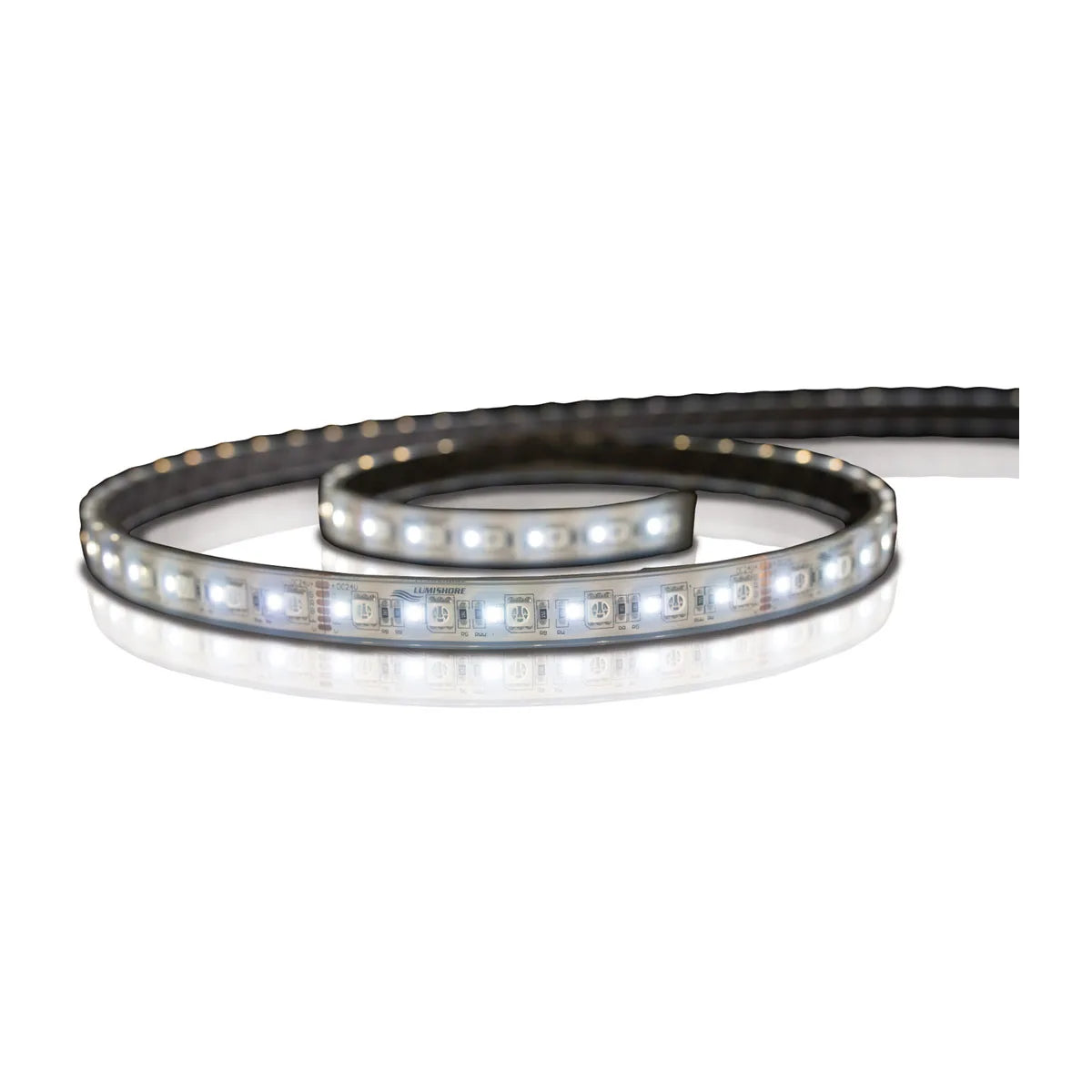

CRGBW Strip Light, 2,500 mm
