General |
|
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 2 x 3 W Red 2 x 3 W Green 2 x 3 W Blue 2 x 3 W Cold White 2 x 3 W Warm White |
| Beam angle | ultra wide (standard), anti-glare (wide) |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 3 wire |
| Operating voltage | 10.5-31 VDC (via LUX Control Module) |
| Current consumption 12 V (max) | 0.6 A |
| Current consumption 24 V (max) | 0.3 A |
| Average power draw | 7.2 W |
| Construction | Stainless steel bezel with hard anodized aluminum body |
| Water and dust rating | IP68 (standard), IP65 (anti-glare) |
Control Options |
|
| Momentary switch | yes (via LUX Control Module) |
|---|---|
| EOS-LUX Command Center | |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 3.23" (82 mm) |
|---|---|
| Mounting depth clearance | 1.19" (30 mm) |
| Frontal protrusion (profile) | 0.13" (3 mm) |
| Mounting hole | 2.56" (65 mm) |
| Mechanical installation | Internal location: Stainless steel spring clips External location (not applicable to anti-glare): Marine adhesive (not supplied) |

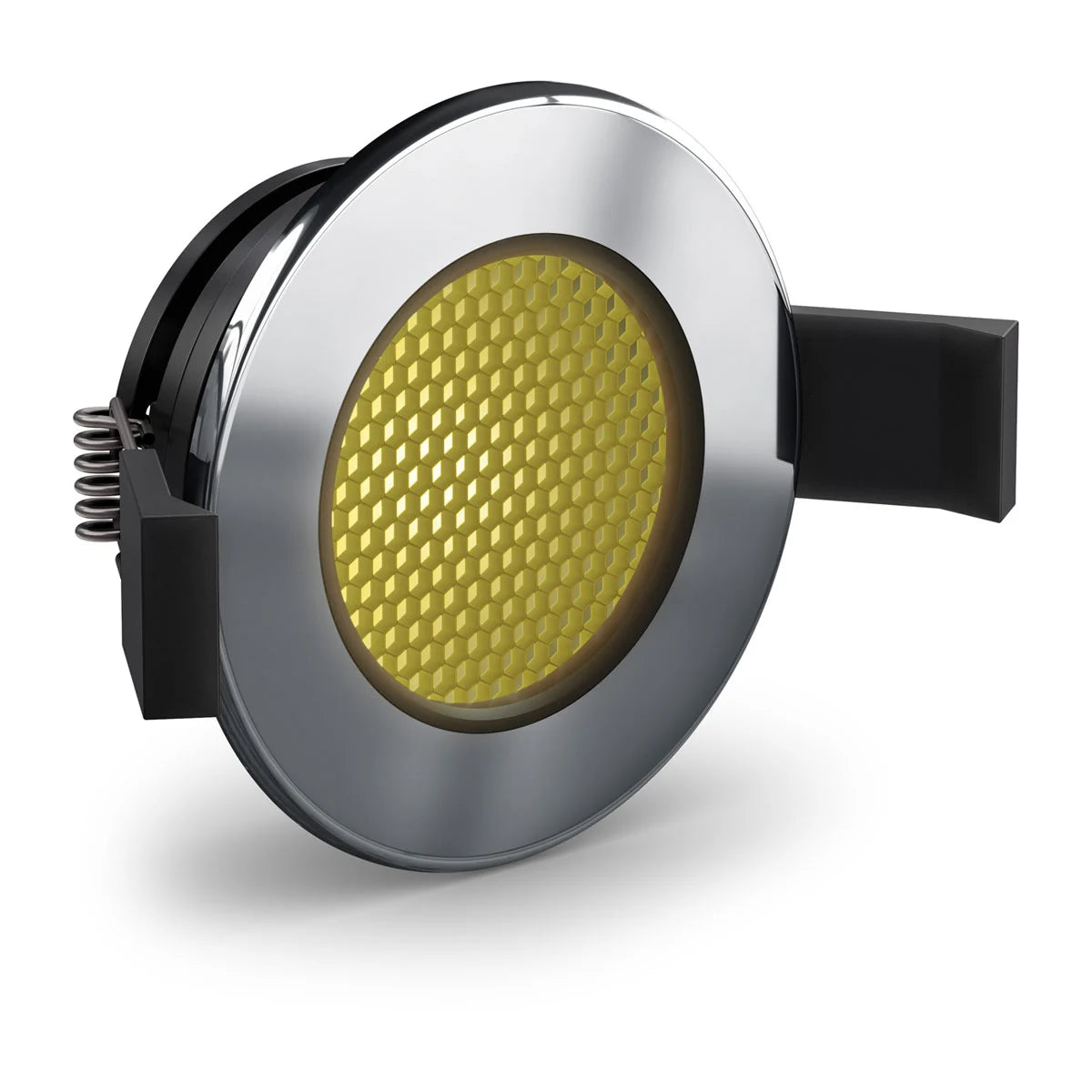

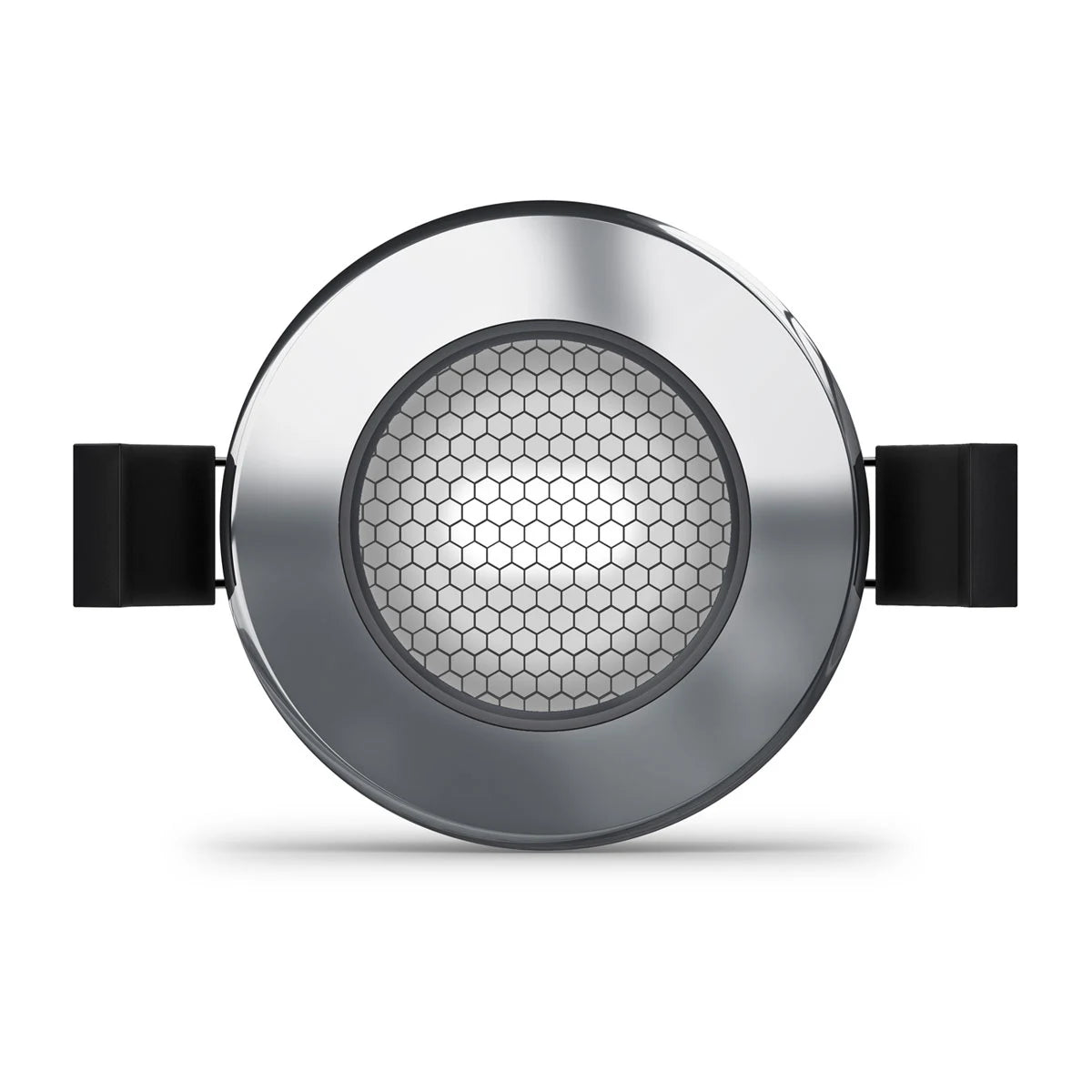

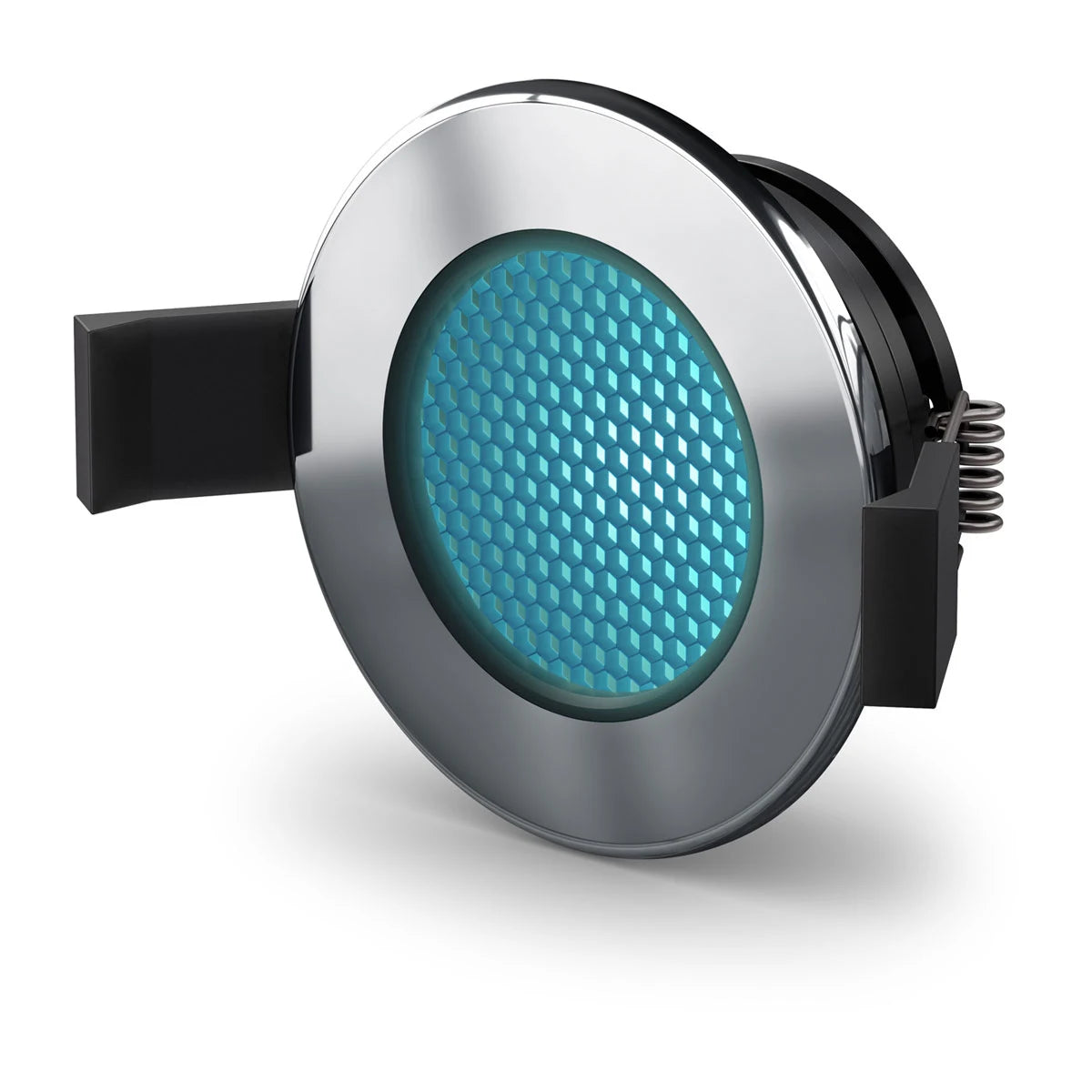

CRGBW Anti-glare Downlight, Chrome Bezel
