General |
|
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 3 x 0.5 W Red 3 x 0.5 W Green 3 x 0.5 W Blue 3 x 0.5 W Cold White 3 x 0.5 W Warm White |
| Beam angle | ultra wide |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 3 wire |
| Operating voltage | 10.5-31 VDC (via LUX Control Module) |
| Current consumption 12 V (max) | 0.1 A |
| Current consumption 24 V (max) | 0.05 A |
| Average power draw | 1.2 W |
| Construction | Stainless steel bezel with black ABS body |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | yes (via LUX Control Module) |
|---|---|
| EOS-LUX Command Center | |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 1.77" (45 mm) |
|---|---|
| Mounting depth clearance | 0.98" (24.9 mm) |
| Frontal protrusion (profile) | 0.19" (4.5 mm) |
| Mounting hole | 1" (25 mm) |
| Mechanical installation | Screw fixings and marine adhesive (not supplied) |

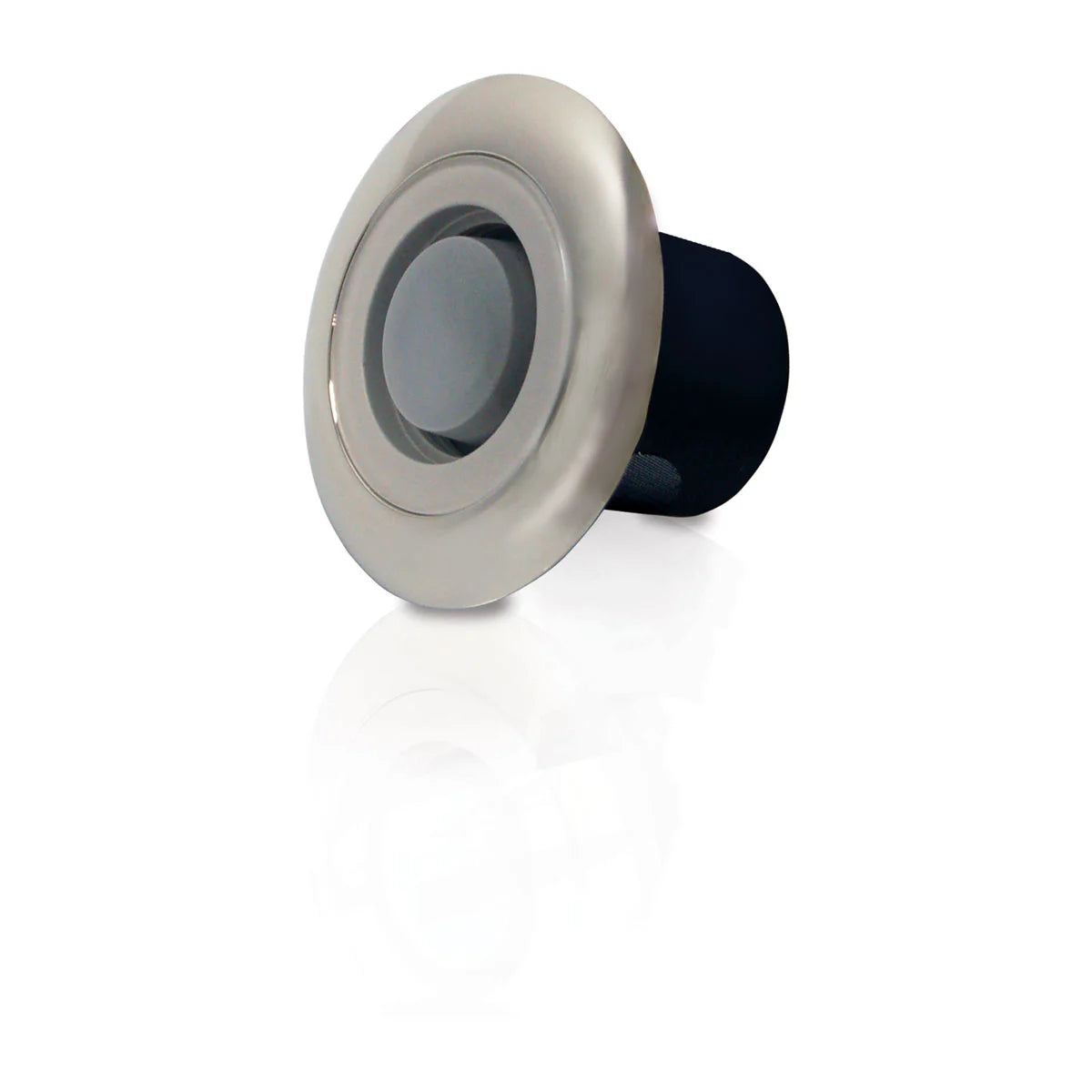

CRBGW Courtesy Lights, Chrome Bezel
