General |
|
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 2 x 3 W Red 2 x 3 W Green 2 x 3 W Blue 2 x 3 W Cold White 2 x 3 W Warm White |
| Beam angle | ultra wide |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 3 wire |
| Operating voltage | 10.5-31 VDC (via LUX Control Module) |
| Current consumption 12 V (max) | 0.5 A |
| Current consumption 24 V (max) | 0.25 A |
| Average power draw | 6 W |
| Construction | Black or white bezel with hard anodized aluminum body |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | yes (via LUX Control Module) |
|---|---|
| EOS-LUX Command Center | |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 2.52" (64 mm) |
|---|---|
| Mounting depth clearance | 1.2" (30.3 mm) |
| Frontal protrusion (profile) | 0.079" (2 mm) |
| Mounting hole | 2" (50.8 mm) |
| Mechanical installation | Internal location: Stainless steel spring clips External location: Marine adhesive (not supplied) |

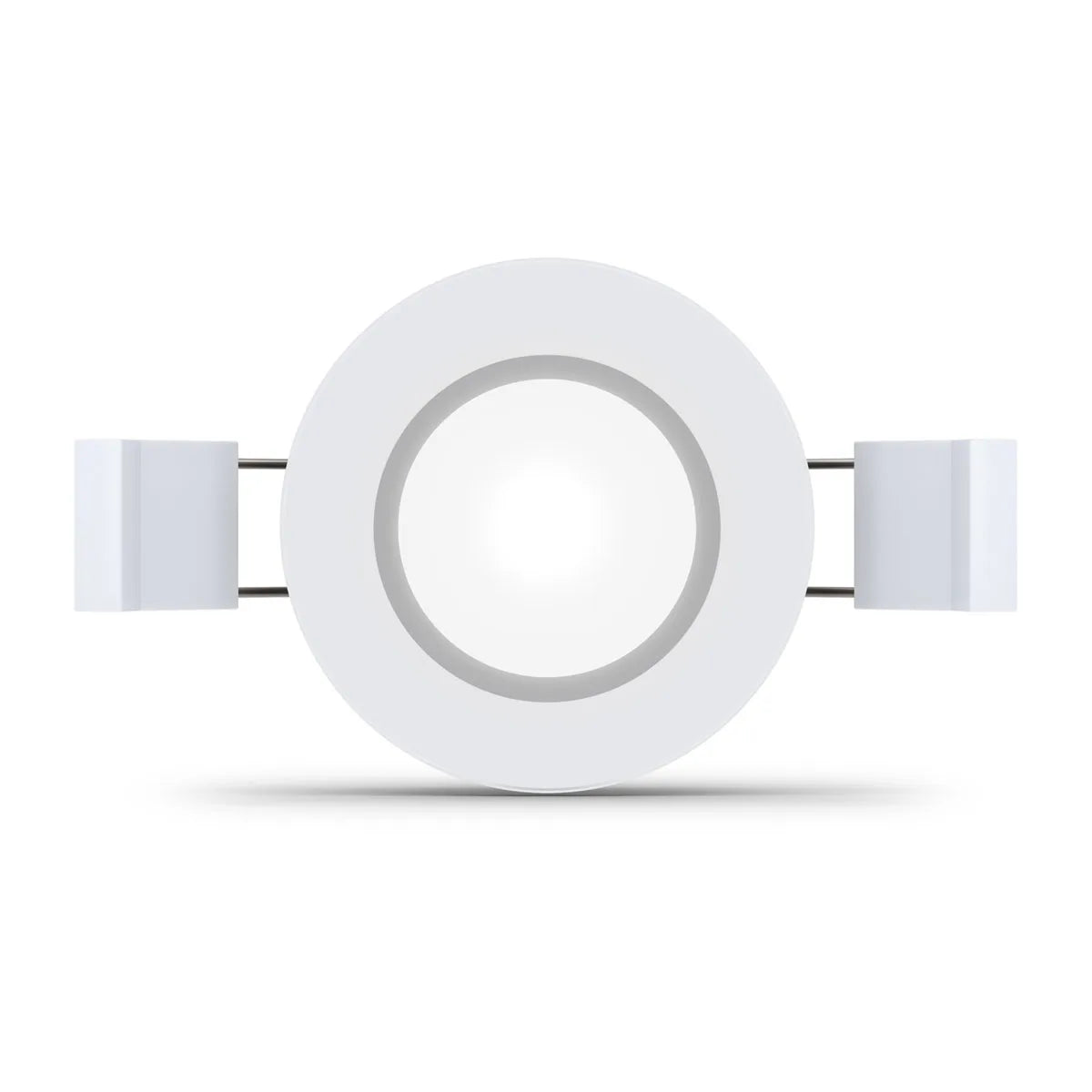

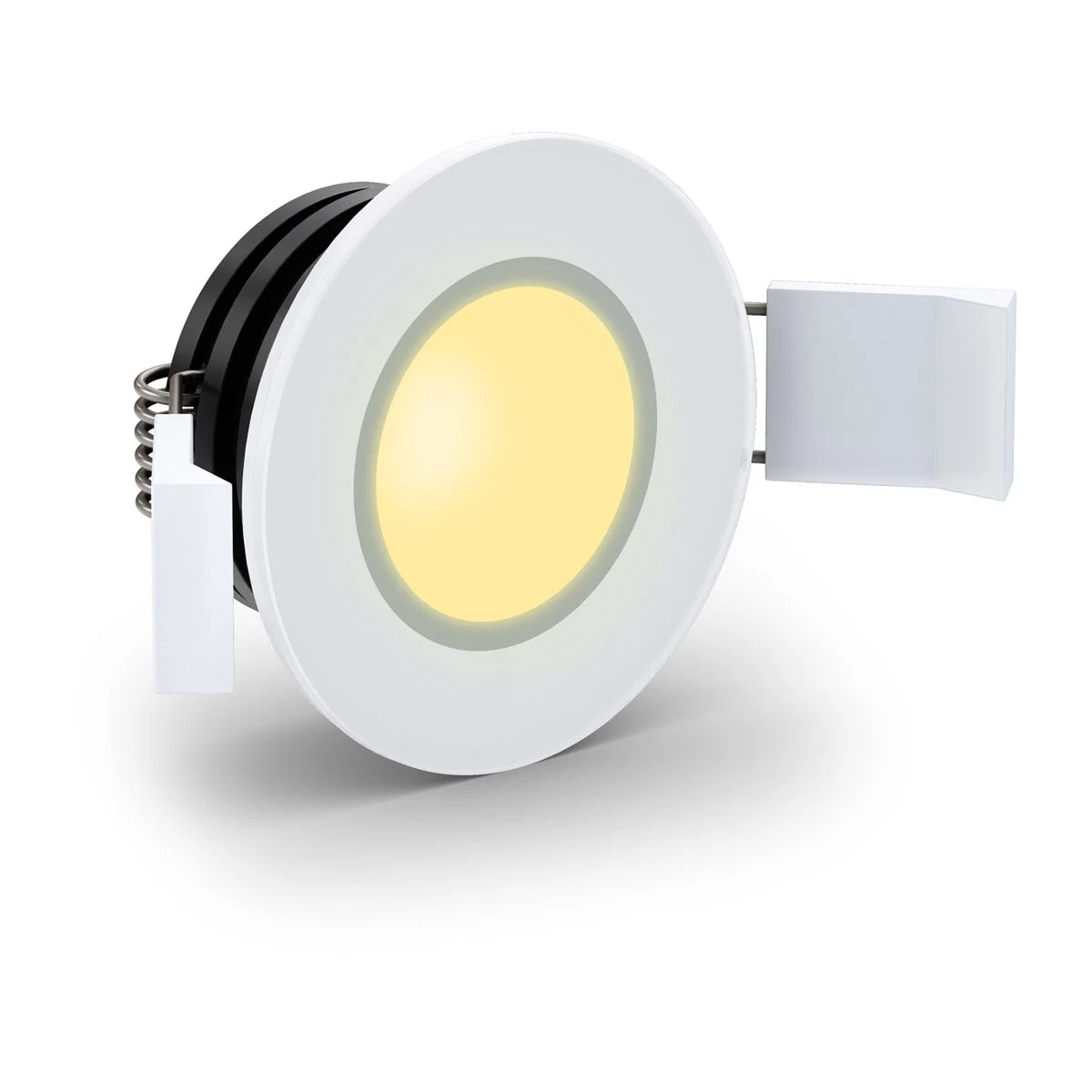

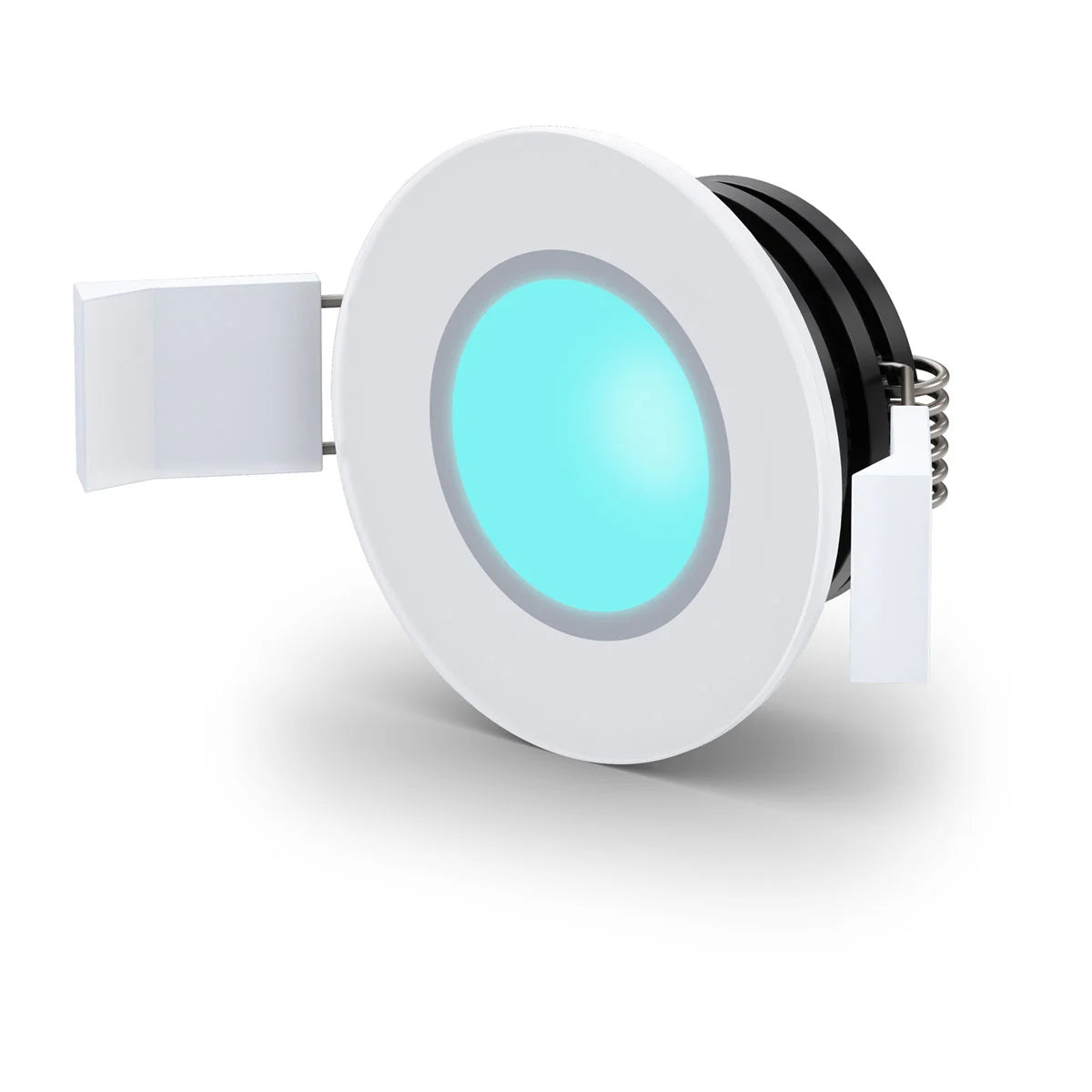

CRGBW Downlight with White Bezel
