General |
|
| Warranty | 3 years |
|---|---|
| Electrical installation | Ethernet cable |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 0.3 A |
| Current consumption 24 V (max) | 0.15 A |
| Average power draw | 3.6 W |
| Construction | Glass bridge-style front with polymer molded recessed back |
| Water and dust rating | IP68 |
Control Options |
|
| EOS-LUX Command Center | |
|---|---|
Mounting Dimensions |
|
| Mounting depth clearance | 3.71" (94 mm) |
|---|---|
| Frontal protrusion (profile) | 0.39" (10mm) |
| Mounting hole | 3.27" x 3.27" (83 mm x 83 mm) |
| Dimensions (width) | 3.62" (92 mm) |
| Dimensions (depth) | 4.64" (118mm) |
| Dimensions (height) | 3.62" (92 mm) |
| Mechanical installation | Panel mount (bracket supplied) |

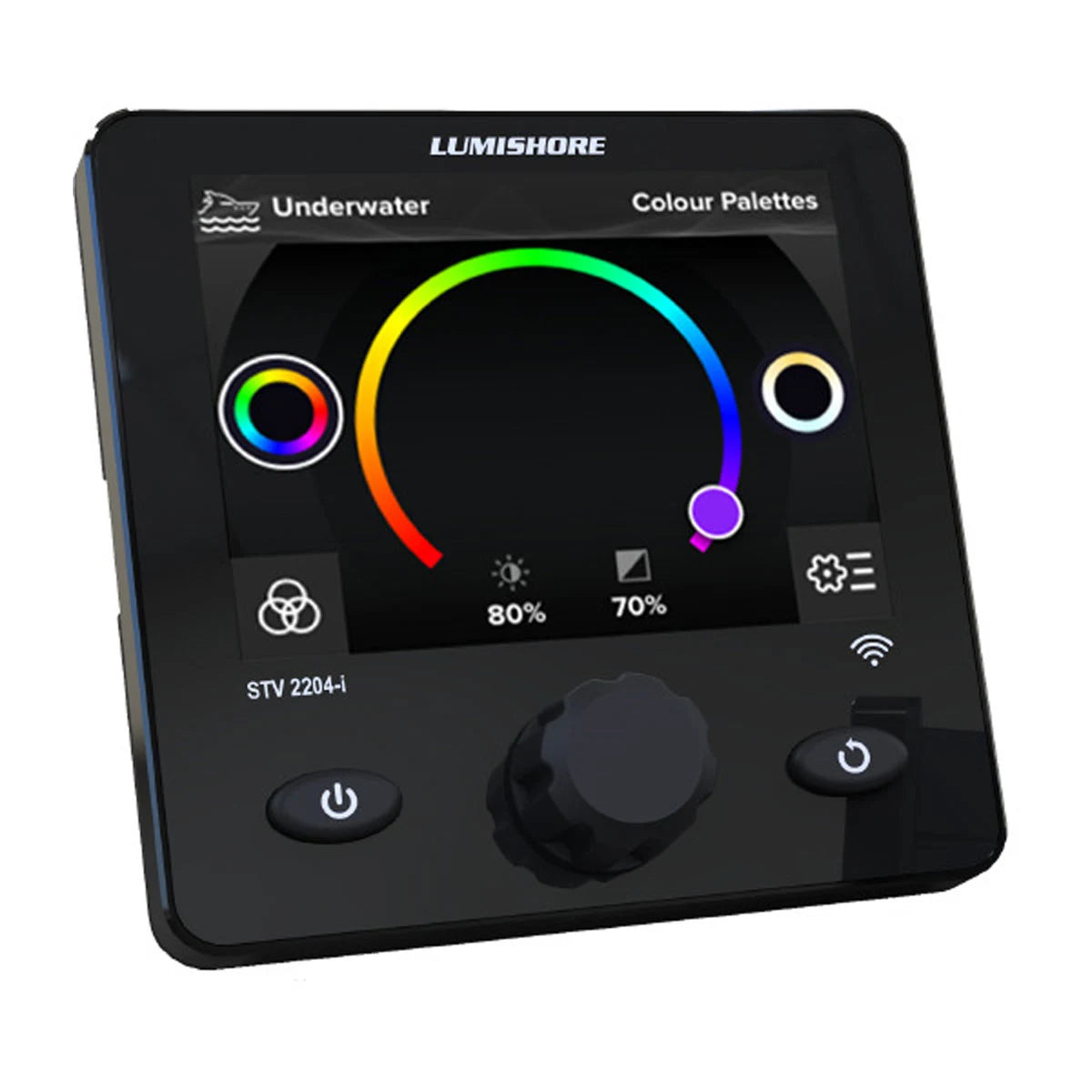

Lumishore® Display
