General |
|
| Warranty | 3 years |
|---|---|
| Electrical installation | Plug and play |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 0.2 A (device only) |
| Current consumption 24 V (max) | 0.1 A (device only) |
| Average power draw | 2.4 W (device only) |
| Construction | Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | |
|---|---|
| SUPRA Bridge | |
Mounting Dimensions |
|
| Dimensions (width) | 5.83" (148 mm) |
|---|---|
| Dimensions (depth) | 3.11" (79 mm) |
| Dimensions (height) | 1.5" (38 mm) |
| Mechanical installation | Screw fixings |

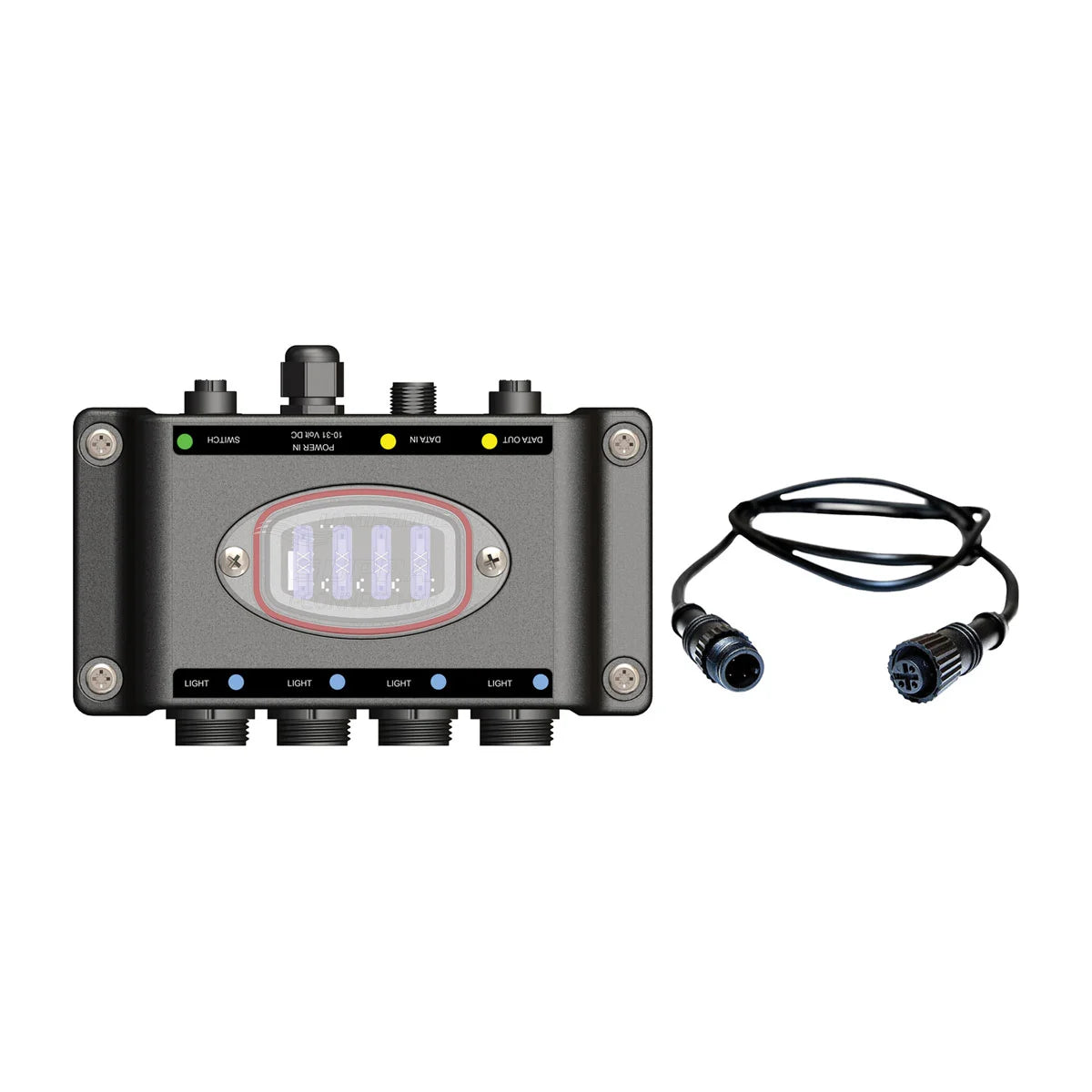

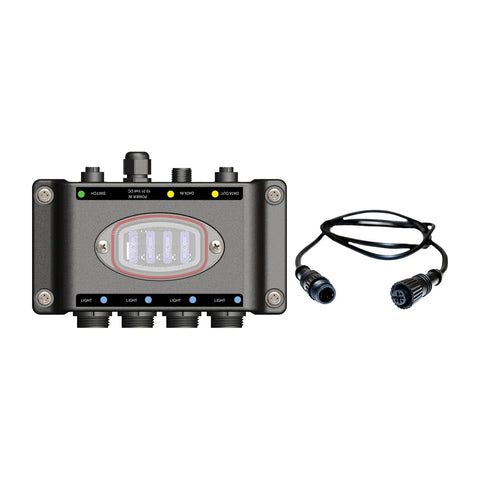

Additional Hub with Cable and Connectors
