General |
|
| Warranty | 1 year |
|---|---|
| LED colors | Single Color, White (6500K)/Blue/Green |
| LED type | 6 x 3 W White/Blue/Green |
| Fixture lumens | 1,100 |
| Beam angle | 60° |
| Electrical installation | Simple 2 wire connection |
| Operating voltage | 12 V |
| Operating voltage range | 10.5-14.5 VDC |
| Current consumption 12 V (max) | 1 A |
| Average power draw | 12 W |
| Construction | Marine grade polymer |
| Water and dust rating | IP68 |
Control Options |
|
| Direct power via on/off switch | |
|---|---|
Lighting Functionality |
|
| Functionality with direct power | Startup in model color |
|---|---|
| Applicable Controllers/Hubs | Direct power |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 3.34" (85 mm) |
|---|---|
| Frontal protrusion (profile) | 0.39" (10 mm) |
| Mounting hole | 0.51" (13 mm) |
| Dimensions (width) | 3.34" (85 mm) |
| Dimensions (depth) | 0.39" (10 mm) |
| Dimensions (height) | 3.34" (85 mm) |
| Mechanical installation | Three A4 stainless steel screws (included) |

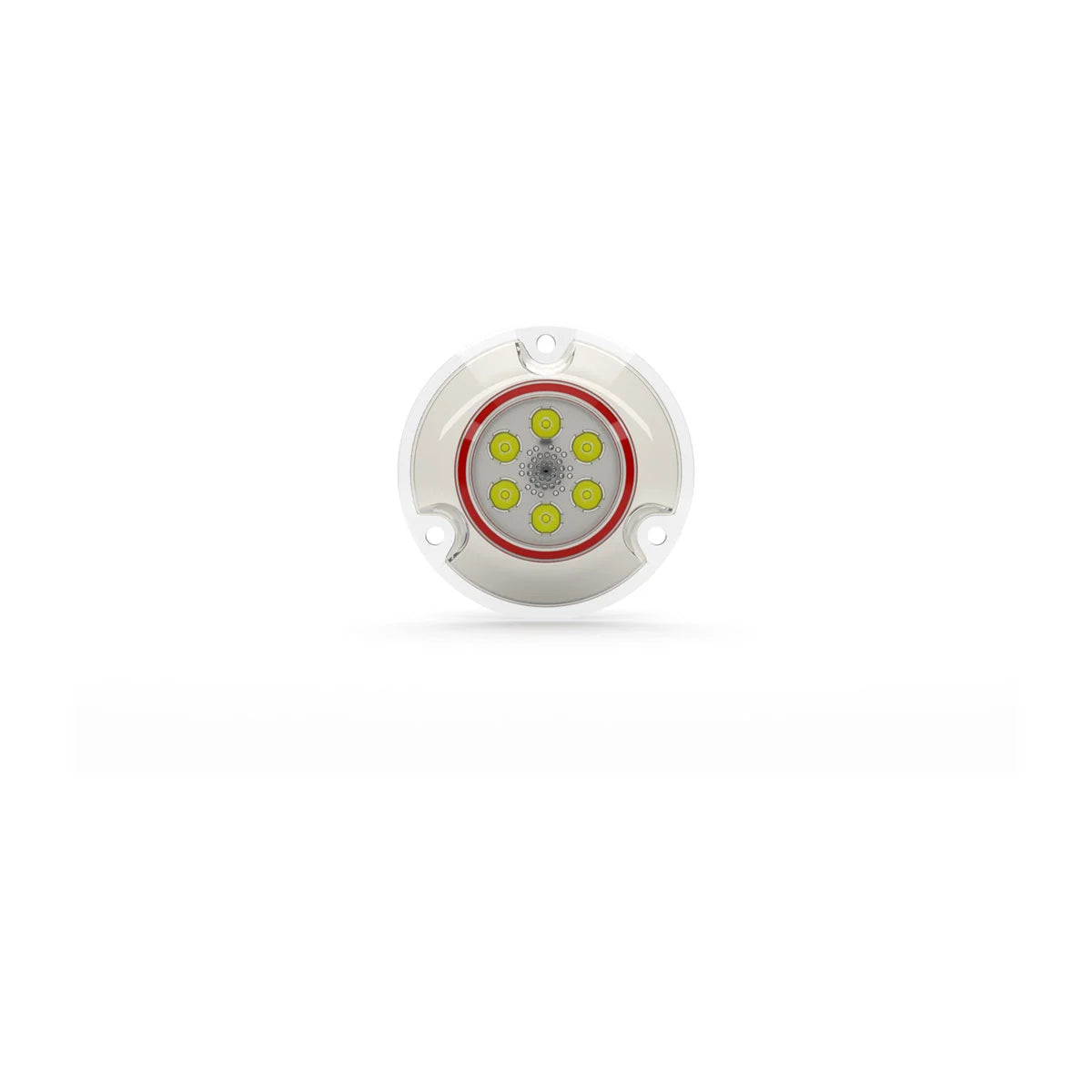

White Single Light
