General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 6 x 9" |
| Continuous power handling (RMS) | 150 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Frequency response (+/- 3 dB) | 36 Hz-19 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 50-150 W/Channel |
| Cone material | Mineral-filled polypropylene |
| Grille(s) included | 2.75": yes |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 2.75": 2.85" (72 mm) 6 x 9": 6.38 x 9.13" (162 x 232 mm) |
|---|---|
| Mounting depth clearance | 2.75": 1.45" (37 mm) 6 x 9": 2.85" (72 mm) |
| Frontal grille protrusion | 2.75": 0.28" (7 mm) |
| Motor outer diameter | 6 x 9": 4.72" (120 mm) |
Crossover Specifications |
|
| Width | 2.53" (64 mm) |
|---|---|
| Height | 1.93" (49 mm) |
| Depth | 1.09" (28 mm) |

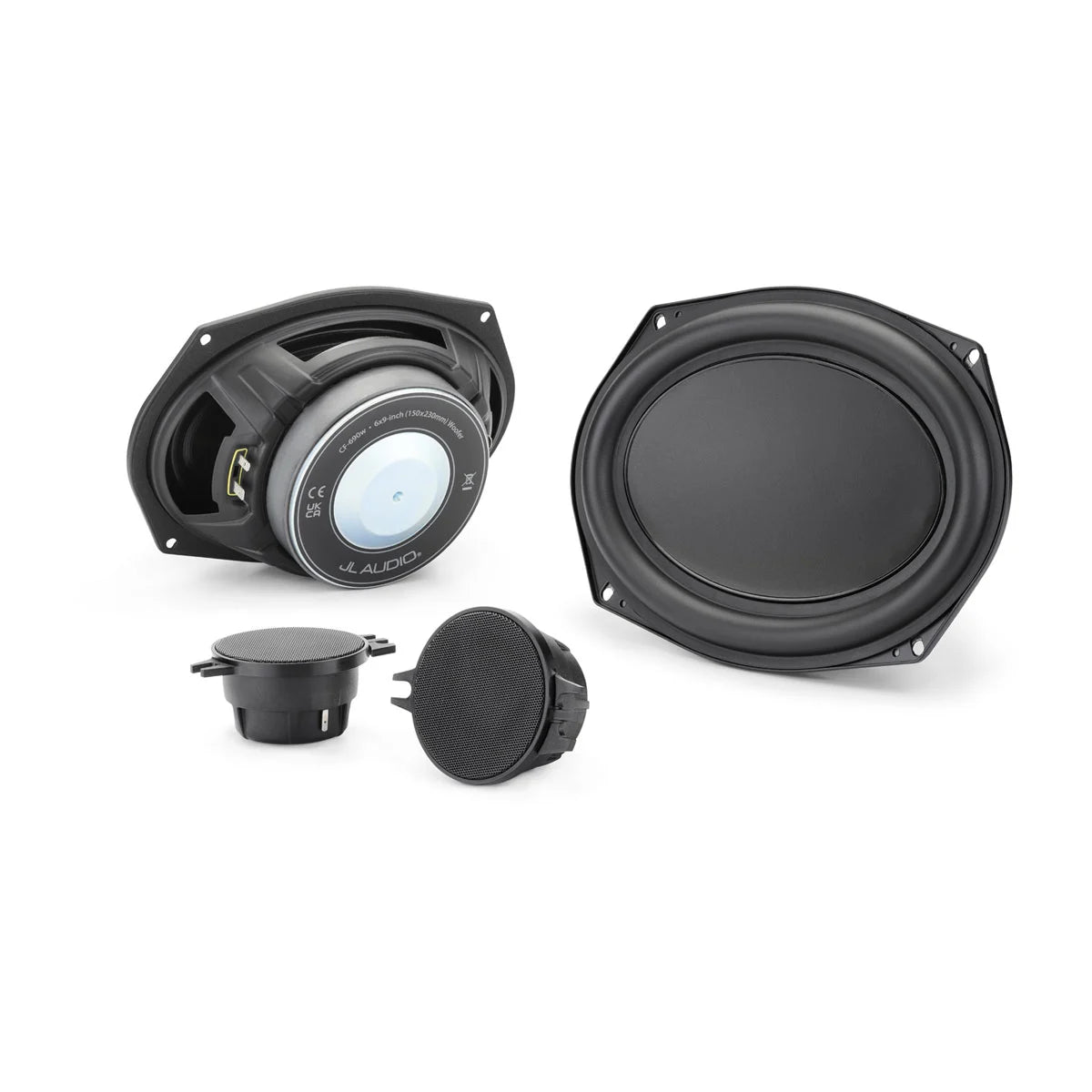

6"x9" 2-way Component System for Ram/Toyota/GM (CF-690-RTG)
