General |
|
| Warranty | 5 years |
|---|---|
| Sizes | 6.5"/7.7"/8.8" |
| Color | Satin black or Satin white |
| Physical dimensions (Diameter) | 6.5": 8.34" (212 mm) 7.7": 9.13" (232 mm) 8.8": 10.25" (260 mm) |
| Physical dimensions (Depth) | 6.5": 4.24" (108 mm) 7.7" 4.64" (118 mm) 8.8": 6.78" (172 mm) |
| Weight | 6.5": 3.21 lbs (1.45 kg) 7.7": 5.35 lbs (2.43 kg) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 60 W 7.7": 80 W 8.8": 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 89.5 dB 7.7": 91.0 dB 8.8": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz 7.7": 45 Hz-25 kHz 8.8": 38 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 30-120 W/Channel 7.7": 40-160 W/Channel 8.8": 50-200 W/Channel |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 6.5": 0.8" (20 mm) 7.7": 1" (25 mm) 8.8": 1.25" (32 mm) |
Networking & Connections |
|

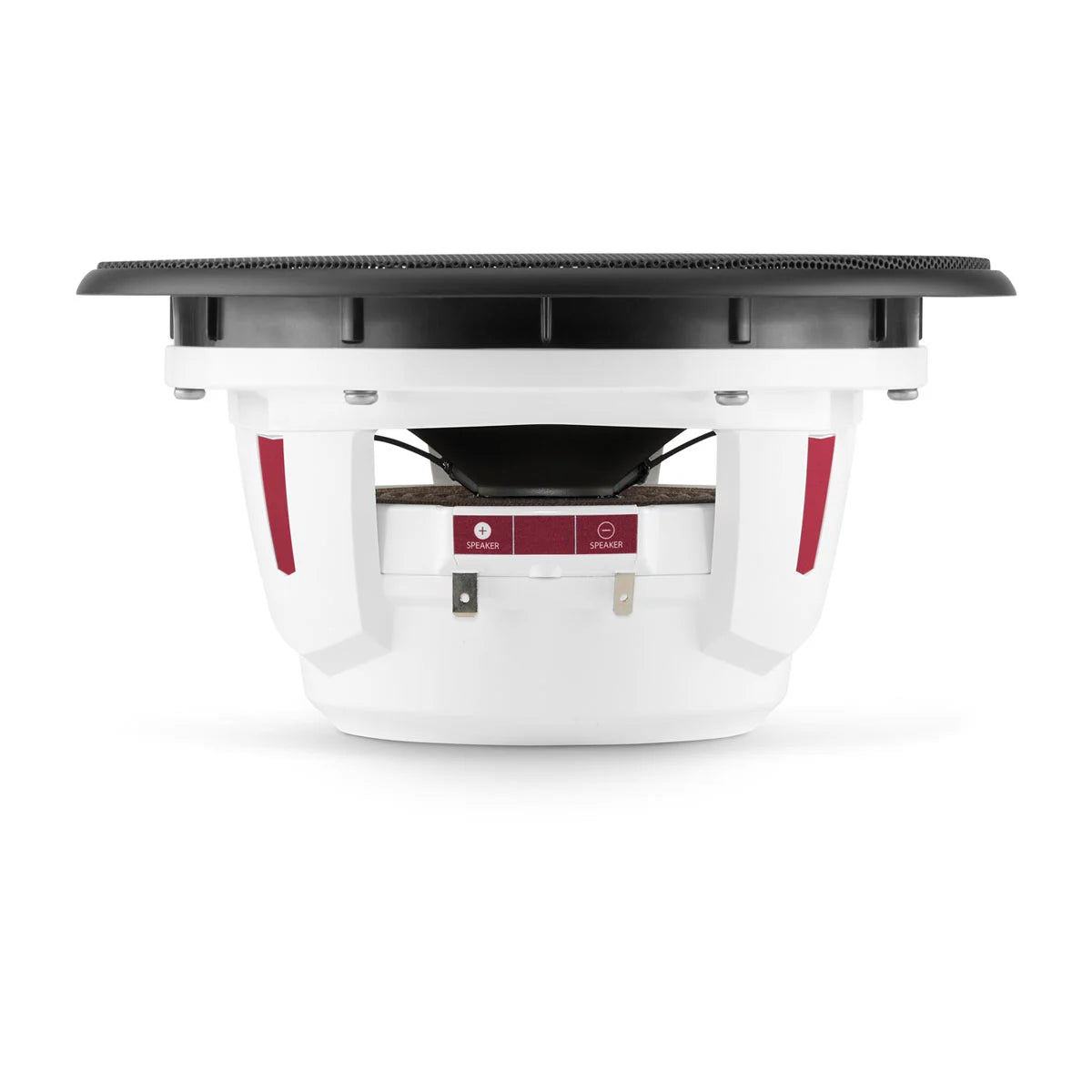

| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 6.5": 3.87" (98 mm) 7.7": 4.26" (108 mm) 8.8": 6.30" (160 mm) |
|---|---|
| Frontal grille protrusion | 6.5": 0.37" (9 mm) 7.7": 0.38" (10 mm) 8.8": 0.48" (12 mm) |
| Mounting hole | 6.5": 6.875" (175 mm) 7.7": 7.625" (194 mm) 8.8": 8.75" (222 mm) |
| Bolt hole circle | 6.5": 7.39" (188 mm) 7.7": 8.18" (208 mm) 8.8": 9.27" (235 mm) |

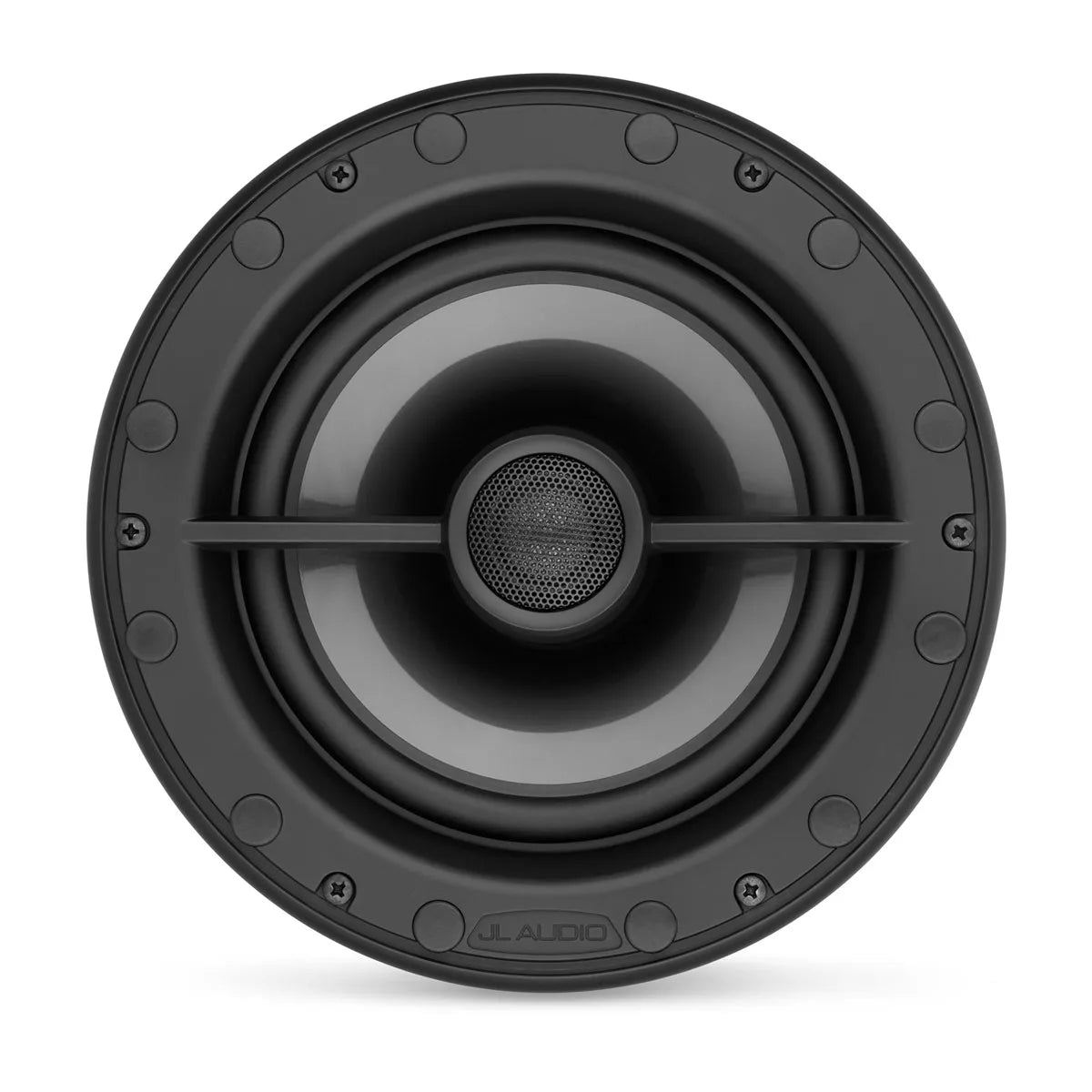

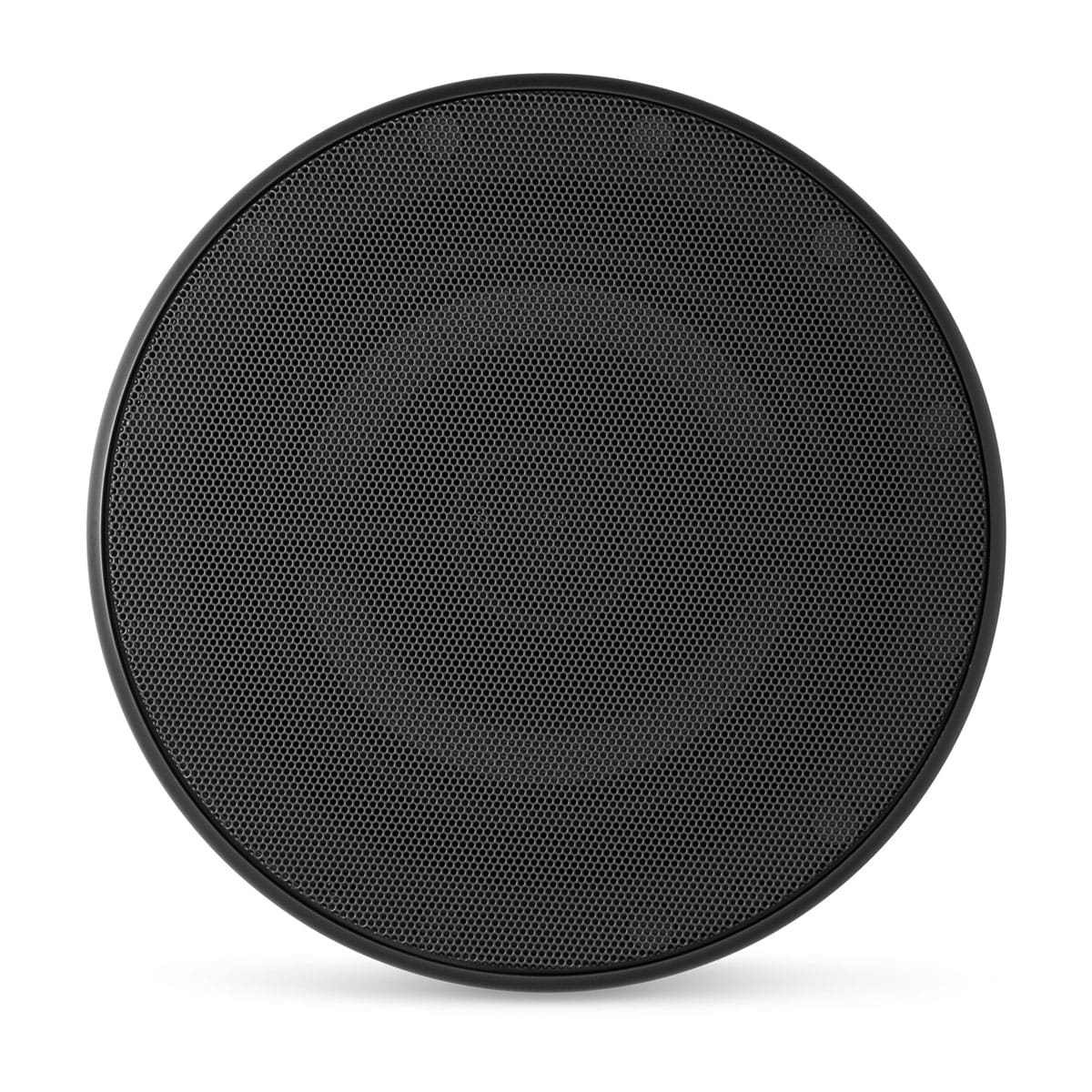

7.7" with Black Luxe Grille (Single) (PV-FX7-SbSb-Single)
