General |
|
| Dimension | 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) |
|---|---|
| Weight | 7.2 lbs (3.26kg) |
| Water rating | IPX7 |
| Touchscreen | |
| Display Type | Ultrawide display, IPS |
| Display Size | 13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) |
| Display resolution | 1920 x 720 pixels |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Polarized lens viewability | |
Maps & Memory |
|
| Accepts Data Cards | 2 microSD™ cards (back of device) |
|---|---|
| Compatible with Garmin SD card reader | yes (USB card reader) |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| Has built-in receiver | |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | |
| Supports multi-band, multi-constellation GPS | yes (with external GPS antenna) |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
| Raster chart support | |
Chartplotter Features |
|
| Smart Mode Compatible | |
|---|---|
| AIS | |
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| GSD Black Box Sonar Support | |
| GCV Black Box Sonar Support | |
| ActiveCaptain® compatible | yes |
| Supports voice commands | yes (with external accessory) |
| GRID (Garmin Remote Input Device) compatible | |
| Wireless Remote Compatible | |
| Sailing Features | |
| Spoken audio alerts | |
| OneHelm support | |
Electrical Features |
|
| Power Input | 10 to 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 2.44 A |
| Maximum current draw at 12 Vdc | 4.21 A |
| Maximum power usage at 10 Vdc | 56.93 W |

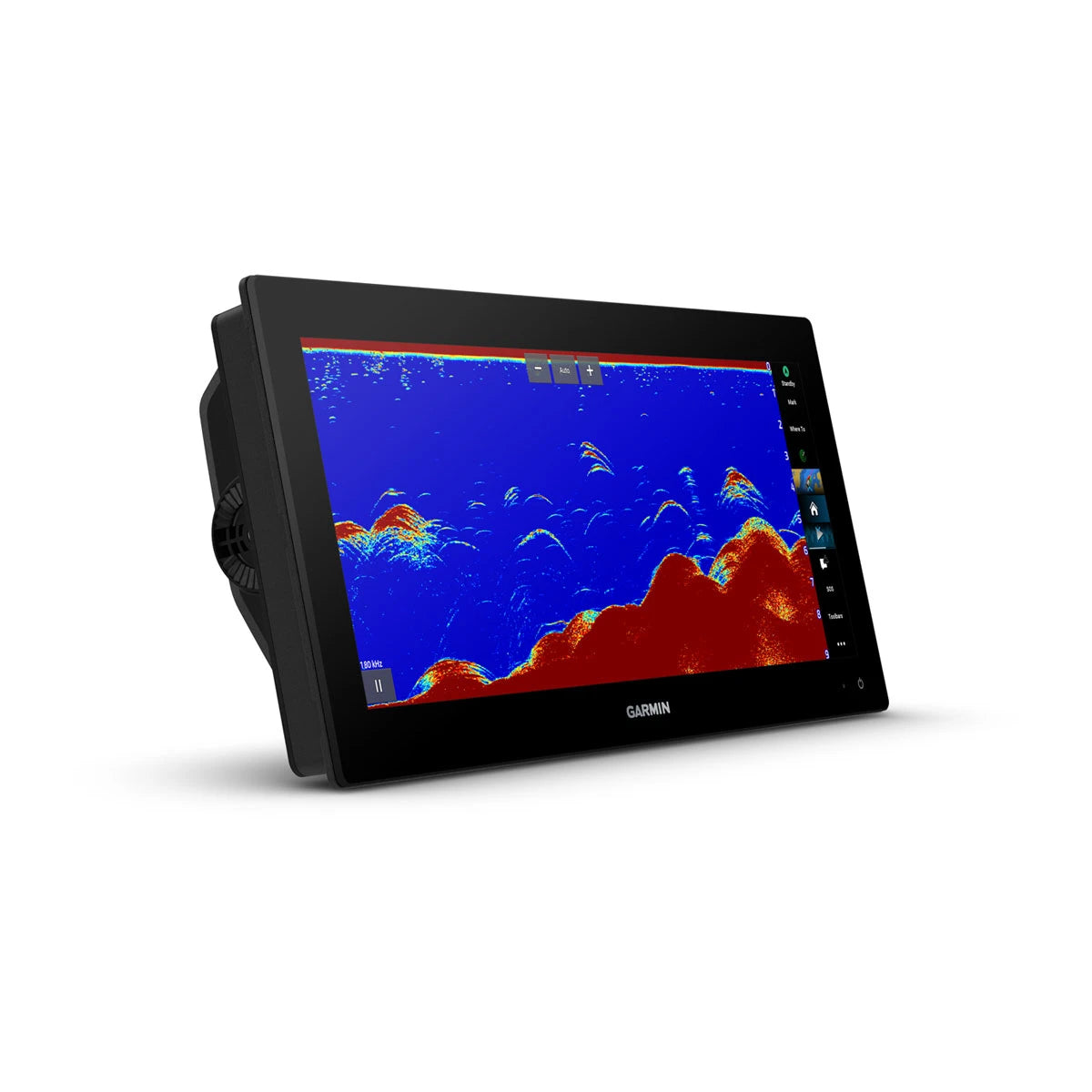

Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | |
| ClearVü | |

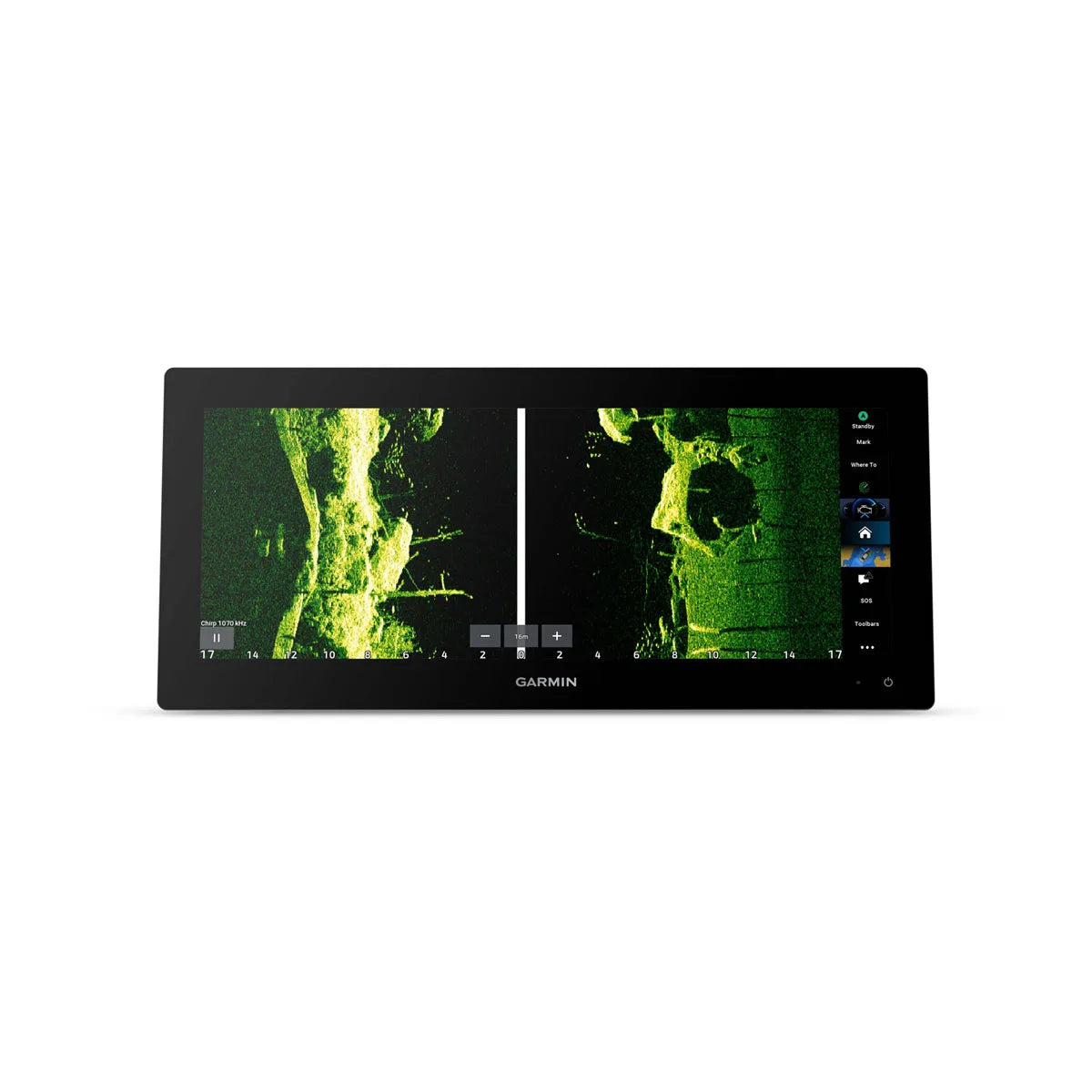

| SideVü | |
| Panoptix™ sonar | |
| LiveScope | |

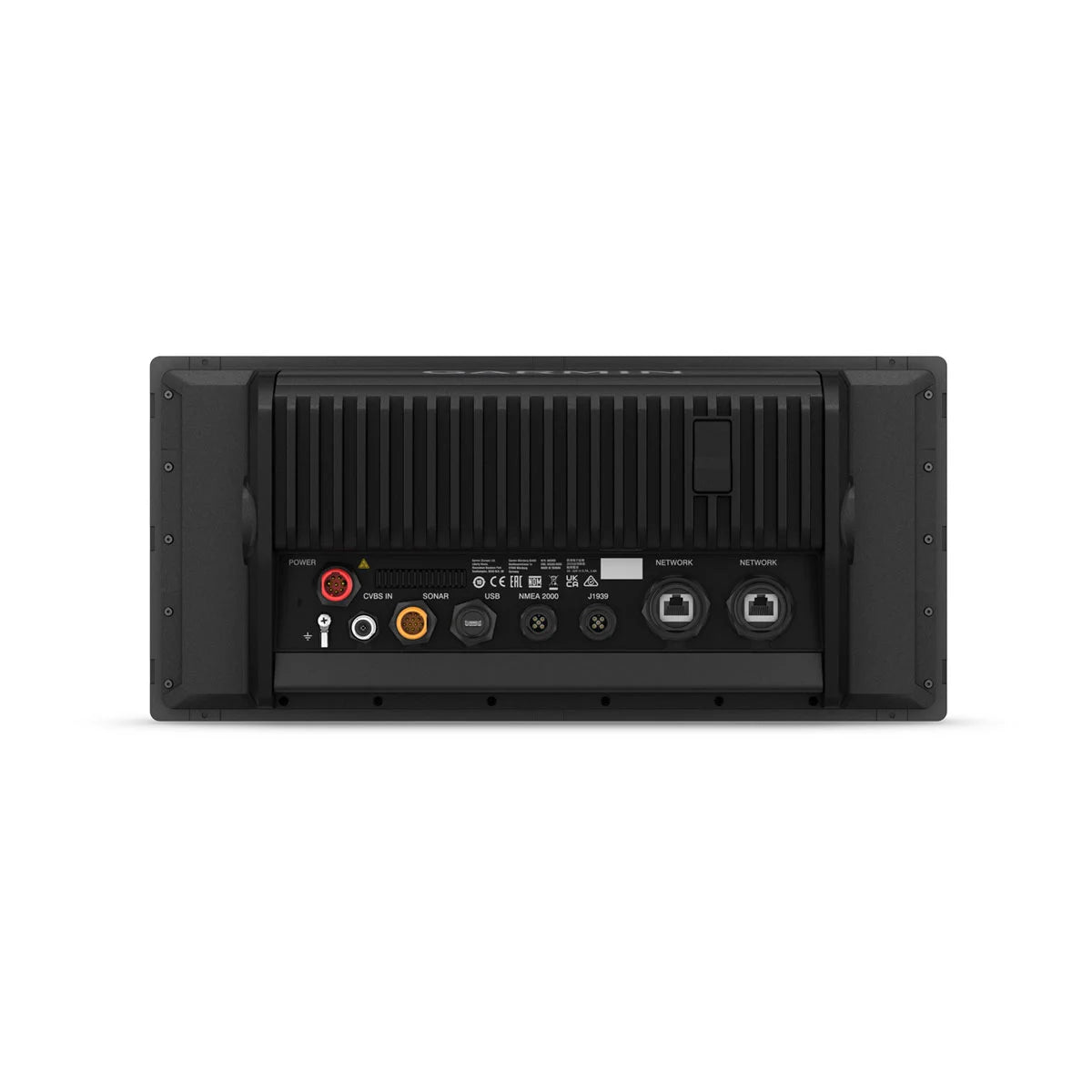

Networking & Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite) |
| J1939 ports | 1 |
| Garmin Marine Network Ports | 2 |
| 12-pin transducer ports | 1 |
| USB ports | |
| Bluetooth® pairing | yes (BLE) |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |

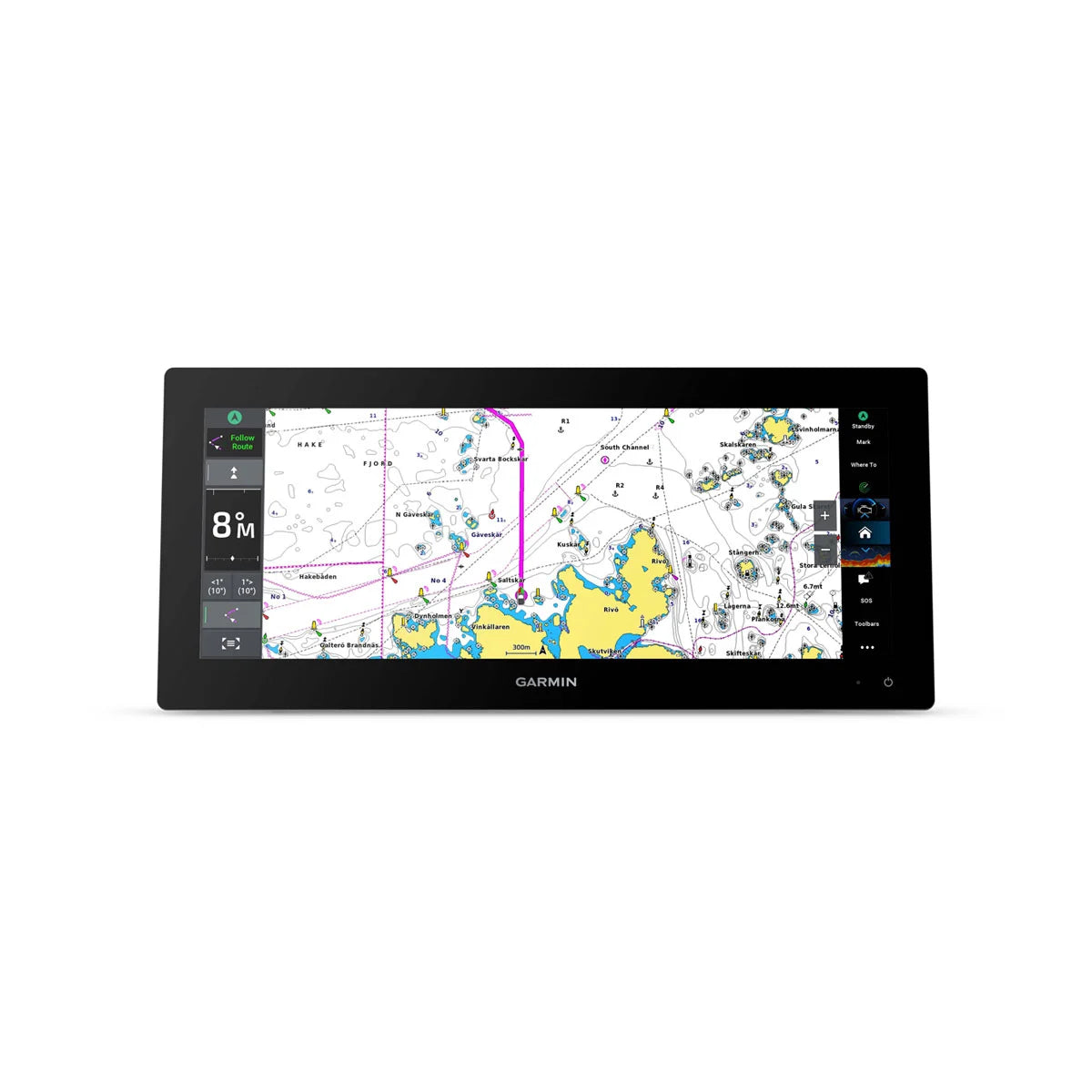

SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
