General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 1"/5 x 7"/5.25"/6"/6.5" |
| Continuous power handling (RMS) | 75 W |
| Sensitivity (SPL @ 1 W/1 m) | 90 dB 6": 89.5 dB |
| Frequency response (+/- 3 dB) | 5.25"/5 x 7"/6.5": 48 Hz-25 KHz ± 3 dB 6": 48 Hz-25 KHz 1": 4 kHz-25 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 25-150 W/Channel |
| Voice coil diameter | 1.2" (30 mm) |
| Cone material | Mineral-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 1" (25 mm) |
| Grille(s) included | yes (5 x 7": no) |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 5.25": 5.80" (147 mm) 5 x 7": 5.52 x 7.68" (140 x 195 mm) 6": 6.21" (157.7 mm) 6.5": 6.5" (165 mm) |
|---|---|
| Mounting depth clearance | 5.25": 2.27" (58 mm) 5 x 7": 2.52" (64 mm) 6": 2.49" (63 mm) 6.5": 2.55" (65 mm) |
| Frontal grille protrusion | 5.25": 1" (25 mm) 6"/6.5": 1.03" (26.2 mm) |
| Mounting hole | 5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm) |
| Grille tray outer diameter | 5.25": 6" (152 mm) 6": 6.46" (164.1 mm) 6.5": 6.74" (171 mm) |
| Motor outer diameter | 4.08" (104 mm) 5.25": 3.38" (86 mm) |
| Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) | 5.25": 0.69" (18 mm) 5 x 7": 0.78" (20 mm) 6": 0.81" (20.6 mm) 6.5": 0.75" (19 mm) |
Tweeter Specifications |
|
| Flush mount fixture diameter | 2.12" (54 mm) |
|---|---|
| Surface mount fixture diameter | 1.9" (49 mm) |
| Flush mount mounting hole diameter | 1.875" (48 mm) |
| Flush mount mounting depth | 0.71" (18 mm) |
| Flush mount tweeter frontal protrusion | 0.32" (8 mm) |
| Surface mount tweeter frontal protrusion | 0.95" (24 mm) |
Crossover Specifications |
|
| Width | 3.36" (85 mm) |
|---|---|
| Height | 1.44" (37 mm) |
| Depth | 4.72" (120 mm) |

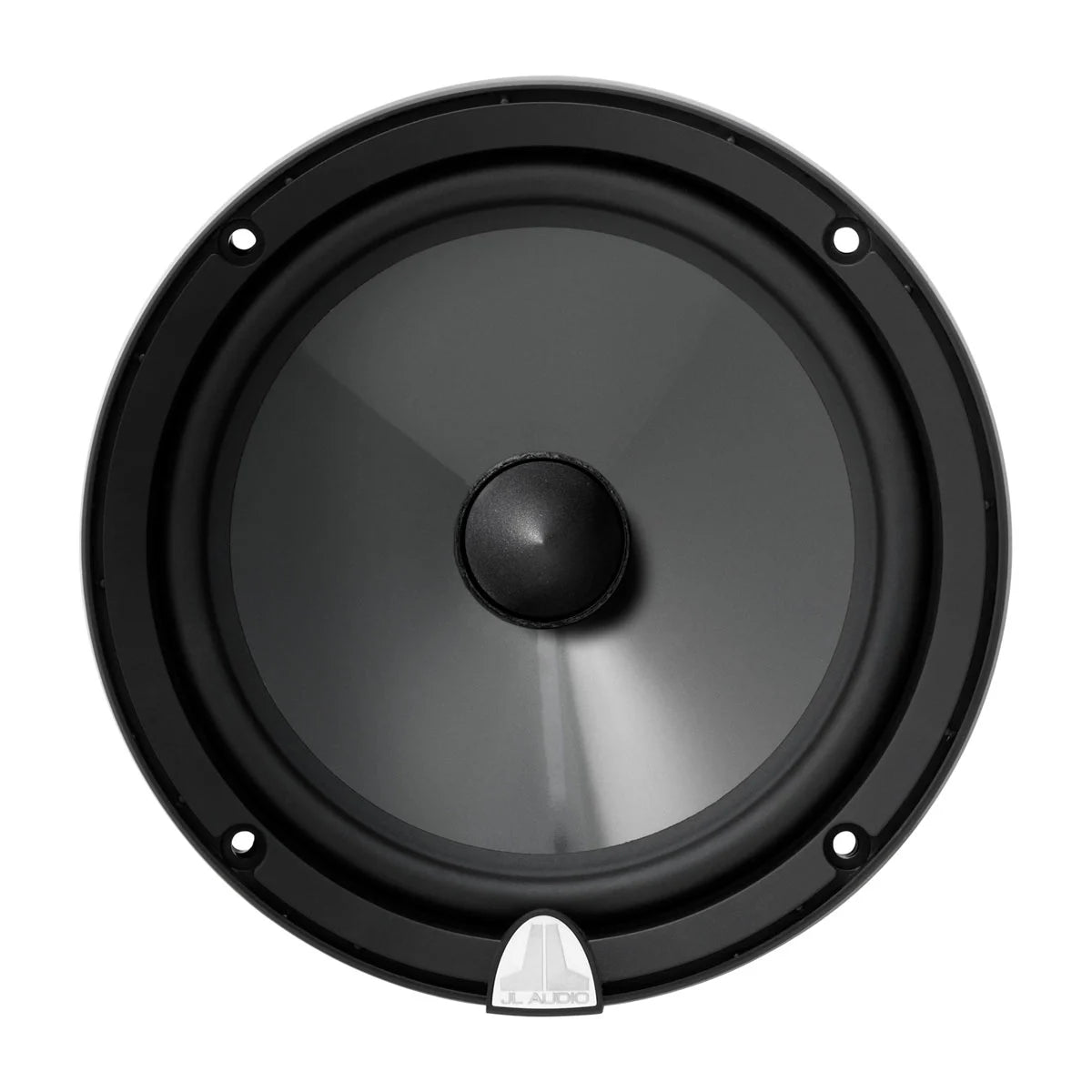

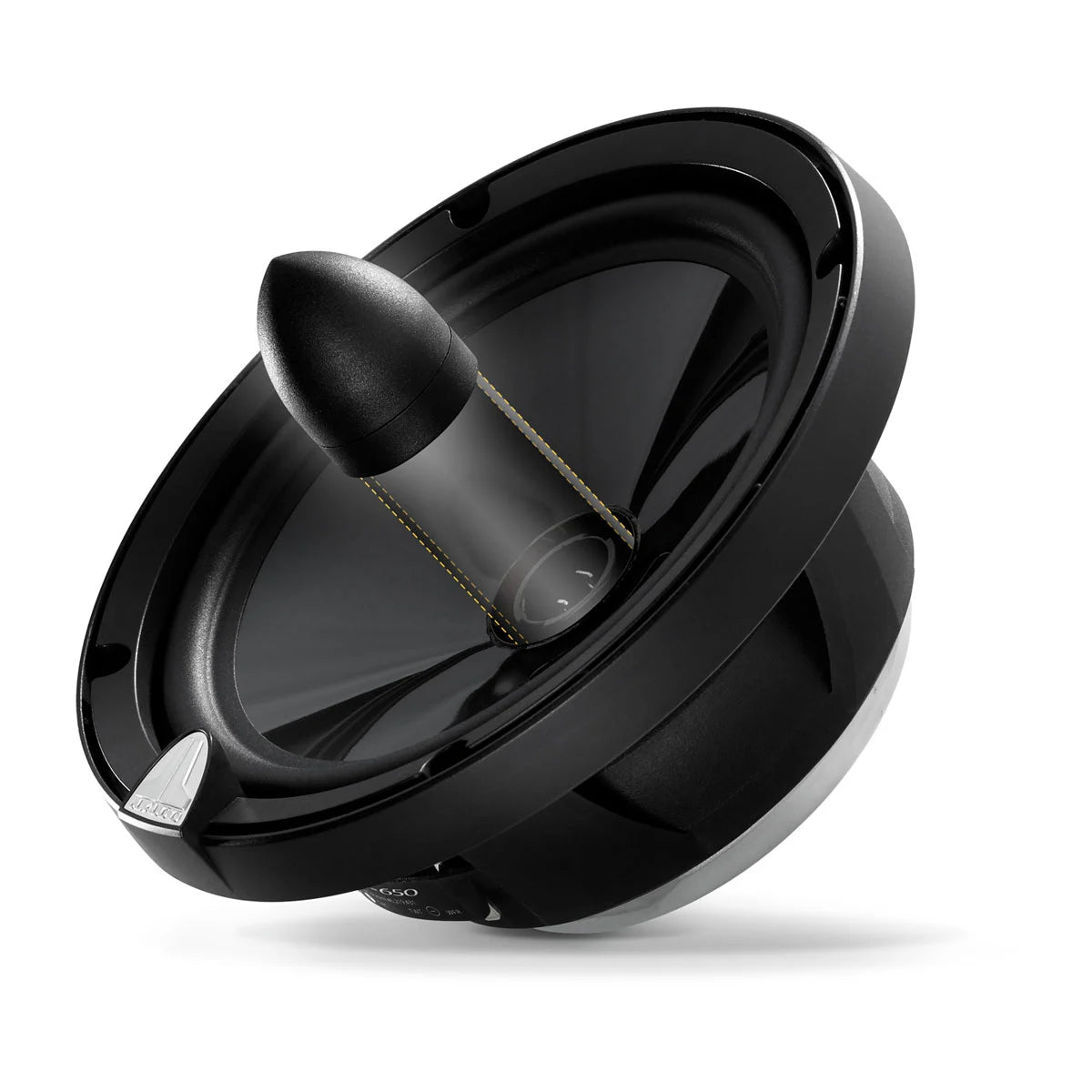

6.5" Component Woofer (Single) (C3-650cw)
