General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 10"/12" |
| Physical dimensions (Height) | 10": 14.24" (362 mm) 12": 16.23" (412 mm) |
| Physical dimensions (Width) | 10": 13.5" (343 mm) 12": 15.5" (394 mm) |
| Physical dimensions (Depth) | 10": 16.51" (419 mm) 12": 18.39" (467 mm) |
| Weight | 10": 52.7 lbs (23.9 kg) |
| Amplifier Power (RMS) | 10": 1200 W short-term 12": 1500 W short-term |
| Frequency response (Anechoic) | 10": 25-116 Hz (±1.5dB) 12": 22-118 Hz (±1.5dB) |
| Frequency response (Anechoic, -3dB) | 10": 23 Hz/120 Hz 12": 21 Hz/120 Hz |
| Frequency response (Anechoic, -10dB) | 10": 18 Hz/165 Hz 12": 17 Hz/153 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black ash or black gloss |

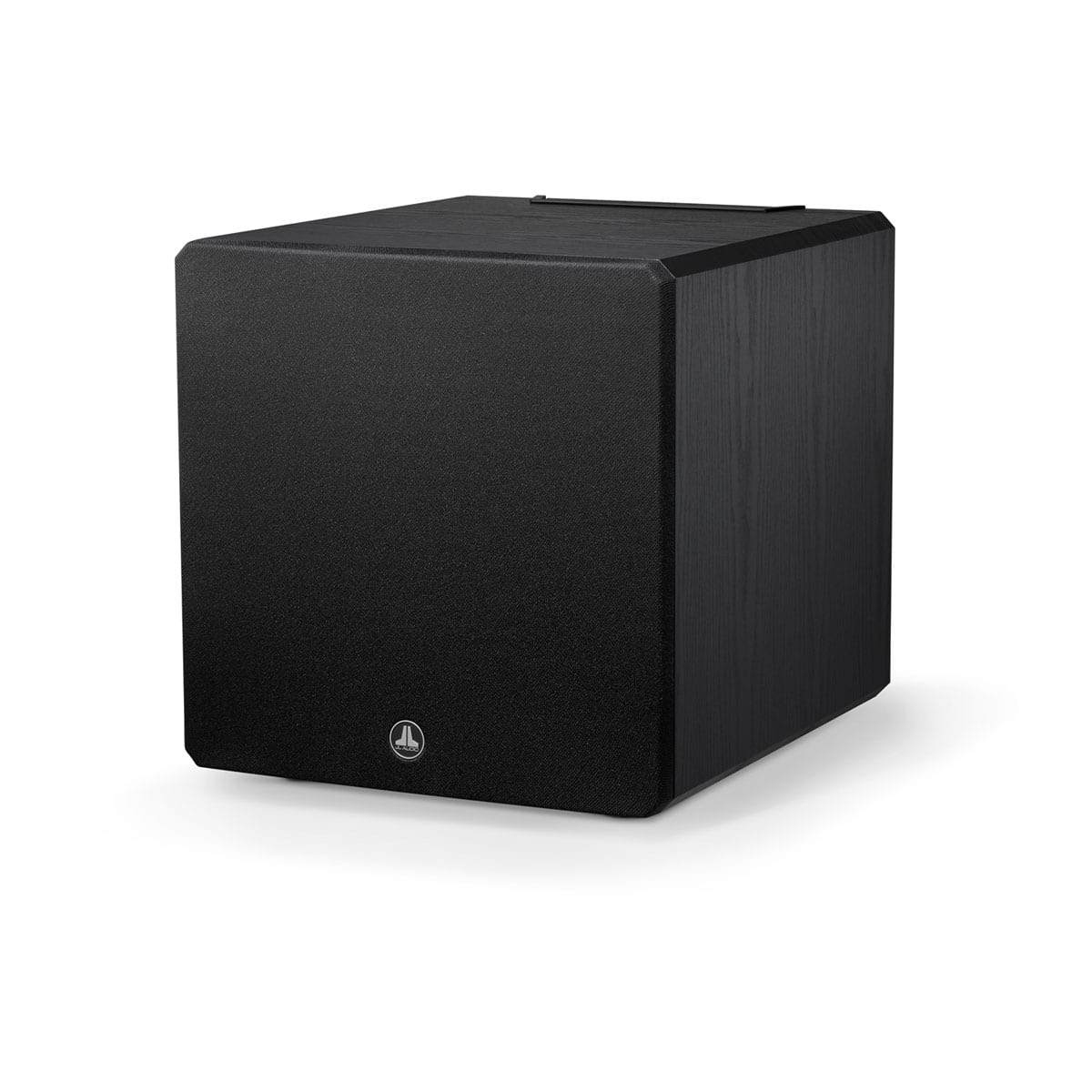

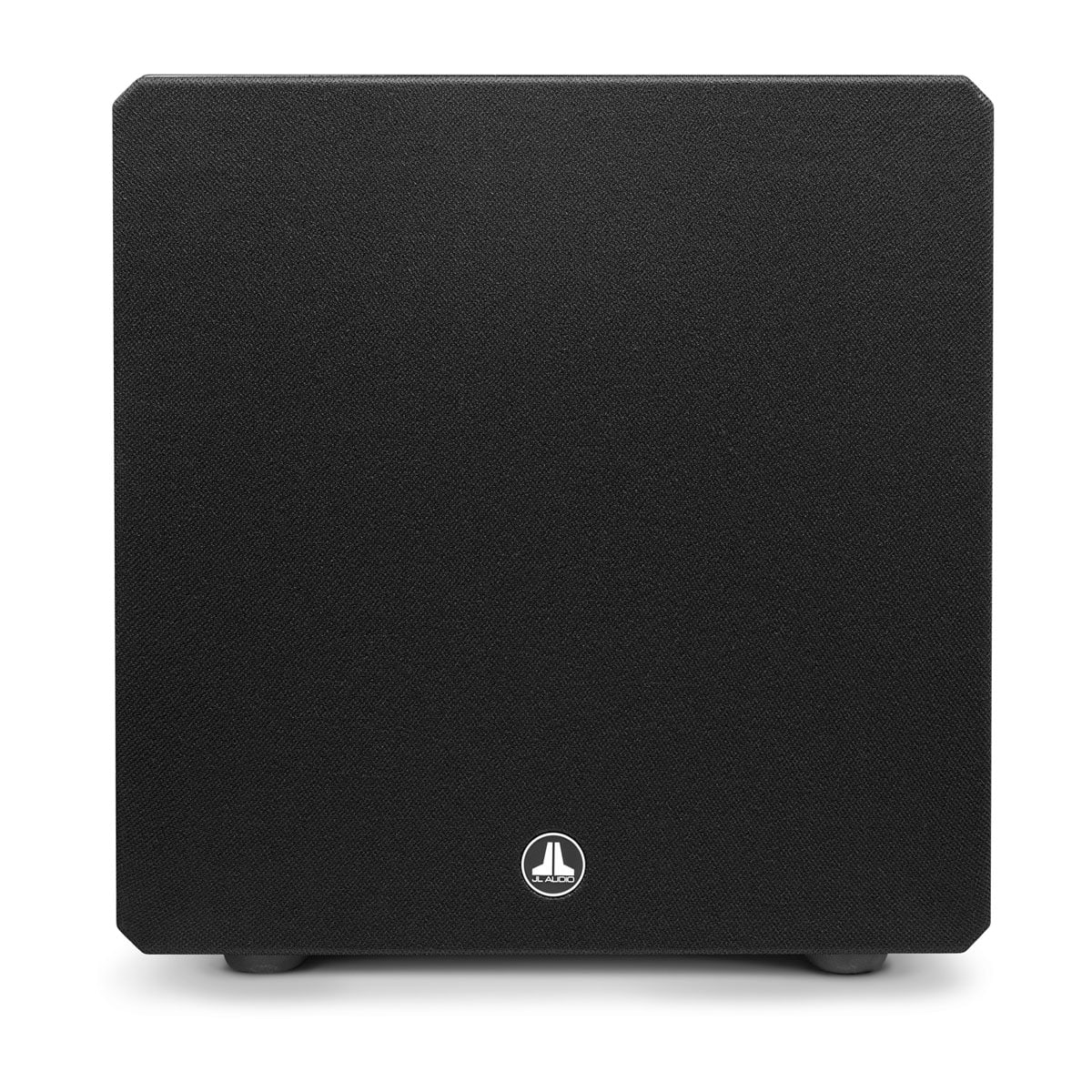

| Grille(s) included | |
| Power modes | off, on or automatic (signal-sensing) |
Signal Processing |
|

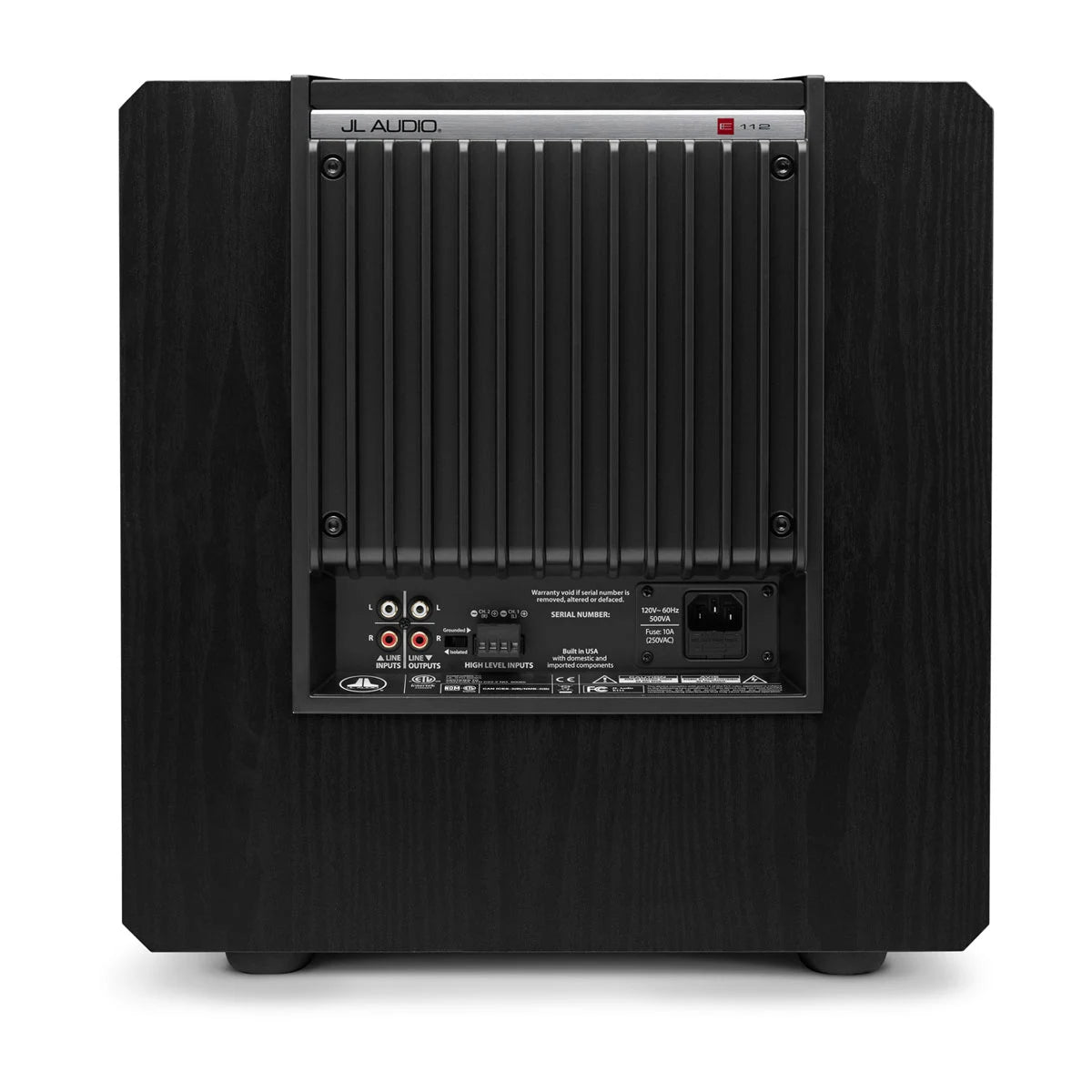

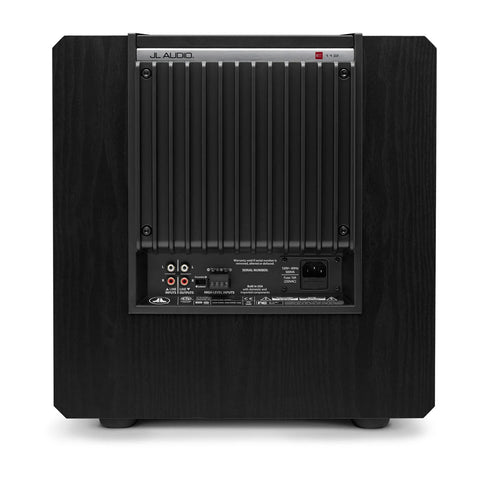

| Unbalanced input(s) | Stereo or mono (two RCA jacks) |
|---|---|
| Speaker/High-level inputs | Stereo or mono (removeable plug) |
| Input grounding | Isolated or grounded |
| Level control | Variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 24 dB/octave |
| Filter frequency range | 25 Hz-130 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Phase | Variable, 0-280º, referenced to 80 Hz |
| Line outputs | Stereo or mono (two RCA jacks), High-pass or Pass-through |
Parameters |
|
| Effective piston area (SD) | 10": 58.78 in² (0.0379 m²) 12": 84.4 in² (0.0545 m²) |
|---|---|
| Effective displacement | 10": 131 cu in (2.1 L) 12": 235 cu in (3.9 L) |

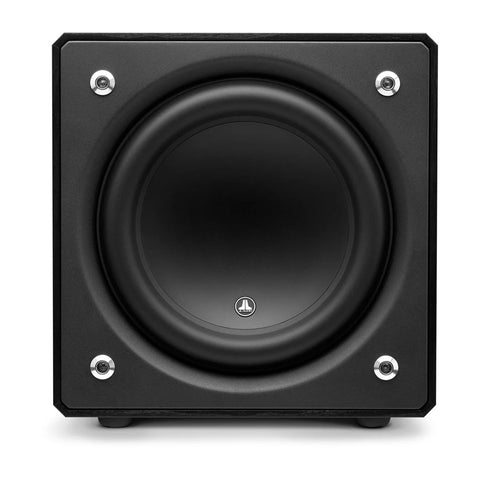

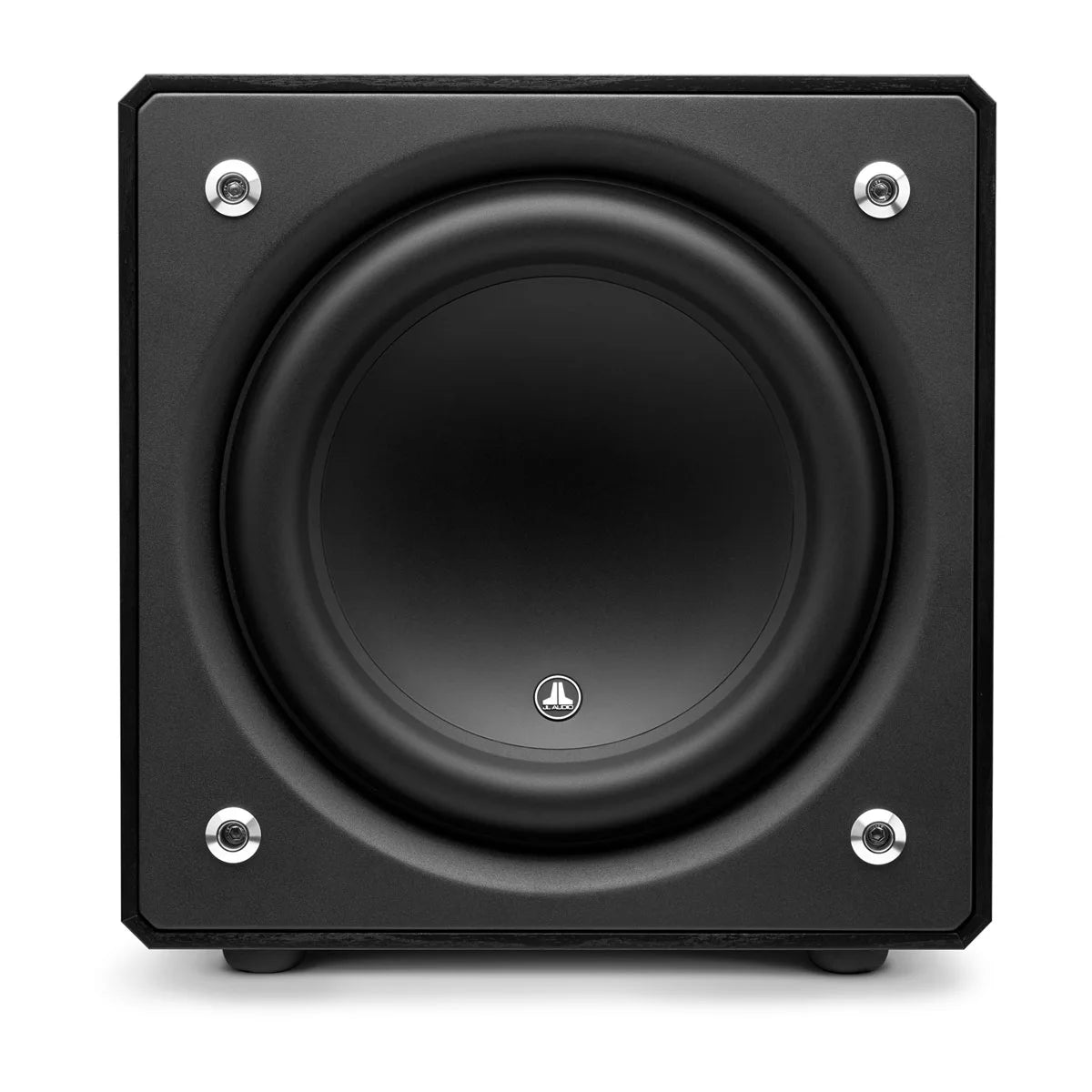

12" with Black Ash Finish (e112-ASH)
