General |
|
| Warranty | 3 years |
|---|---|
| Sizes | Dual 13.5" |
| Physical dimensions (Height) | 34.13" (867 mm) |
| Physical dimensions (Width) | 21.50" (546 mm) |
| Physical dimensions (Depth) | 21.50" (546 mm) |
| Weight | 360 lbs (163 kg) |
| Light modes | off, on or dim |
| Amplifier Power (RMS) | 4500 W short-term |
| Frequency response (Anechoic) | 19-112 Hz (±1.5 dB) |
| Frequency response (Anechoic, -3dB) | 17.5 Hz/120 Hz |
| Frequency response (Anechoic, -10dB) | 14 Hz/150 Hz |
| Enclosure type | Sealed, with non-parallel walls |
| Enclosure finish | Black gloss |
| Grille(s) included | |
| Power modes | off, on or automatic (signal-sensing) |
Signal Processing |
|
| Unbalanced input(s) | Stereo or mono (two RCA jacks) |
|---|---|
| Balanced input(s) | Stereo or mono (two female XLR jacks) |
| Input grounding | Isolated or grounded |
| Input modes | Master or slave |
| Level control | Reference (fixed gain) or variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 12/24 dB/octave |
| Filter frequency range | 30 Hz-130 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Phase | Variable, 0-270º |
| Extreme Low Frequency (E.L.F.) trim | Variable, -12 dB to +3 dB at 28 Hz |
| Output to slave | Balanced (one male XLR jack) |
| Calibration mode | Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone |
Parameters |
|
| Effective piston area (SD) | 214.70 in² (0.1386 m²) |
|---|---|
| Effective displacement | 773 cu in (12.7 L) |

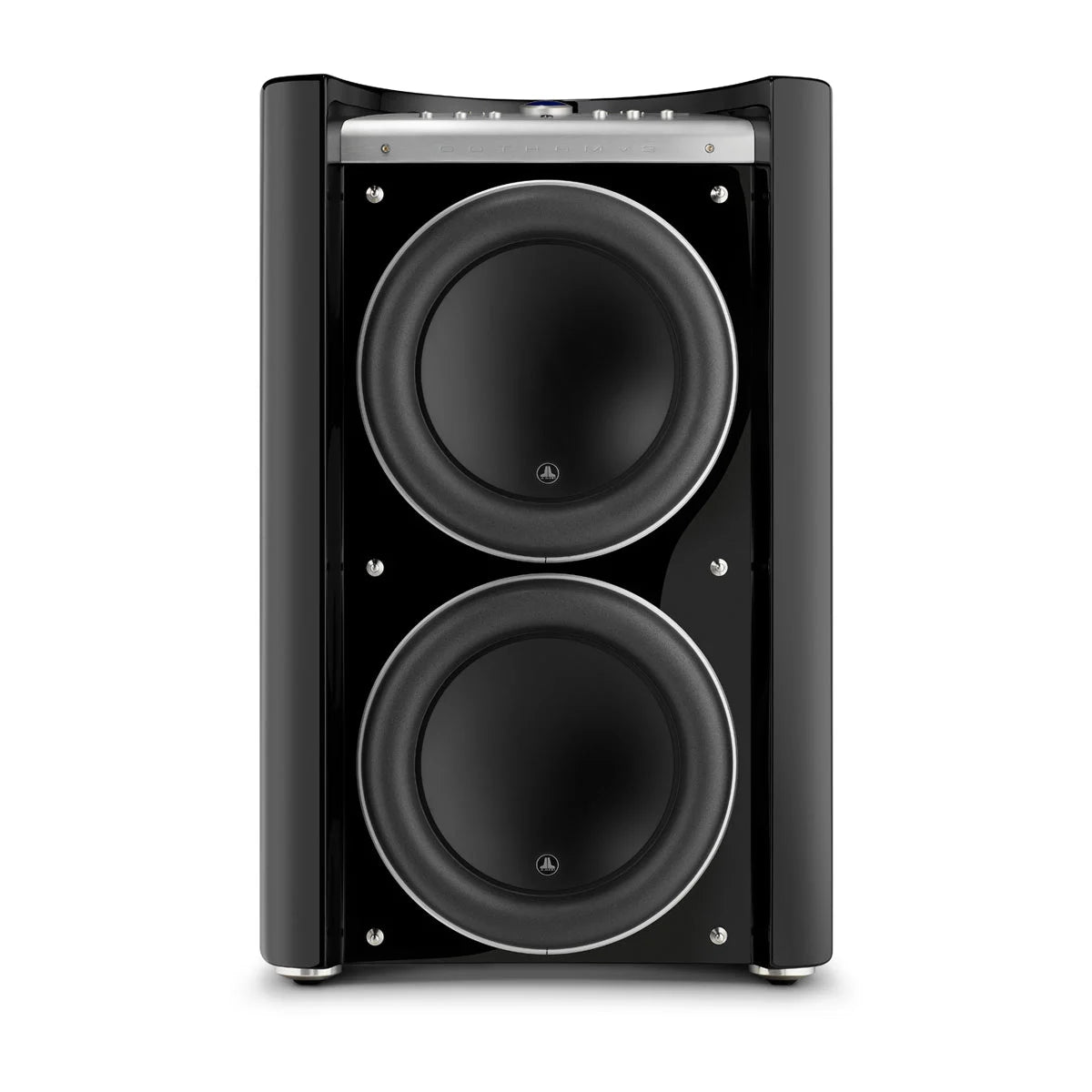

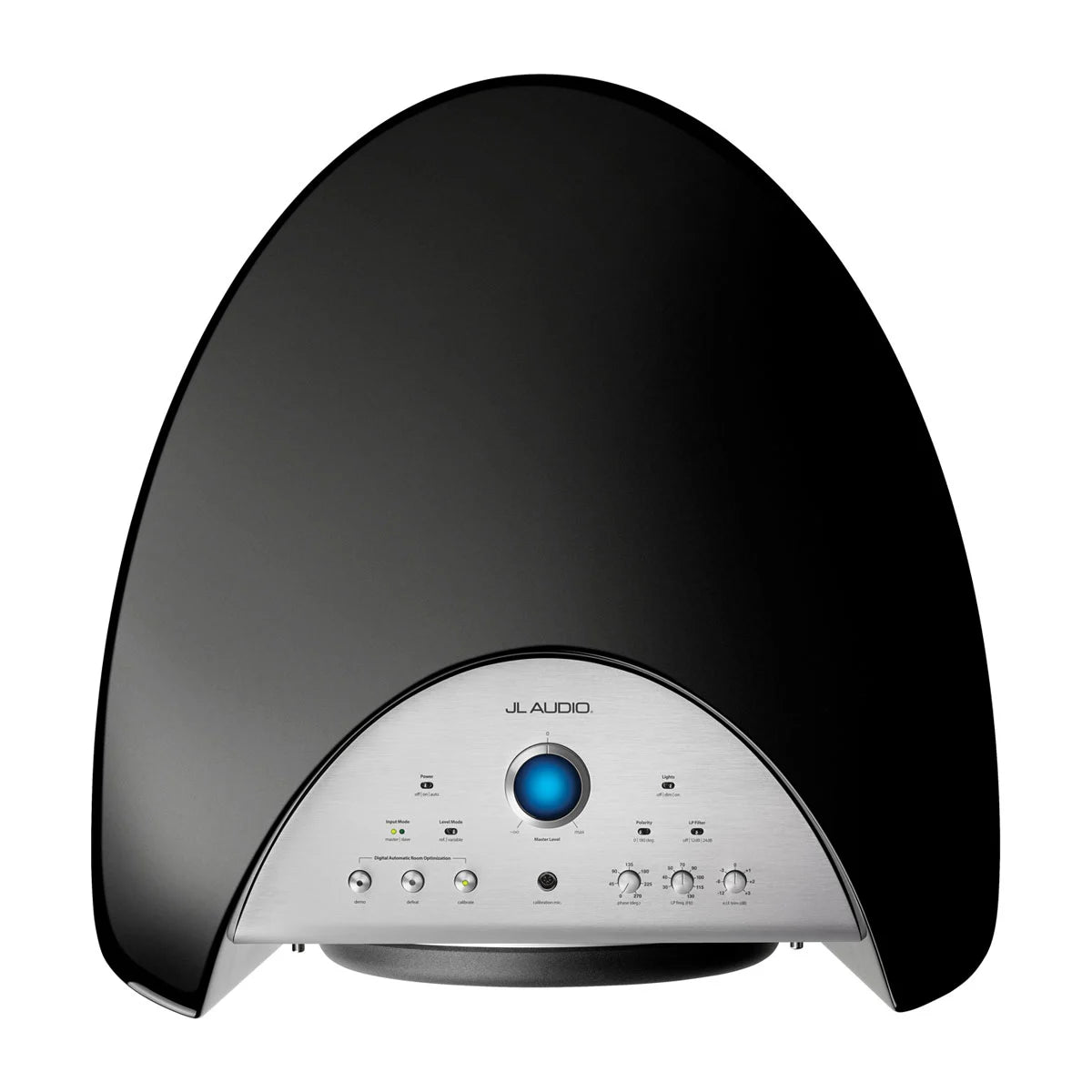

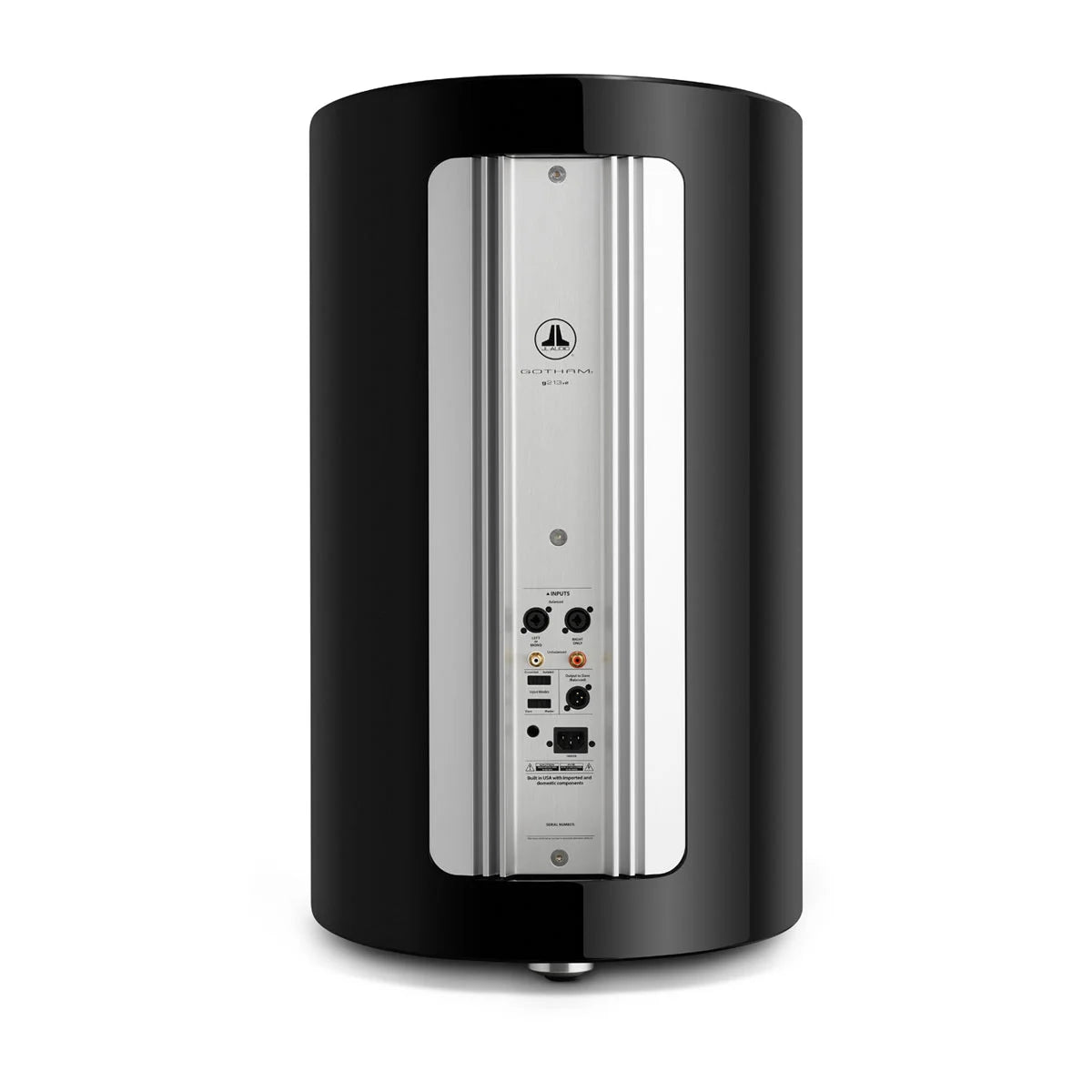

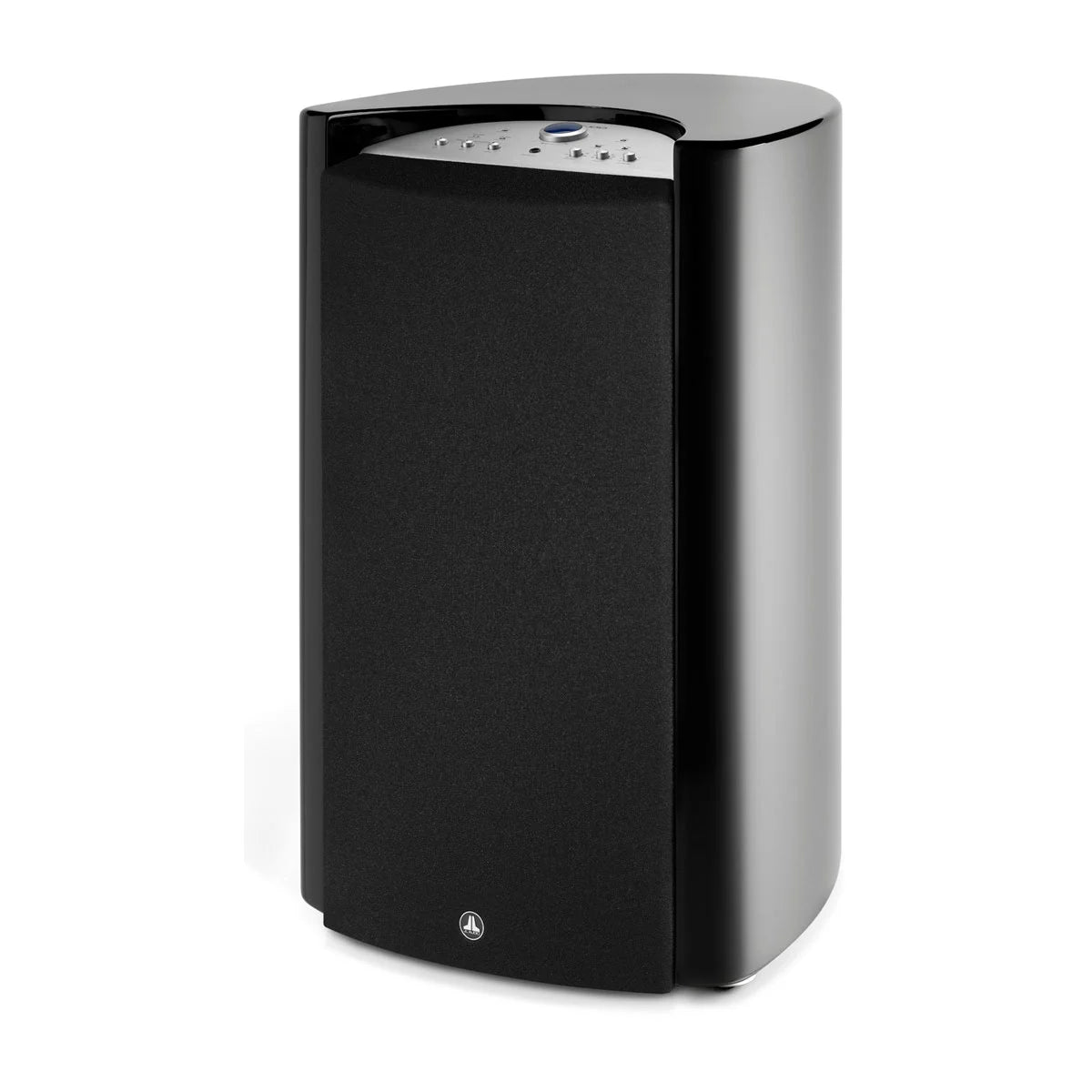

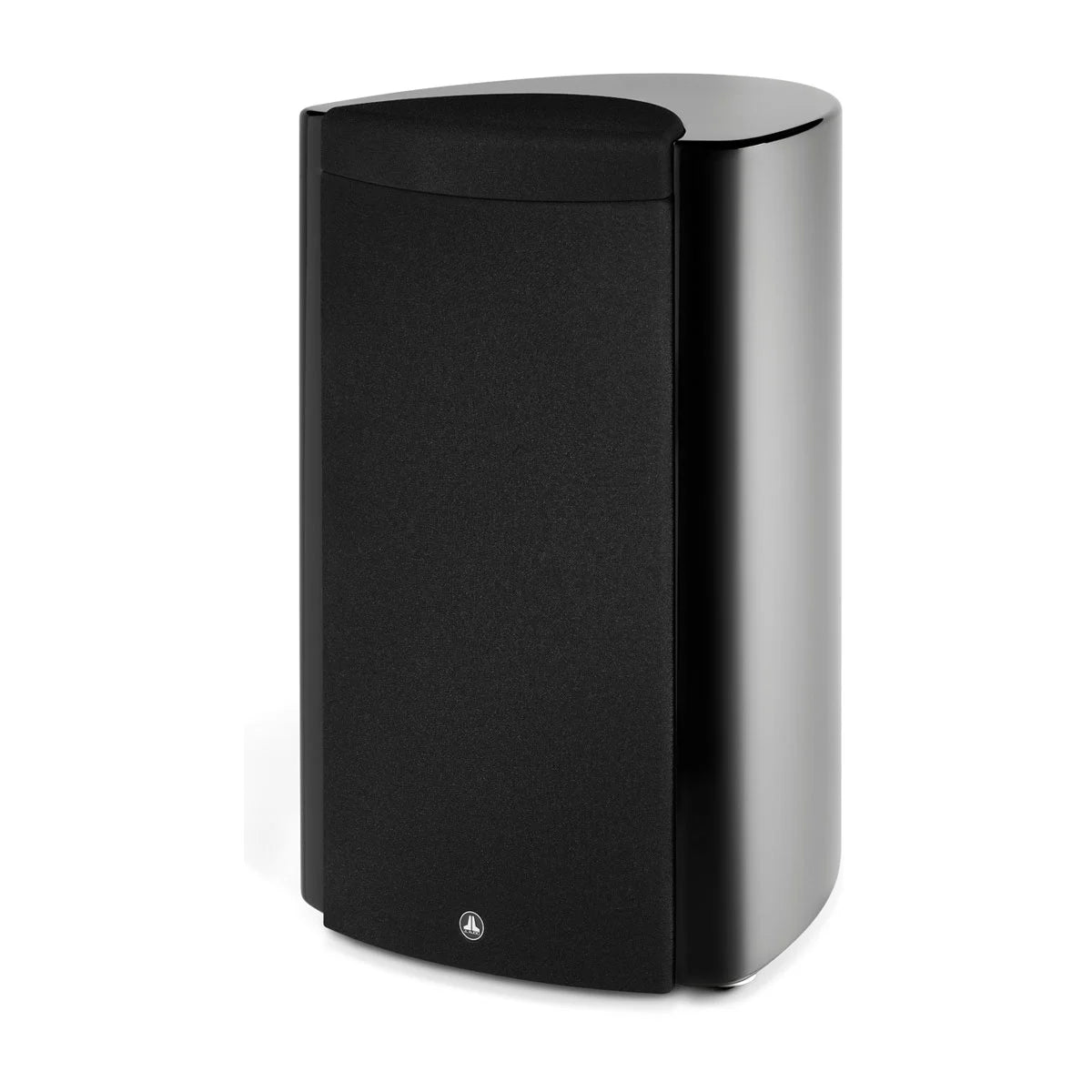

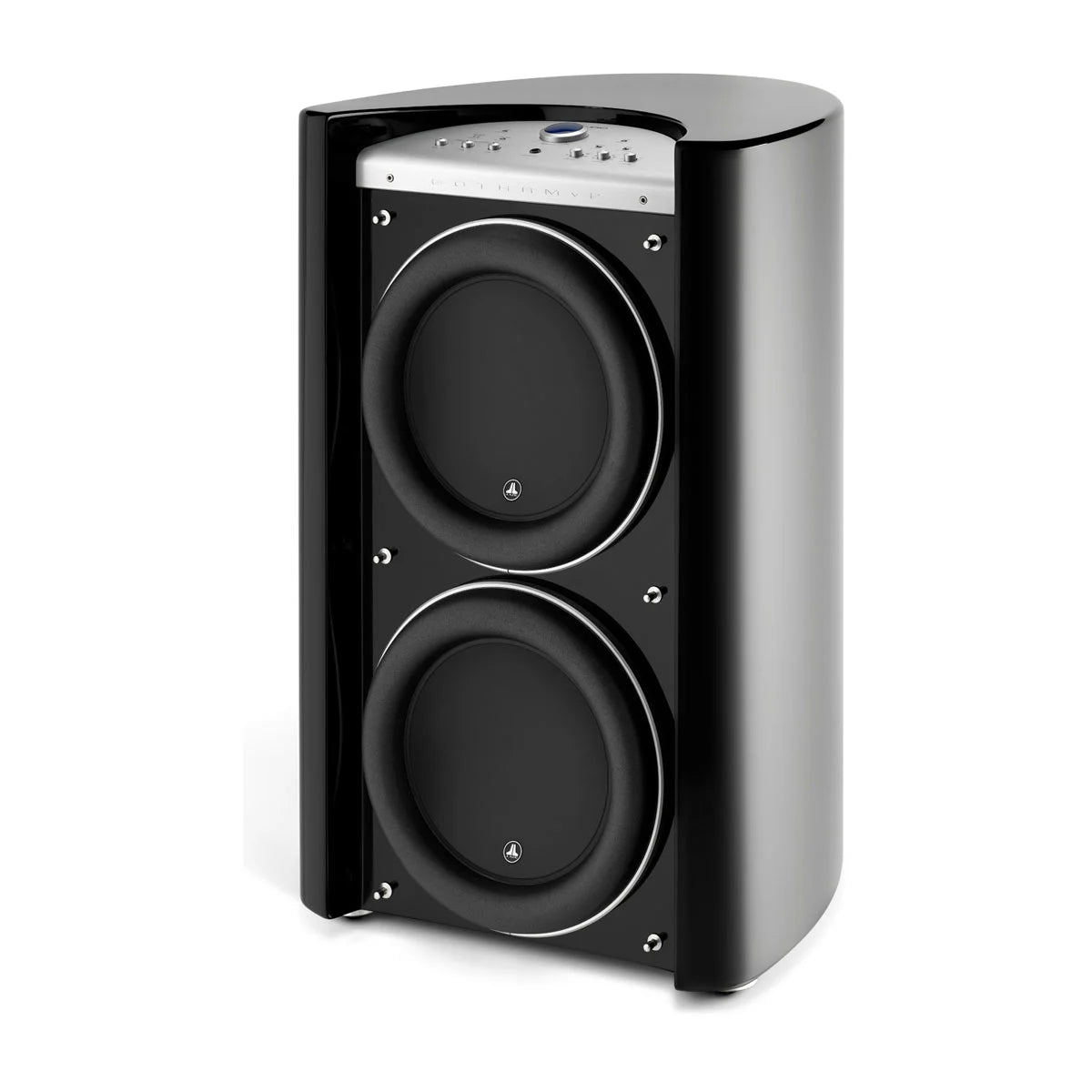

JL Audio Gotham™ v2 Powered Subwoofers
