General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 10"/12"/Dual 12"/13.5" |
| Physical dimensions (Height) | 10": 15.64" (397 mm) 12": 18.5" (470 mm) Dual 12": 31.96" (812 mm) 13.5": 19.25" (489 mm) |
| Physical dimensions (Width) | 10": 12.92" (328 mm) 12": 15.0625" (384 mm) Dual 12": 14.92" (379 mm) 13.5": 16.50" (419 mm) |
| Physical dimensions (Depth) | 10": 17.27" (439 mm) 12": 17.75" (451 mm) Dual 12": 20.39" (518 mm) 13.5": 19.25" (489 mm) |
| Weight | 10": 69 lbs (31 kg) |
| Light modes | off, on or dim |
| Amplifier Power (RMS) | 10": 1100 W short term 12": 1800 W short-term Dual 12": 3600 W short-term 13.5": 3000 W short-term |
| Frequency response (Anechoic) | 10": 27-111 Hz (±1.5 dB) 12": 21-119 Hz (±1.5 dB) Dual 12": 20-97 Hz (±1.5 dB) 13.5": 20-86 Hz (±1.5 dB) |
| Frequency response (Anechoic, -3dB) | 10": 25 Hz/120 Hz 12": 19 Hz/150 Hz Dual 12": 19 Hz/110 Hz 13.5": 18 Hz/127 Hz |
| Frequency response (Anechoic, -10dB) | 10": 19 Hz/155 Hz 12": 17 Hz/167 Hz Dual 12": 15 Hz/157 Hz 13.5": 16 Hz/154 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black gloss |
| Grille(s) included | |
| Power modes | off, on or automatic (signal-sensing) |
Signal Processing |
|
| Unbalanced input(s) | Stereo or mono (two RCA jacks) |
|---|---|
| Balanced input(s) | Stereo or mono (two female XLR jacks) |
| Input grounding | Isolated or grounded |
| Input modes | Master or slave |
| Level control | Reference (fixed gain) or variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 12/24 dB/octave |
| Filter frequency range | 30 Hz-130 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Phase | Variable, 0-280º |
| Extreme Low Frequency (E.L.F.) trim | Variable, -12 dB to +3 dB at 28 Hz |
| Output to slave | Balanced (one male XLR jack) |
| Calibration mode | Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone |
Parameters |
|
| Effective piston area (SD) | 10": 60 in² (0.0387 m²) 12": 84 in² (0.0542 m²) Dual 12": 168 in² (0.1084 m²) 13.5": 107.35 in² (0.0693 m²) |
|---|---|
| Effective displacement | 10": 160 cu in (2.6 L) 12": 287 cu in (4.7 L) Dual 12": 574 cu in (9.4 L) 13.5": 386 cu in (6.3 L) |

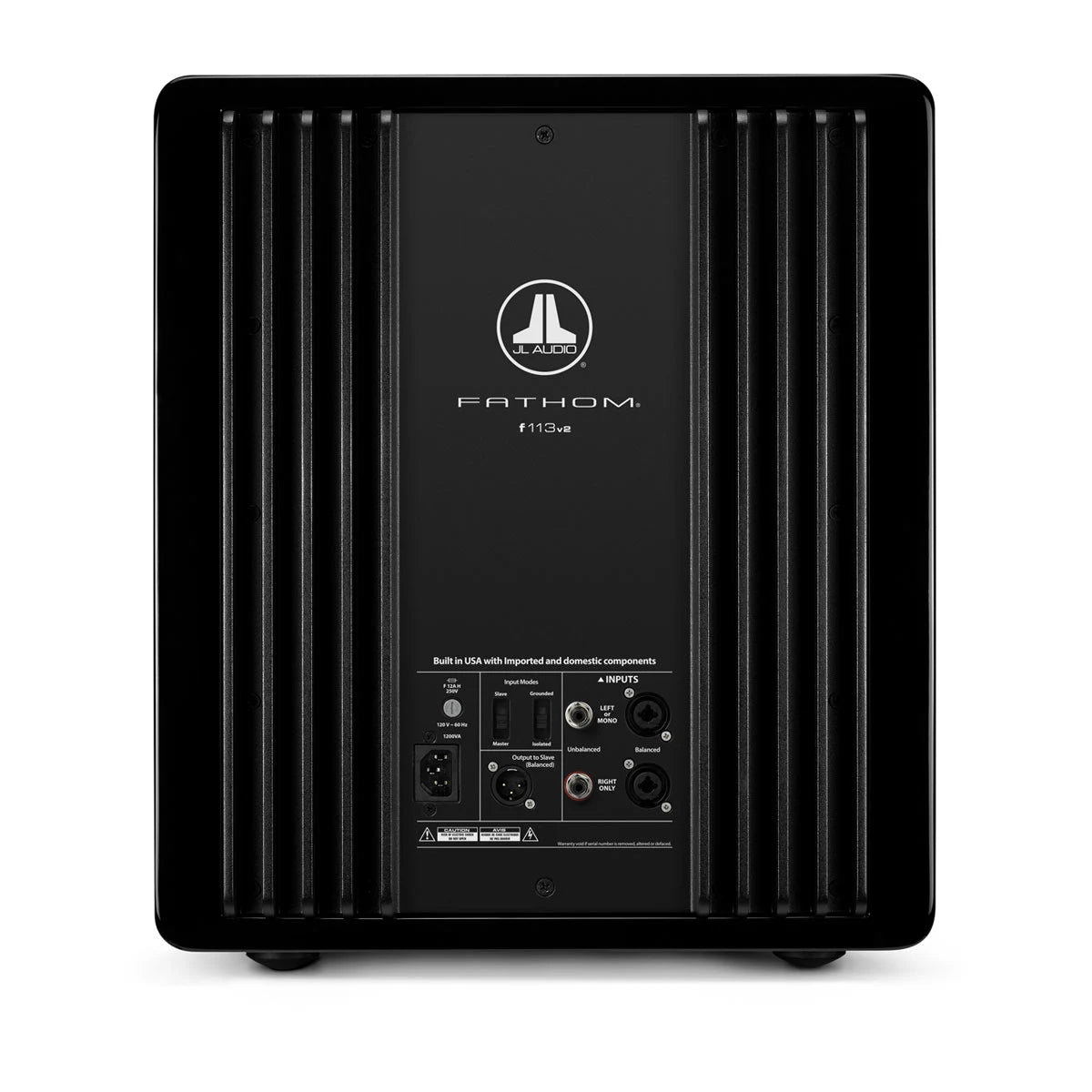

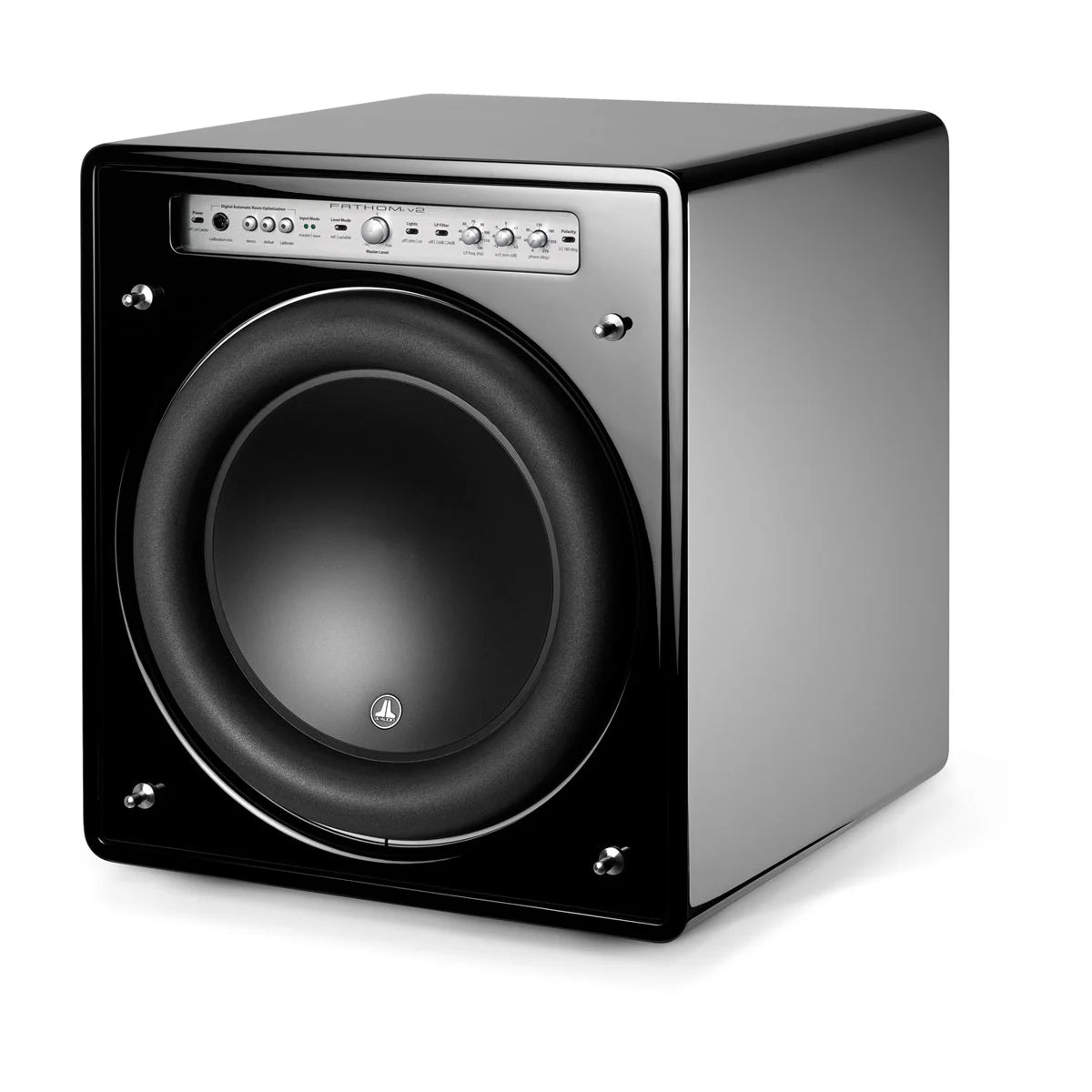

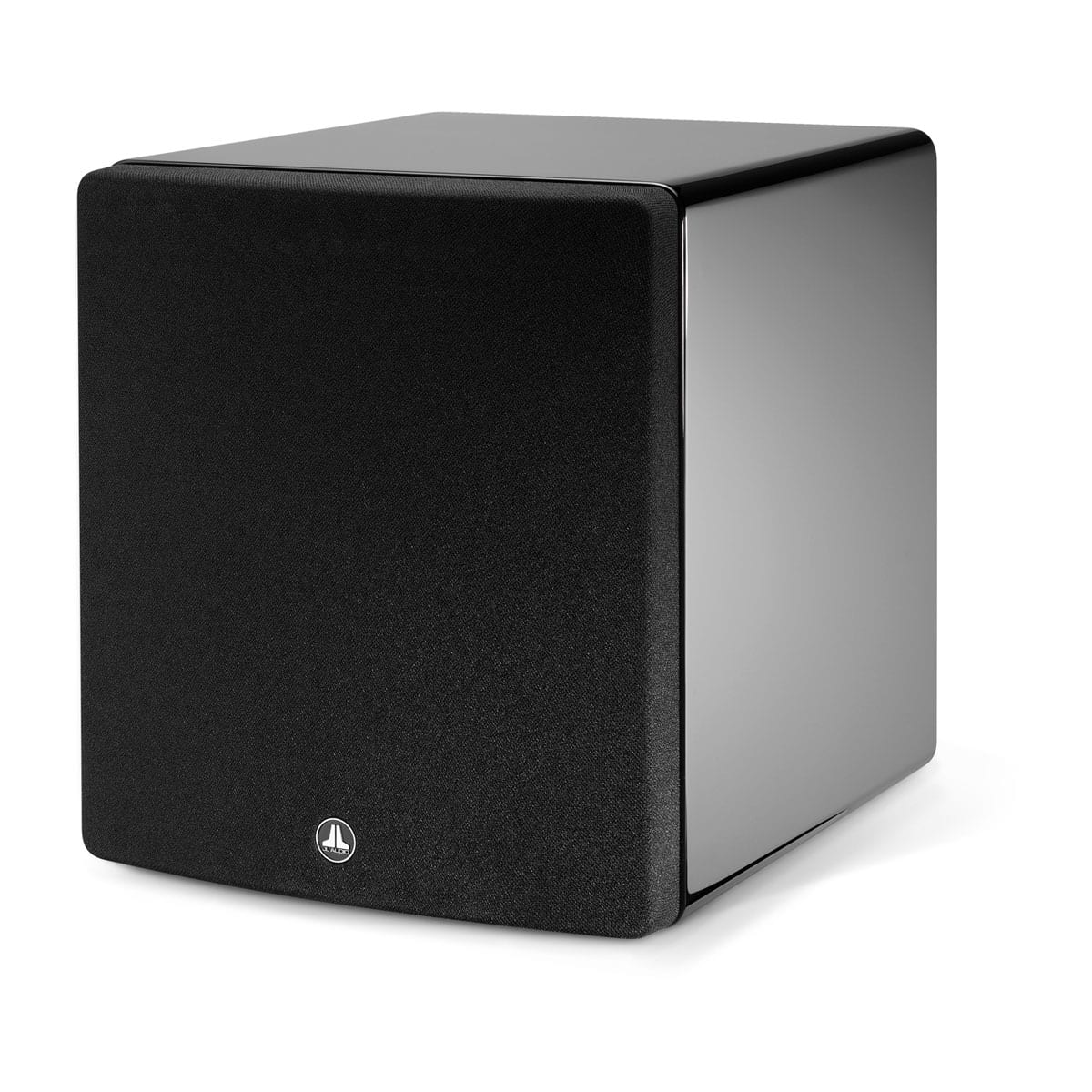

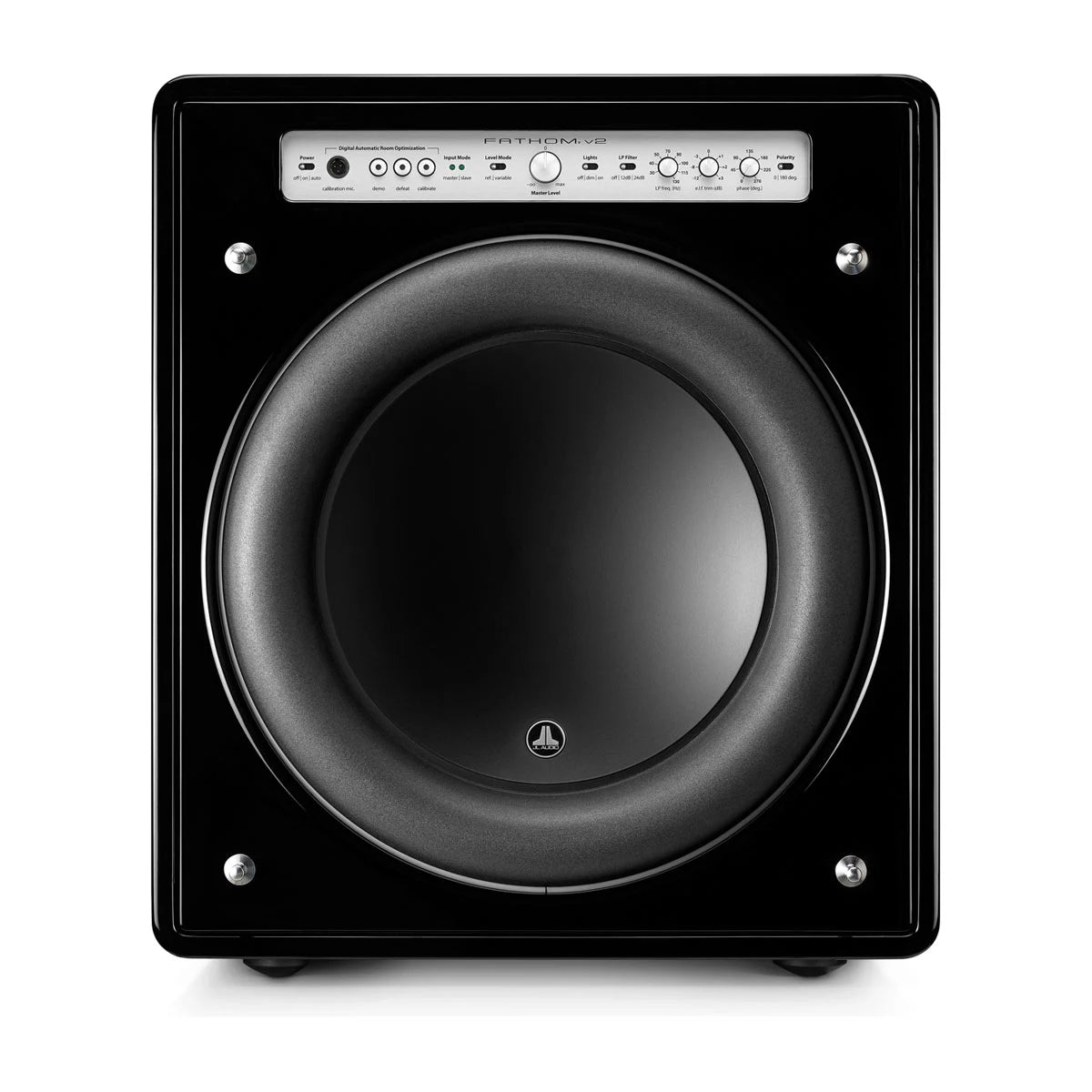

13.5" with Gloss Black Finish (f113v2-GLOSS)
