General |
|
| Maximum input/output voltage | 8 Vrms (+18 dBv) |
| Input impedance | Unbalanced: 50 kΩ balanced: 20 kΩ (10 kΩ per leg) |
| Output impedance | Unbalanced: 150 Ω balanced: 300 Ω (150 Ω per leg) |
| THD+N | < 0.002% at 8 Vrms/10 kΩ 20 Hz-20 kHz, 90 kHz bandwidth |
| Channel separation | >80 dB at 1 kHz |
| Low Pass Frequency Response (+0, -1dB) | 5 Hz to 1/4 of filter frequency |
| High Pass Frequency Response (+0, -1dB) | 4x filter frequency to 80 kHz |
| Power consumption | 30 W (typical, with or without signal) |
| Mains voltage (frequency) | 120 V (60 Hz) or 230/240 V (50 Hz or 60 Hz), factory-set for destination country |
Features |
|

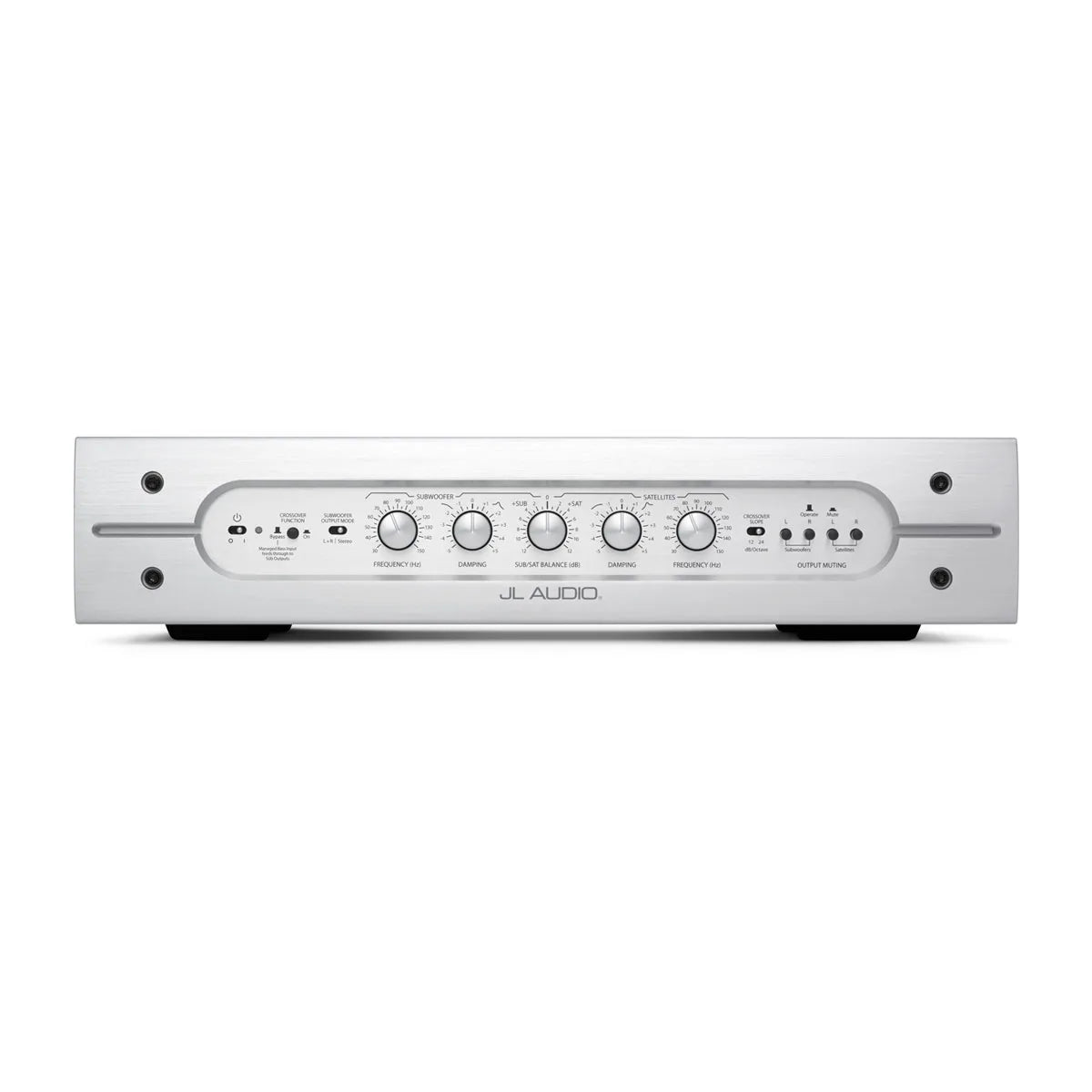

| Crossover function | Bypass or On, selectable via front panel switch |
| Subwoofer output modes | Mono, L+R or Stereo, selectable via front panel switch |
| Crossover frequency range | 30 Hz-150 Hz, variable with independent high-pass and low-pass filter frequency controls on front panel |
| Subwoofer/satellite balance control | +/- 12 dB, fully variable via front panel knob |
| Filter damping controls | Q: 0.3-1.4 @ 12 dB/octave, via front panel knob Q: 0.16-4.0 @ 24 dB/octave, via front panel knob For either slope, Q = 0.5 at top dead center “0” mark |
| Filter slope(s) | 12 dB/octave or 24 dB/octave, Linkwitz-Riley selectable via front panel switch |
| Output muting | independent for each output, via front panel push-button switches |

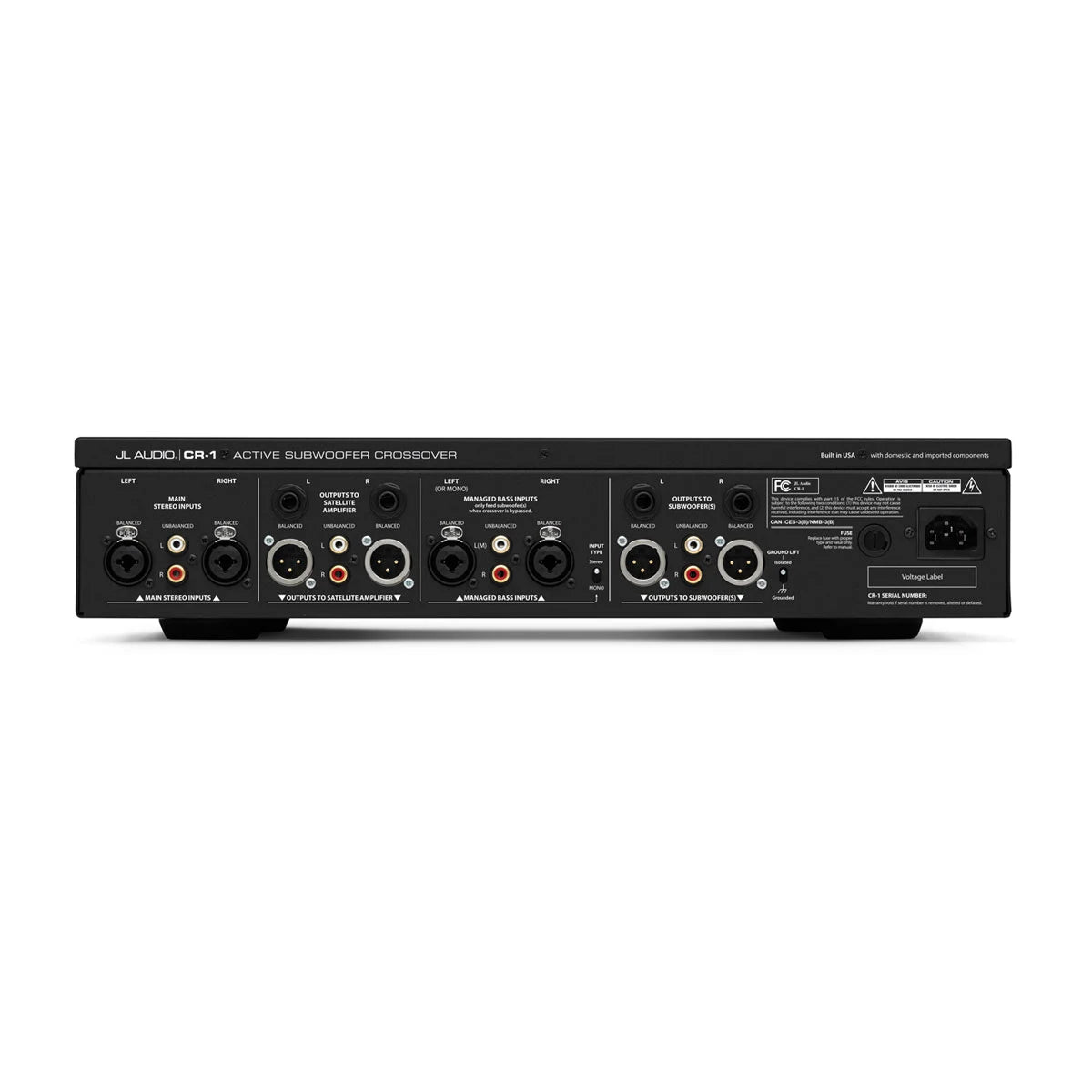

| Ground lift | Isolated/grounded, via rear panel switch |
| Main stereo inputs | Unbalanced L/R: (2 RCA jacks) Balanced L/R (2 XLR/TRS combo jacks) |
| Managed bass inputs | Unbalanced L/R: (2 RCA jacks) Balanced L/R (2 XLR/TRS combo jacks) |
| Satellite line outputs | Unbalanced (2 RCA jacks) Balanced (2 TRS jacks, 2 XLR jacks) |
| Subwoofer line outputs | Unbalanced L/R: (2 RCA jacks) Balanced L/R: (2 TRS jacks, 2 XLR jacks) |
