General |
|
| Warranty | 2 years |
|---|---|
| Physical dimensions (Height) | Controller: 2.15" (55 mm) Receiver: 2.28" (58 mm) |
| Physical dimensions (Width) | Controller: 2.15" (55 mm) Receiver: 2.64" (67 mm) |
| Physical dimensions (Depth) | Controller: 3.10" (79 mm) Receiver: 0.79" (20 mm) |
| Control Surface Dust/Water Rating (when properly installed) | Controller: IP67 Receiver: IPX7 |
| Current draw (max) | Controller: 108 mA Receiver: 40 mA |
Electrical Features |
|
| Power Input | Controller: 8-16 VDC Receiver: 10-16 VDC |
|---|---|
Stereo Features |
|
| Multi-Zone™ technology | see Additional |
|---|---|
| Bluetooth® wireless technology | |
Sources |
|
| Supported sources | Bluetooth® |
|---|---|
Networking & Connections |
|
| RCA pre-out (left, right and subwoofer - requires external amplification) | Controller: 2 zones (L+R), 1 mono output Receiver: L + R only |
|---|---|
| Line out (requires external amplification) | Controller: 2 (L + R per zone) Receiver: 1 (L + R) |
| Subwoofer out (requires external amplification) | Controller: Zone 1 (1 mono output) |
| Wireless frequencies/protocols | Bluetooth® |
| Bluetooth® wireless range | Up to 35 ft (11 meters) |
Additional |
|
| Additional | Multi-Zone Technology: Controller only |
|---|---|

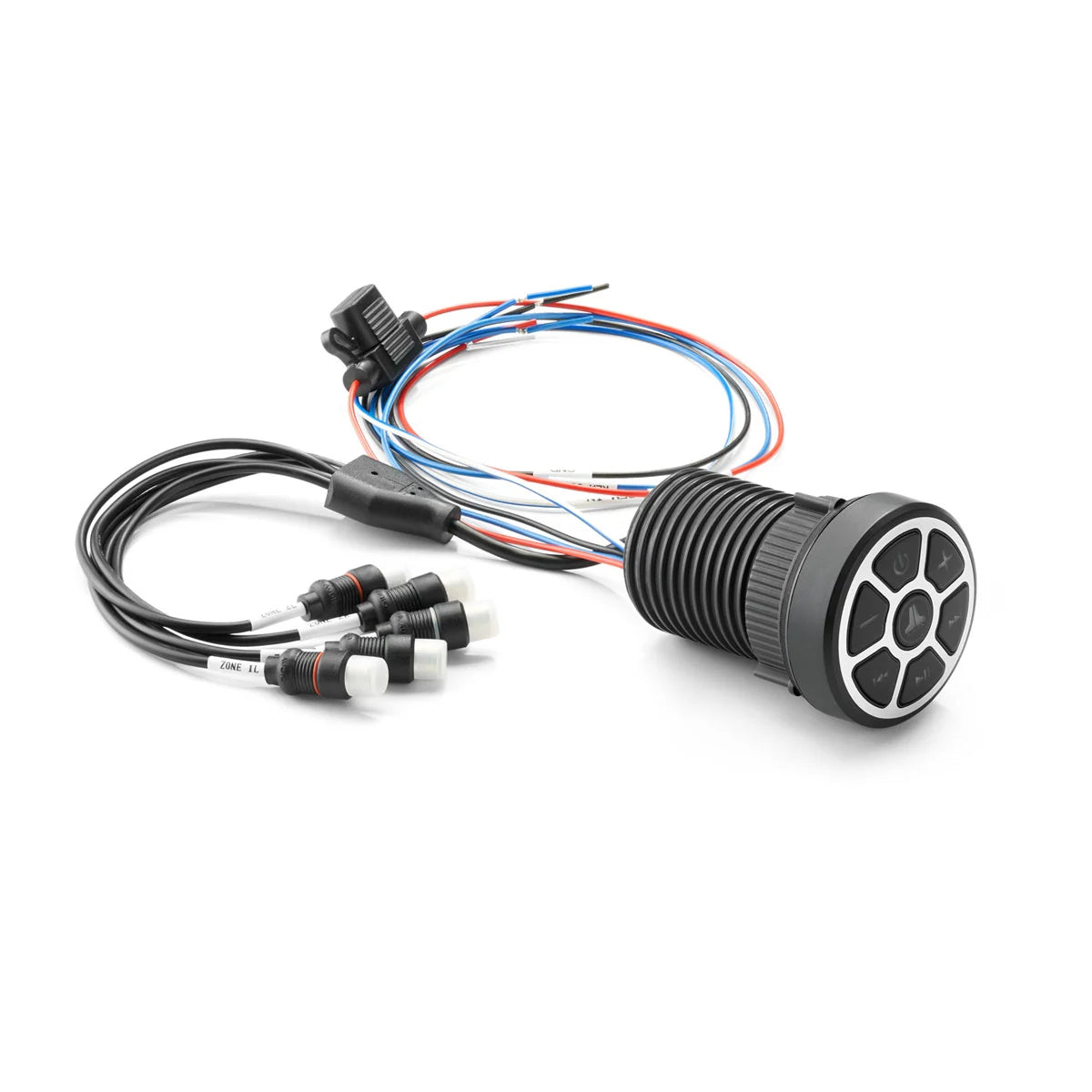

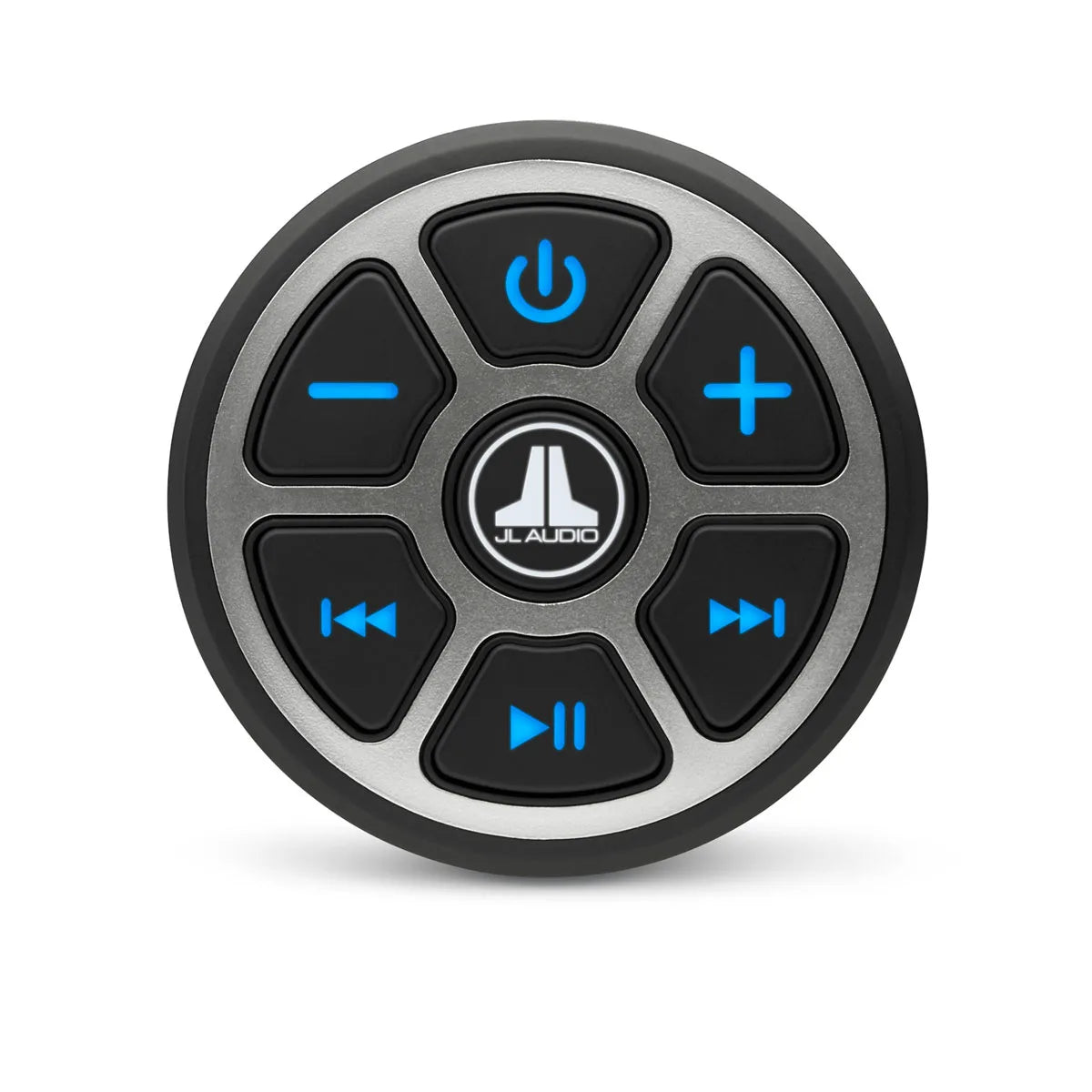

Weatherproof Controller/Receiver with Bluetooth® Technology (MBT-CRXv3)
