General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 13.5"/Dual 13.5" (driver) 5.25"/5.75"/9"/14" (enclosure depth) |
| Physical dimensions (Height) | 13.5" (5.25" depth): 58.75" (1,492 mm) 13.5" (5.75" depth): 23.94" (608 mm) 13.5" (9" depth): 30.69" (780 mm) Dual 13.5" (9" depth): 59.20" (1,504 mm) 13.5" (14" depth): 19.56" (497 mm) |
| Physical dimensions (Width) | 13.5" (5.25" depth): 14" (356 mm) 13.5" (5.75" depth): 23.94" (608 mm) 13.5" (9" depth): 14" (356 mm) Dual 13.5" (9" depth): 14" (356 mm) 13.5" (14" depth): 14" (356 mm) |
| Physical dimensions (Depth) | 13.5" (5.25" depth): 5.25" (133 mm) 13.5" (5.75" depth): 5.75" (146 mm) 13.5" (9" depth): 9" (229 mm) Dual 13.5" (9" depth): 9" (229 mm) 13.5" (14" depth): 14" (356 mm) |
| Continuous power handling (RMS) | 13.5": 1000 W Dual 13.5": 2000 W |
| Frequency response (Anechoic) | 28 Hz-117 Hz (± 1.5 dB) |
| Frequency response (Anechoic, -3dB) | 25 Hz/123 Hz |
| Frequency response (Anechoic, -10dB) | 22 Hz/150 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black texture-coated |
| Grille(s) included | |
Parameters |
|
| Effective piston area (SD) | 13.5": 98.26 in² (0.0634 m²) Dual 13.5": 196.51 in² (0.1268 m²) |
|---|---|
| Effective displacement | 13.5": 147.3 cu in (2.41 L) Dual 13.5": 294.6 cu in (4.82 L) |

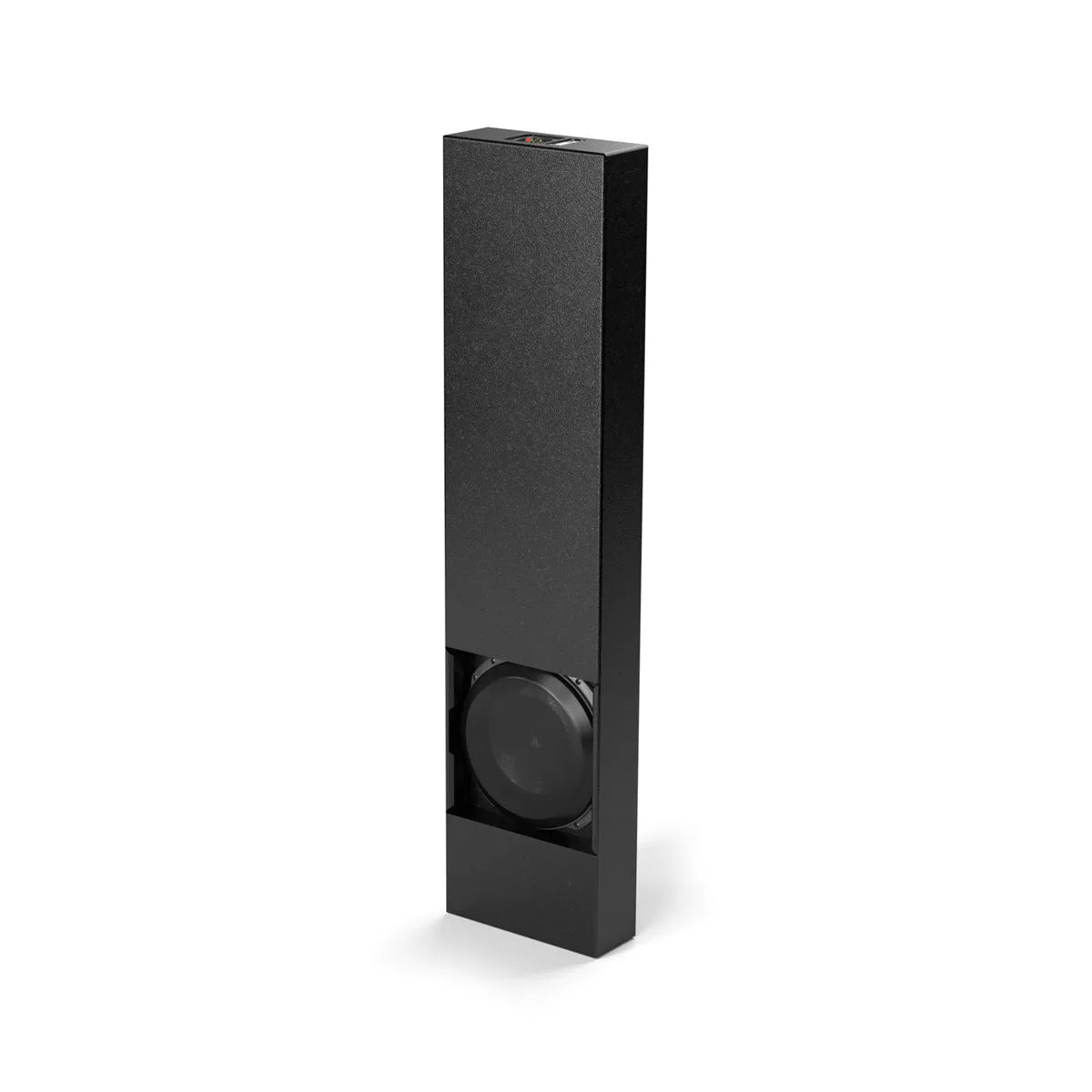

13.5" Subwoofer with 5.25" Deep Enclosure (CTS-113-TT525-13TW5H)
