General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 5.25"/6"/6.5" |
| Continuous power handling (RMS) | 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 5.25": 89.0 dB 6": 90.5 dB 6.5": 91.0 dB |
| Frequency response (+/- 3 dB) | 5.25": 63 Hz-22 KHz 6"/6.5": 59 Hz-22 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 15 - 100 W/Channel |
| Voice coil diameter | 1" (25 mm) |
| Cone material | Mineral-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 0.75" (19 mm) |
| Grille(s) included | |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 5.25": 5.20" (132 mm) 6": 6.21" (158 mm) 6.5": 6.5" (165 mm) |
|---|---|
| Mounting depth clearance | 5.25": 0.72" (18 mm) 6": 0.91" (23 mm) 6.5": 0.85" (22 mm) |
| Frontal grille protrusion | 5.25": 0.72" (18 mm) 6": 0.91" (23 mm) 6.5": 0.85" (22 mm) |
| Mounting hole | 5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm) |
| Grille tray outer diameter | 5.25": 6.01" (153 mm) 6": 6.51" (163 mm) 6.5": 6.84" (174 mm) |
| Motor outer diameter | 5.25": 2.76" (70 mm) 6"/6.5": 3.15" (80 mm) |

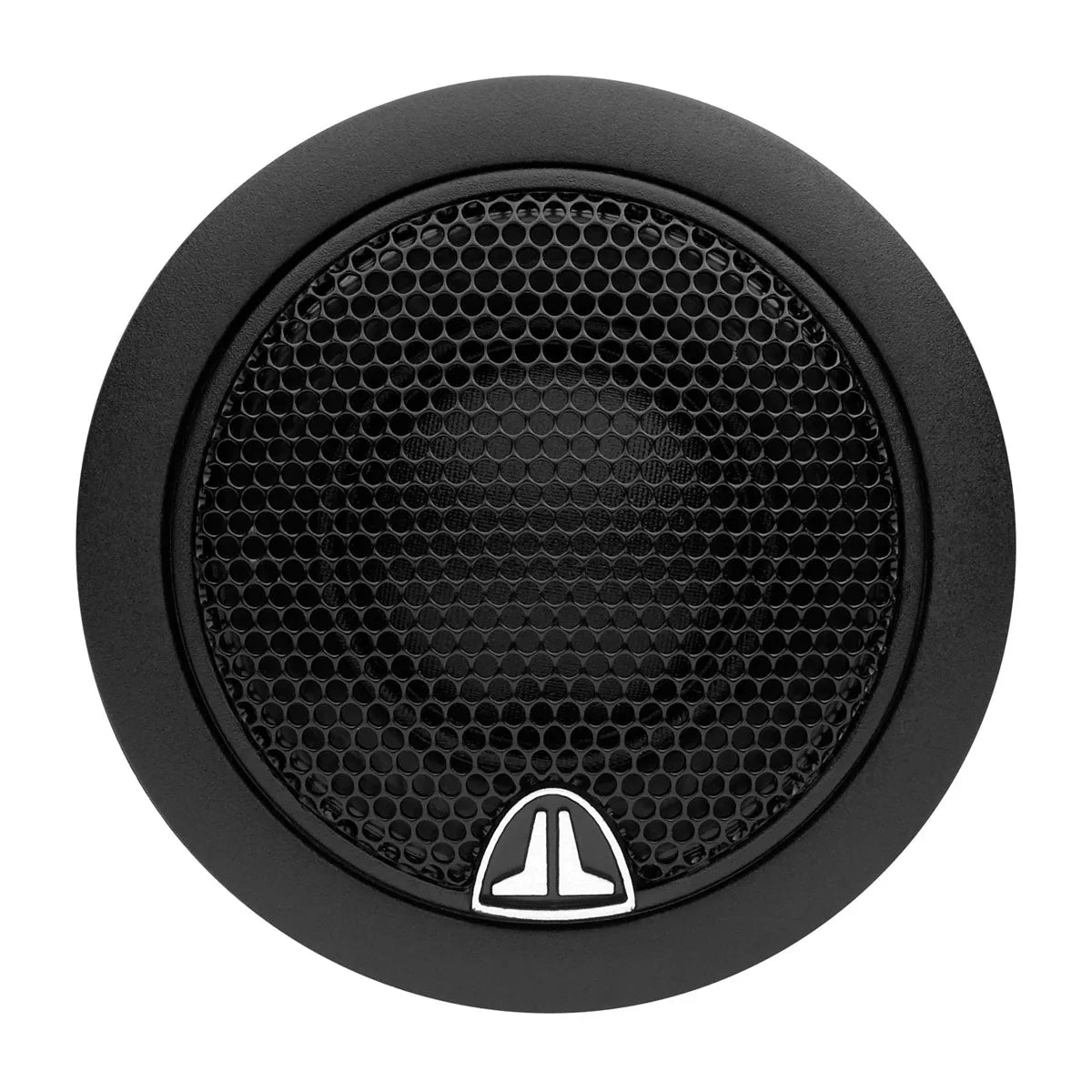

Tweeter Specifications |
|
| Flush mount fixture diameter | 1.87" (48 mm) |
|---|---|
| Surface mount fixture diameter | 1.69" (43 mm) |
| Flush mount mounting hole diameter | 1.625" (41 mm) |
| Flush mount mounting depth | 0.76" (19 mm) |
| Flush mount tweeter frontal protrusion | 0.29" (7 mm) |
| Surface mount tweeter frontal protrusion | 0.92" (23 mm) |

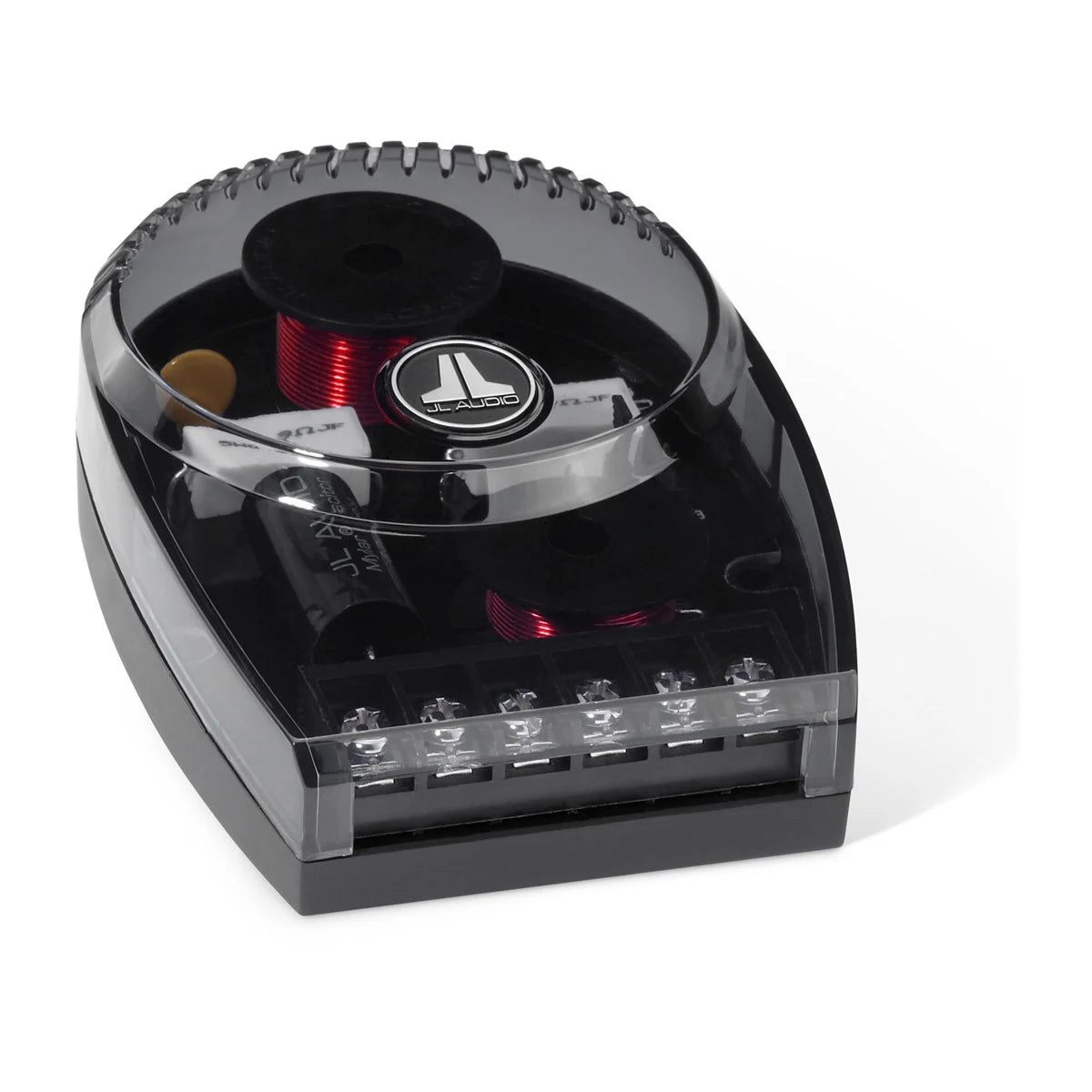

Crossover Specifications |
|
| Width | 3.36" (85 mm) |
|---|---|
| Height | 1.44" (37 mm) |
| Depth | 4.72" (120 mm) |

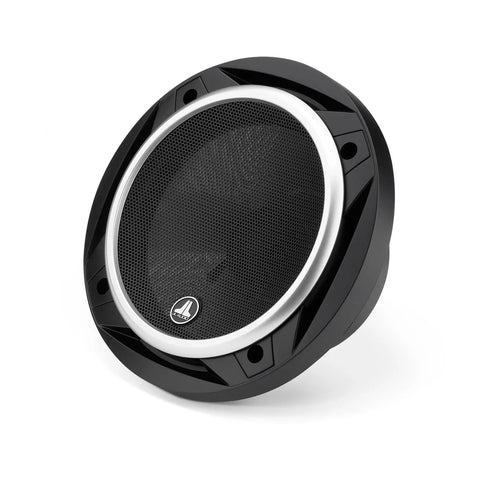

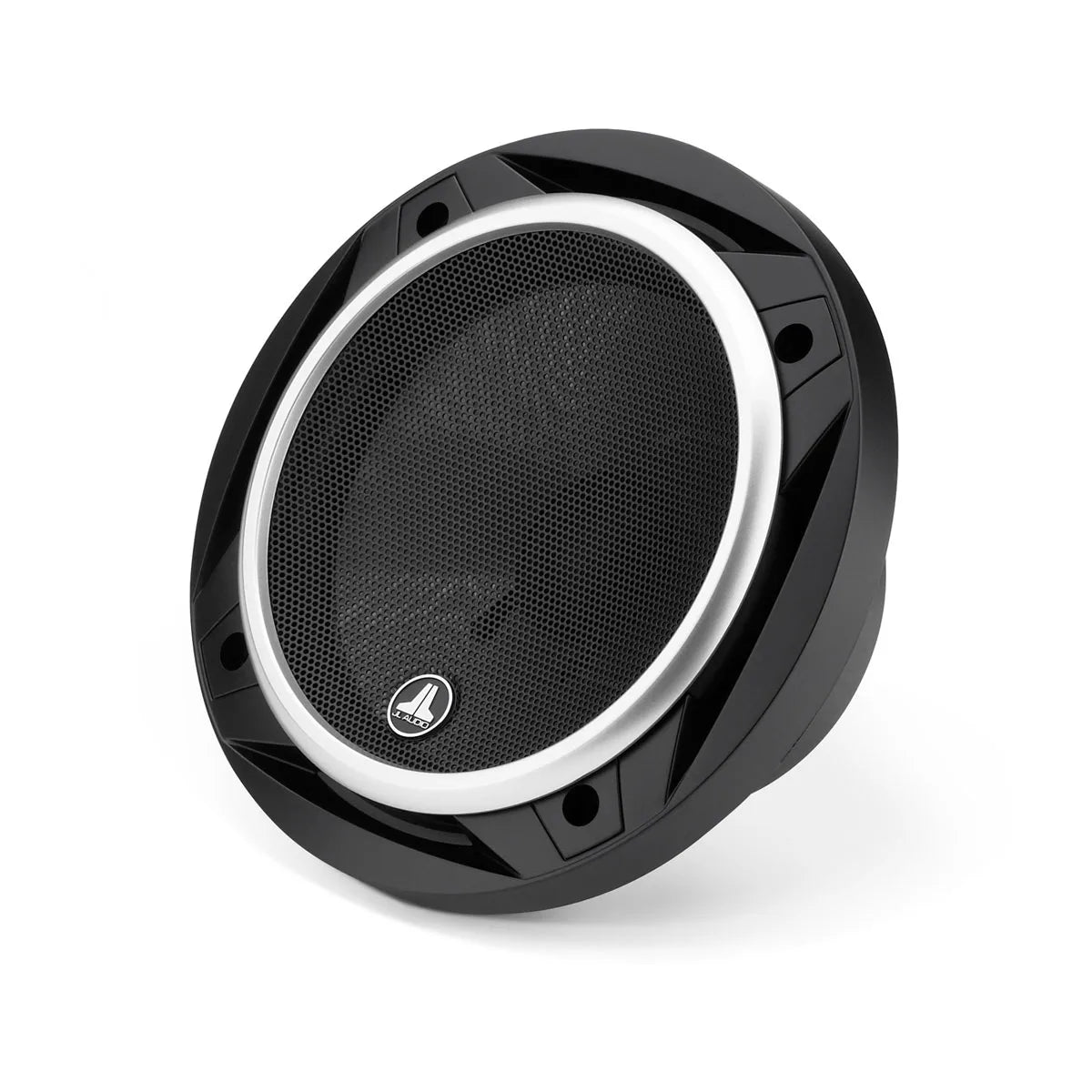

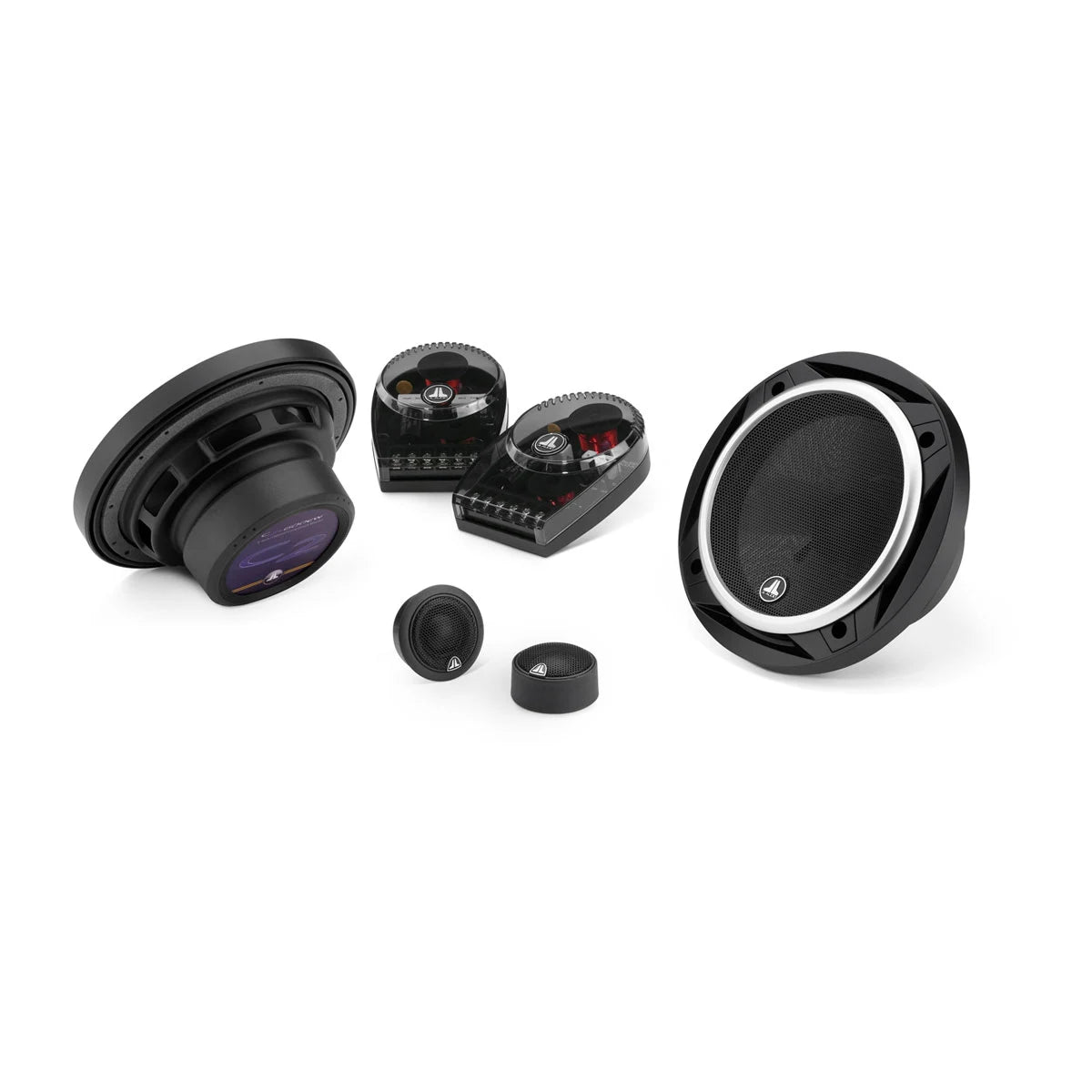

6" Two-way Component System (C2-600)
