General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 0.75"/1" |
| Continuous power handling (RMS) | 0.75": 50 W 1": 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 0.75": 91 dB 1": 91.5 dB |
| Frequency response (+/- 3 dB) | 0.75": 4 kHz-24 KHz 1": 3.6 kHz-22 KHz |
| Nominal impedance | see Additional |
| Recommended amplifier power (RMS) | 0.75": 20-50 W/Channel 1": 20-60 W/Channel |
| Cone material | Mineral-filled polypropylene |
| Tweeter type | Aluminum Dome |
| Tweeter size | 0.75": 0.75" (19 mm) 1": 1" (25 mm) |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Tweeter Specifications |
|
| Flush mount fixture diameter | 0.75": 1.67" (42 mm) 1": 1.97" (50 mm) |
|---|---|
| Surface mount fixture diameter | 0.75": 1.71" (43 mm) 1": 2.01" (51 mm) |
| Flush mount mounting hole diameter | 0.75": 1.46" (37 mm) 1": 1.75" (45 mm) |
| Flush mount mounting depth | 0.40" (10 mm) |
| Flush mount tweeter frontal protrusion | 0.75": 0.23" (6 mm) 1": 0.32" (8 mm) |
| Surface mount tweeter frontal protrusion | 0.75": 0.76" (19 mm) 1": 0.87" (22 mm) |
Crossover Specifications |
|
| Width | 1.96" (50 mm) |
|---|---|
| Height | 0.90" (23 mm) |
| Depth | 1.34" (34 mm) |
Additional |
|
| Additional | Nominal impedence: 0.75": 6 Ω; 1": 4 Ω |
|---|---|

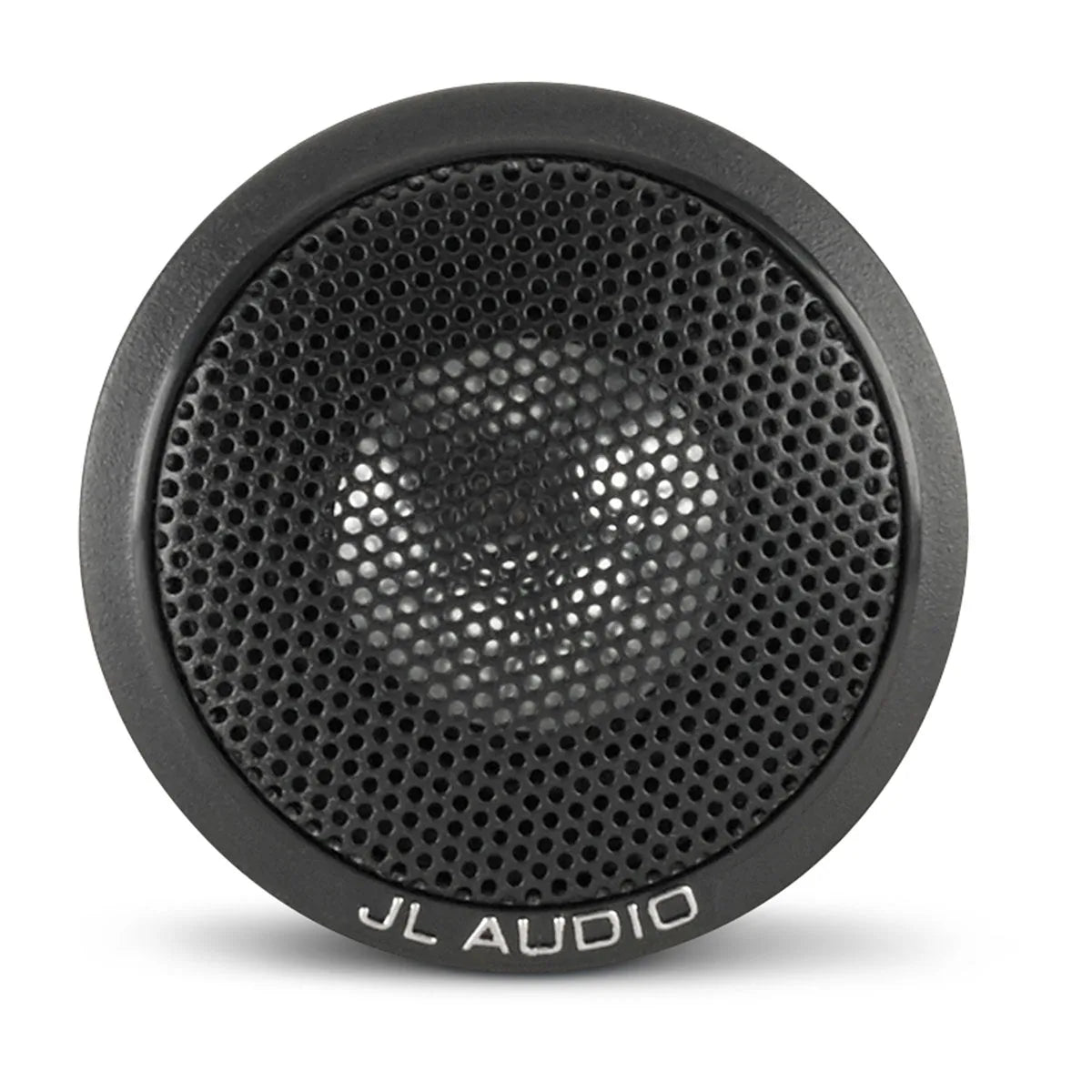

0.75" Component Tweeter
