General |
|
| Warranty | 2 years |
|---|---|
| Channels | 2/4/6/8 |
| Physical dimensions (Height) | 2.12" (54 mm) |
| Physical dimensions (Width) | 4-Channel: 9.02" (229 mm) 2/6-Channel: 9.81" (250 mm) 8-Channel: 11.32" (287 mm) |
| Physical dimensions (Depth) | 6.62" (168 mm) |
| Weight | 2-Channel: 5.4 lbs (2.45 kg) 4-Channel: 5.0 lbs (2.27 kg) |
| Operating voltage | 11-14.5 VDC |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 2-Channel: 180 W x 2/600 W x 1 (Bridged) 4-Channel: 75 W x 4/200 W x 2 (Bridged) 6-Channel: 75 W x 6/200 W x 3 (Bridged) 8-Channel: 75 W x 8/200 W x 4 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | 2-Channel: 300 W x 2 4-Channel: 100 W x 4 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) |
2-Channel: 140 W x 2/450 W x 1 (Bridged) 4-Channel: 60 W x 4/180 W x 2 (Bridged) 6-Channel: 60 W x 6/180 W x 3 (Bridged) 8-Channel: 60 W x 8/180 W x 4 (Bridged) |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) | 2-Channel: 225 W x 2 4-Channel: 90 W x 4 6-Channel: 90 W x 6 8-Channel: 90 W x 8 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | 99 dB |
| Signal-to-Noise Ratio, referred to highest rated power: Digital Inputs | 2-Channel: 100 dB 4/8-Channel: 101 dB 6-Channel: 99 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | 2-Channel: 76 dB 4/6/8-Channel: 80 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Digital Inputs | 2-Channel: 78 dB 4-Channel: 81 dB 6-Channel: 80 dB 8-Channel: 82 dB |
| Damping factor @ 4 Ω | >100/50 Hz |
| Damping factor @ 2 Ω | >50/50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω |
| Frequency response (+0, -1dB) | 12 Hz-21 kHz |
| Input voltage range @ RCA inputs | 200 mV-16 V RMS |
| Fuse rating | 2/6-Channel: 50 A 4-Channel: 40 A 8-Channel: 80 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |

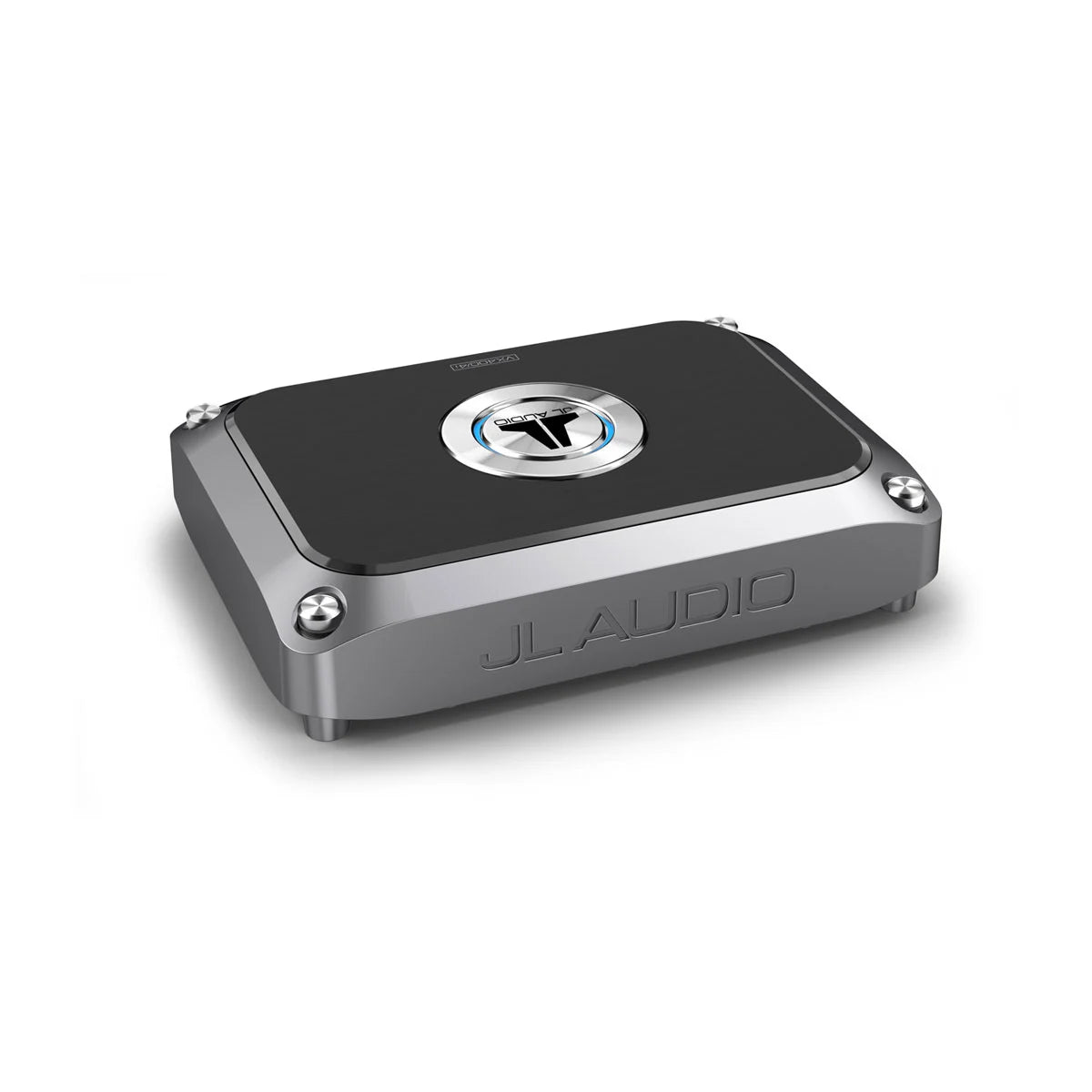

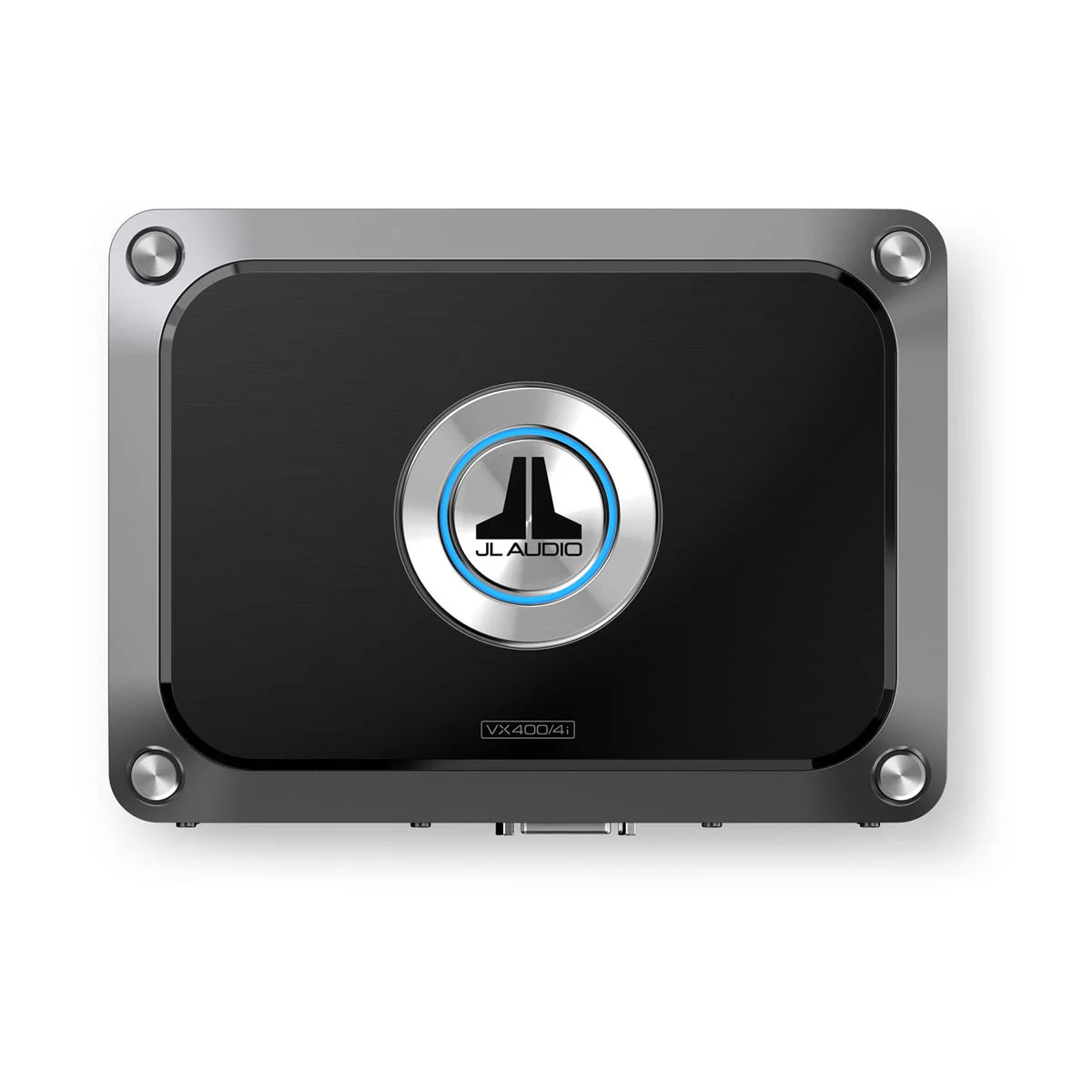

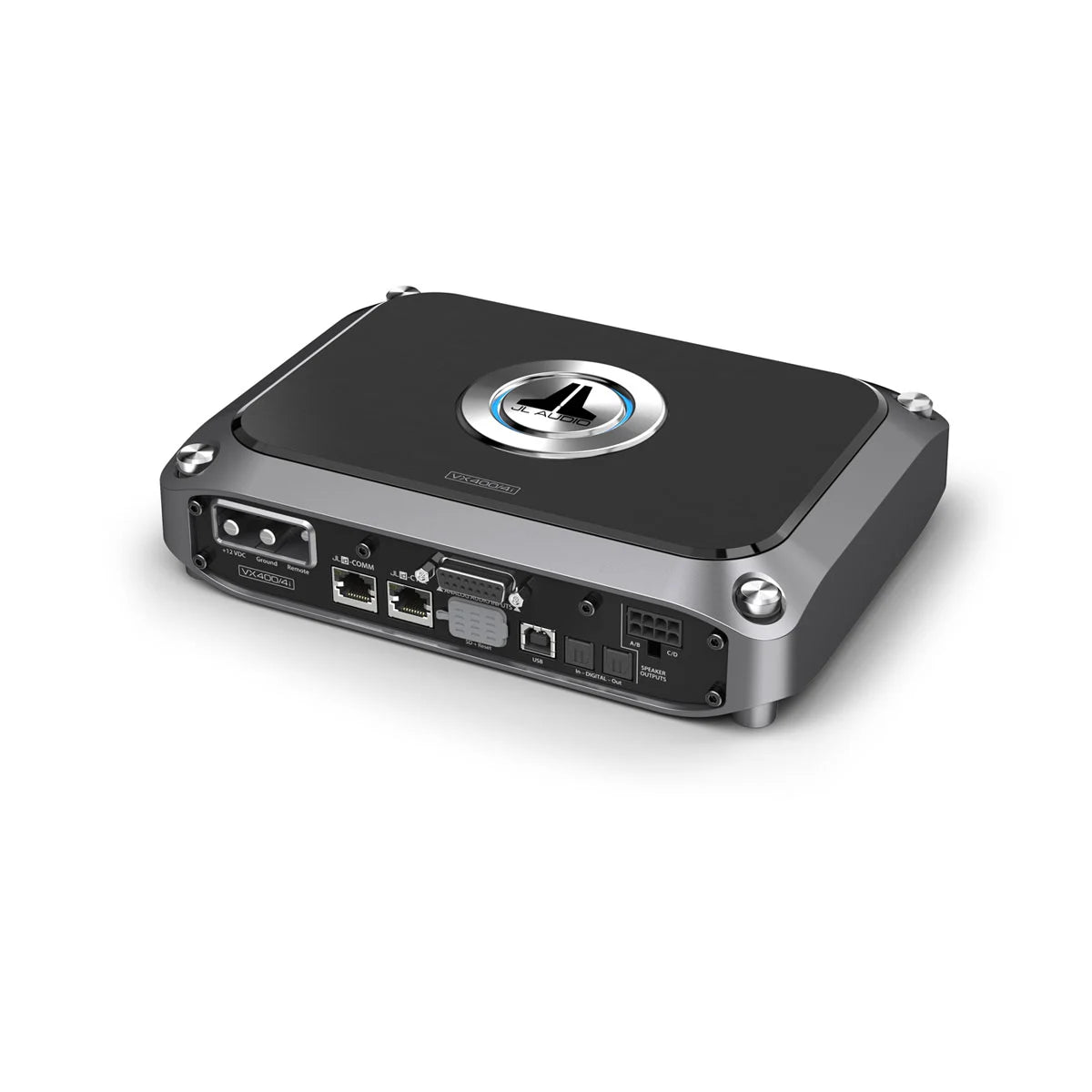

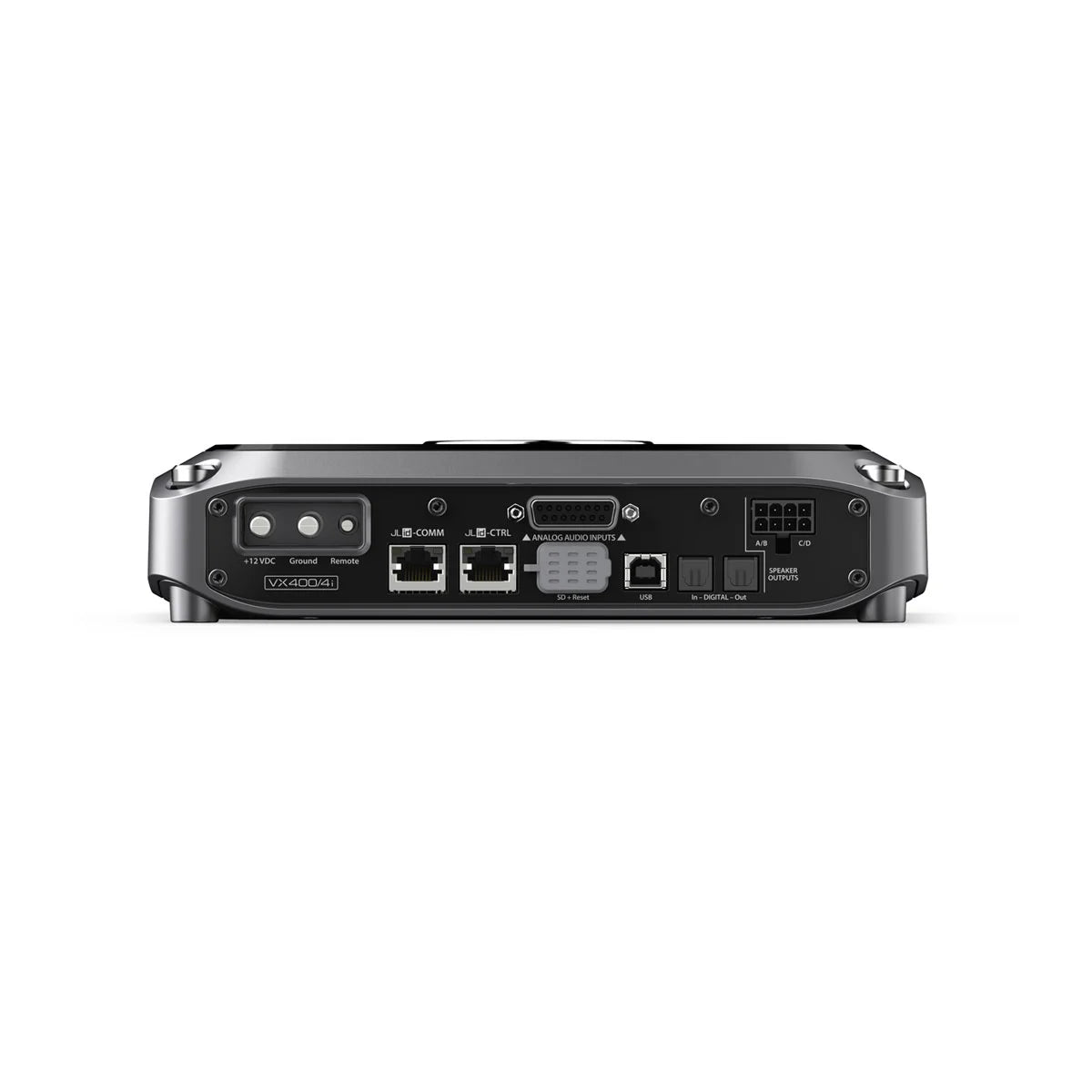

4 Channel Amplifier with Integrated DSP (400 W) (VX400/4i)
