General |
|
| Warranty | 2 years |
|---|---|
| Channels | 4 |
| Physical dimensions (Height) | 1.93" (49 mm) |
| Physical dimensions (Width) | 10.74" (273 mm) |
| Physical dimensions (Depth) | 7.85" (199 mm) |
| Operating voltage | 11-14.5 VDC |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 150 W x 4/300 W x 2 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | 150 W x 4/300 W x 2 (Bridged) |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) | 150 W x 4/300 W x 2 (Bridged) |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) | 150 W x 4/300 W x 2 (Bridged) |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | 110 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | 82.2 dB |
| Damping factor @ 4 Ω | 300/50 Hz |
| Damping factor @ 2 Ω | 150/50 Hz |
| THD+N @ Rated Power | <0.03% @ 4Ω |
| Frequency response (+0, -1dB) | 6 Hz-30 kHz |
| Input voltage range @ RCA inputs | Switchable from 200mV-2V RMS (Low) to 800mV-8V RMS (High) |
| Fuse rating | 50 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Off, Low-pass or High-pass |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12/24 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz-500 Hz |
| Filter mode(s): Channels 3 & 4 | Off, Low-pass or High-pass |
| Filter Slope(s): Channels 3 & 4 | 12/24 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
| Detented, calibrated filter frequent potentiometers | |
| Remote level control | Optional (HD-RLC) |
| Remote level modes | 2 or All Channels |
| Channel input mode switch | yes (2/4 Channels) |
| Pass-through preamp output | Buffered, switch-selectable, Front inputs only or Front and Rear inputs (summed) |
| Source channel selection for PreOuts | |

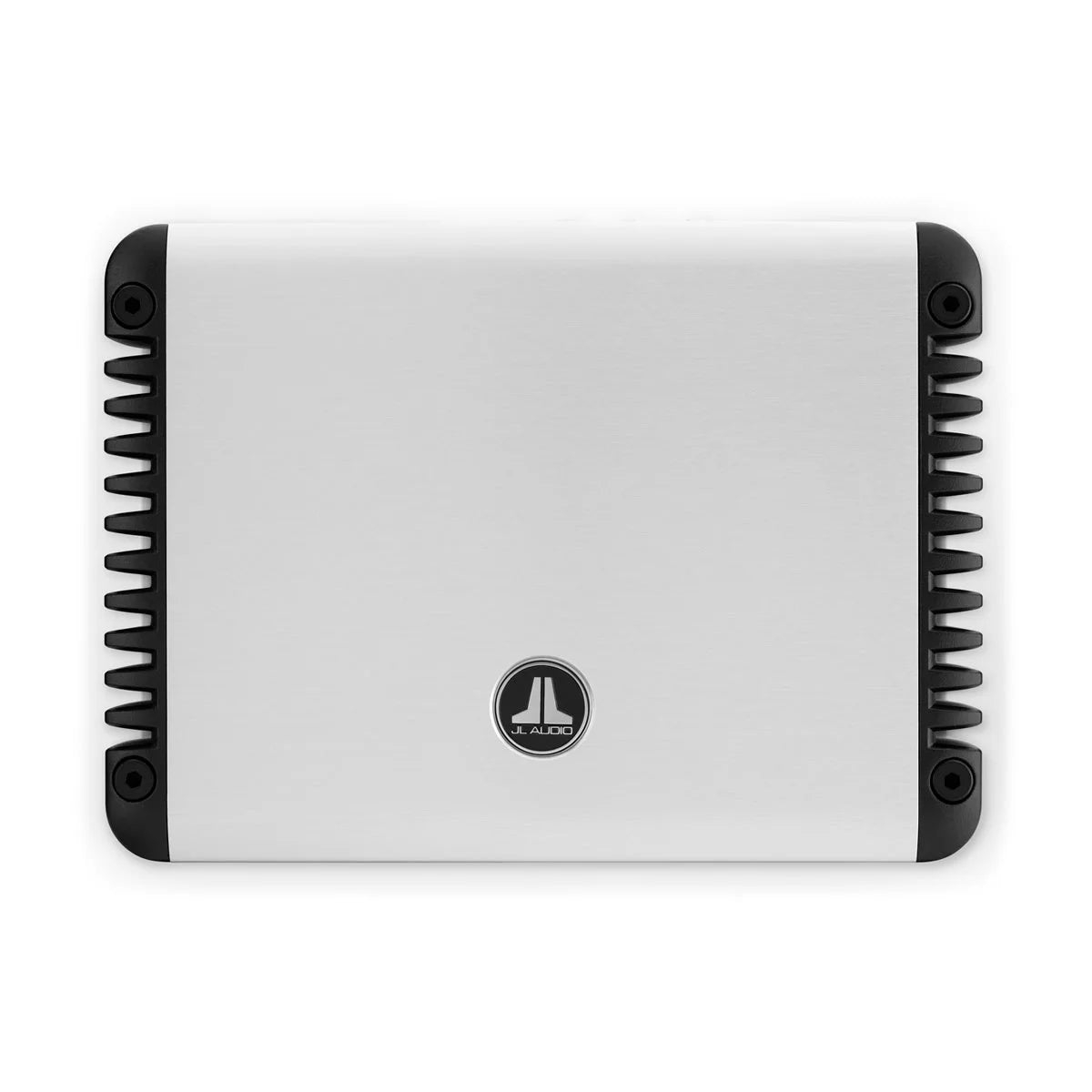

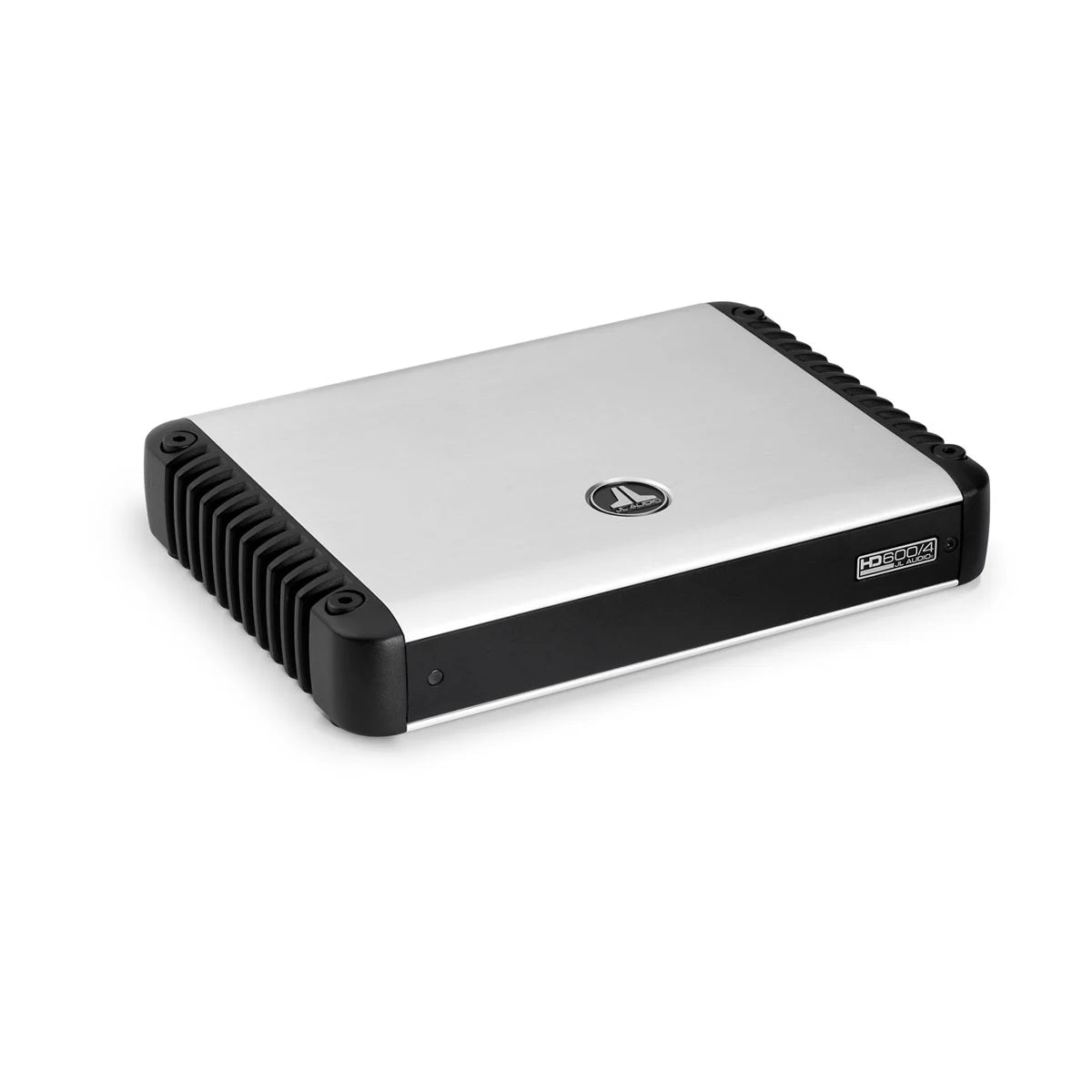

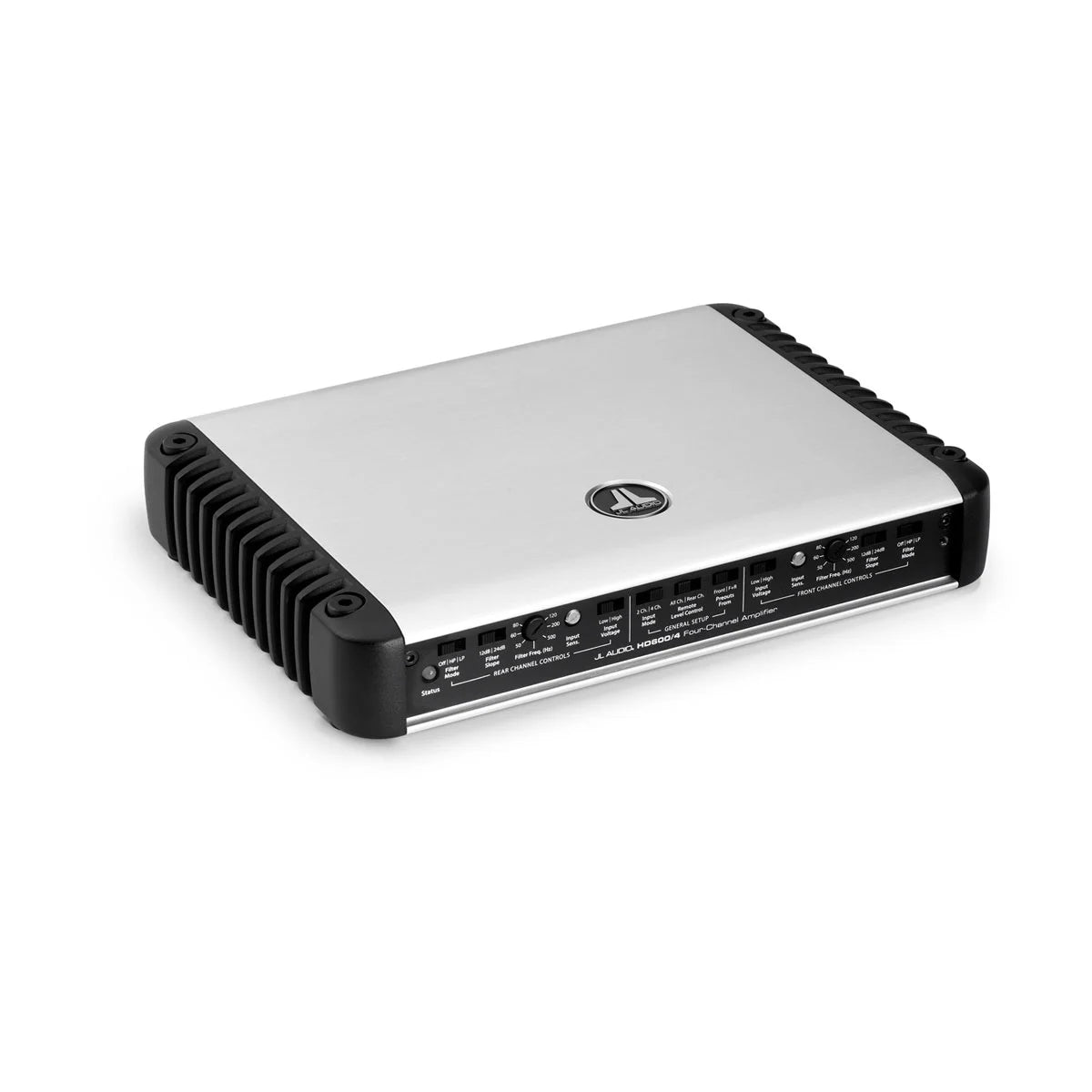

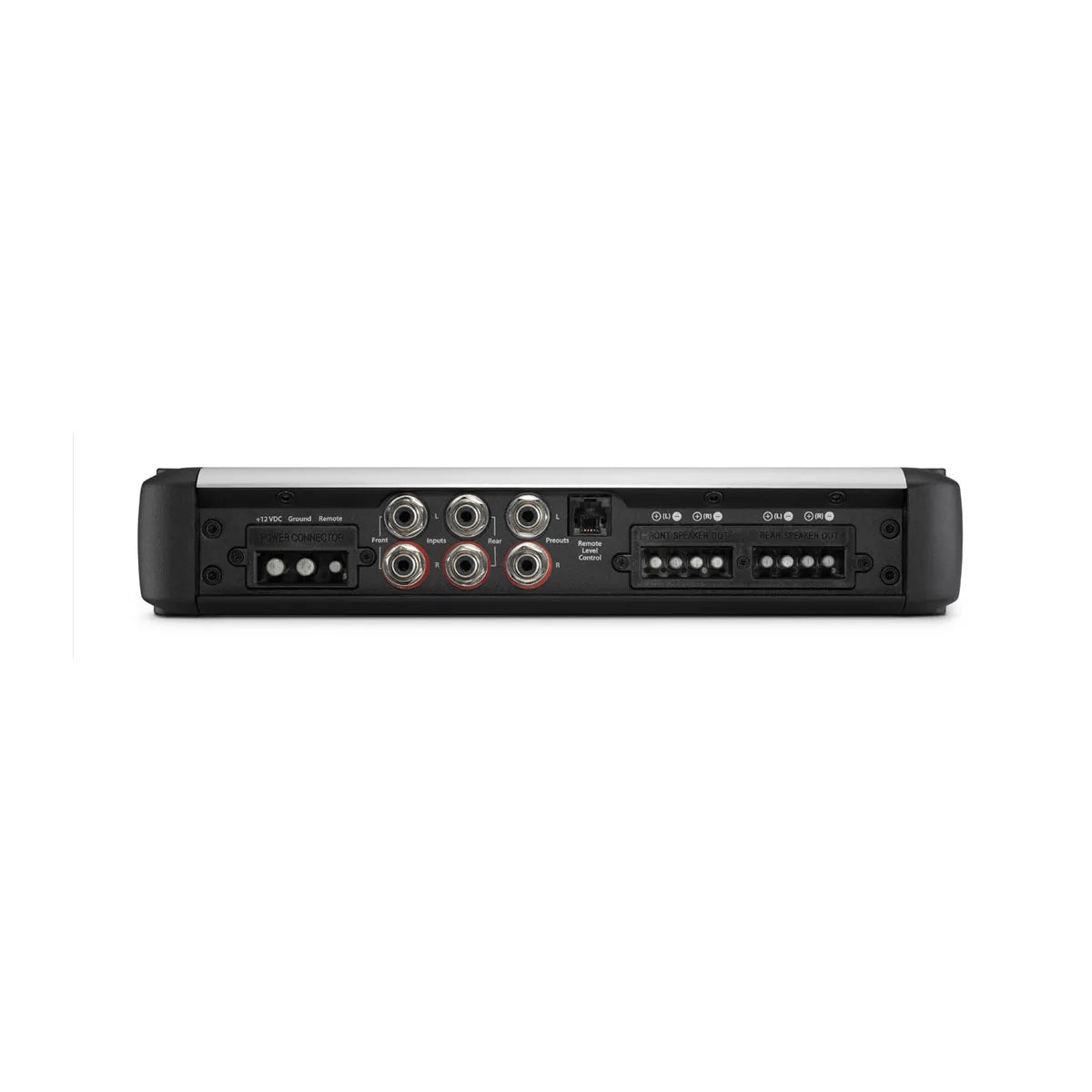

4 Channel Full-range Amplifier (600 W) (HD600/4)
