General |
|
| Warranty | 2 years |
|---|---|
| Sizes | 10"/12"/13.5" |
| Physical dimensions (Height) | 10": 14.625" (371 mm) 12": 16.50" (419 mm) 13.5": 18.25" (464 mm) |
| Physical dimensions (Width) | 10": 17.75" (451 mm) 12": 21.25" (540 mm) 13.5": 22.5" (572 mm) |
| Physical dimensions (Depth) | 10": Top: 11.50" (292 mm) 10: Base: 16.625" (422 mm) 12": Top: 11.25" (286 mm) 12": Base: 17" (432 mm) 13.5" Top: 11.50" (292 mm) 13.5" Base: 18.25" (464 mm) |
| Weight | 10": 61.2 lbs (27.77 kg) 12": 81.7 lbs (37.10 kg) 13.5": 103.2 lbs (46.79 kg) |
| Continuous power handling (RMS) | 10": 750 W 12": 1000 W 13.5": 1500 W |
| Nominal impedance | see Additional |
| Recommended amplifier power (RMS) | 10": 300-750 W 12": 400-1000 W 13.5": 500-1500 W |
| Cone material | Mineral-filled polypropylene |
| Enclosure type | Sealed, rear-firing design |
| Grille(s) included | yes (aluminum bar grilles) |
Networking & Connections |
|
| Speaker connections | Five-way binding post terminal |
|---|---|
Additional |
|
| Additional | Nominal impedence: 10"/12": 3 Ω; 13.5": Dual 1.5 Ω |
|---|---|

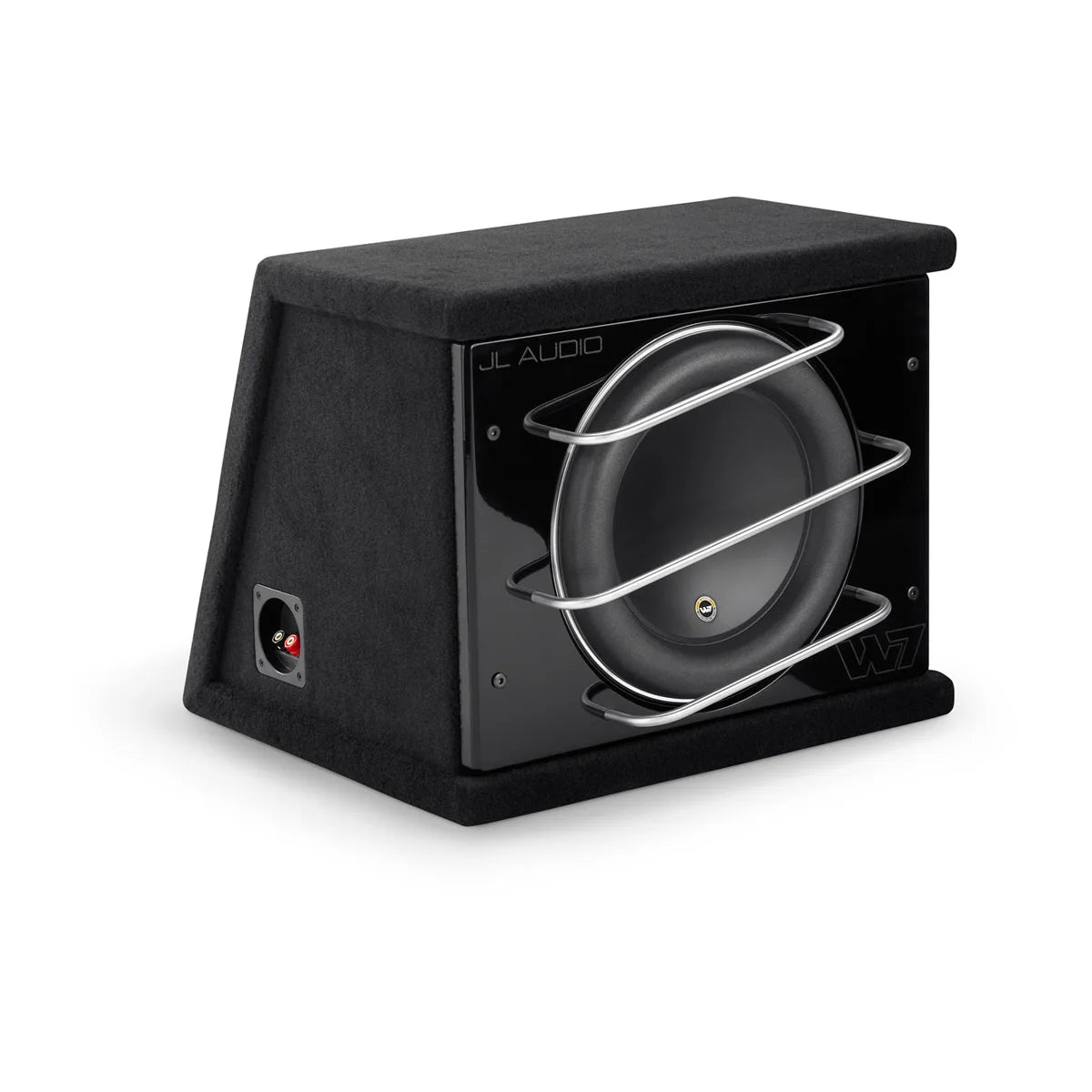

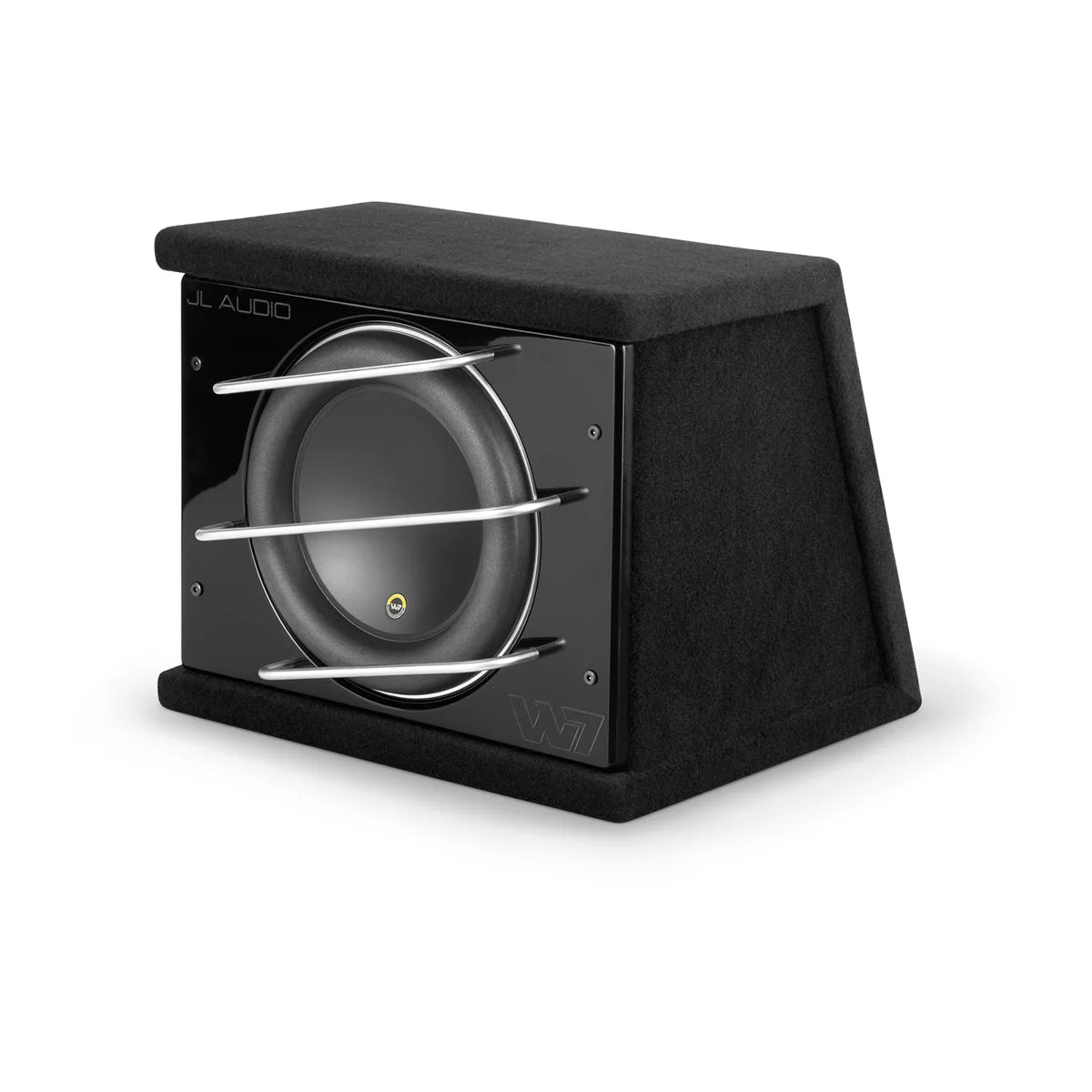

Single 12" W7AE Subwoofer (CLS112RG-W7AE)
