General |
|
| Sizes | 6.5" |
|---|---|
| Color | White and Black Classic or Sport |
| Physical dimensions (Diameter) | 6.9" (175 mm) |
| Physical dimensions (Depth) | Sport: 3.85" (98 mm) Classic: 3.74" (95 mm) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 30 W |
| Sensitivity (SPL @ 1 W/1 m) | 87 dB |
| Frequency response (+/- 3 dB) | 55 Hz-20 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 20-60 W/Channel |
| LED lighting | yes, RGB (Select sport models only) |
| LED supply voltage | 10-14.4 VDC (Select sport models only) |
| LED Load Current @ 14.4 VDC (max) | 140 mA (Select sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 2.6" (66 mm) |
|---|---|
| Frontal grille protrusion | Classic Grille: 1.14" (29 mm) Sport Grille: 1.25" (32 mm) |
| Mounting hole | 5.00"-5.25" (127-133 mm) |
| Bolt hole circle | 6.14" (156 mm) |

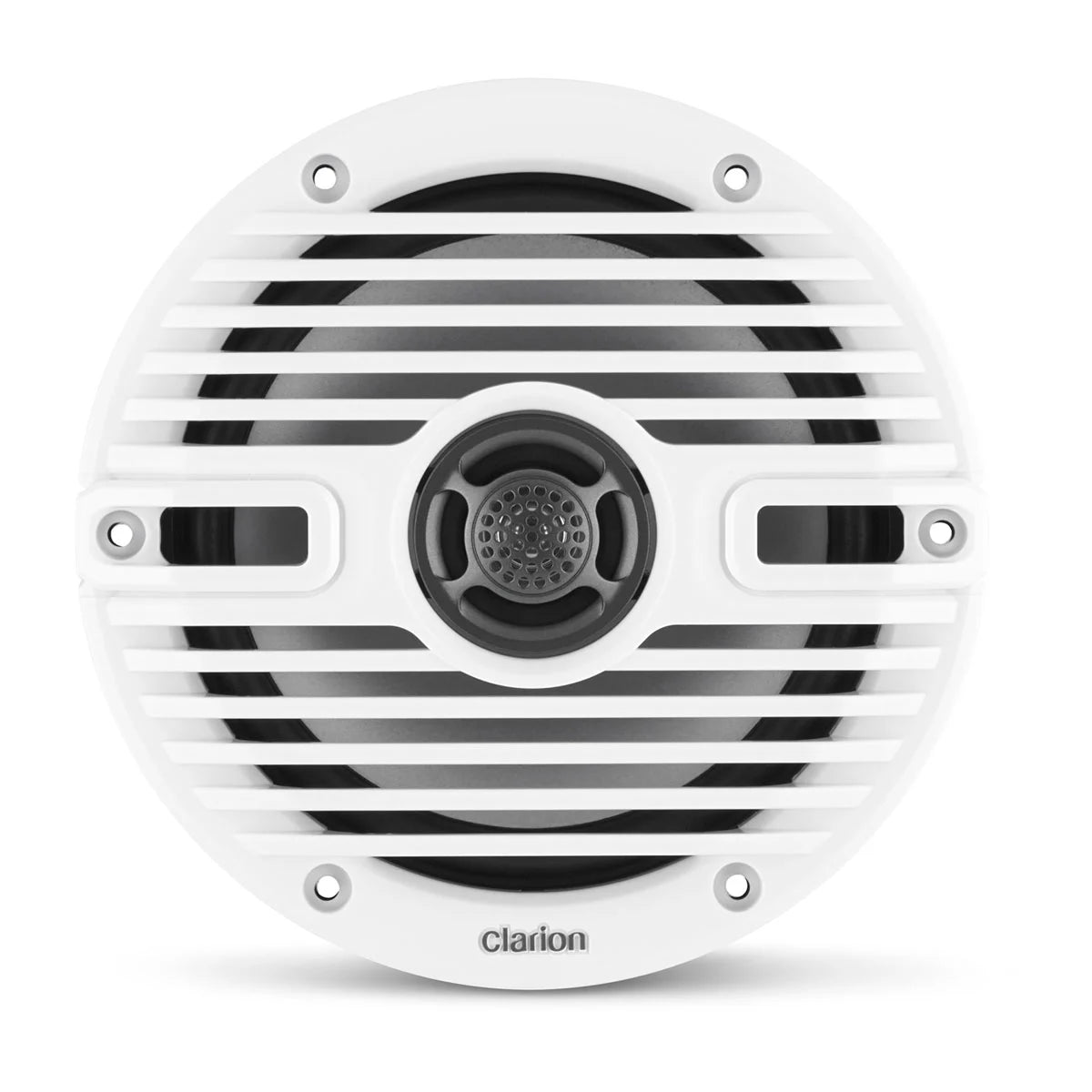

6.5" with White and Black Classic Grille (CMS-651-CWB)
