General |
|
| Dimension | 10.24" x 7.87" x 3.54" (26.0 cm x 20.cm x 9.1 cm) |
|---|---|
| Weight | 5.55 lbs (2.52 kg) |
| Water rating | IPX7 |
| Touchscreen | |
| Display Type | WUXGA, IPS; Edge Lit backlight |
| Display Size | 8.54" x 5.34" x 10.1" diagonal (21.7 cm x 13.6 cm x 25.6 cm diagonal) |
| Display resolution | 1920 x 1200 pixels |

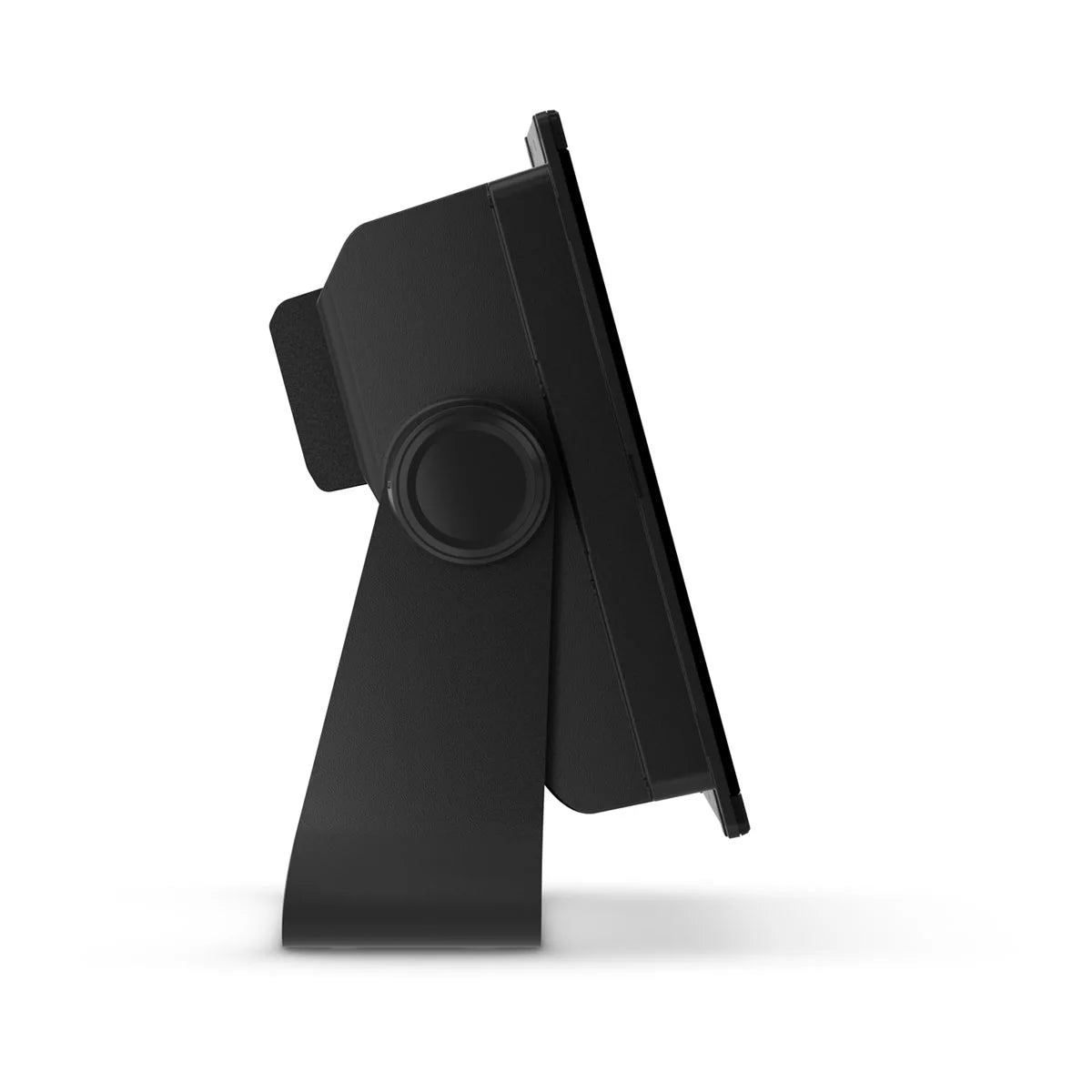

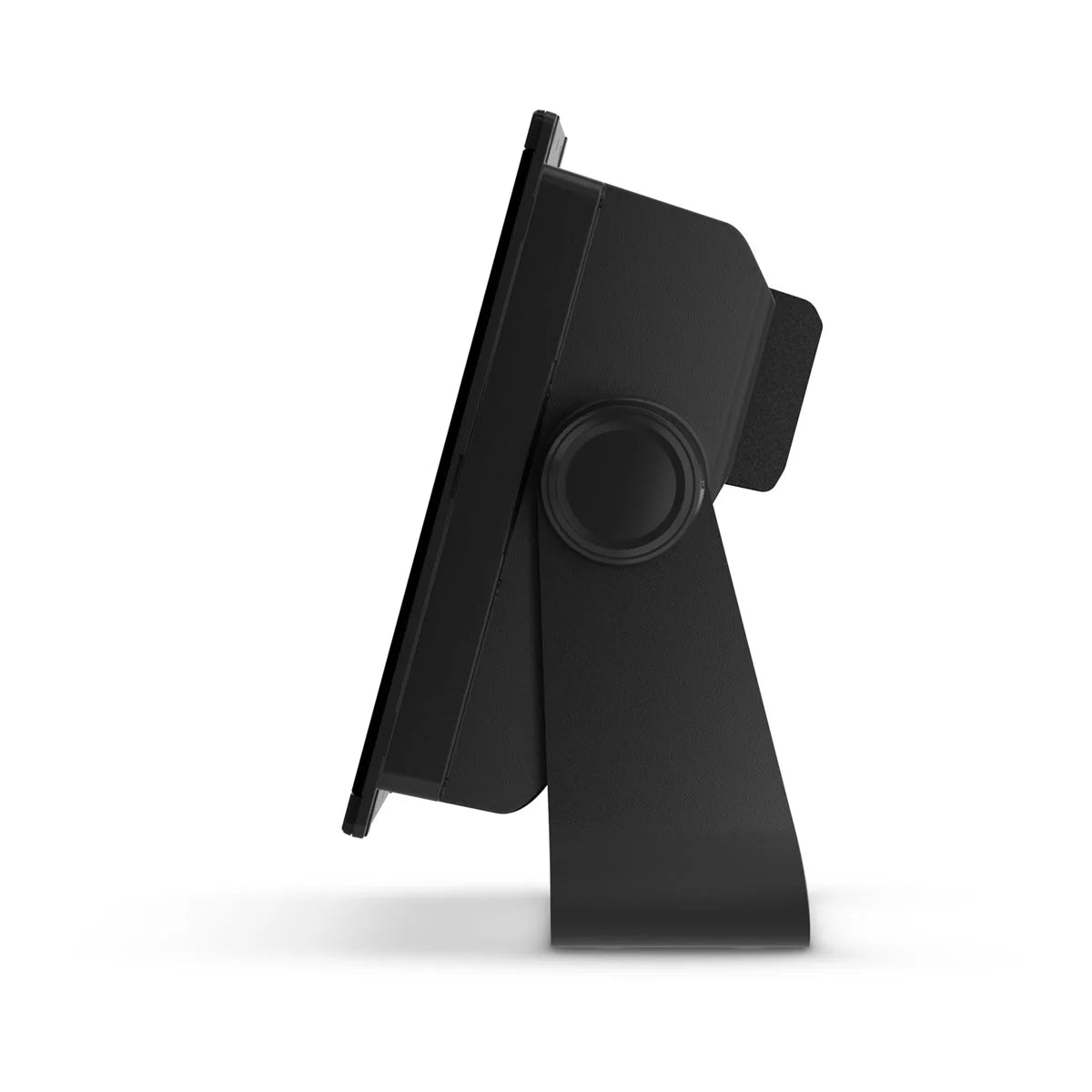

| Mounting Options | Bail, flat or flush |
| Polarized lens viewability | |
Maps & Memory |
|
| Accepts Data Cards | 2 microSD™ cards (on rear of product) |
|---|---|
| Supports USB card reader | |
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| BeiDou | |
| Has built-in receiver | |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | |
| Supports multi-band, multi-constellation GPS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | |
|---|---|
| Garmin Navionics+ Inland & Coastal | |
| Garmin Navionics+ (Coastal) | |
| Garmin Navionics+ (Inland) | |
| Tide tables | |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
| Raster chart support | |
Chartplotter Features |
|
| Smart Mode Compatible | |
|---|---|
| AIS | |
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| GCV Black Box Sonar Support | |
| ActiveCaptain® compatible | yes |
| Supports voice commands | |
| GRID (Garmin Remote Input Device) compatible | |
| GRID 20 compatible | |
| Wireless Remote Compatible | |
| Sailing Features | |
| Spoken audio alerts | |
| OneHelm support | |
Electrical Features |
|
| Power Input | 10 to 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 3.6 A |
| Maximum current draw at 12 Vdc | 4.14 A |
| Maximum power usage at 10 Vdc | 45 W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | yes (dual 1 kW) |
| Supports built-in xCHIRP | |
| Supports built-in RapidReturn | yes (up to 2x) |
| ClearVü | |
| SideVü | |
| Panoptix™ sonar | |
| LiveScope | |

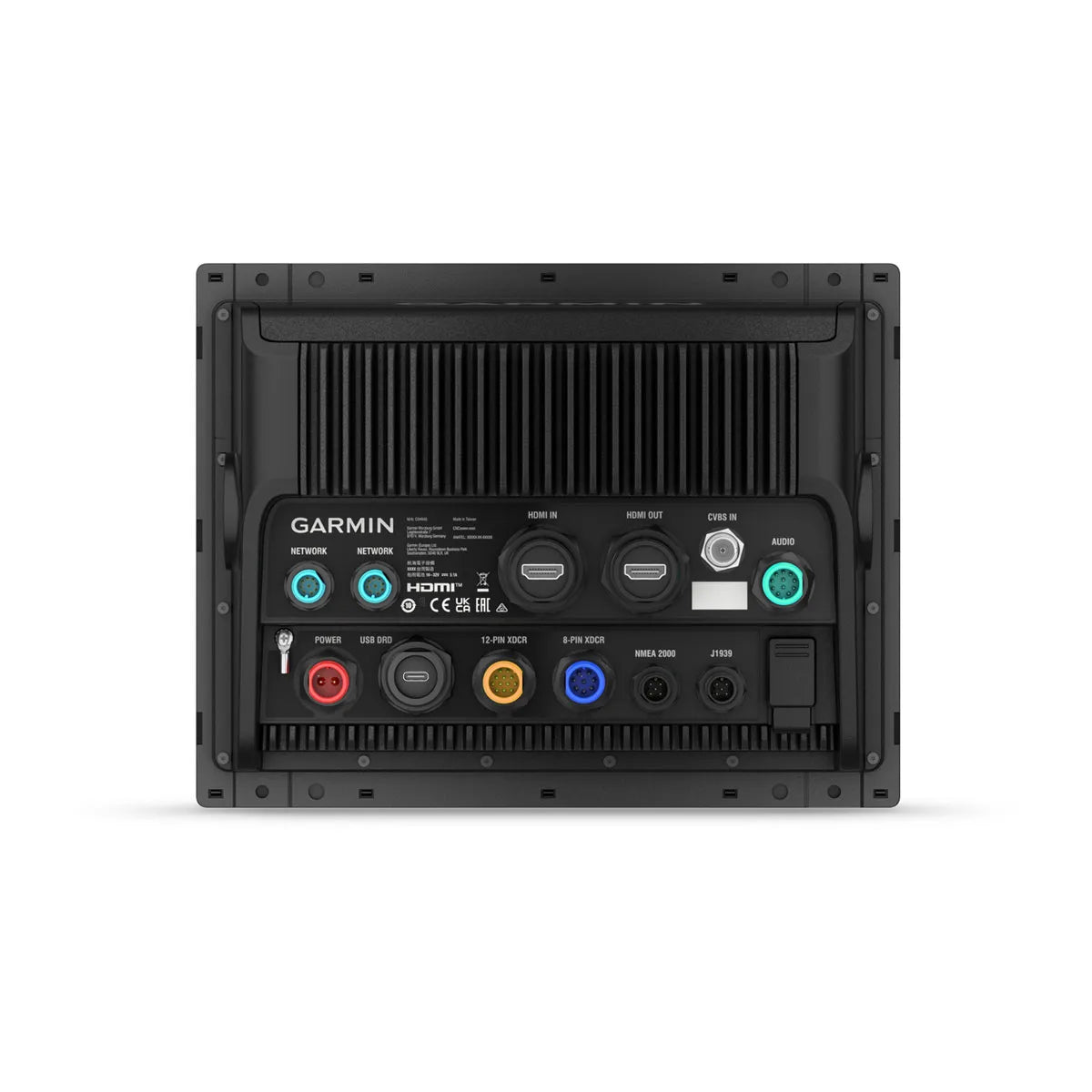

Networking & Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 2 |
| 8-pin transducer ports | |
| 12-pin transducer ports | |
| USB ports | yes (1x USB-C) |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
| Wi-Fi frequency bands | 2.4 GHz & 5 GHz |
| Audio output | |

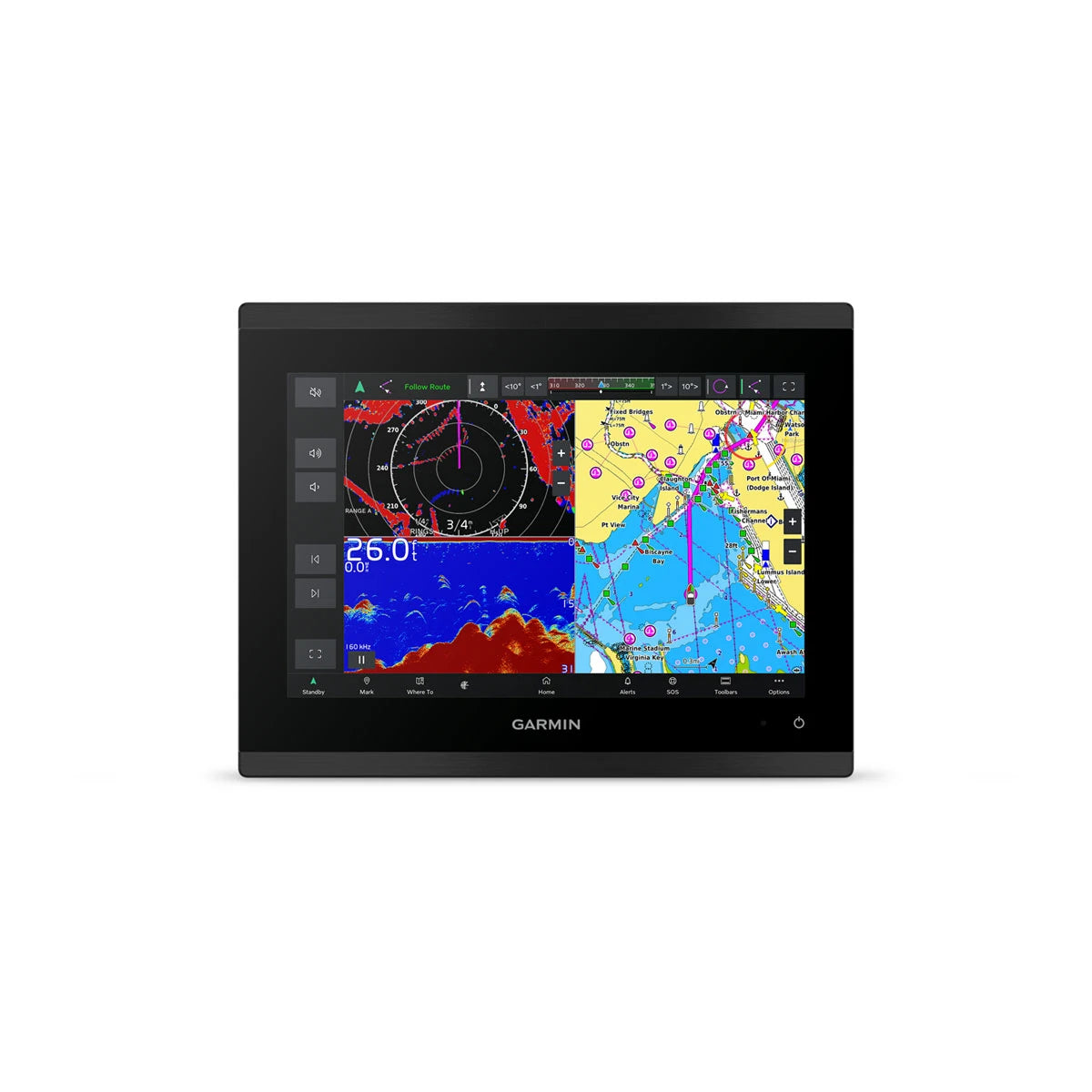

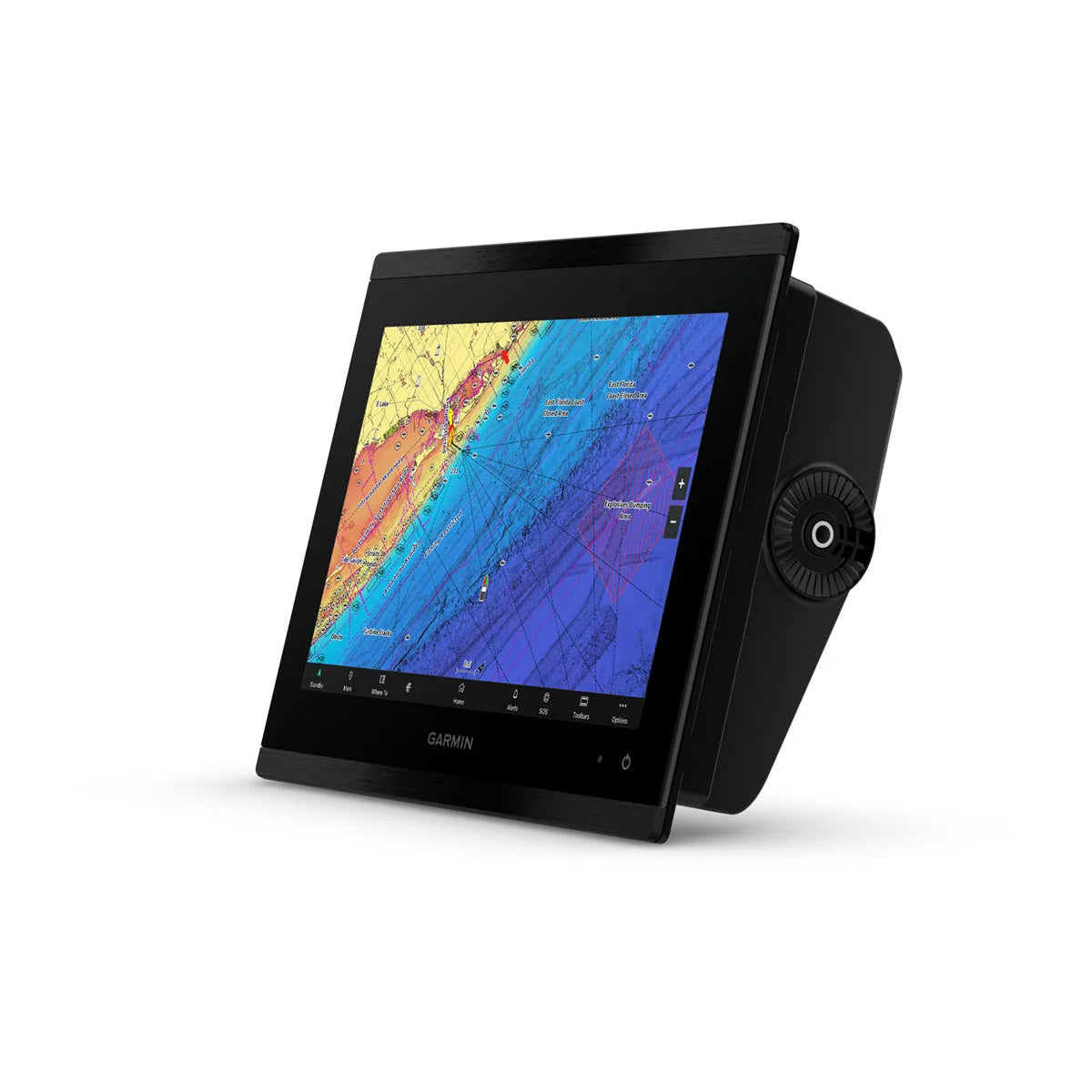

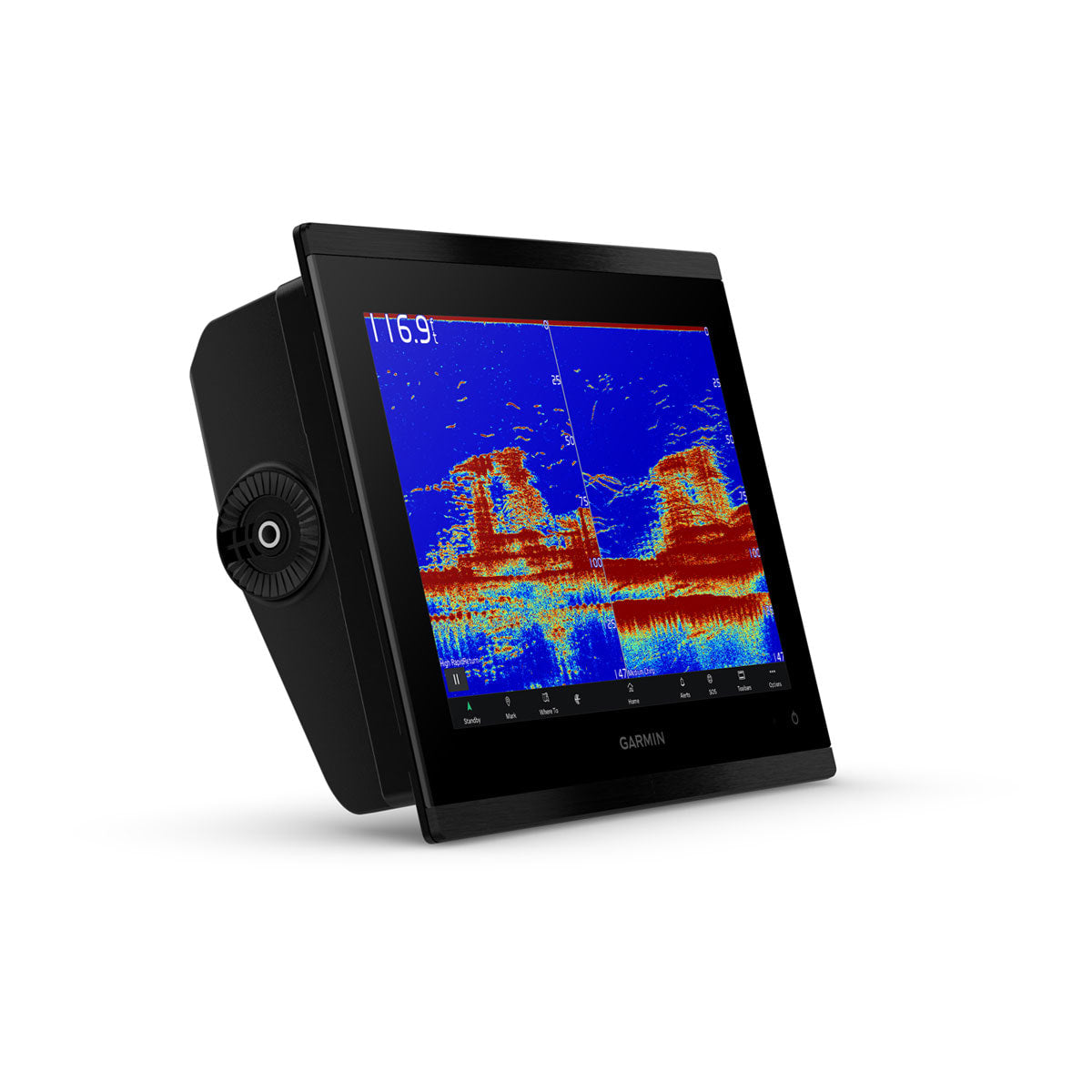

9210xsv Premium Chartplotter with Sonar
