General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 3.5"/4"/5 x 7"/5.25"/6"/6 x 9"/6.5" |
| Continuous power handling (RMS) | 3.5": 25 W 4": 35 W 5 x 7"/5.25"/6"/6.5": 60 W 6 x 9": 70 W |
| Sensitivity (SPL @ 1 W/1 m) | 3.5": 83 dB 4": 84.5 dB 5 x 7": 90.5 dB 5.25": 89.0 dB 6": 90.5 dB 6 x 9": 93 dB 6.5": 91.0 dB |
| Frequency response (+/- 3 dB) | 3.5": 130 Hz-22 KHz 4": 71 Hz-22 KHz 5 x 7": 53 Hz-22 KHz 6"/6.5": 59 Hz-22 KHz 6 x 9": 53 Hz-22 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 3.5": 10-40 W/Channel 4": 10-50 W/Channel 5 x 7"/5.25"/6"/6.5": 15-100 W/Channel 6 x 9": 15-125 W/Channel |
| Voice coil diameter | 3.5": 0.75 (19 mm) 4"/5 x 7"/6"/6.5": 1" (25 mm) 6 x 9": 1.25" (32 mm) |
| Cone material | Mineral-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 0.75" (19 mm) |
| Grille(s) included | 4"/6.5"/6 x 9": yes |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 3.5": 3.44" (87 mm) 4": 4.02" (102 mm) 5 x 7": 5.47 x 7.68" (139 x 195 mm) 5.25": 5.80" (147 mm) 6": 6.21" (158 mm) 6 x 9": 6.40 x 9.33" (163 x 237 mm) 6.5": 6.5" (165 mm) |
|---|---|
| Mounting depth clearance | 3.5": 1.50" (38 mm) 4": 1.81" (46 mm) 5 x 7": 2.43" (62 mm) 5.25": 2.50" (64 mm) 6": 2.38" (64 mm) 6 x 9": 3.06" (78 mm) 6.5": 2.44" (62 mm) |
| Frontal grille protrusion | 4": 0.66" (17 mm) 5.25": 0.72" (18 mm) 6": 0.91" (23 mm) 6 x 9": 0.98" (25 mm) 6.5": 0.85" (22 mm) |
| Mounting hole | 3.5": 3.19" (81 mm) 4": 3.81" (97 mm) 5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm) |
| Grille tray outer diameter | 4": 5.20" (132 mm) 5.25": 6.01" (153 mm) 6": 6.51" (163 mm) 6 x 9": 6.75 x 9.63" (172 x 245 mm) 6.5": 6.84" (174 mm) |
| Motor outer diameter | 3.5"/4": 2.36" (60 mm) 5 x 7" x 5.25": 2.76" (70 mm) 6"/6.5": 3.15" (80 mm) 6 x 9": 3.94" (100 mm) |
| Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) | 3.5": 0.54" (14 mm) 4": 0.56" (14 mm) 5 x 7": 0.47" (12 mm) 5.25": 0.46" (12 mm) 6": 0.55 in. (13.9 mm) 6 x 9": 0.75" (19 mm) 6.5": 0.45" (12 mm) |

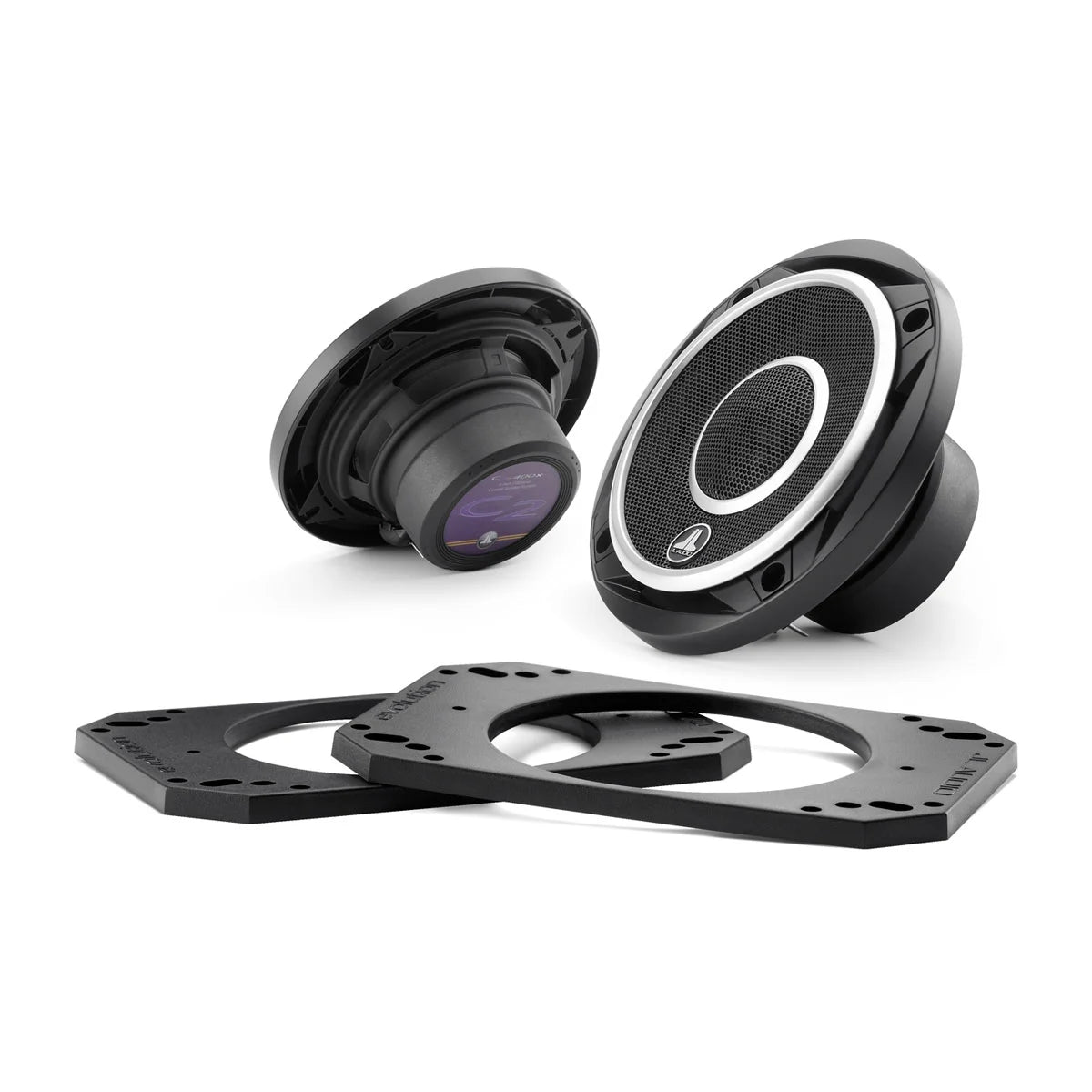

4" Two-way Coaxial (C2-400x)
