General |
|
| Warranty | 2 years |
|---|---|
| Input channels | TwK-88: 8 TwK-D8: 1 Digital Input |
| Output channels | 8 |
| Physical dimensions (Height) | 1.85" (47 mm) |
| Physical dimensions (Width) | 4.29" (109 mm) |
| Physical dimensions (Depth) | 6.14" (156 mm) |
| Weight | 2.58 lbs (1.17 kg) |
| Power supply type | Regulated DC-DC SMPS |
| Operating voltage | 10-16 VDC |
Audio |
|
| Signal-to-Noise Ratio @ 4 V (RMS) | TwK-88: 98 dB TwK-D8: 96 dB |
|---|---|
| THD+N @ Rated Power | 0.02% (20 Hz-20 kHz) |
| Input type | Line-level, Differential-balanced |
| Input voltage range | 250 mV-7.1 V RMS |
| Minimum input voltage | 10 mV RMS |
| Input level setting | TwK-88: Eleven discrete selections from 250 mV-7.1V RMS |

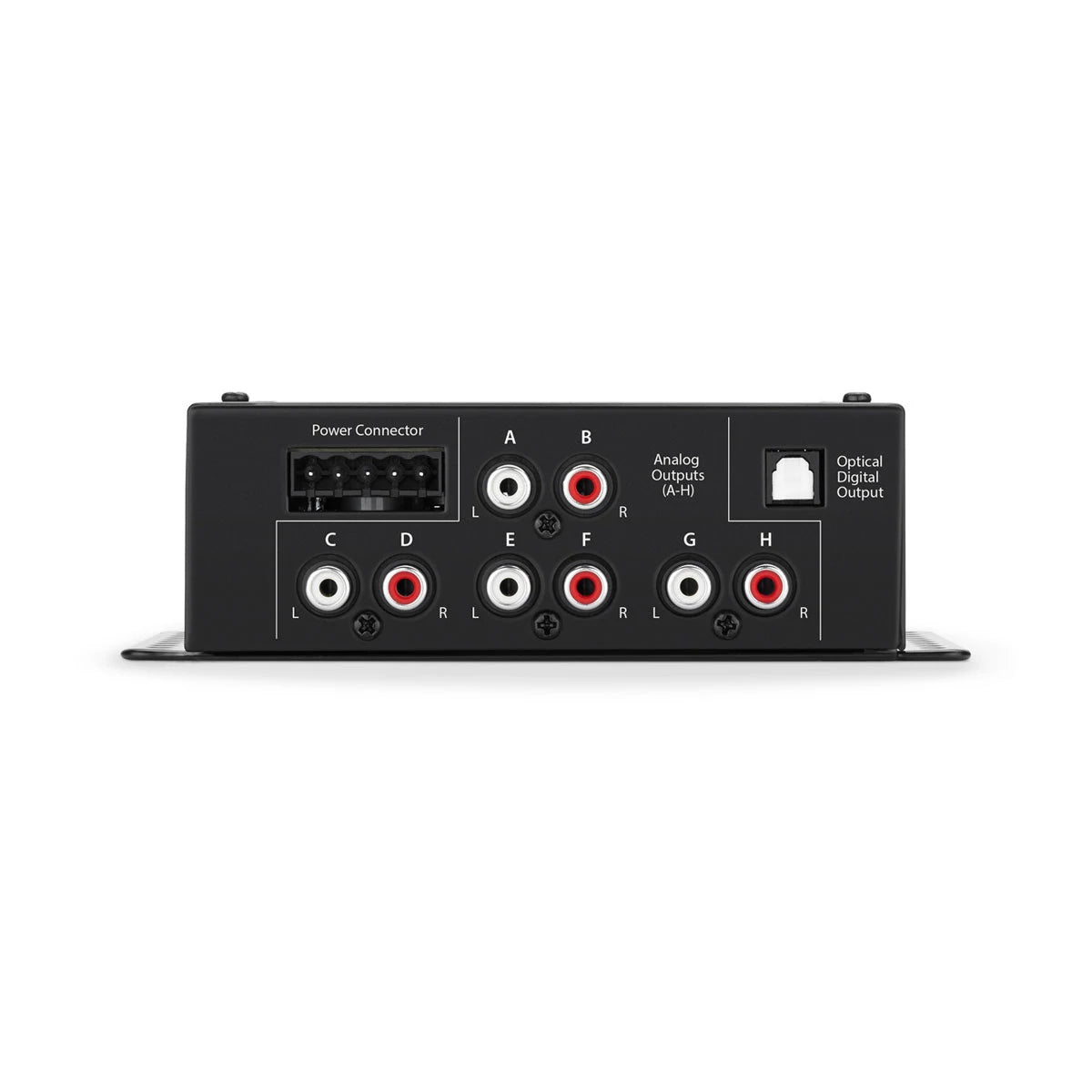

| Analog output | Unbalanced, stereo RCA jacks |
| Digital output | Optical (Toslink) output (S/PDIF) |
| Output impedence | 450 Ω |
| Current consumption (Standby) | <1.5 mA |
| Current consumption (Idle) | 0.7 A |
| Fuse rating | 1 A |
Signal Processing |
|
| Latency | Optical - Optical: 4.860 mS Optical - Analog: 4.805 mS TwK-88: Analog - Analog: 5.425 mS TwK-88: Analog - Optical: 5.470 mS |
|---|---|
| Audio resolution | 24 bit/48 kHz |
| Number of EQ bands | 10 x 8 Channels |
| Remote level control | Included (DRC-200) |
| Remote level modes | Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting |

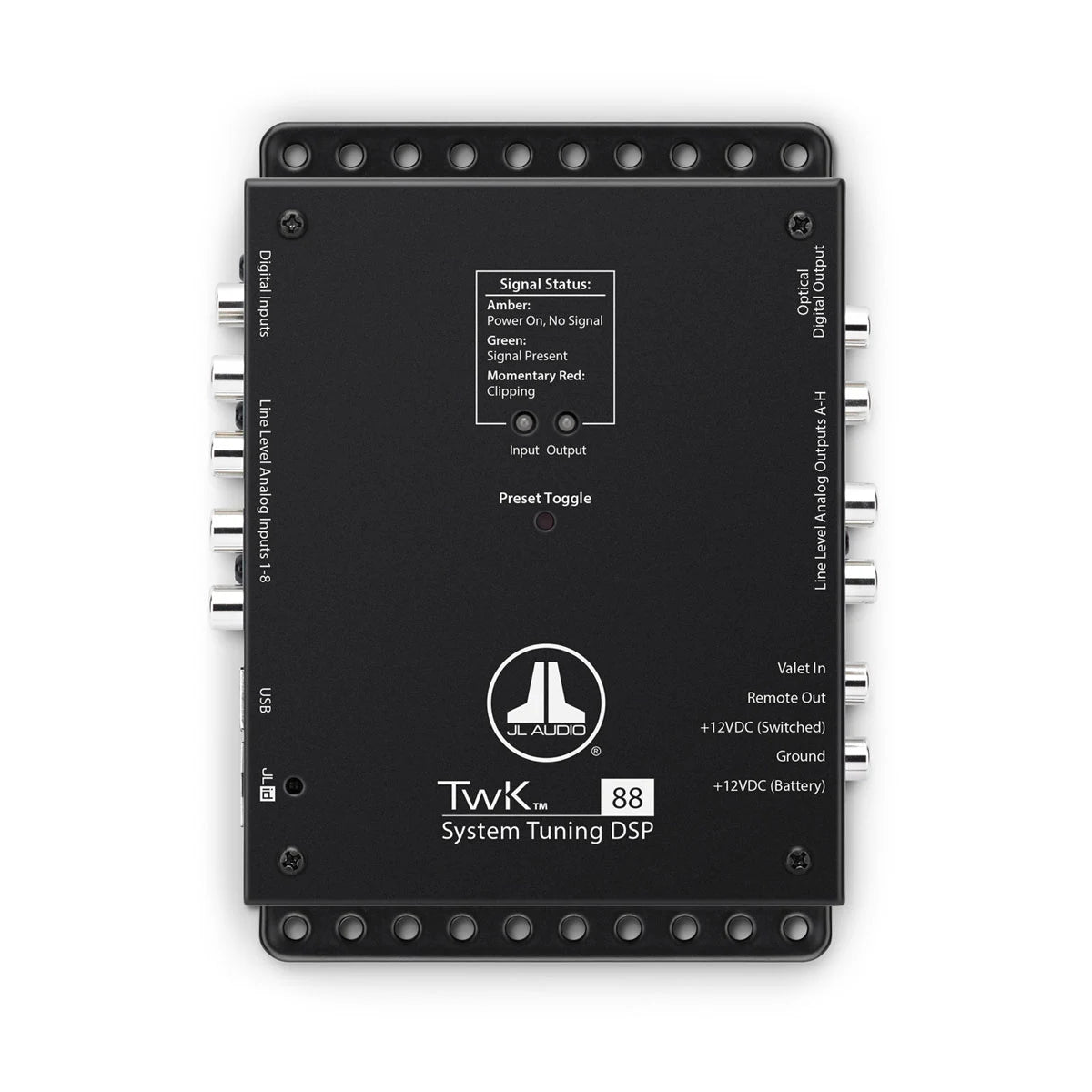

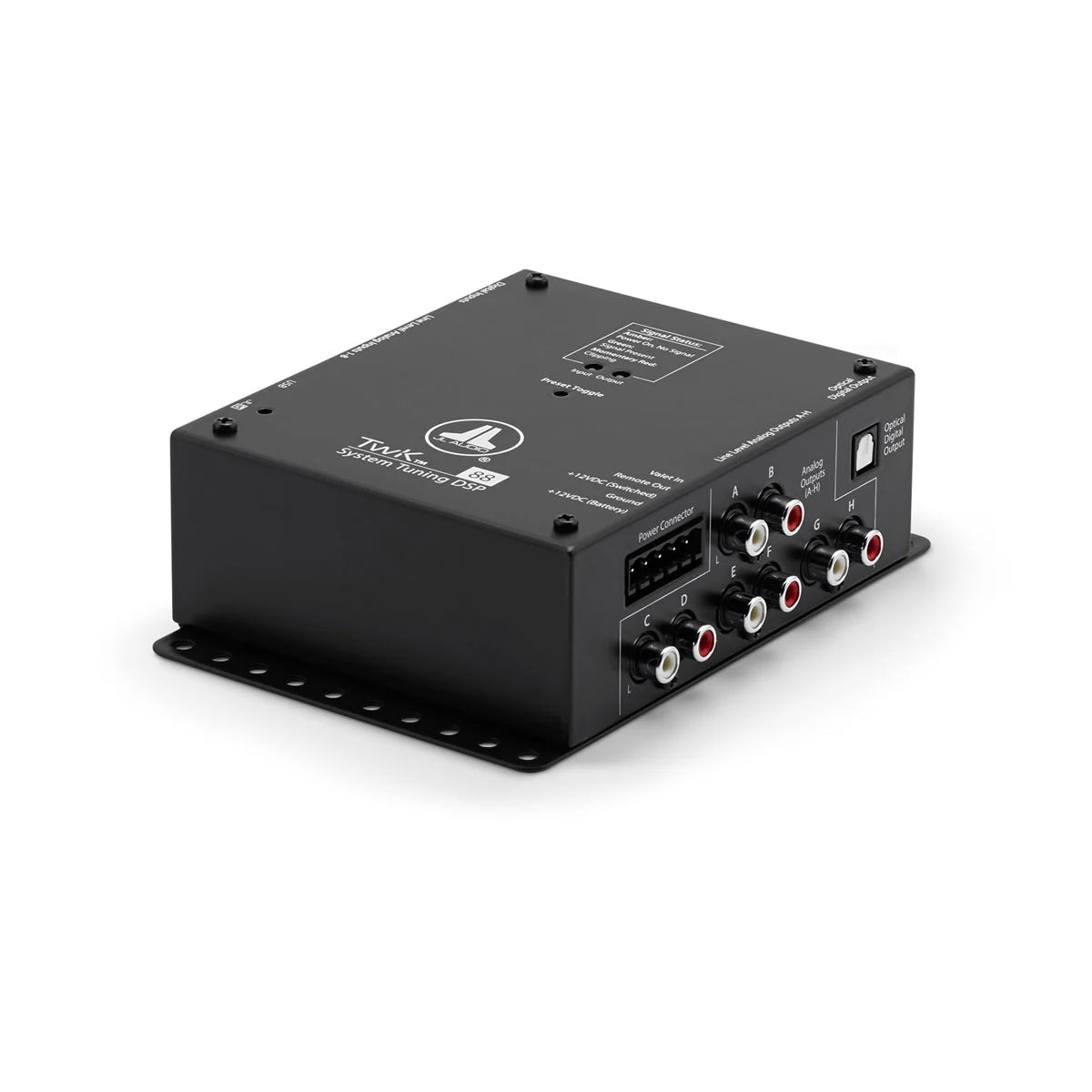

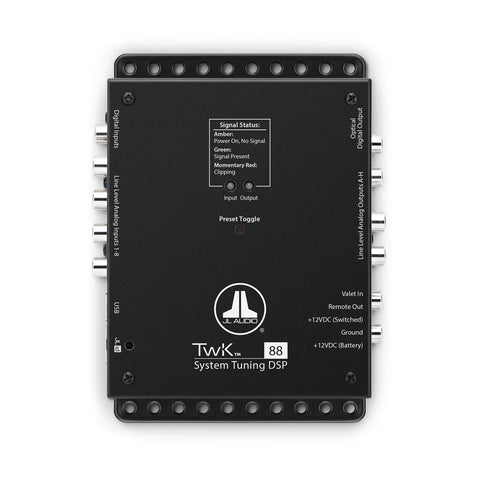

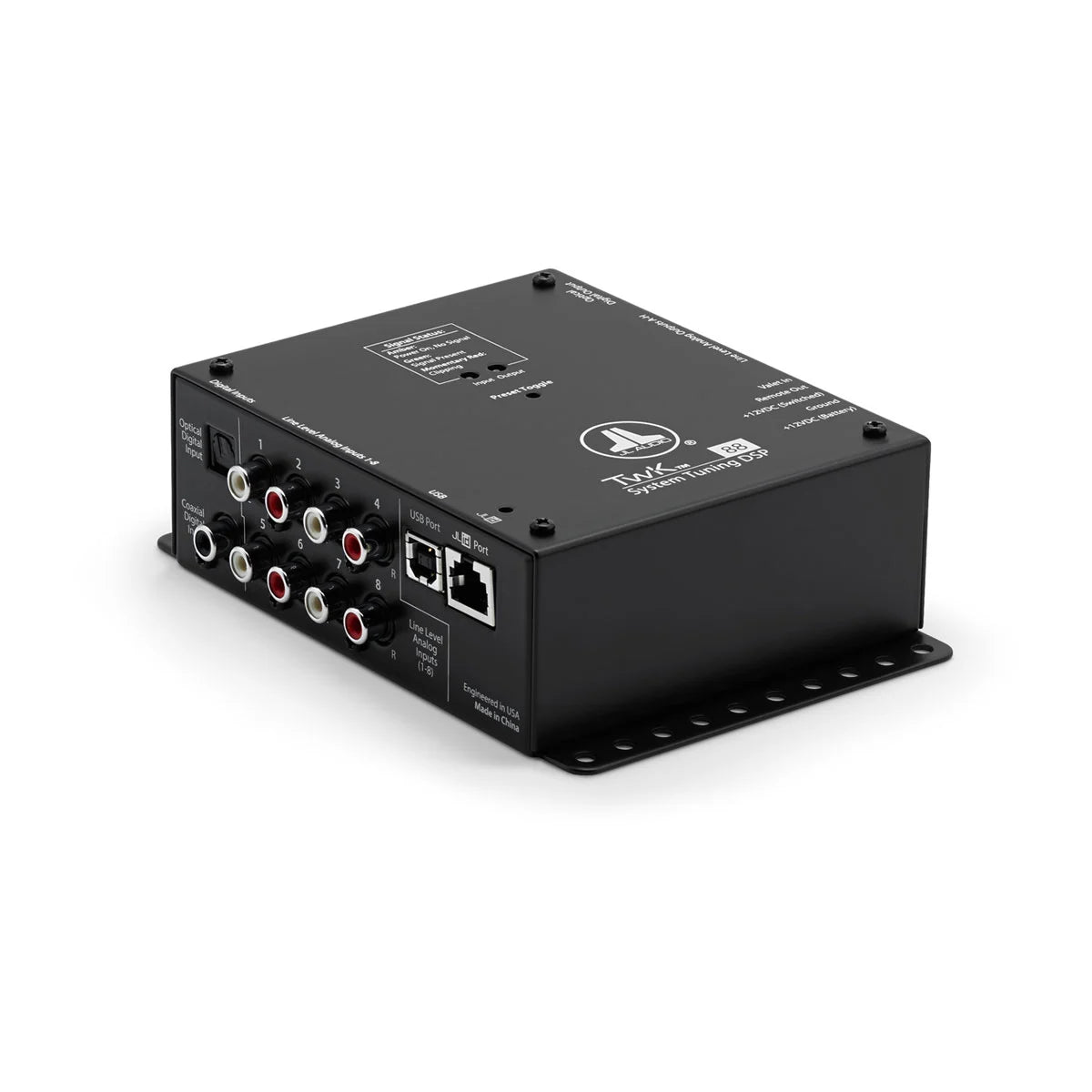

Processor with 8-input and 8-output Channels (TwK-88)
