General |
|
| Channels | 2 |
| Physical dimensions (Height) | Transmitter/Receiver 1.12" (28 mm) |
| Physical dimensions (Width) | Transmitter/Receiver 3.5" (89 mm) |
| Physical dimensions (Depth) | Transmitter/Receiver 3.5" (89 mm) |
| Signal-to-Noise ratio | 80 dB @ 1 kHz, 500 mV |
| THD+N | 0.02% @ 1 kHz, 500 mV |
| Crosstalk | >75 dB @ 1 kHz, 500 mV |
| Frequency response (+0, -1dB) | 16 Hz-22 kHz |
| Wireless range | 100 ft/30 m (typical) |
| Wireless channels | 3 available, selectable via switch |
| Latency | 14 mS |
| Operating temperature range | 32º to 104° F/0º to 40° C |
| AC power adapter | 1 A, 5 V DC |
| Warranty | 3 years |
Transmitter Specifications |
|
| Input impedance | 25 kΩ |
| Outputs | Bit-perfect PCM stereo digital via 2.4 GHz wireless |
| Receivers supported | Up to 4 |
| Bit depth/Sample rate | 16 Bit/48 kHz |
| Power requirements | 200 mA, 5 V (via AC adapter) |
| Inputs | Analog, left and right RCA-type |
Receiver Specifications |
|
| Inputs | Bit-perfect PCM stereo digital via 2.4 GHz wireless |

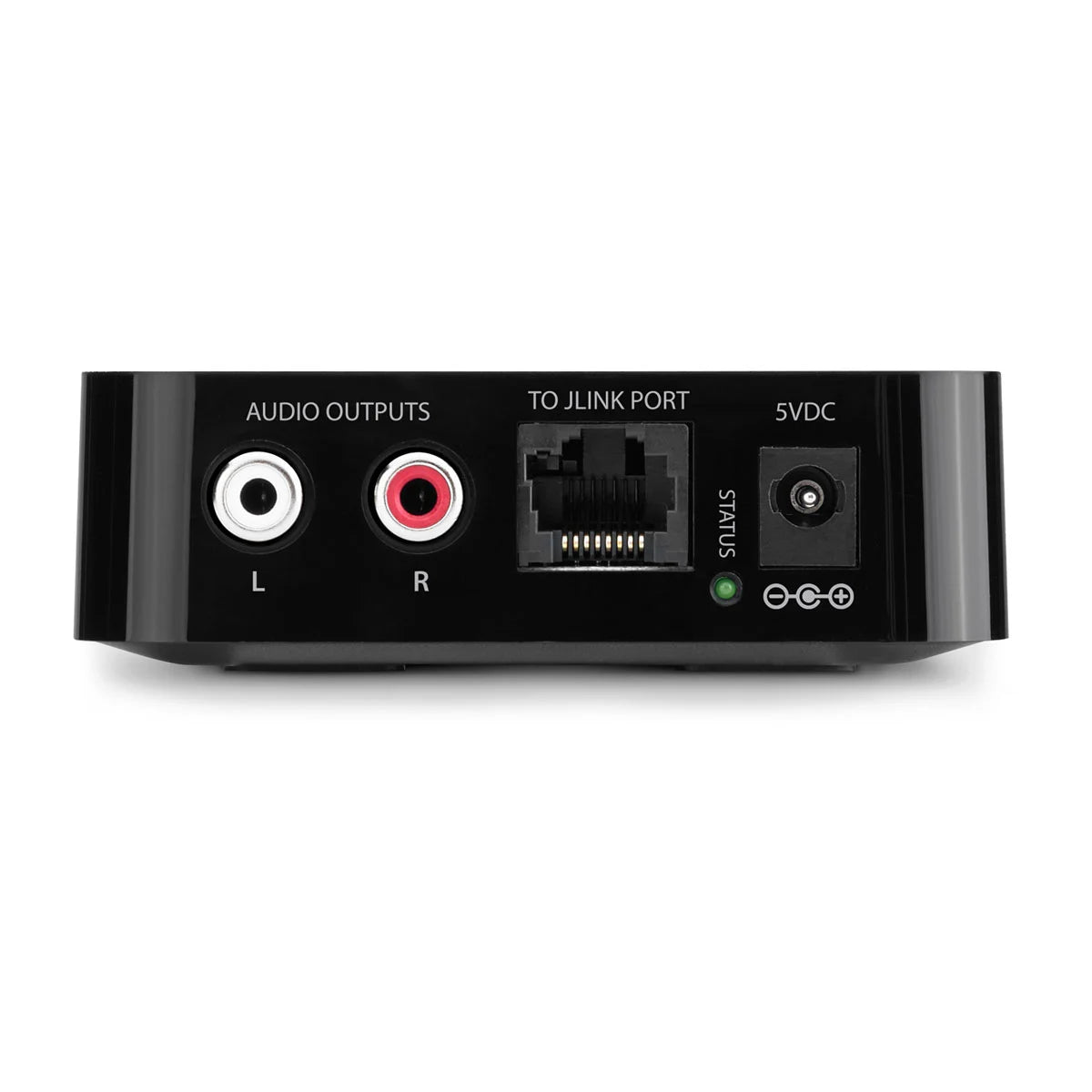

| Outputs | Analog, left and right RCA-type analog via JLINK port to compatible product |
| Output Impedance | 250 Ω |
| Full Scale Output Voltage | 1.2 V |
| Power Requirements | 100 mA, 5 V (via AC adaptor or JLINK port) |

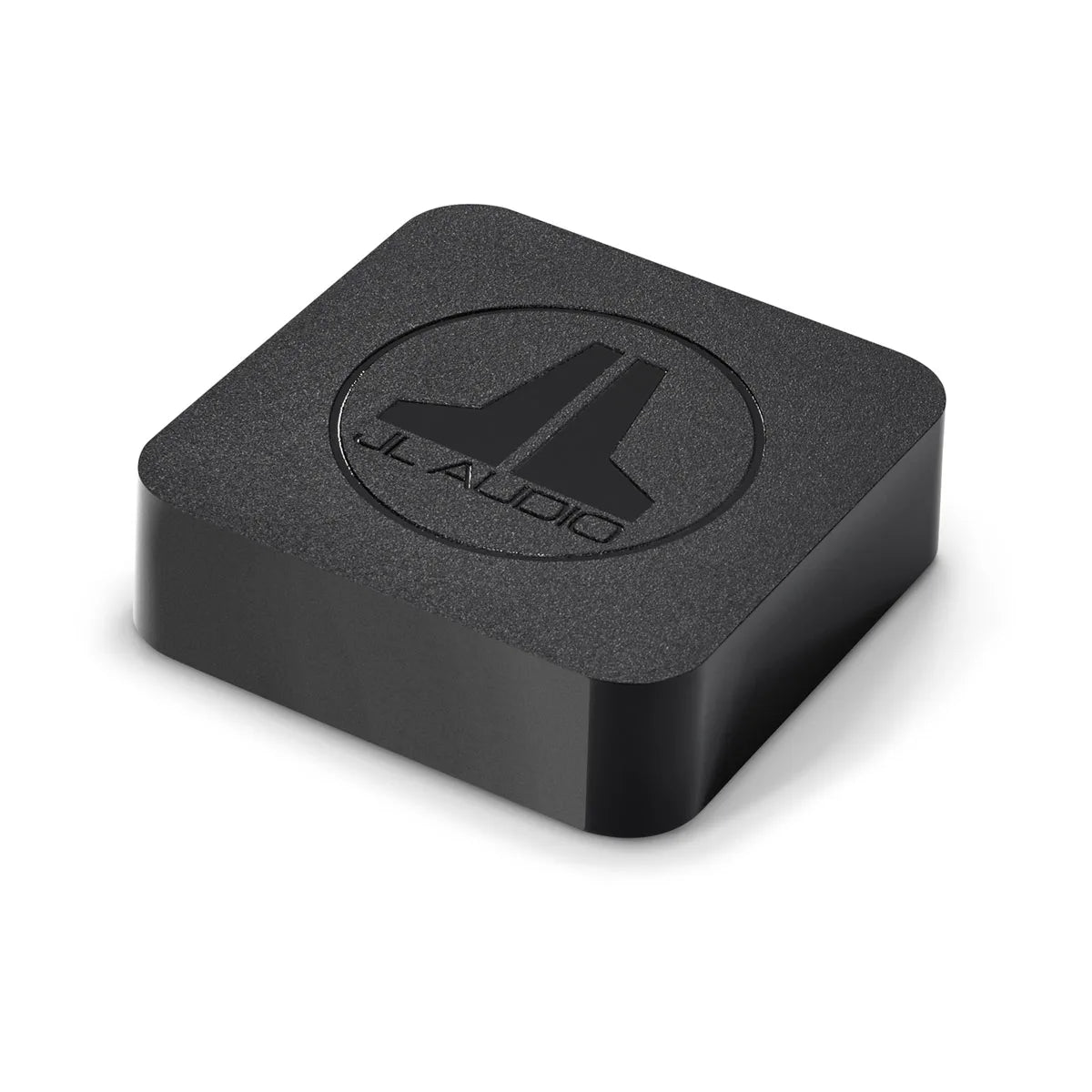

Wireless, High-fidelity Audio Add-on Receiver (JLink RX)
