General |
|
| Warranty | 2 years |
|---|---|
| Channels | Monoblock |
| Physical dimensions (Height) | 2.13" (54 mm) |
| Physical dimensions (Width) | Monoblock (500 W): 9.78" (248 mm) Monoblock (1000 W): 14.66" (372 mm) Monoblock (1500 W): 18.05" (458 mm) |
| Physical dimensions (Depth) | 6.96" (177 mm) |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | Monoblock (500 W): 250 W x 1 Monoblock (1000 W): 600 W x 1 Monoblock (1500 W): 750 W x 1 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | Monoblock (500 W): 500 W x 1 Monoblock (1000 W): 1000 W x 1 Monoblock (1500 W): 1500 W x 1 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) | Monoblock (500 W): 225 W x 1 Monoblock (1000 W): 500 W x 1 Monoblock (1500 W): 750 W x 1 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) | Monoblock (500 W): 400 W x 1 Monoblock (1000 W): 800 W x 1 Monoblock (1500 W): 1200 W x 1 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Monoblock (500 W/1000 W): >80 dB Monoblock (1500 W): >82 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Monoblock (500 W): >60 dB Monoblock (1000 W / 1500 W): >50 dB |
| Damping factor @ 4 Ω | Monoblock (500 W/1000 W): >1000/50 Hz Monoblock (1500 W): >1100/50 Hz |
| Damping factor @ 2 Ω | >500/50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω |
| Frequency response (+0, -1dB) | 7 Hz-500 Hz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Fuse rating | Monoblock (500 W): 50 A Monoblock (1000 W): 80 A Monoblock (1500 W): 150 A |
| Recommended fuse type(s) | Monoblock (500 W/1000 W): AFS, AGU or MaxiFuse™ Monoblock (1500 W): AFS or AGU |
| Min. copper power/Ground wire gauge | 4 AWG wire Monoblock (1500 W): 2 AWG wire |
Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Low-pass only |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz-500 Hz |
| Bass boost | |
| Bass boost EQ (0 to +12 dB @ 45 Hz) | |
| Remote level control | Optional (RBC-1) |
| Pass-through preamp output | Buffered |

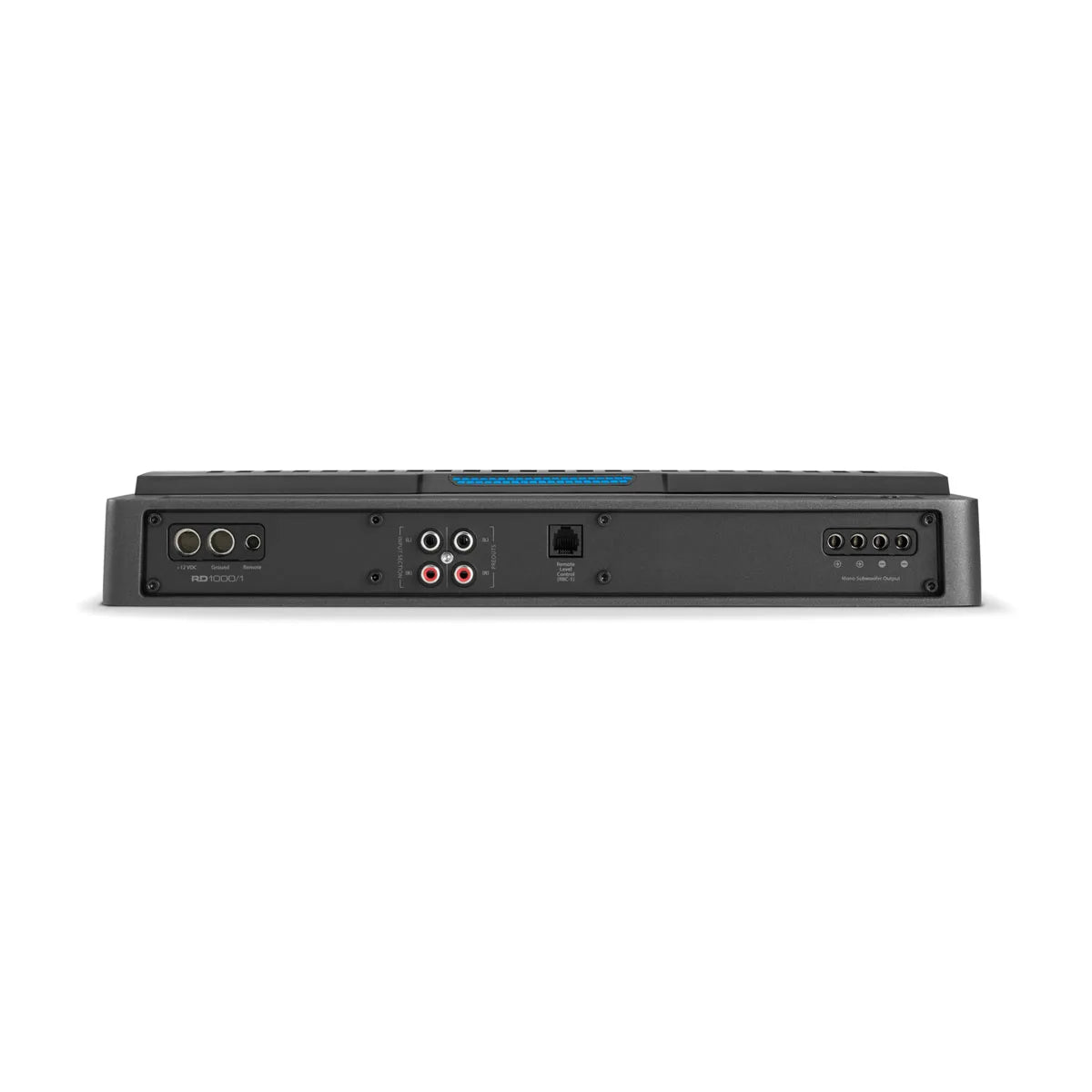

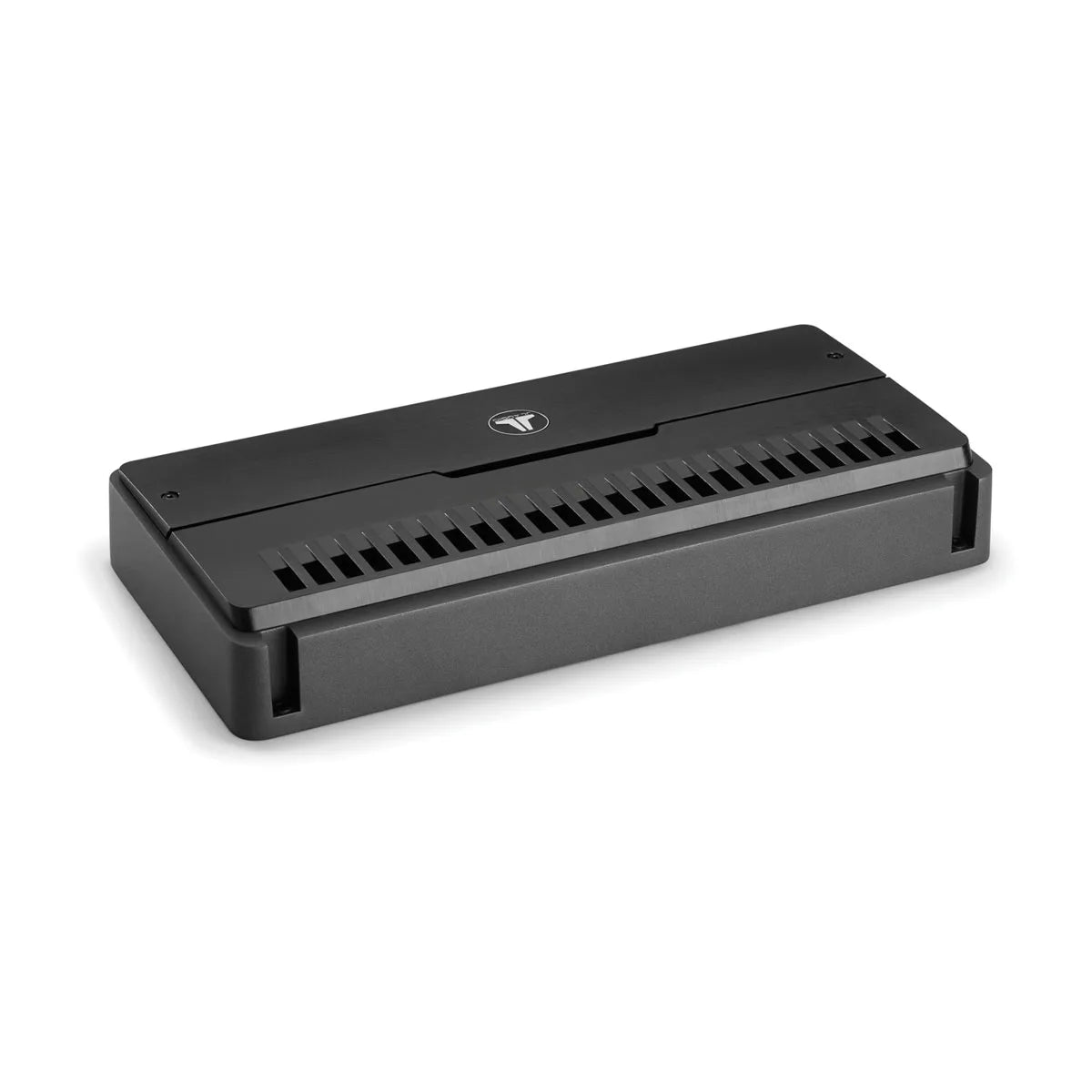

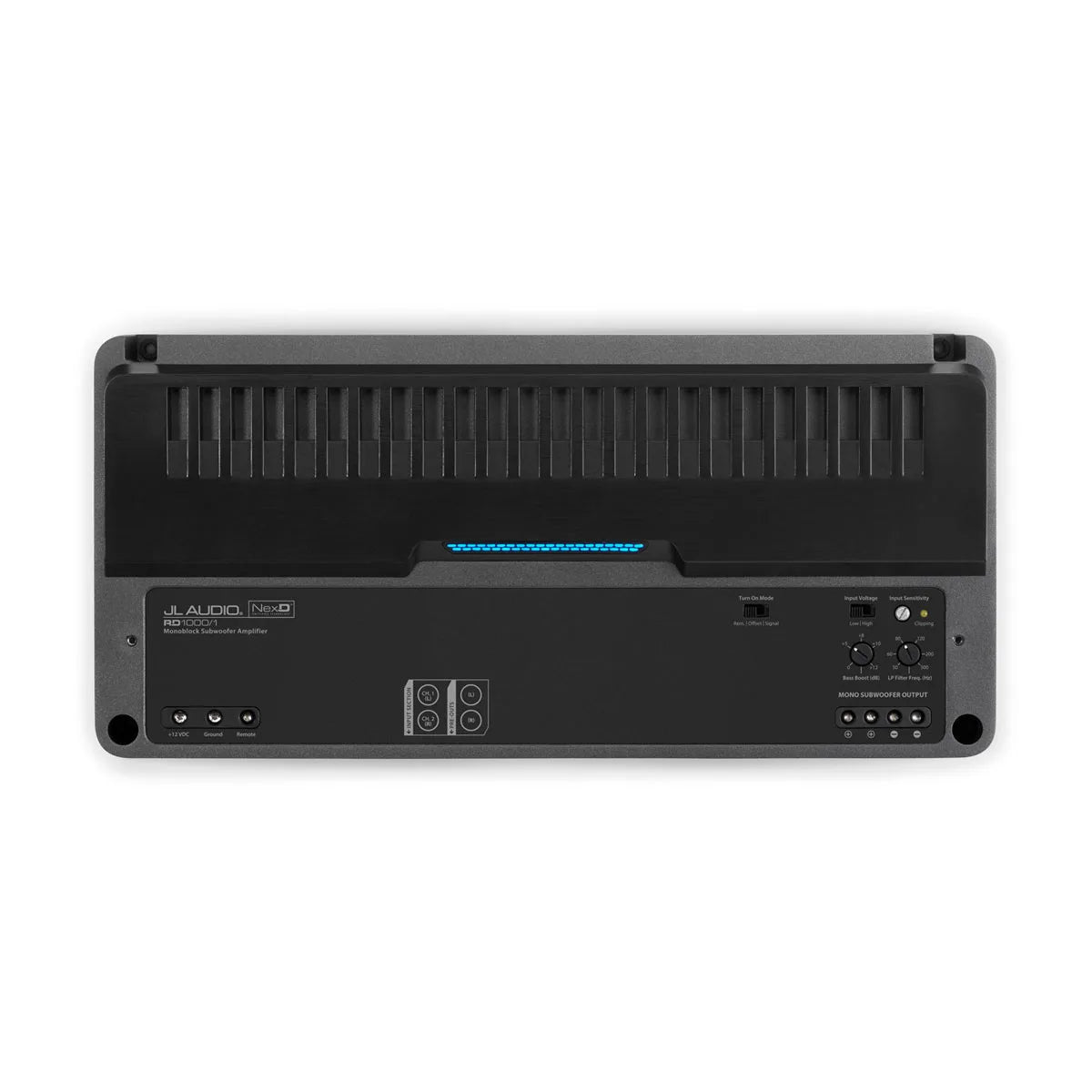

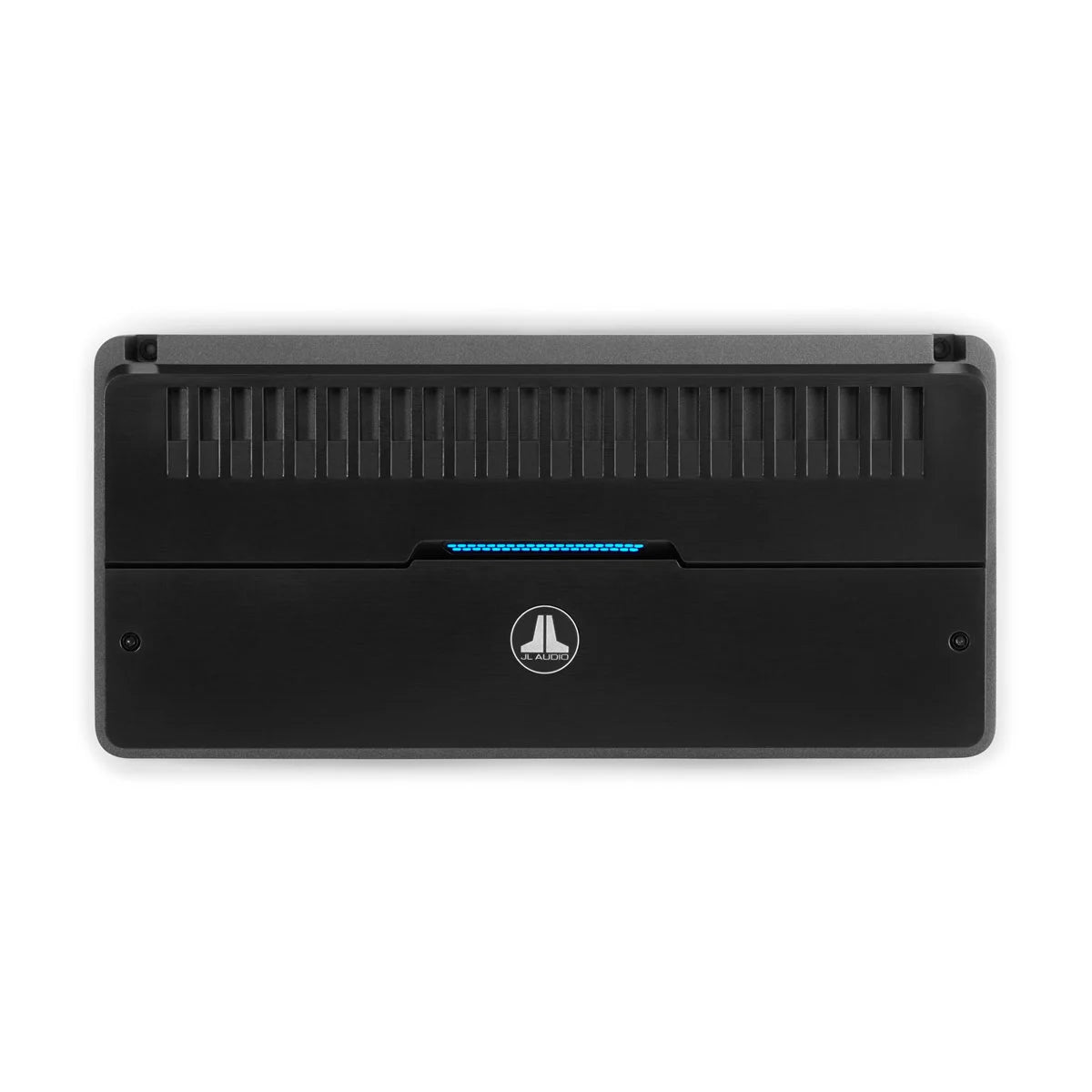

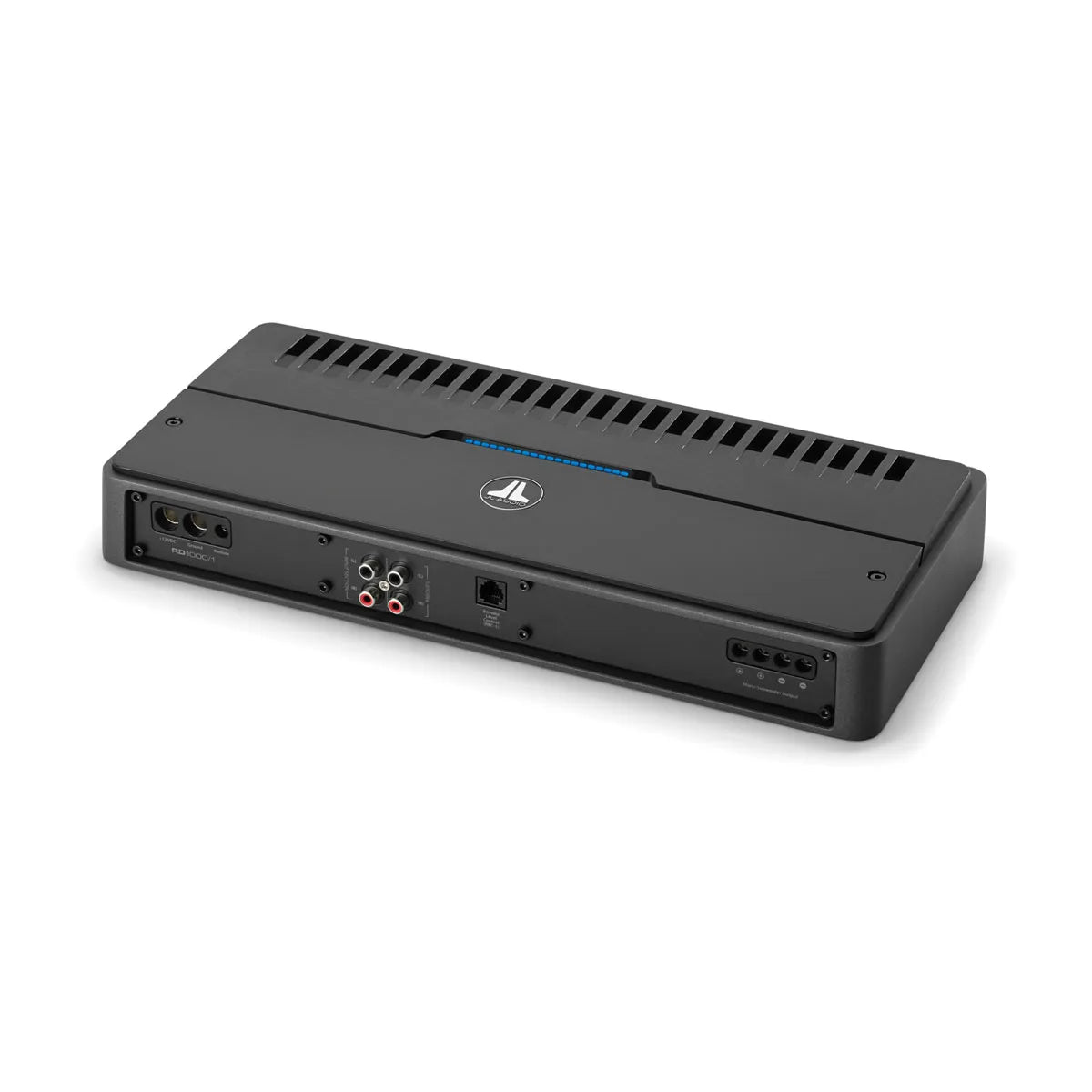

Monoblock Amplifier (1000 W) (RD1000/1)
