General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 8"/10" |
| Color | White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White |
| Physical dimensions (Diameter) | 8": 8.80" (224 mm) 8" (Luxe): 10.25" (260 mm) 10": 10.75" (273 mm) 10" (Luxe): 12.54" (319 mm) |
| Physical dimensions (Depth) | 8" (Classic): 6.37" (162 mm) 8" (Sport): 6.45" (164 mm) 8" (Luxe): 6.78" (172 mm) 10": 7.56" (192 mm) 10" (Luxe): 7.53" (191 mm) |
| Weight | 8": 8.70 lbs (3.90 kg) 10": 12.60 lbs (5.70 kg) 10" (Luxe): 13.2 lbs (6.0 kg) |
| Speaker type | Infinite Baffle or Enclosed-use Subwoofer |
| Continuous power handling (RMS) | 8": 200 W 10": 250 W |
| Sensitivity (SPL @ 1 W/1 m) | 8": 86.8 dB 10" (IB): 86.1 dB 10" (W): 86.4 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 8": 50-200 W 10": 75-250 W |

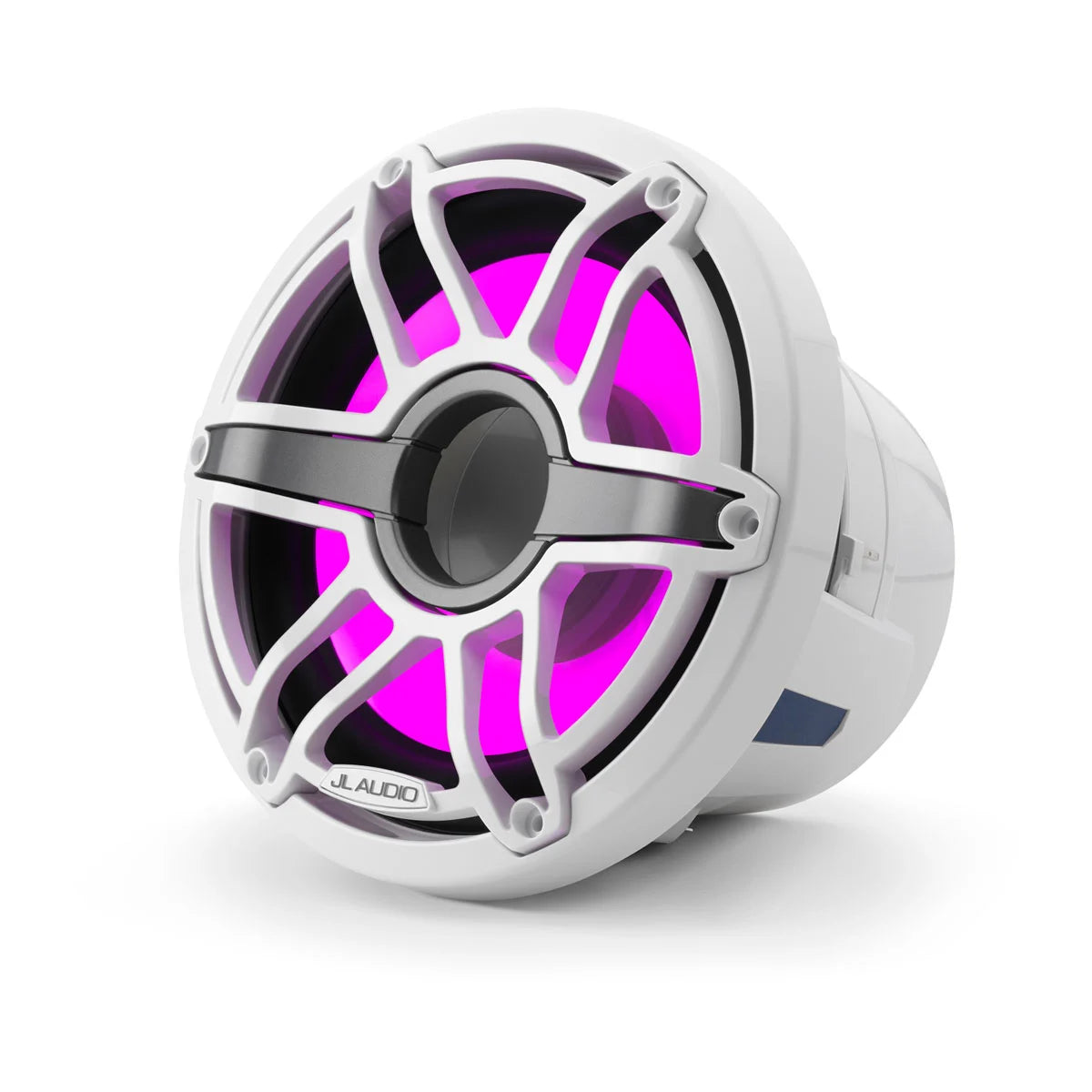

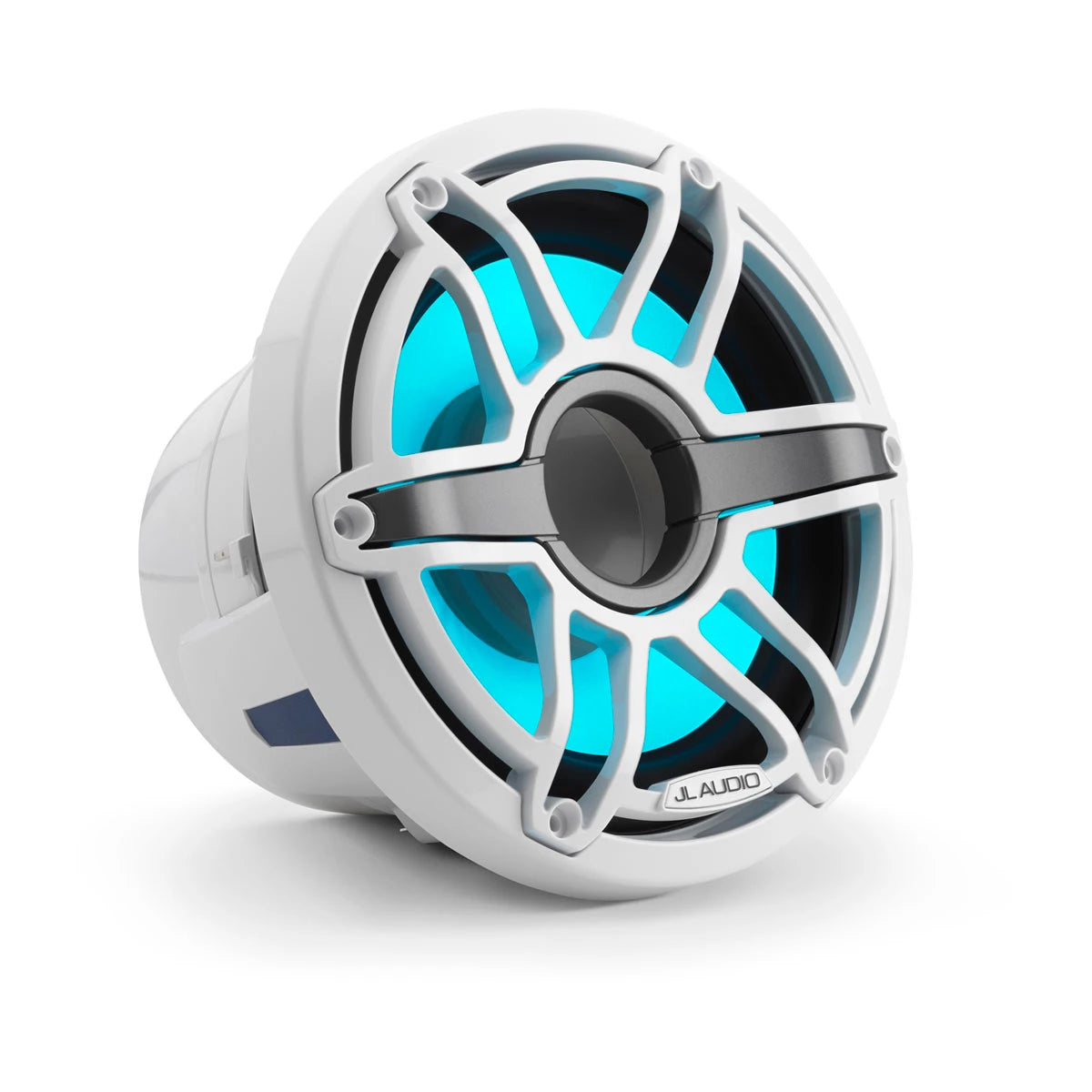

| LED lighting | yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 8": 486 mA 10": 594 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
Networking & Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting diameter clearance | 8" (Classic/Sport): 5" (127 mm) 8" (Luxe): 6.30" (160 mm) 10" (Classic/Sport): 5.90" (150 mm) 10" (Luxe): 6.98" (177 mm) |
|---|---|
| Frontal grille protrusion | 8" (Classic): 1.37" (35 mm) 8" (Sport): 1.45" (37 mm) 8" (Luxe): 0.48" (12 mm) 10" (Classic/Sport): 1.66" (42 mm) 10" (Luxe): 0.55" (14 mm) |
| Mounting hole | 8" (Classic/Sport): 7.375" (187 mm) 8" (Luxe): 8.625" (219 mm) 10" (Classic/Sport): 8.875" (225 mm) 10" (Luxe): 10.5625" (268 mm) |
| Bolt hole circle | 8" (Classic/Sport): 7.97" (202 mm) 8" (Luxe): 9.27" (235 mm) 10" (Classic/Sport): 9.70" (247 mm) 10" (Luxe): 11.46" (291 mm) |
| Driver displacement | 8" (Classic/Sport): 0.033 cu ft (0.93 L) 8" (Luxe): 0.073 cu ft (2.07 L) 10" (Classic/Sport): 0.052 cu ft (1.47 L) 10" (Luxe): 0.099 cu ft (2.80 L) |
Parameters |
|
| Free Air Resonance (FS) | 8": 54.92 Hz 10" (IB): 43.76 Hz 10" (W): 34.58 Hz |
|---|---|
| Electrical “Q” (Qes) | 8": 0.852 10" (IB): 0.907 10" (W): 0.522 |
| Mechanical “Q” (Qms) | 8": 10.314 10" (IB): 11.315 10" (W): 9.780 |
| Total “Q” (Qts) | 8": 0.787 10" (IB): 0.840 10" (W): 0.496 |
| Equivalent Compliance (Vas) | 8": 0.54 cu ft (15.29 L) 10" (IB): 0.98 cu ft (27.75 L) 10" (W): 1.22 cu ft (34.49 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 8": 0.53" (14 mm) 10" (IB/W): 0.52" (13 mm) |
| Reference Efficiency (NO) | 0.28% |
| Effective piston area (SD) | 8": 35.15 in² (0.0227 m²) 10" (IB/W): 50.11 in² (0.0323 m²) |
| DC resistance (RE) | 8": 2.993 Ω 10" (IB): 4.543 Ω 10" (W): 3.619 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 8"/10" (IB): 2.00 cu ft (56.6 L) 10" (W): 0.75 cu ft (21.2 L) |
| External width (W) | 8": 16" (406 mm) 10" (IB/W): 17" (432 mm) |
| External height (H) | 8": 16" (406 mm) 10" (IB/W): 17" (432 mm) |
| External depth (D) | 8": 18.25" (464 mm) 10" (IB): 16.25" (431 mm) 10" (W): 7.25" (184 mm) |
| -3 dB cutoff frequency (F3) | 8": 51.78 Hz 10" (IB): 41.54 Hz 10" (W): 50.08 Hz |
| System resonance (FC) | 8": 61.89 Hz 10" (IB): 53.41 Hz 10" (W): 56.01 Hz |
| System Q at resonance (QTC) | 8": 0.8869 10" (IB): 1.0253 10" (W): 0.8035 |
Ported Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 8": 1.50 cu ft (42.5 L) 10" (IB): 2.5 cu ft (70.8 L) 10: (W): 2 cu ft (56.6 L) |
| External width (W) | 8": 16" (406 mm) 10" (IB/W): 17" (432 mm) |
| External height (H) | 8": 16" (406 mm) 10" (IB/W): 17" (432 mm) |
| External depth (D) | 8": 15.125" (384 mm) 10" (IB): 20.5" (676 mm) 10" (W): 13.125" (333 mm) |
| Internal port diameter (ID) | 8": 4" (102 mm) 10" (IB): 4" (102 mm) 10" (W): 3" (76 mm) |
| Port length (L) | 8": 13.5" (343 mm) 10" (IB): 12" (305 mm) 10" (W): 11.125" (283 mm) |
| Tuning frequency (FB) | 8": 37 Hz 10" (IB): 30 Hz 10" (W): 31 Hz |
| -3 dB cutoff frequency (F3) | 8": 31.26 Hz 10" (IB): 25.09 Hz 10" (W): 29.81 Hz |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|

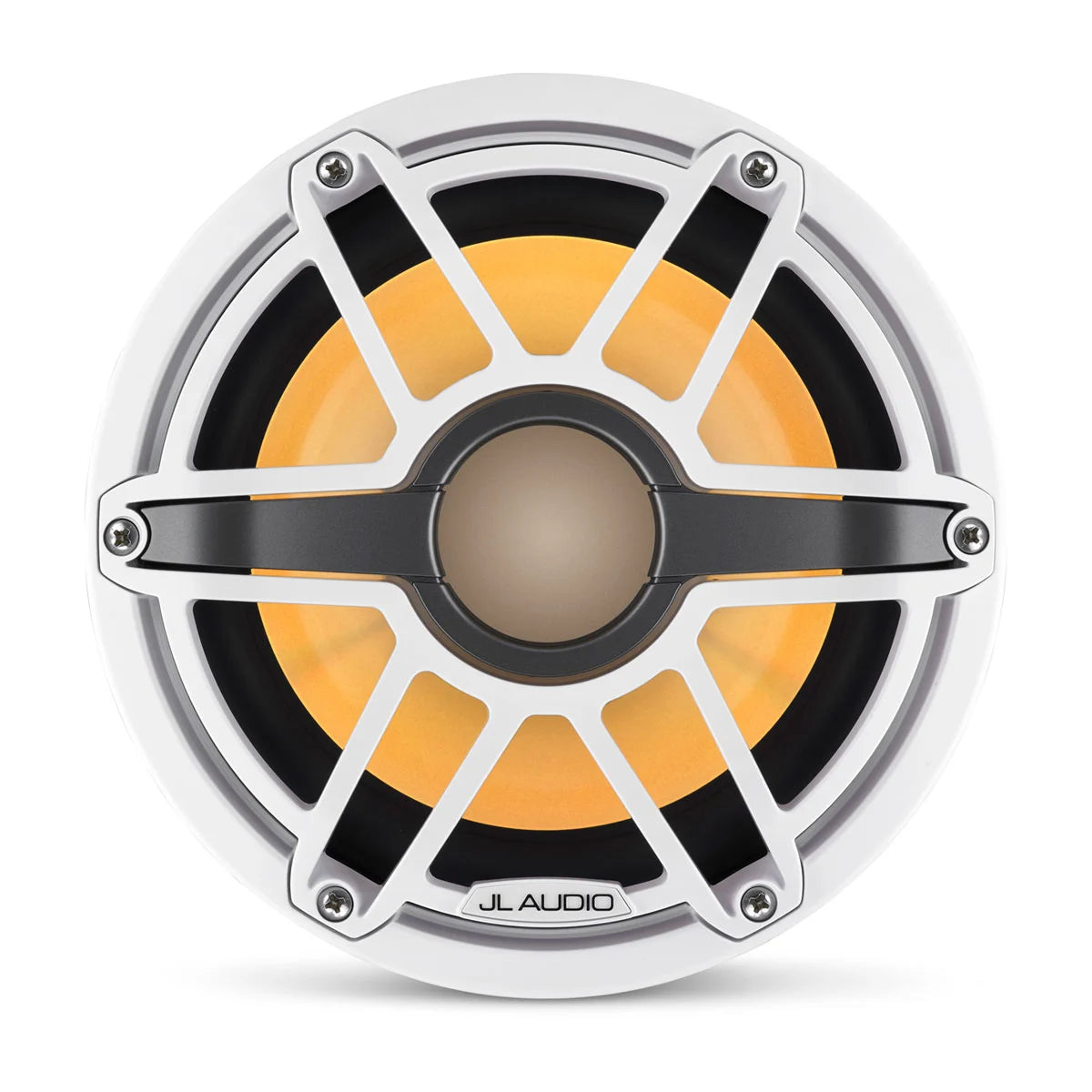

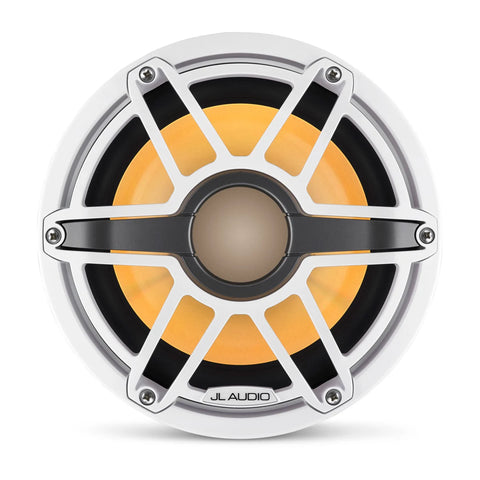

8" LED and White Sport Grille (M6-8IB-S-GwGw-i-4)
