General |
|
| Warranty | 2 years |
|---|---|
| Sizes | 10"/Dual 10"/12"/Dual 12" |
| Physical dimensions (Height) | 10"/Dual 10": 13.77" (350 mm) 12"/Dual 12": 15.18" (386 mm) |
| Physical dimensions (Width) | 10": 15.51" (394 mm) 12": 16.31" (414 mm) Dual 10": 29.61" (752 mm) Dual 12": 31.375" (797 mm) |
| Physical dimensions (Depth) | 10"/Dual 10": Top: 14" (356 mm) 10"/Dual 10": Base: 17.38" (441 mm) 12"/Dual 12": Top: 15.75" (400 mm) 12"/Dual 12": Base: 20.3" (516 mm) |
| Weight | 10": 29 lbs (13.15 kg) 12": 33.1 lbs (15 kg) Dual 10": 50.7 lbs (23 kg) Dual 12": 60.3 lbs (27.35 kg) |
| Continuous power handling (RMS) | 10"/12": 300 W Dual 10"/Dual 12": 600 W |
| Nominal impedance | 2 Ω or 4 Ω |
| Recommended amplifier power (RMS) | 10"/12": 75-300 W Dual 10"/Dual 12": 150-600 W |
| Cone material | Mineral-filled polypropylene |
| Enclosure type | Slot-ported |
Networking & Connections |
|
| Speaker connections | Push-button terminal |
|---|---|

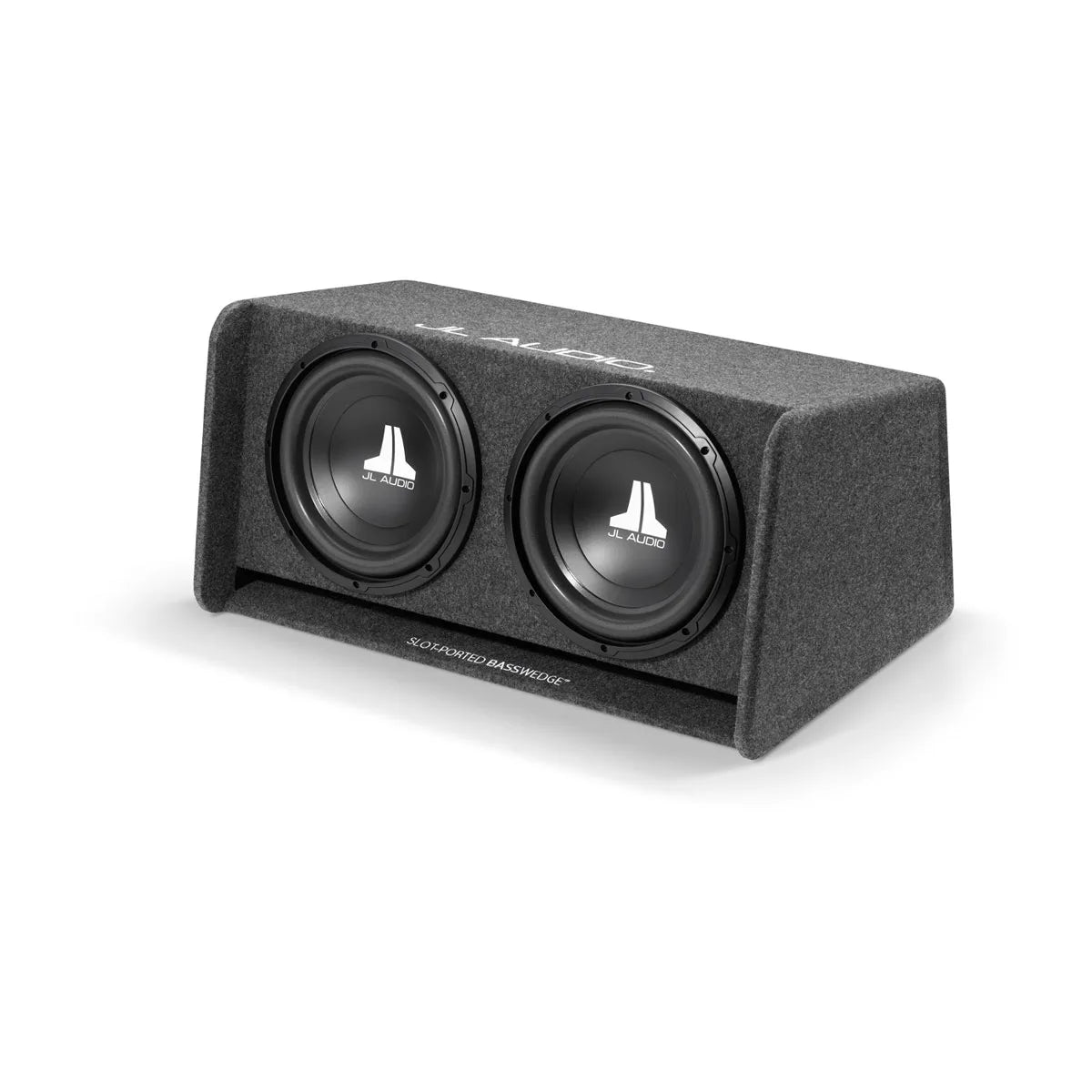

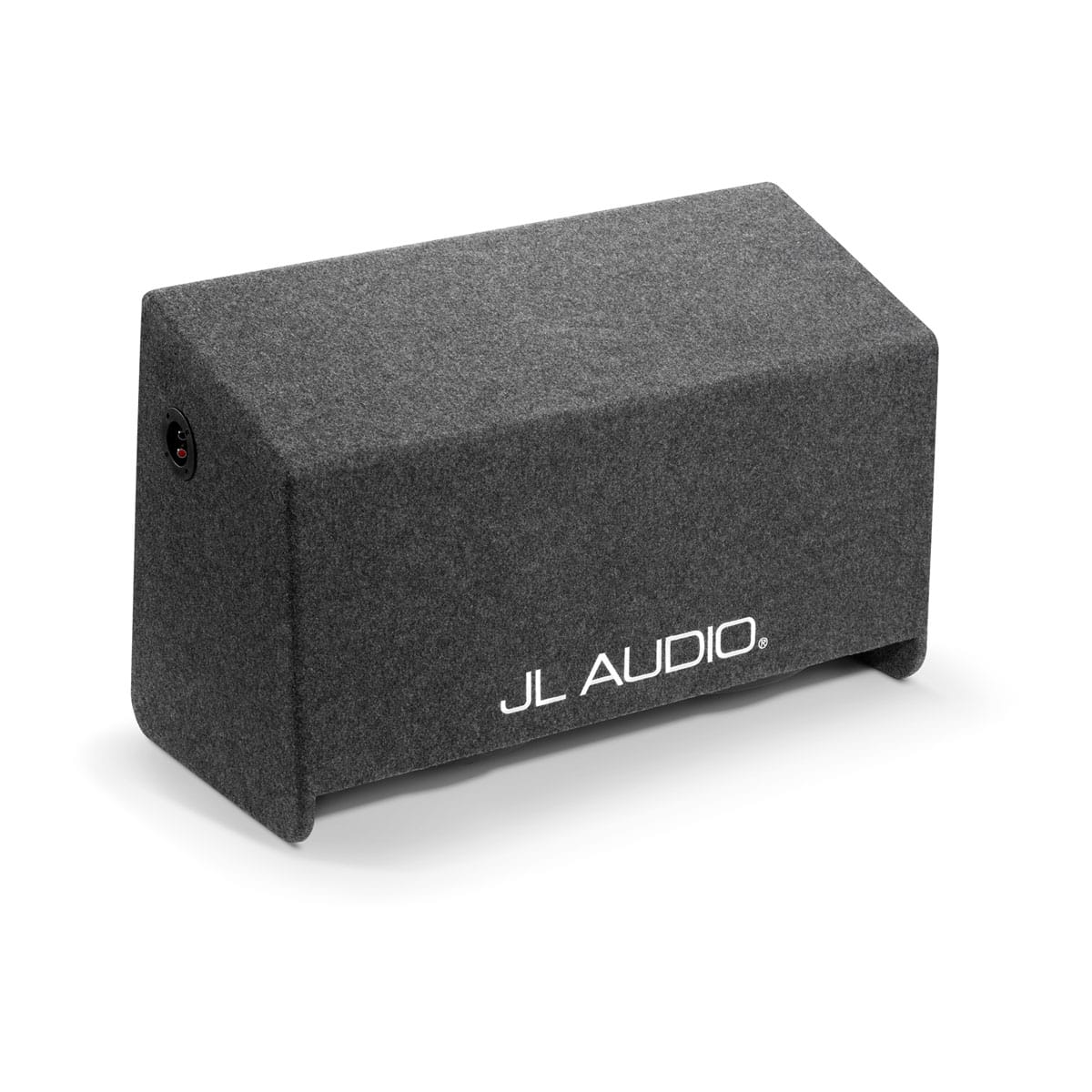

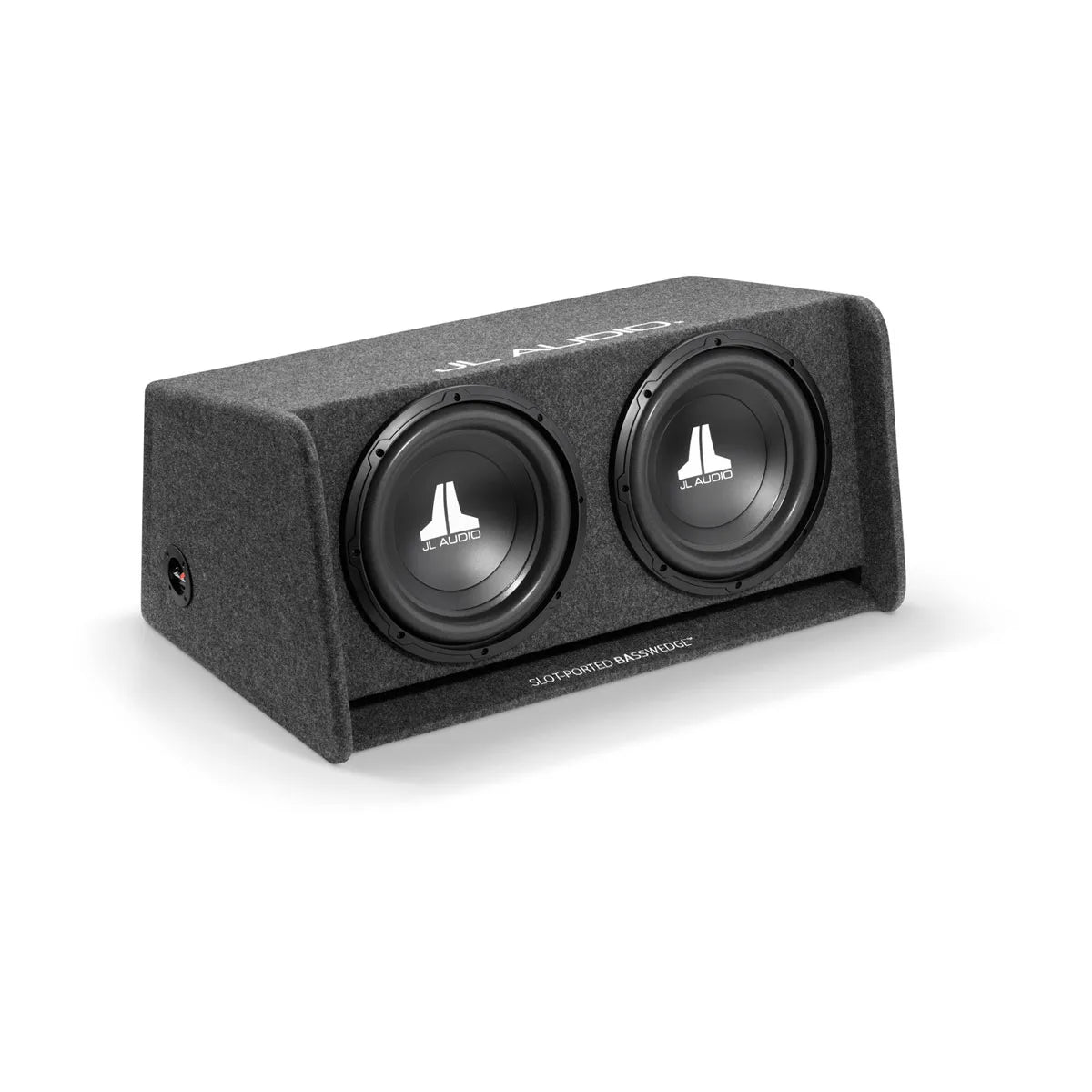

Dual 12" W0v3 Subwoofer
