General |
|
| Warranty | 2 years |
|---|---|
| Sizes | 13.5" |
| Weight | 20.5 lbs (9.3 kg) |
| Continuous power handling (RMS) | 600 W |
| Sensitivity (SPL @ 1 W/1 m) | 2 Ω: 85.51 dB 4 Ω: 85.63 dB |
| Nominal impedance | 2 Ω |
| Recommended amplifier power (RMS) | 250-600 W |
| Cone material | Mineral-filled polypropylene |
Networking & Connections |
|
| Speaker connections | Push-button terminal |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | Max: 14.2" (361mm) Min: 13.0" (330 mm) |
|---|---|
| Mounting depth clearance | 2.625" (67 mm) |
| Mounting hole | 12.5" (318 mm) |
| Bolt hole circle | 13.5" (343 mm) |
| Motor outer diameter | 6.75" (171 mm) |
| Driver displacement | 0.052 cu ft (1.47 L) |
Parameters |
|
| Free Air Resonance (FS) | 2 Ω: 25.95 Hz 4 Ω: 27.61 Hz |
|---|---|
| Electrical “Q” (Qes) | 2 Ω: 0.51 4 Ω: 0.553 |
| Mechanical “Q” (Qms) | 2 Ω: 10.648 4 Ω: 10.692 |
| Total “Q” (Qts) | 2 Ω: 0.479 4 Ω: 0.526 |
| Equivalent Compliance (Vas) | 2 Ω: 2.26 cu ft (64 L) 4 Ω: 2.13 cu ft (60.31 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 0.433" (11 mm) |
| Reference Efficiency (NO) | 0.23% |
| Effective piston area (SD) | 98.26 in² (0.0634 m²) |
| DC resistance (RE) | 2 Ω: 2.100 Ω 4 Ω: 3.513 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 0.80 cu ft (22.66 L) |
| External width (W) | 19" (483 mm) |
| External height (H) | 15" (381 mm) |
| External depth (D) | 7.75" (197 mm) |
| -3 dB cutoff frequency (F3) | 2 Ω: 41.18 Hz 4 Ω: 41.42 Hz |
| System resonance (FC) | 2 Ω: 50.75 Hz 4 Ω: 52.84 Hz |
| System Q at resonance (QTC) | 2 Ω: 0.937 4 Ω: 1.007 |
Additional |
|
| Additional | Port Enclosure specifications are not recommended.
The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice. |
|---|---|

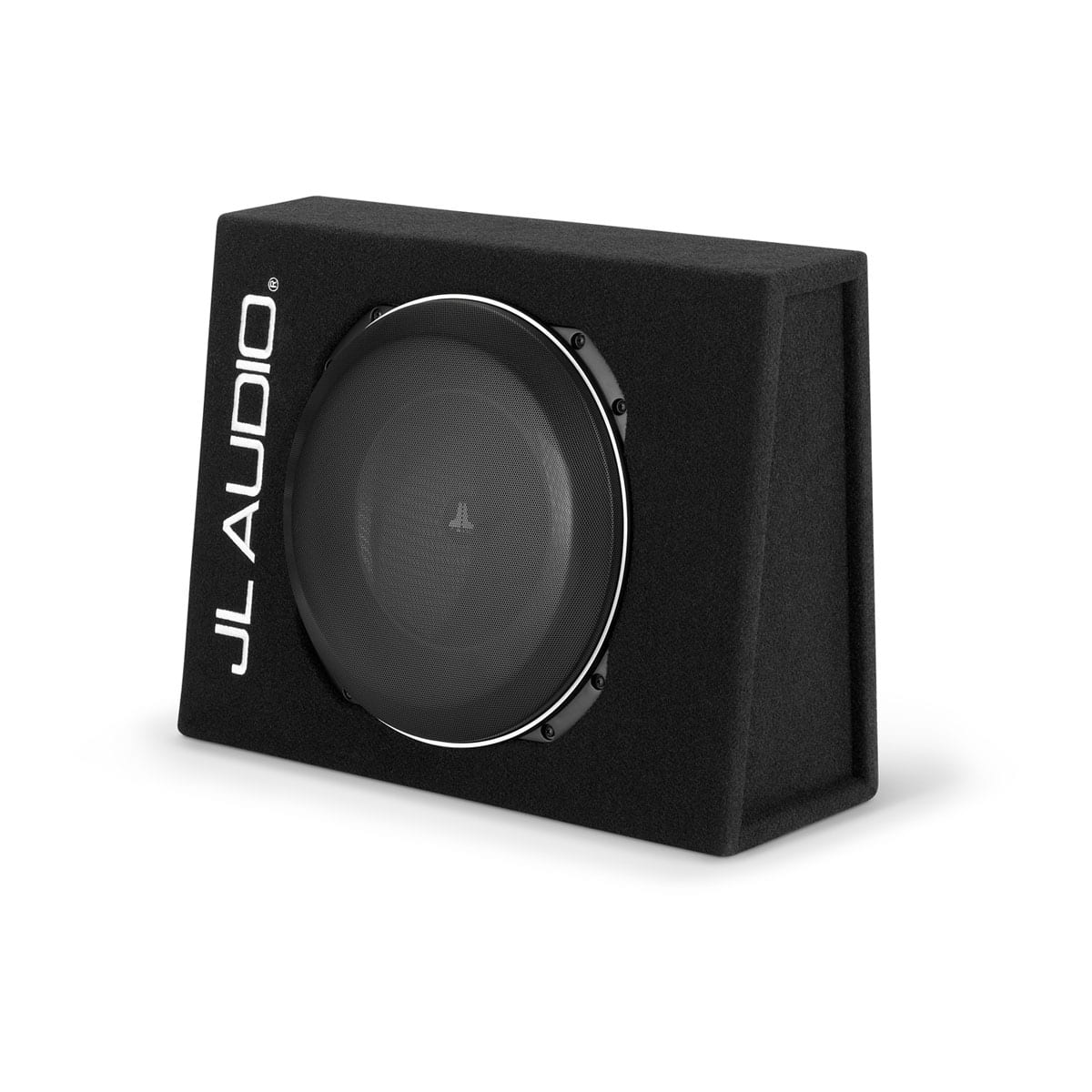

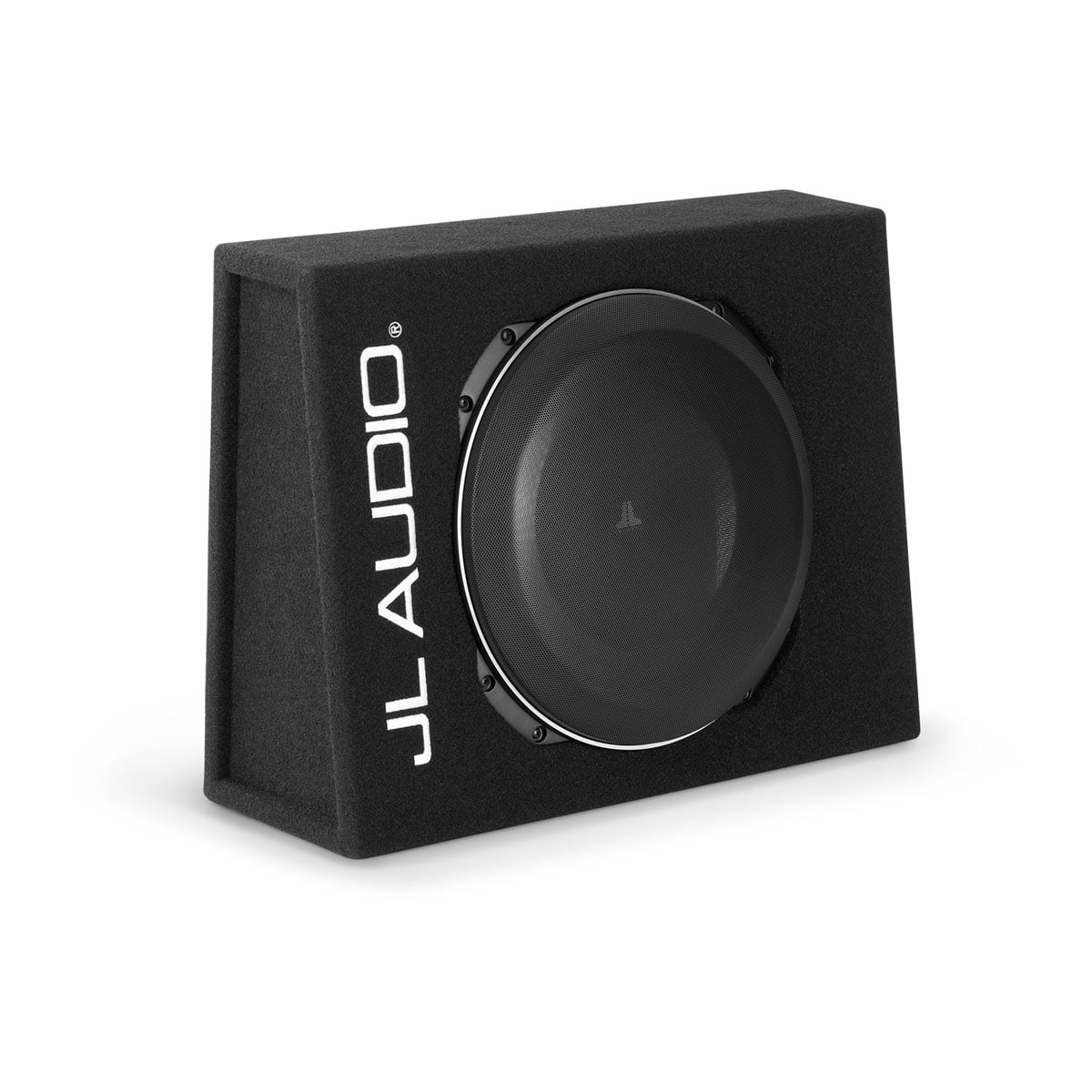

Single 13" TW5 Subwoofer, Truck-Style Box (CS113TG-TW5v2)
