General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 6.5"/7.7" |
| Color | White and Metallic Gray |
| Physical dimensions (Diameter) | 6.5": 6.90" (175 mm) 7.7": 7.7" (196 mm) |
| Physical dimensions (Depth) | 6.5": 4.19" (106 mm) 7.7": 4.6" (117 mm) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 50W 7.7": 60W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 87 dB 7.7": 88 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-20 KHz 7.7": 45 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 30-100 W/Channel 7.7": 40-120 W/Channel |
| LED lighting | Yes - RGB (Select sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 140 mA (Select sport models only) |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 1" (25 mm) |
Networking & Connections |
|

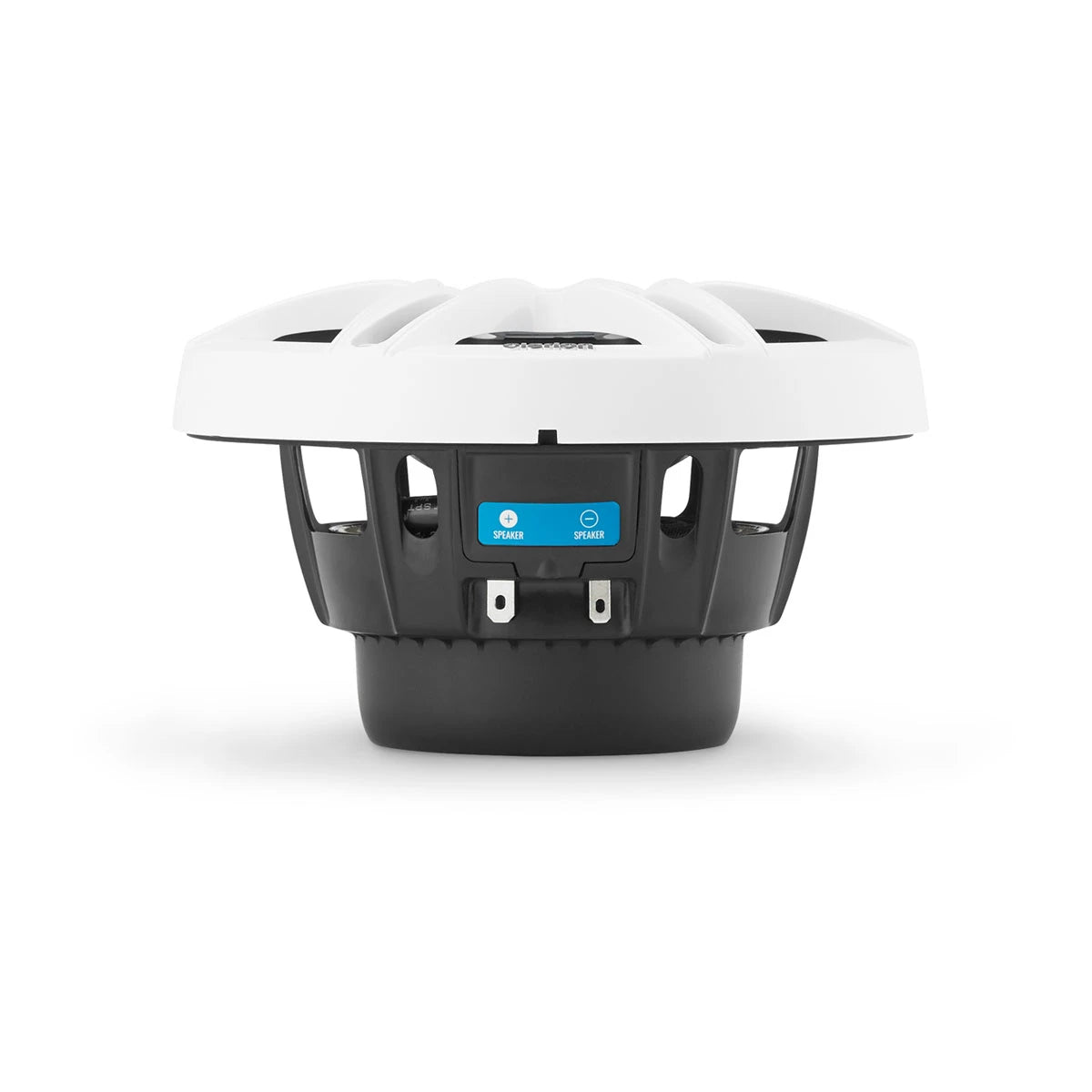

| Speaker connections | Spade Connectors Flying Lead with waterproof connector 18 AWG Wire (Selected sport models only) |
|---|---|
Mounting Dimensions |
|
| Mounting depth clearance | 6.5": 2.83" (72 mm) 7.7": 3.07" (78 mm) |
|---|---|
| Frontal grille protrusion | 6.5": 1.36" (35 mm) 7.7": 1.53" (39 mm) |
| Mounting hole | 6.5": 5.00"-5.25" (127-133 mm) 7.7" 6.25" (159 mm) |
| Bolt hole circle | 6.5": 6.14" (156 mm) 7.7": 6.92" (176 mm) |

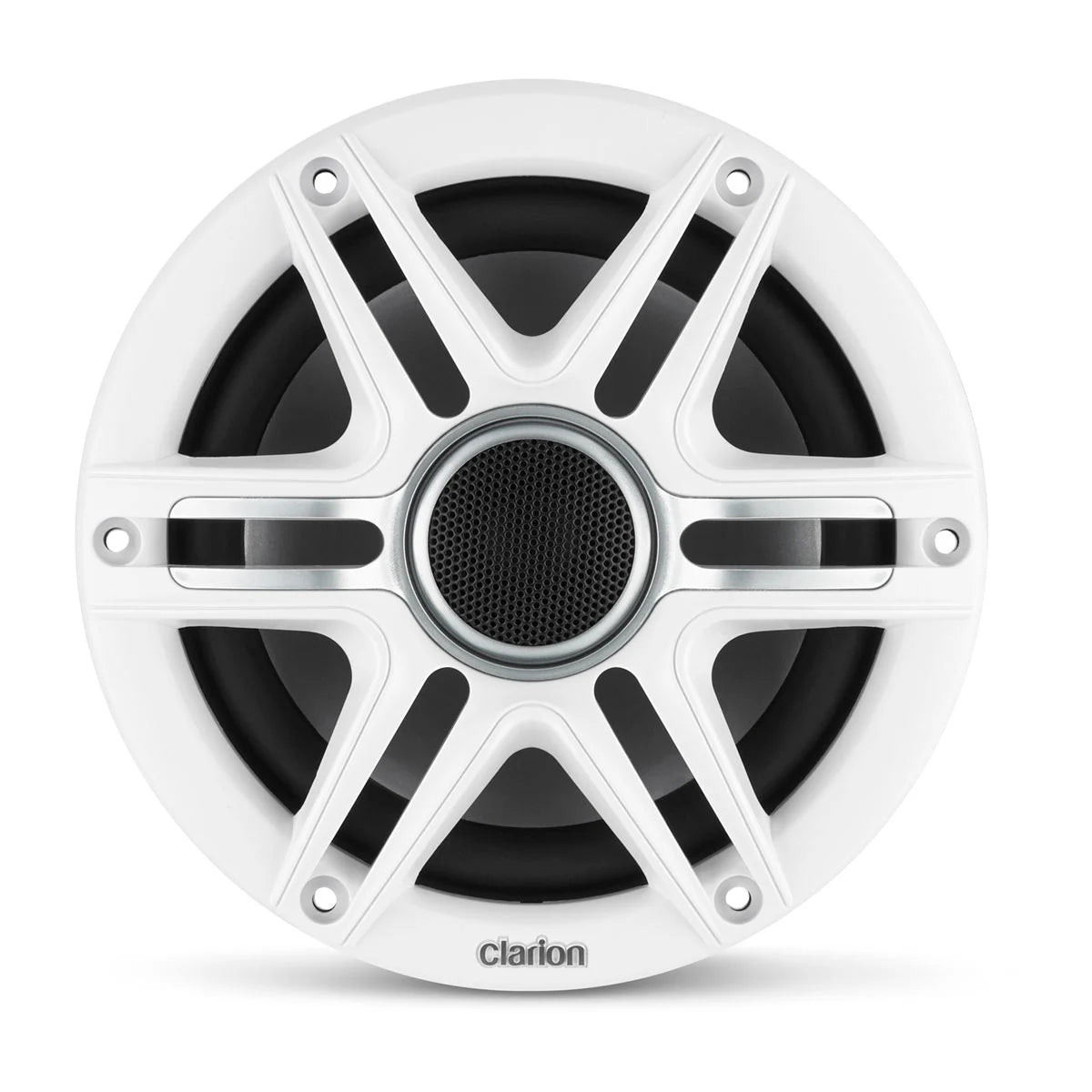

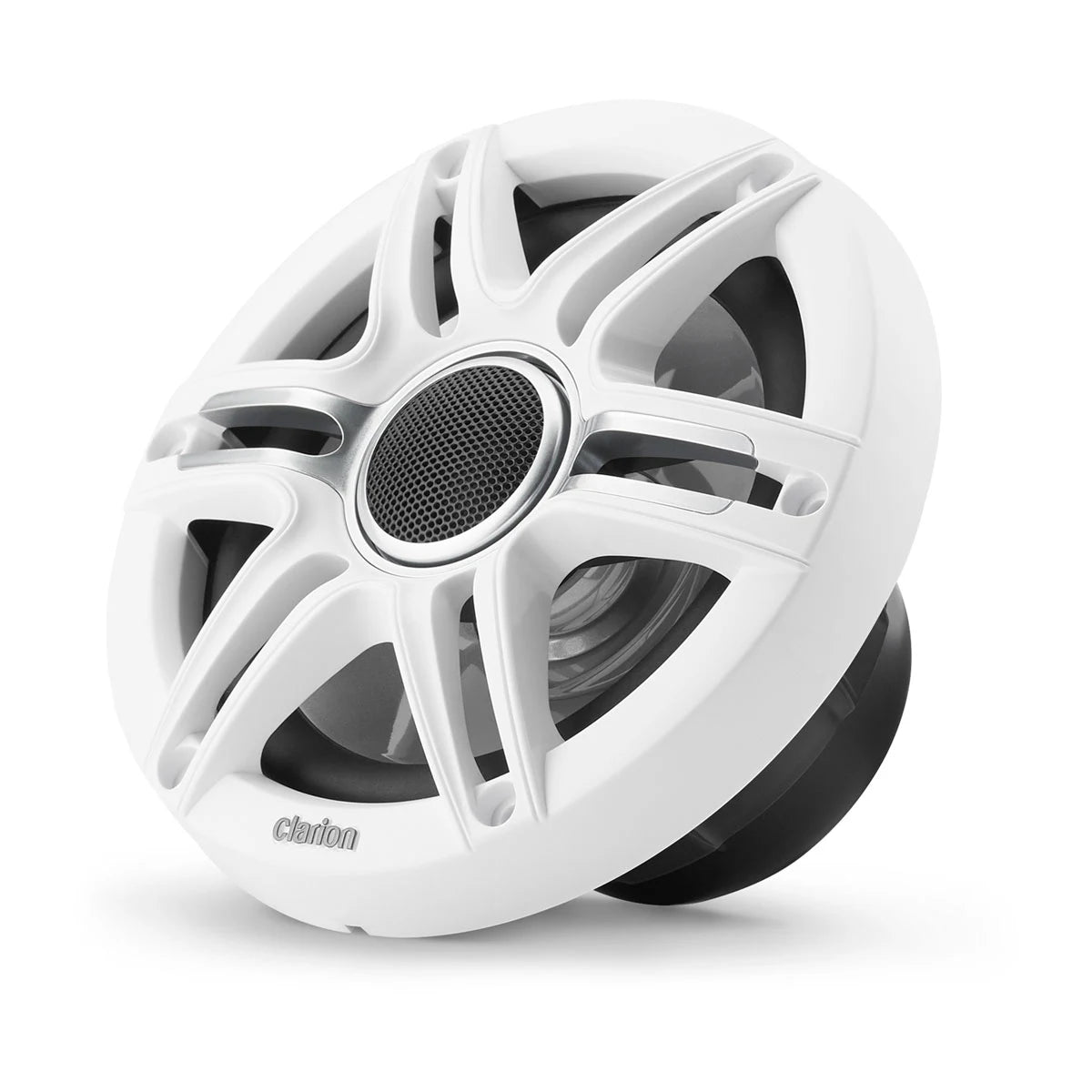

6.5" with White and Gray Sport Grille (CMSP-651-SWG)
