General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 10"/12" |
| Weight | 10": 20 lbs (9.1 kg) 12": 25.6 lbs (11.6 kg) |
| Continuous power handling (RMS) | 600 W |
| Sensitivity (SPL @ 1 W/1 m) | 10": 82.7 dB 12": 85.4 dB |
| Nominal impedance | Dual 4 Ω |
| Recommended amplifier power (RMS) | 200-600 W |
| Cone material | Mineral-filled polypropylene |
Networking & Connections |
|

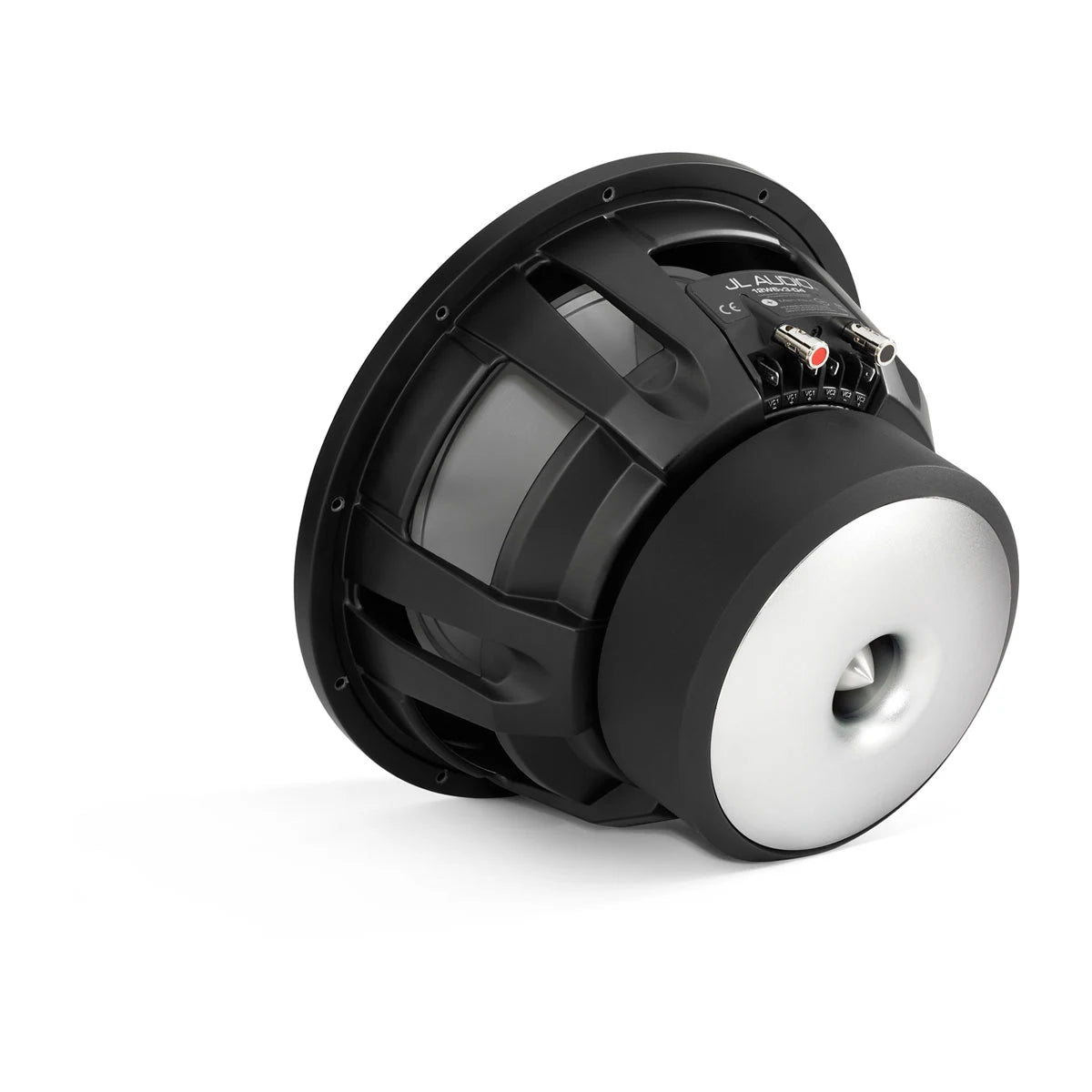

| Speaker connections | Push-button terminal |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 10": 10.5" (267 mm) 12": 12.5" (318 mm) |
|---|---|
| Mounting depth clearance | 10": 6.89" (175 mm) 12": 7.52" (191 mm) |
| Mounting hole | 10": 9.02" (229 mm) 12": 11.02" (280 mm) |
| Bolt hole circle | 10": 9.86" (250 mm) 12": 11.86" (301 mm) |
| Motor outer diameter | 10": 6.76" (172 mm) 12": 7.0" (178 mm) |
| Driver displacement | 10": 0.078 cu ft (2.1 L) 12": 0.105 cu ft (2.97 L) |
Parameters |
|
| Free Air Resonance (FS) | 10": 30.12 Hz 12": 26.919 Hz |
|---|---|
| Electrical “Q” (Qes) | 10": 0.543 12": 0.487 |
| Mechanical “Q” (Qms) | 10": 9.228 12": 9.365 |
| Total “Q” (Qts) | 10": 0.513 12": 0.463 |
| Equivalent Compliance (Vas) | 10": 0.821 cu ft (23.25 L) 12": 1.920 cu ft (54.37 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 0.75" (19 mm) |
| Reference Efficiency (NO) | 0.11% |
| Effective piston area (SD) | 10": 49.303 in² (0.0318 m²) 12": 75.338 in² (0.0486 m²) |
| DC resistance (RE) | 10": 6.452 Ω 12": 6.493 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 10": 0.55 cu ft (15.57 L) 12": 1.0 cu ft (28.3 L) |
| External width (W) | 10": 12.5" (318 mm) 12": 15" (381 mm) |
| External height (H) | 10": 12.5" (318 mm) 12": 15" (381 mm) |
| External depth (D) | 10": 10.5" (267 mm) 12": 12" (305 mm) |
| -3 dB cutoff frequency (F3) | 10": 42.27 Hz 12": 41.62 Hz |
| System resonance (FC) | 10": 47.55 Hz 12": 45.99 Hz |
| System Q at resonance (QTC) | 10": 0.8099 12": 0.7912 |
Ported Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 10": 0.75 cu ft (21.2 L) 12": 1.3 cu ft (36.8 L) |
| External width (W) | 10": 21.5" (546 mm) 12": 27" (686 mm) |
| External height (H) | 10": 12.375" (314 mm) 12": 14" (356 mm) |
| External depth (D) | 10": 11.125" (282 mm) 12": 12.5" (318 mm) |
| Internal slot port width | 10": 1.375" (35 mm) 12": 1.75" (44 mm) |
| Internal slot port height | 10": 10.875" (275 mm) 12": 12.5" (318 mm) |
| Internal slot port length | 10": 30.40" (772 mm) 12": 37.125" (943 mm) |
| Port extension length | 10": 16.5" (419 mm) 12": 21.250" (540 mm) |
| Tuning frequency (FB) | 10": 39 Hz 12": 33 Hz |
| -3 dB cutoff frequency (F3) | 10": 33 Hz 12": 31 Hz |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice. |
|---|---|

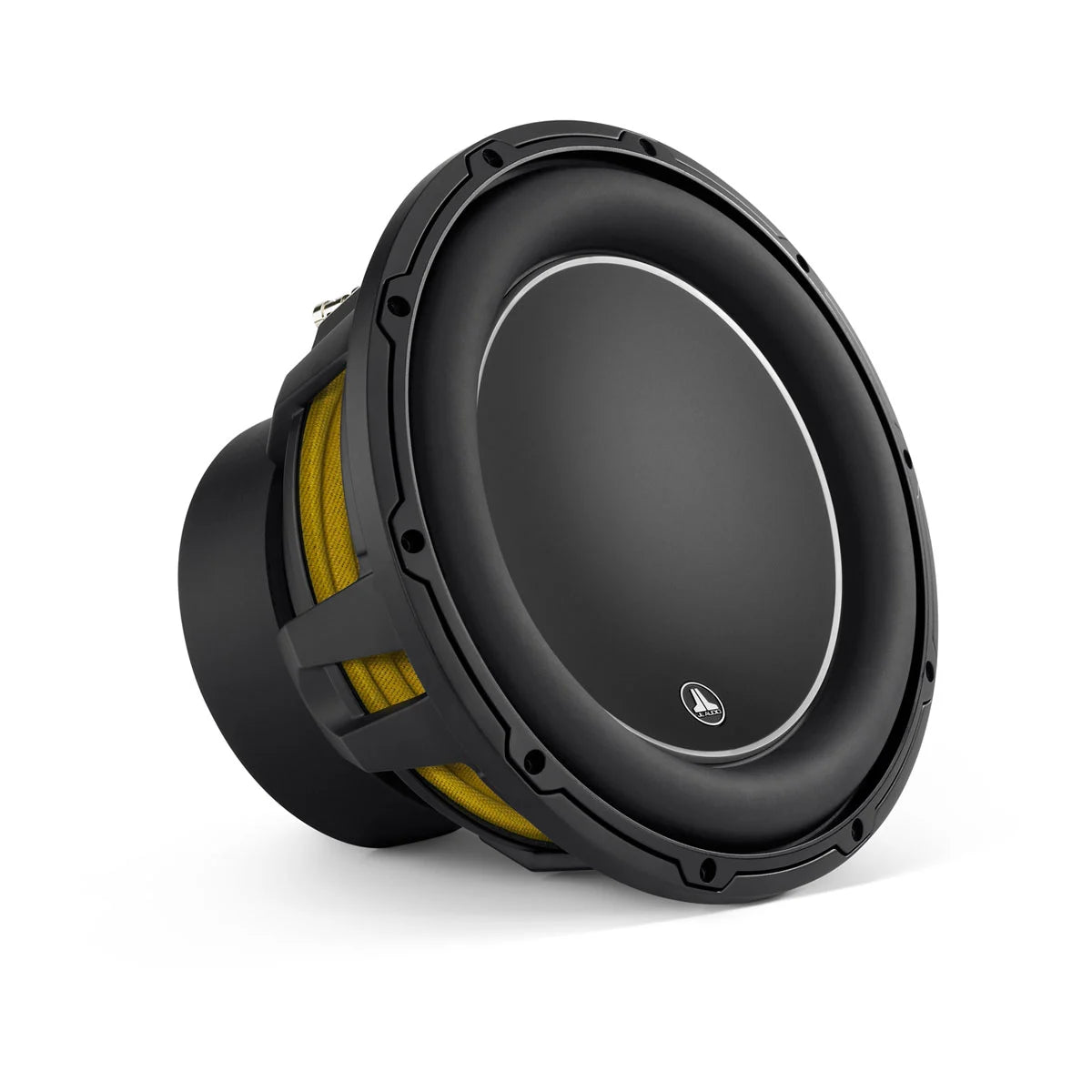

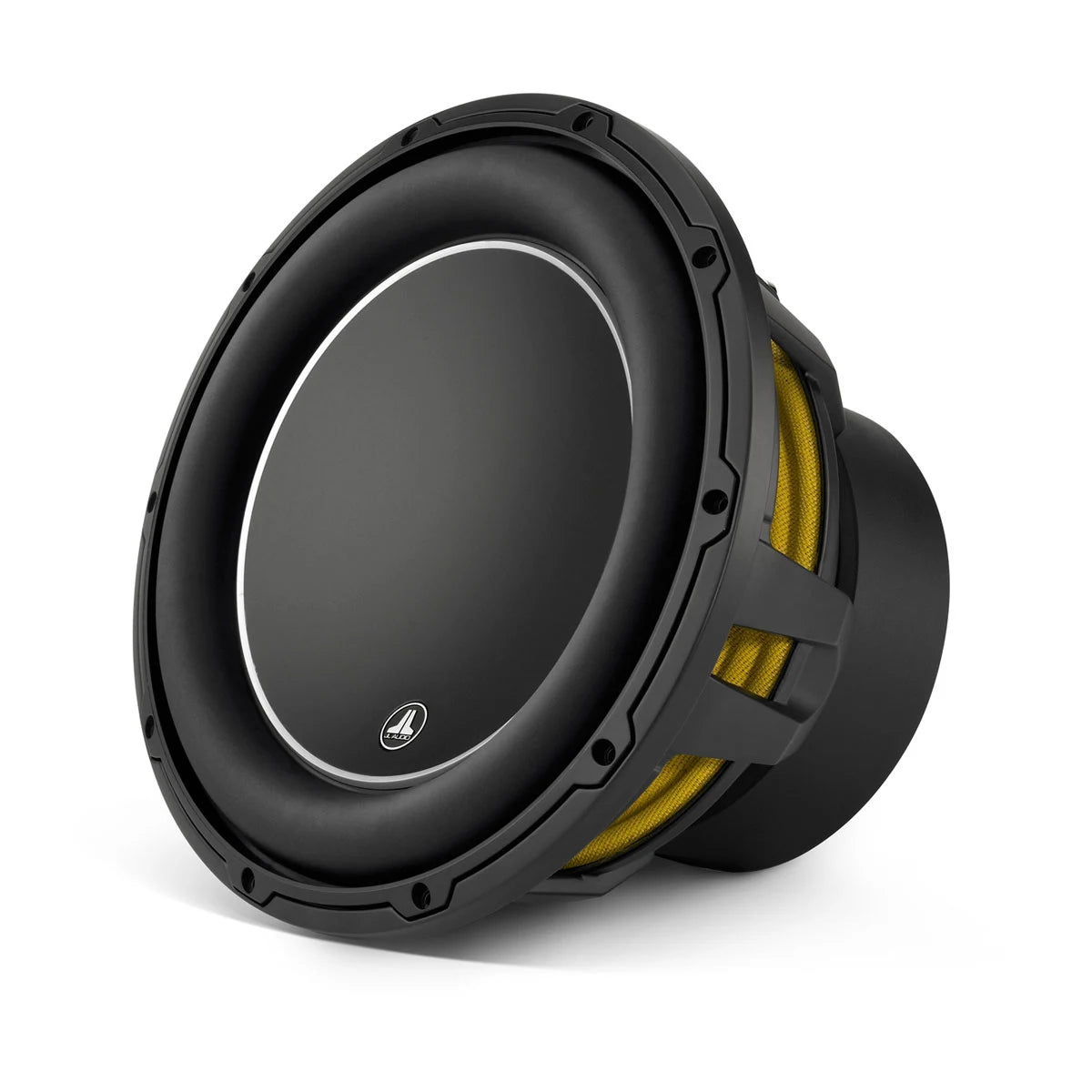

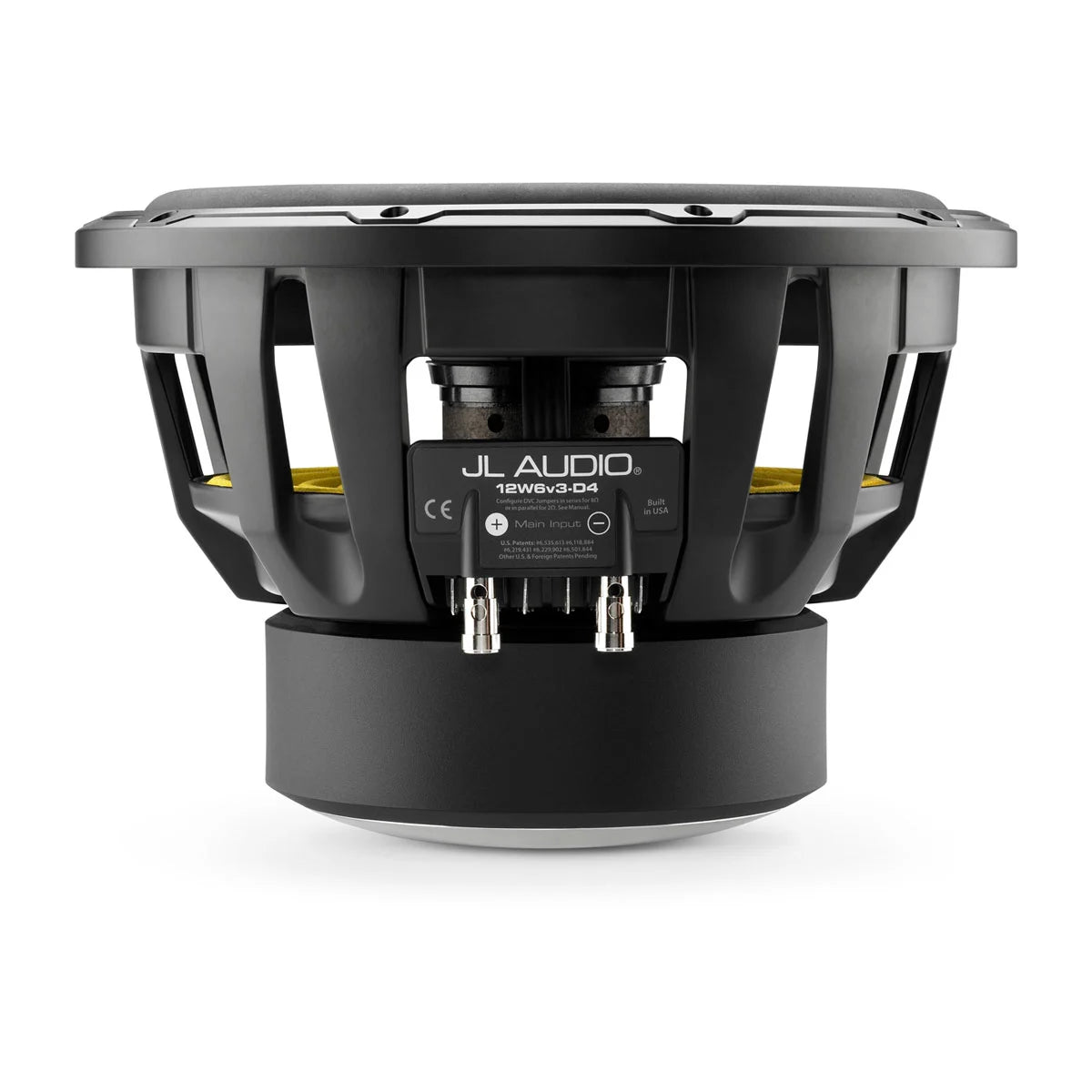

12" Dual 4 ohm (12W6v3-D4)
