General |
|
| Warranty | 3-year, limited lifetime on shaft |
|---|---|
| For use in | freshwater, brackish water and saltwater |
| Mount style | quick-release, reversible |
| Voltage | 10 V-45 V |
| Electric steering | |
| Shaft length (from shaft cap to shaft end) | 42" or 49" |
| Adjustable shaft depth | |
| Water rating (components above water) | IPX7 |
| Mounting location | Force, Force Pro (included); Deck and Gunnel (accessories required) |
| Deck stabilizer rod | yes (included) |
| Dogbone stabilizer | compatible, required with 2 or more transducers (not included) |
Electrical Features |
|
| Power Input | Wired 2 m (6.6 ft) cable |
|---|---|
| Power usage | 18 W typical; 70 W max |
| Fuse | 8 A |
Transducer Support |
|

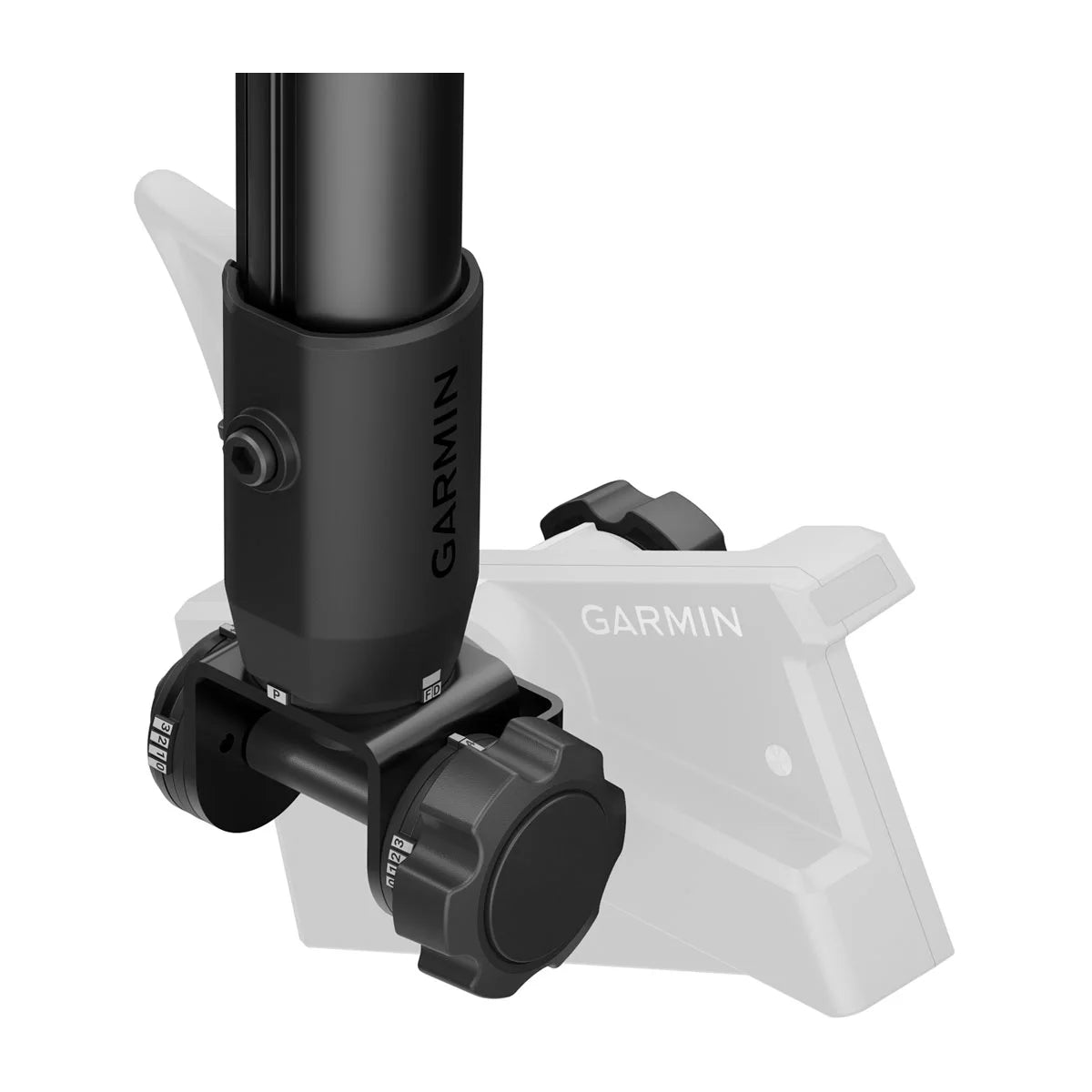

| LiveScope™ adjustable perspective bottom mount | Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5° |
|---|---|
| Supported LiveScope transducers | LVS32, LVS34, LVS62 (max of one with internal cable routing) |
| OneVü scanning transducer support | |
| Internal cable routing | |
| Quick-release cable kit | |
Networking & Connections |
|
| Compatible chartplotters | Wireless |
|---|---|
| Compatible Force trolling motors | Wireless |
| Control accessories | Wireless |
| Maximum connections | 5 gesture remotes 1 foot control 1 heading sensor 1 trolling motor 1 chartplotter network |

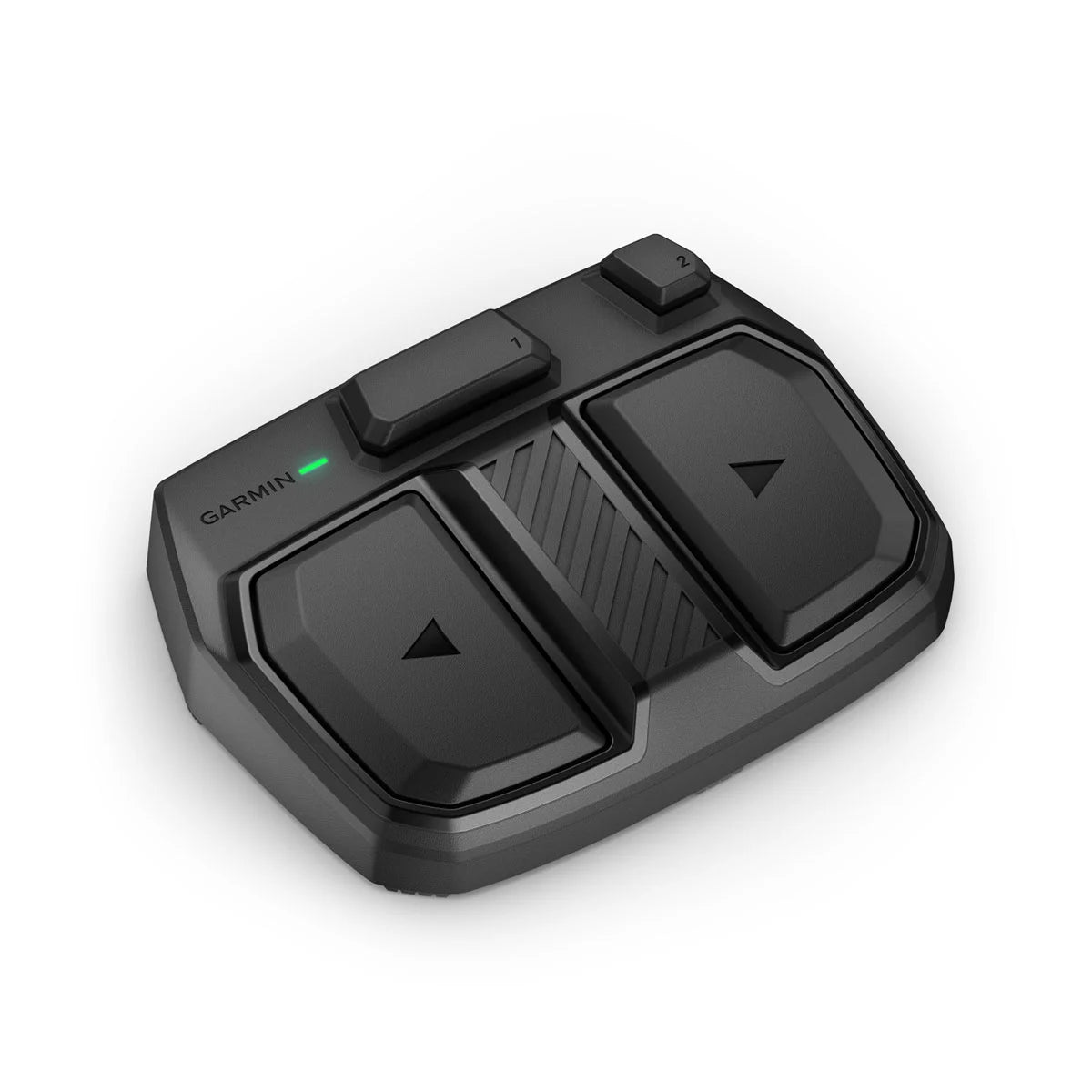

Foot Control |
|
| Dimensions | 7.8" x 5.8" x 1.8" |
|---|---|
| Wireless communication | |
| Power supply | 2 AA batteries (not included) |
| Battery life (typical use) | 1 full season |
| Water rating | IPX7 |
| Programmable buttons | yes (2) |
| Status indication | LED light |
| Quick-release mount | |

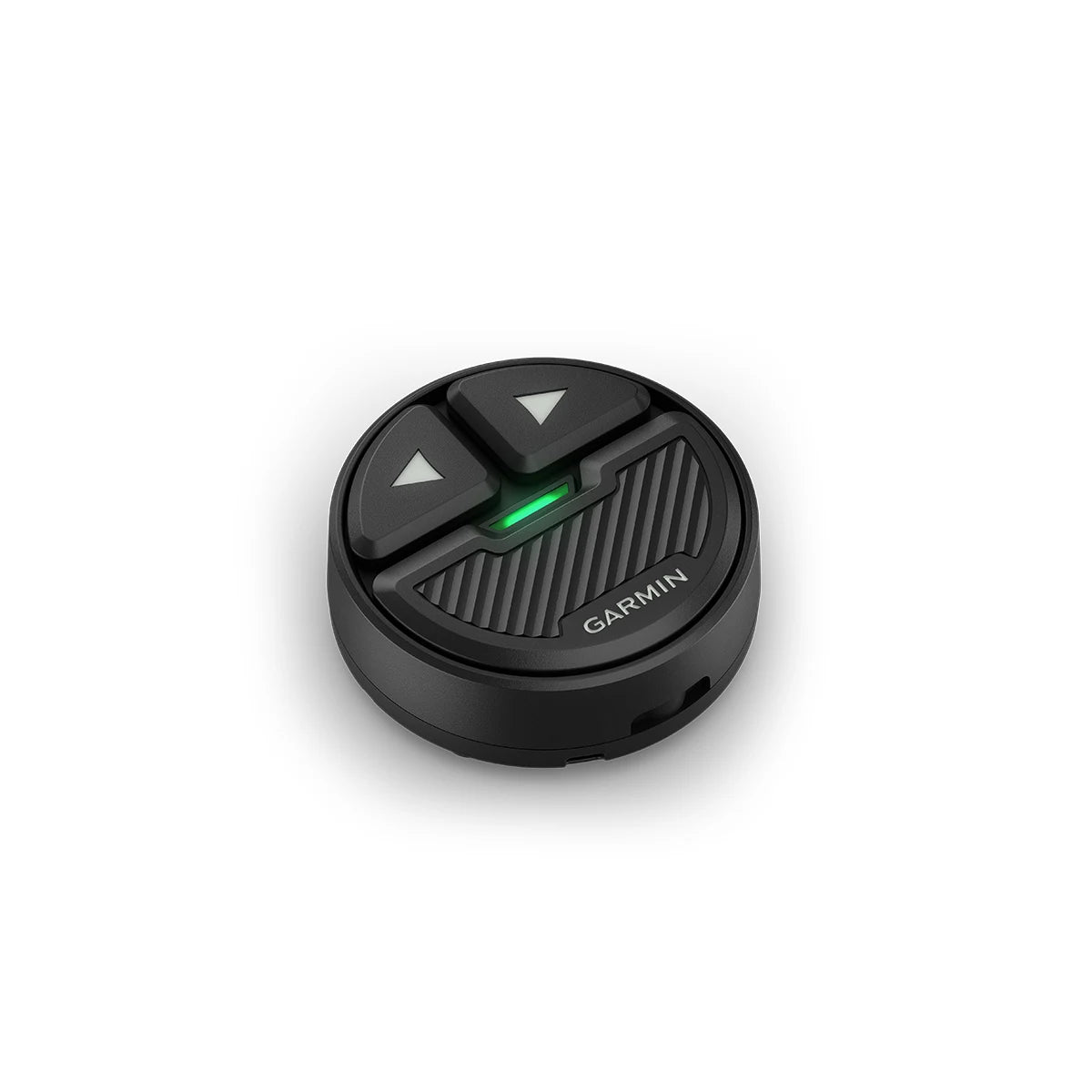

Gesture Remote |
|
| Dimensions | 1.25" diameter x 0.5“ thickness |
|---|---|
| Wireless communication | |
| Power supply | CR2032 battery (included) |
| Battery life (typical use) | 1 full season |
| Water rating | IPX7 |
| Programmable buttons | yes (3) |
| Status indication | LED light |
| Quick-release mounting options | 2 rod, hat, handheld with lanyard |
| Floats | yes (with handheld only) |
| Steering | yes (swing and twist) |
Heading Sensor |
|
| Dimensions | 3.5" x 2.0" x 1.0" |
|---|---|
| Wireless communication | |
| Voltage | 10 V-45 V |
| Power input | Wired, 2 m (6.5 ft) cable |
| Power usage | 0.1 W typical; 1 W max |
| Fuse | 1 A |
| Water rating | IPX7 |
| Status indication | LED light |

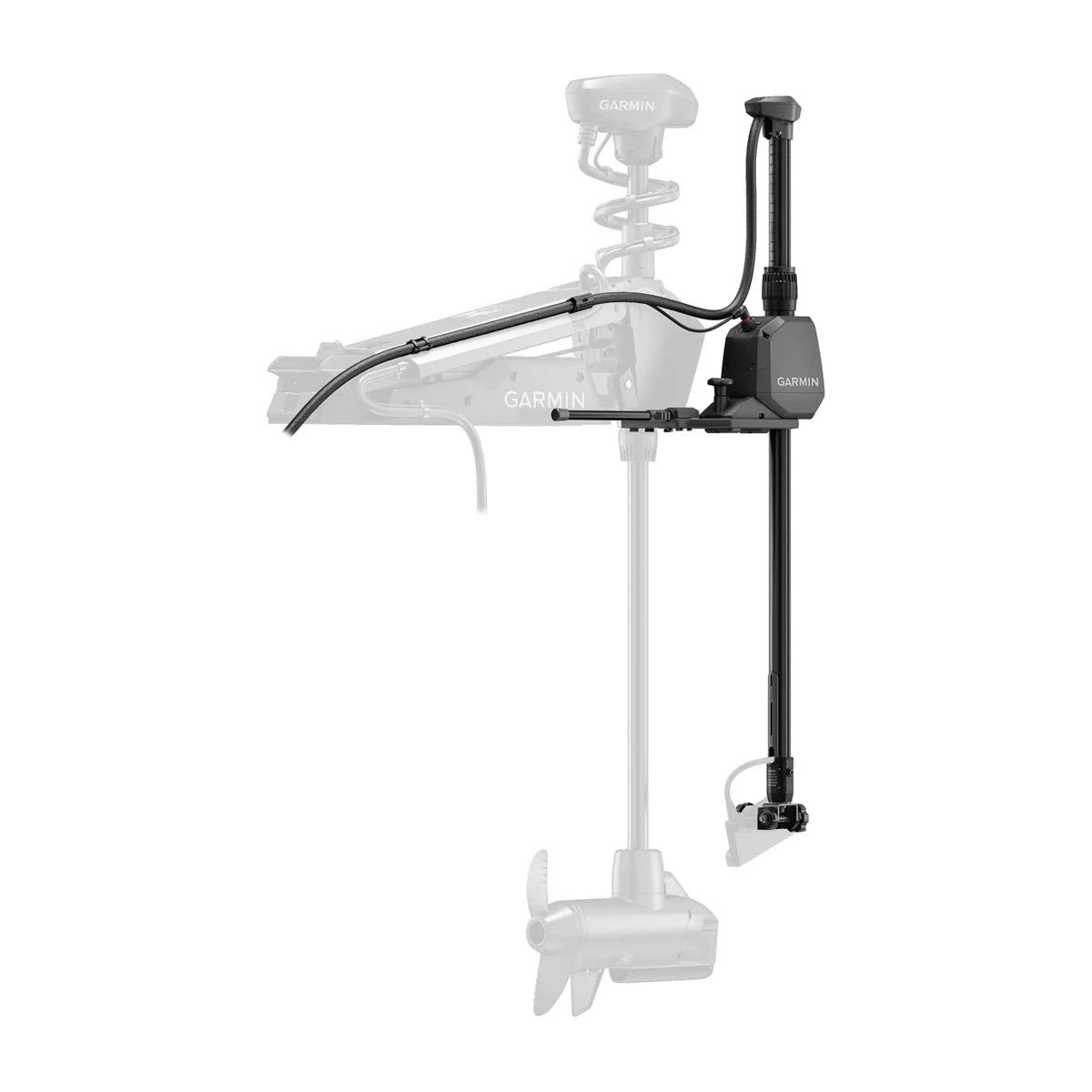

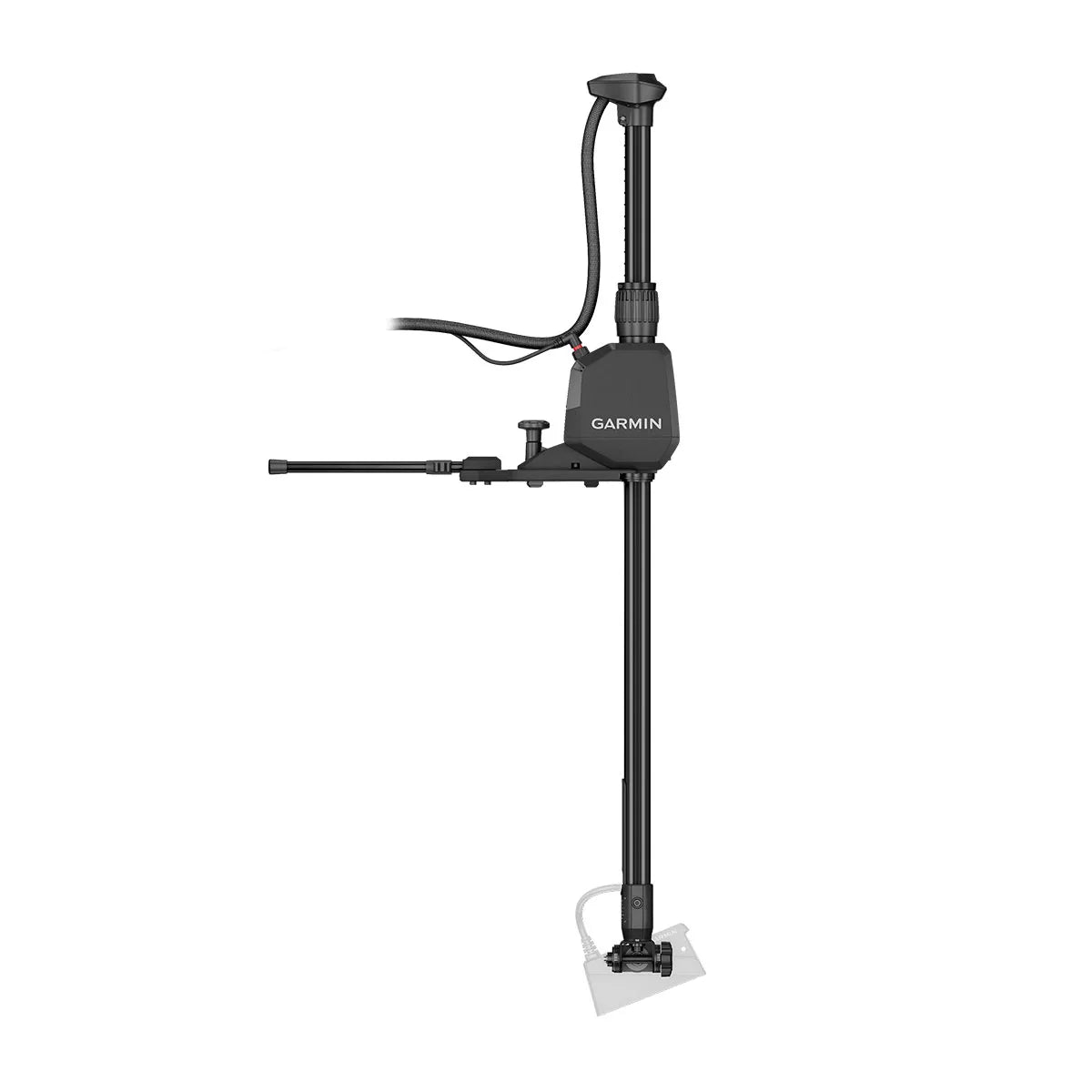

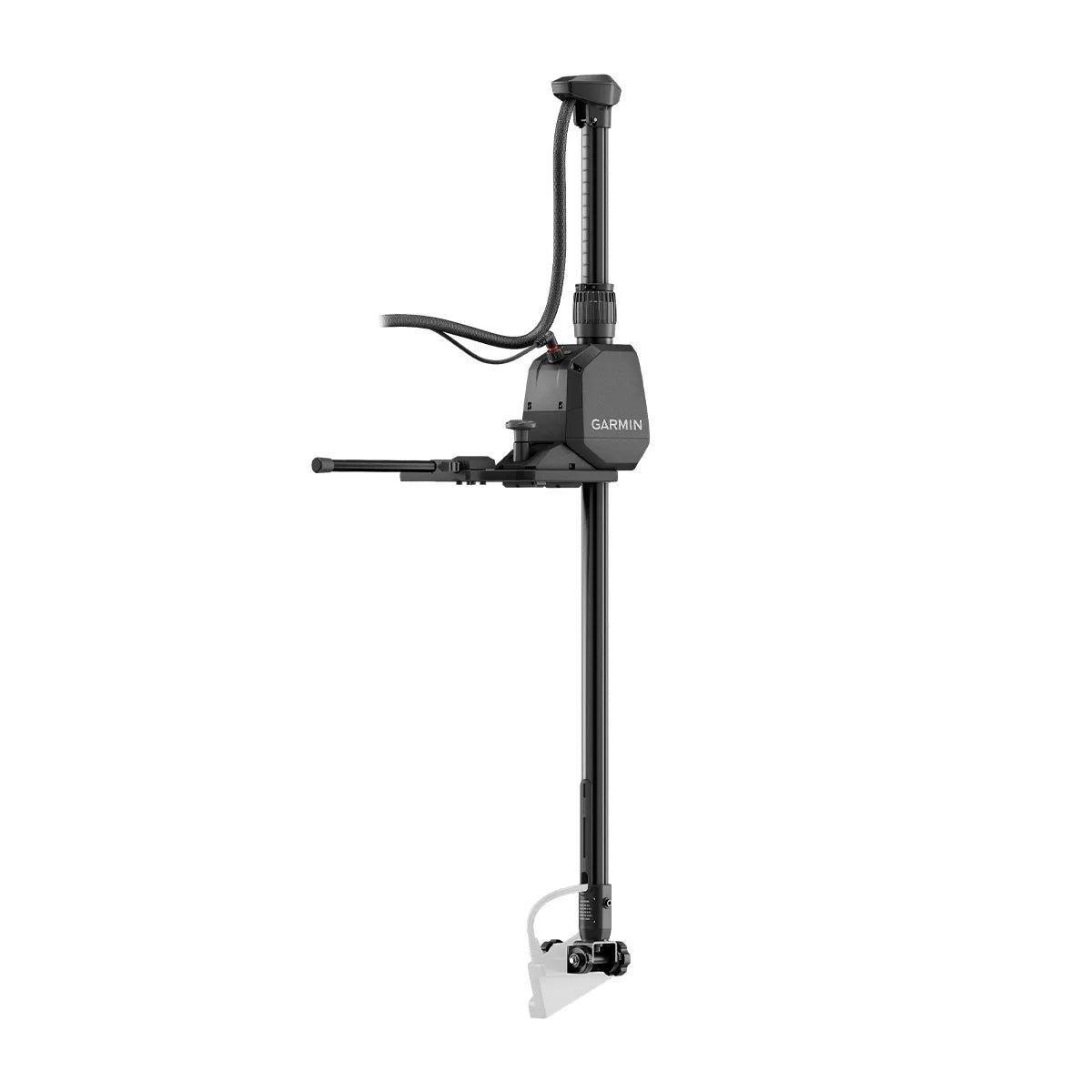

49" Motorized Pole Mount
