General |
|
| Unit dimensions (WxHxD) | LC302: 7.76" x 2.05" x 1.85" (197 x 52 x 47 mm) LC102: 4.45" x 2.05" x 1.85" (113 x 52 x 47 mm) |
| Weight | LC302: 5.57 oz (158 g) LC102: 2.93 oz (83 g) |
| Water rating | IP66/IP67 |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Compass-safe distance | 7.87" (20 cm) |
| Warranty | 2 years |
Electrical |
|
| Input voltage | 10.8 to 16 V (12 V system) 21.6 to 32 V (24 V system) |
| Input current (max) | LC302: 6 A LC102: 2 A |
| Output current (max) | 2 A (per output connector) |
| NMEA 2000® LEN | 2 (≤ 70 mA) |
| Over voltage protection | yes |
| Over current protection | yes |
Lighting Features |
|
| LED connection types | RGB, RGBW, CRGBW, single channel |
| Lighting modes | Color pick, audio sync (color blend/audio spectrum), effects |
| Premium control and setup via | MFD or ActiveCaptain® app |
| Control via | Fusion Apollo™ Stereo |

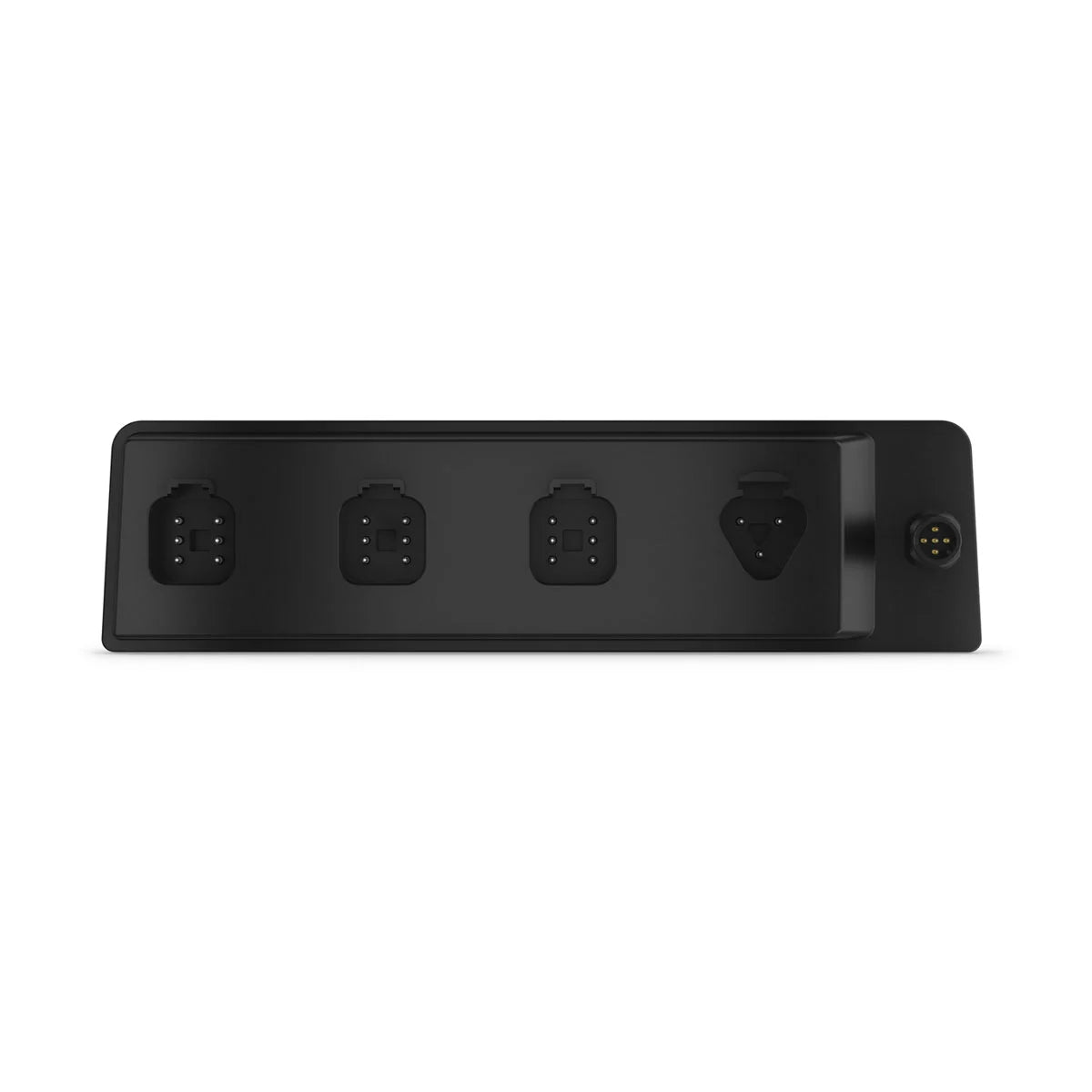

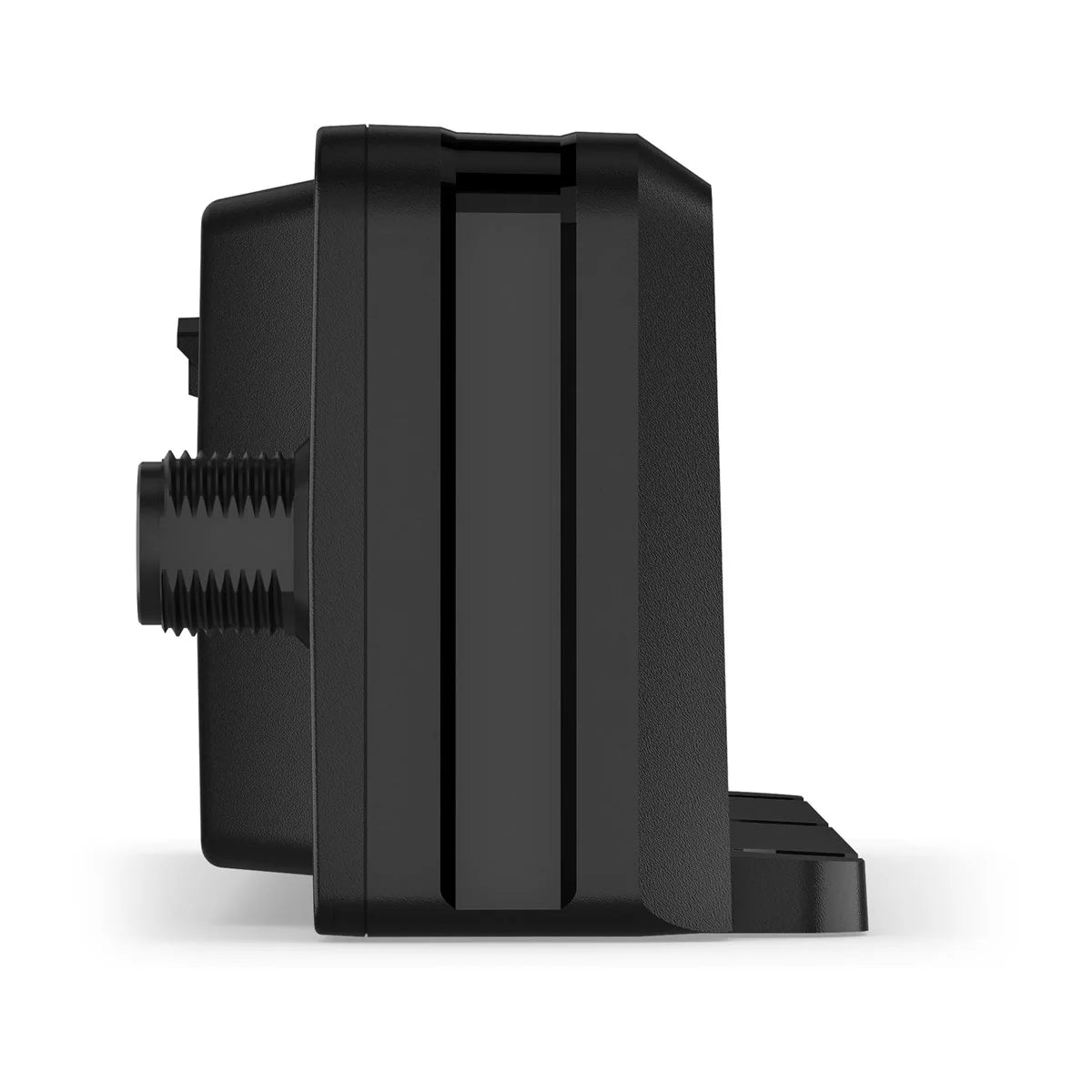

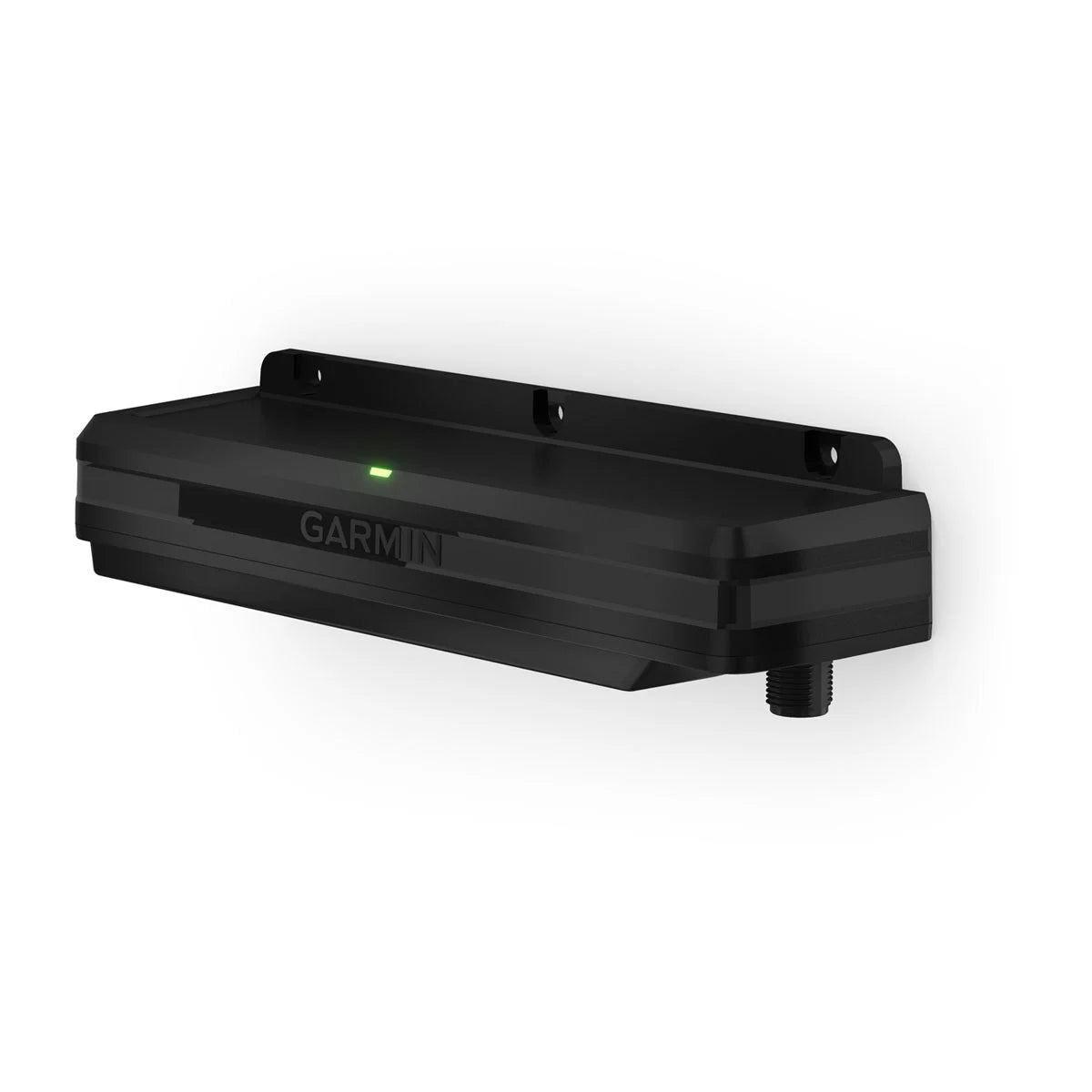

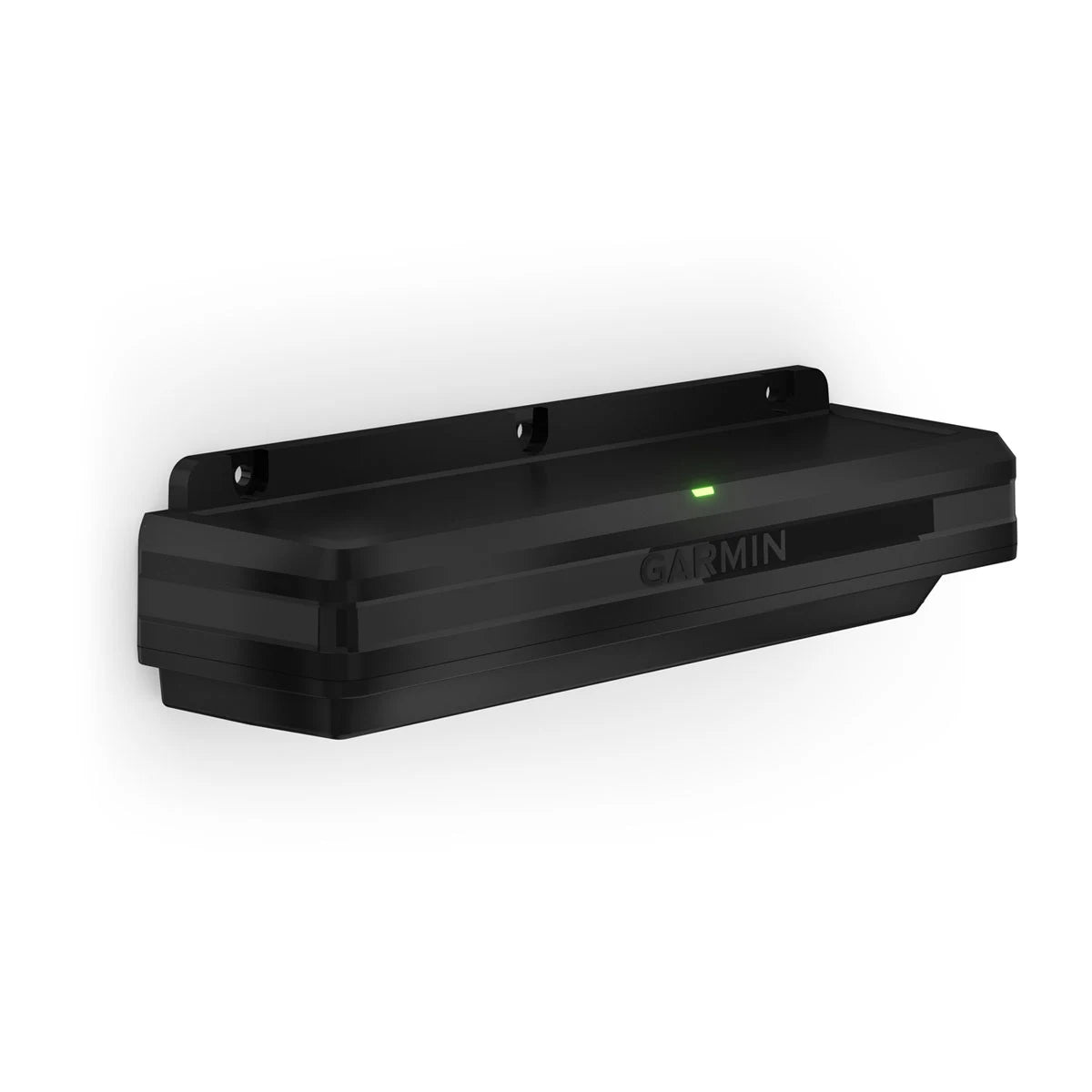

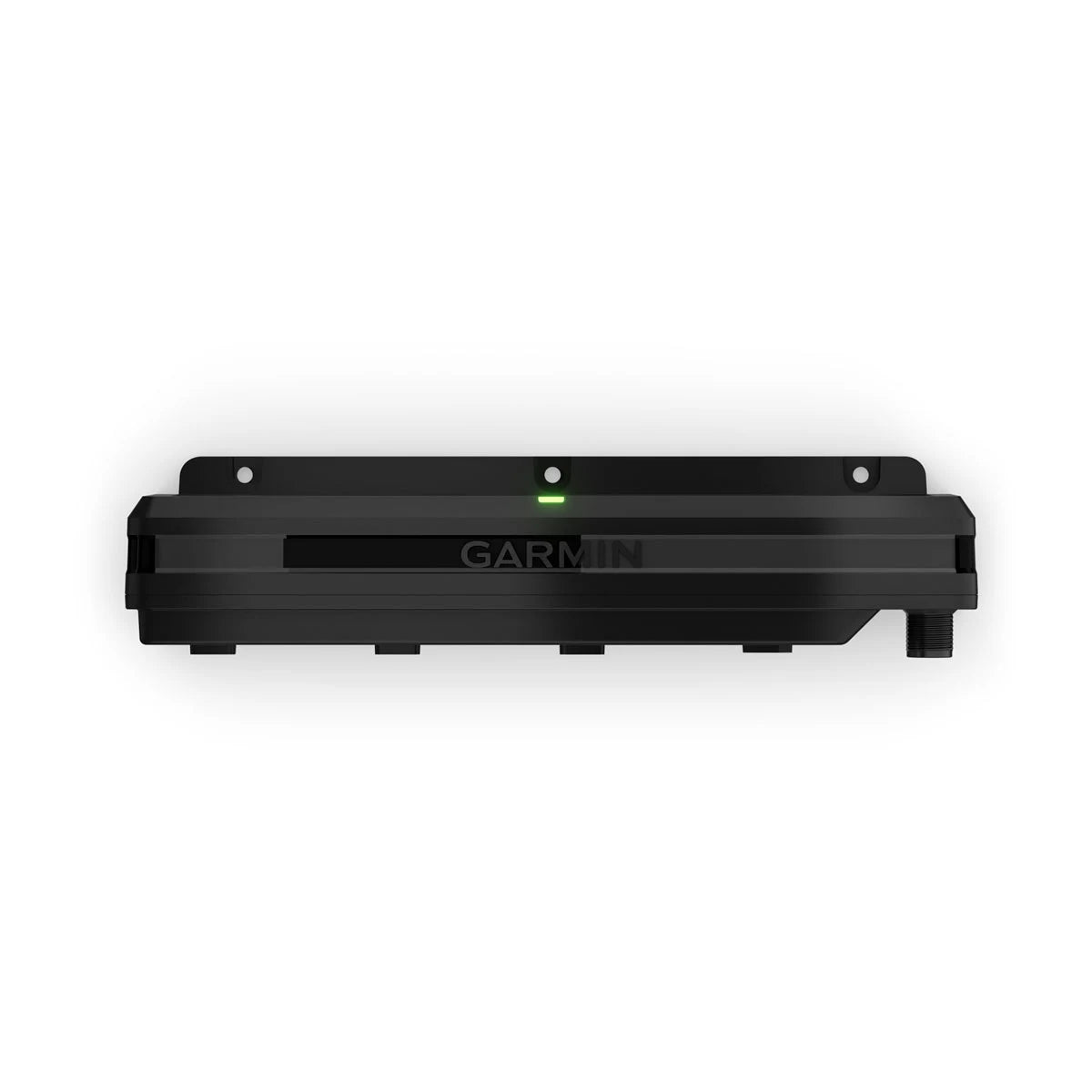

LC302 LED Control Module
