General |
|
| Unit size | 164.8 x 71.8 x 21.4 mm (6 1/2” x 2 13/16” x 7/8”) |
|---|---|
| Weight | H1: 0.63 lb (285 g) H1P: 0.52 lb (235 g) |
| Operating voltage | 9.6 - 32 VDC |
| Water rating | IPX8 (water submersion rating to 10’) |
| Display Type | color TFT LCD, capacitive touch |
| Display Size | 4" (102 mm) |
| Display resolution | 640 x 800 pixels |
| Auto dimming | |
| Battery life | H1P only: Lithium polymer, 2 hour full charge, > 10 hours nominal operation |
| Operating temperature | –15° to 55 C (5° to 131° F) |
| Backlight | 600 nits |
VHF Features |
|
| Audio record and playback | |
|---|---|
| Auto squelch | |

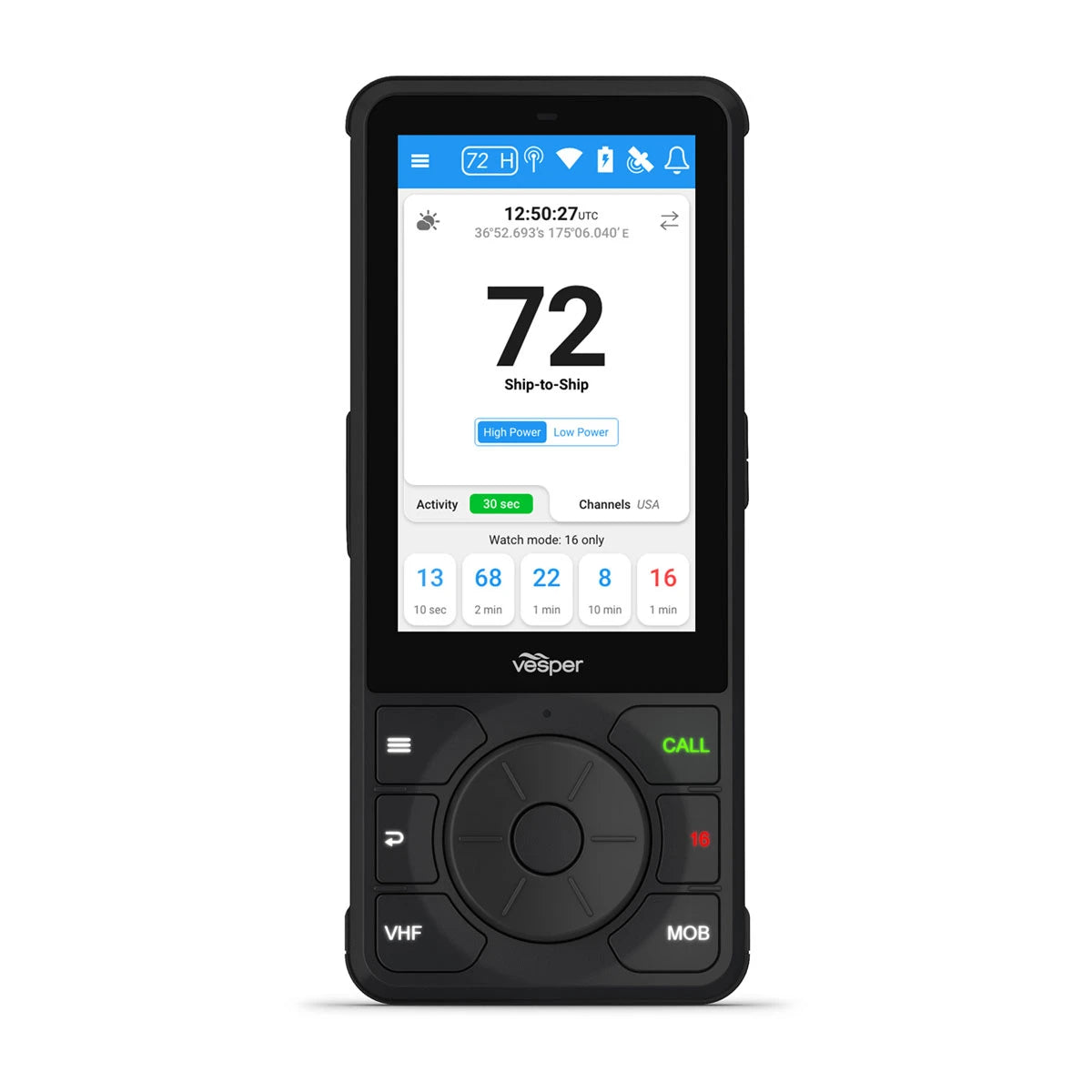

| Dual/Tri watch | |
| Presets watch | |
| Loud hailer | |
| Loud Hailer listen-back | |

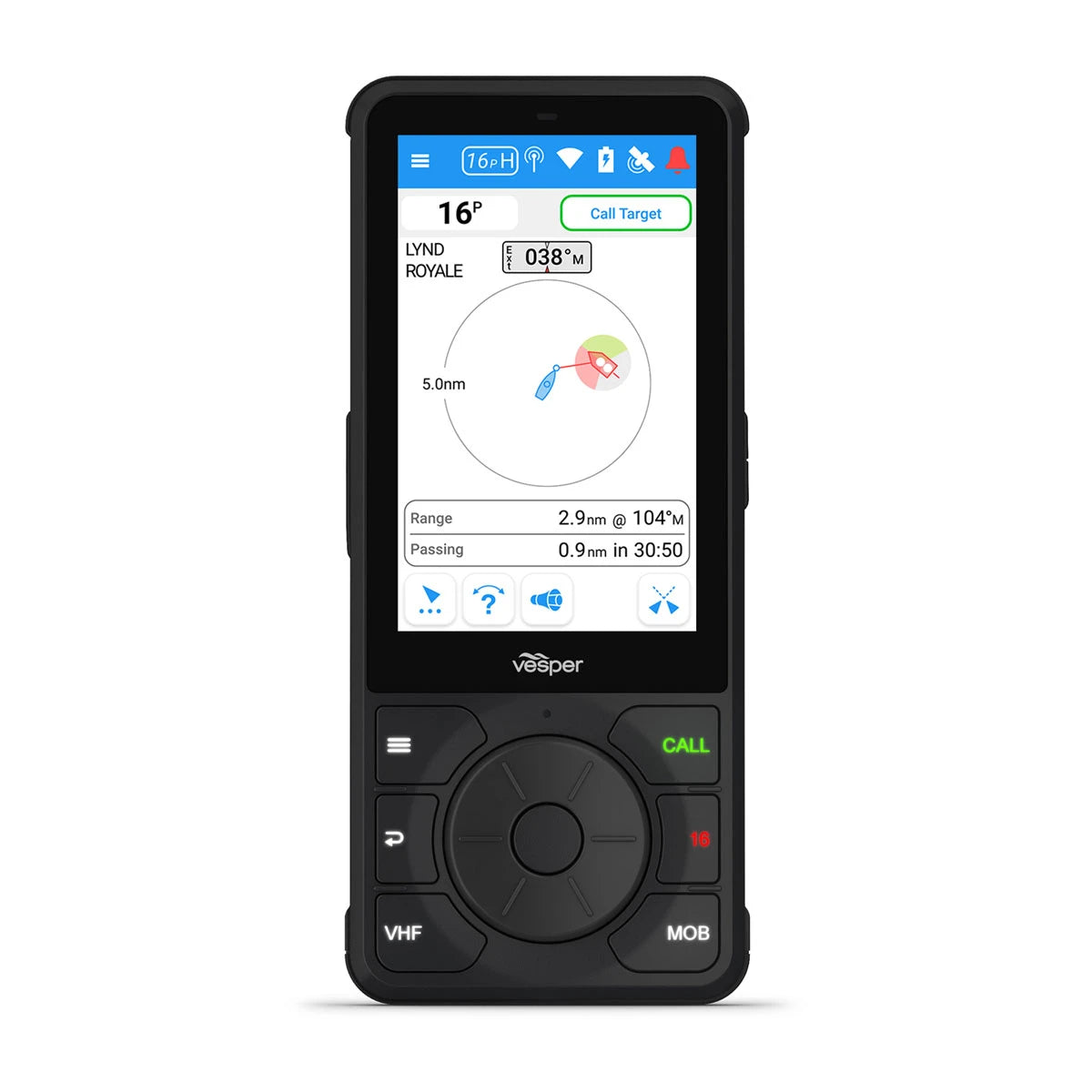

| AIS target display | |

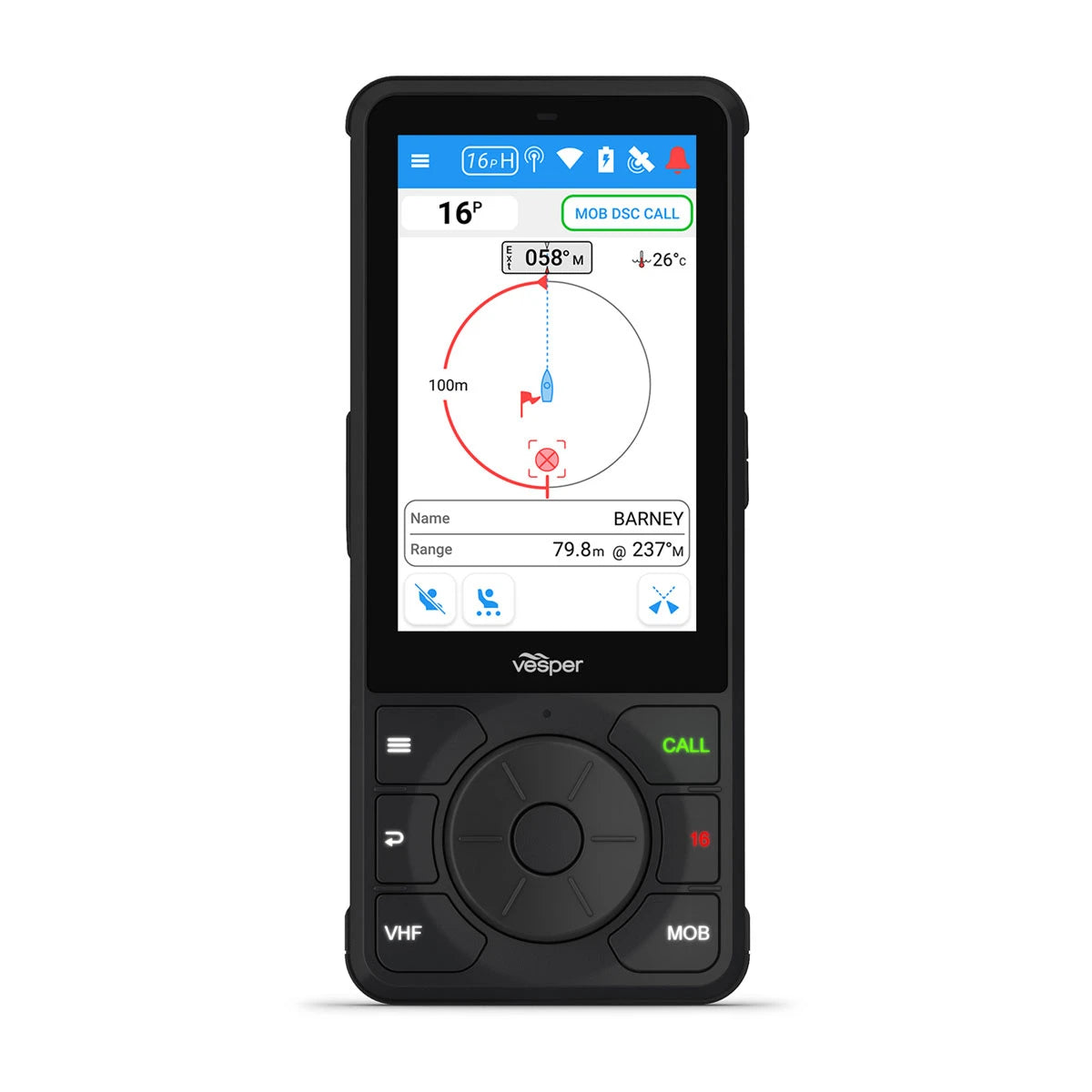

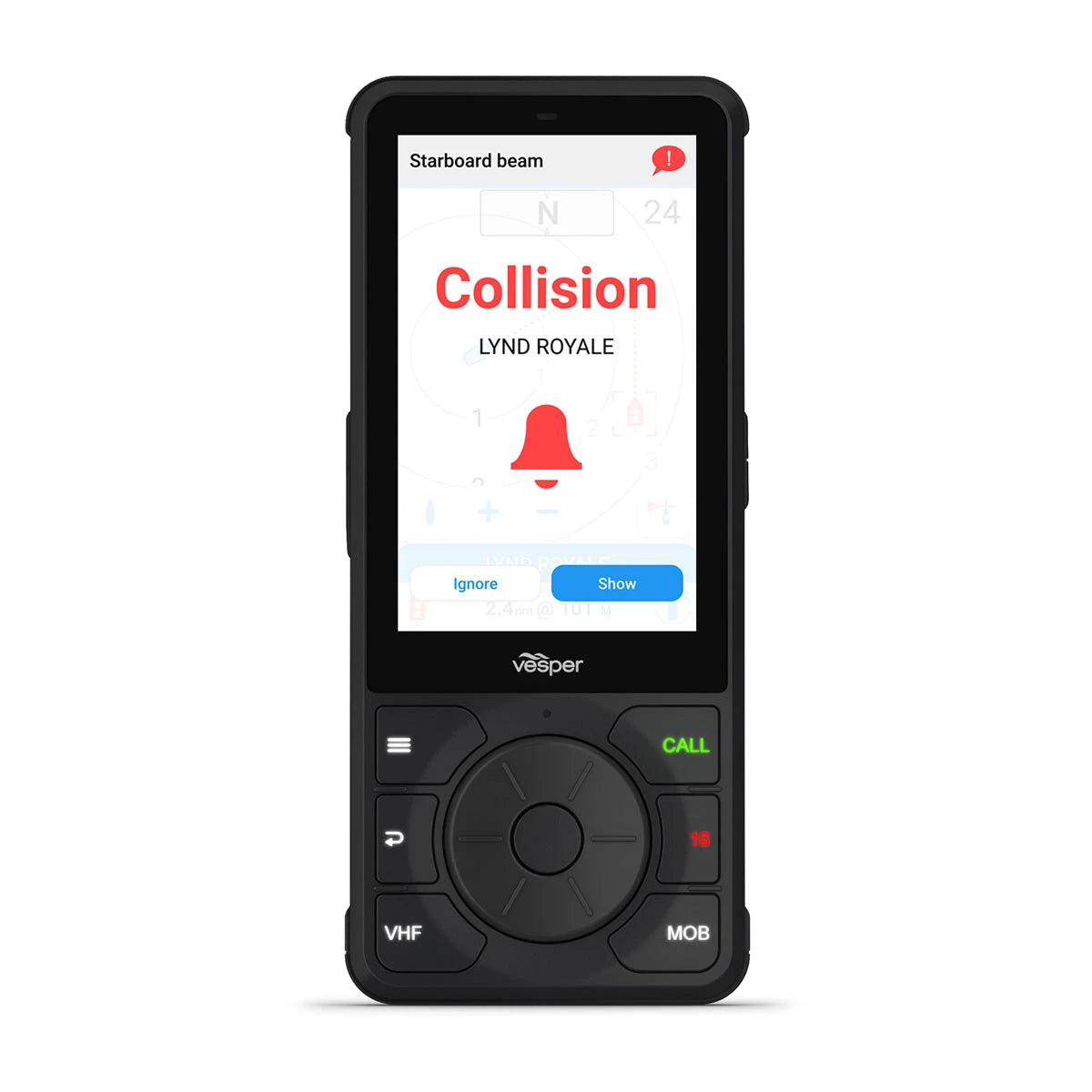

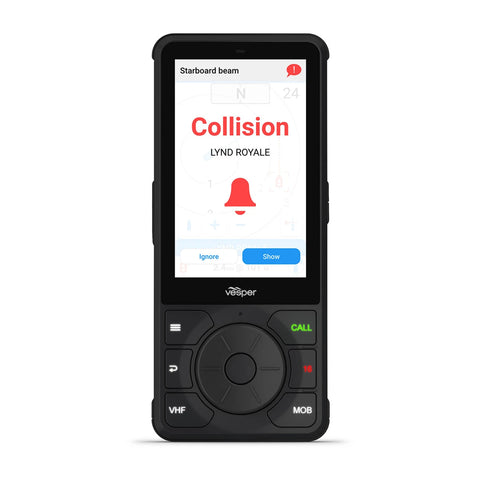

| AIS collision and MOB alarms | |
Audio |
|
| Max speaker output power | 2 W, < 10% THD |
|---|---|
Electrical Features |
|
| Typical current draw at 12 Vdc | 200 mA, 1 A max |
|---|---|
| Compass-safe distance | 31.5" (80 cm) |
Networking & Connections |
|
| Wireless Connectivity | yes (Wi-Fi 802.11b/g/n) |
|---|---|
| Wireless security | WPA2 Personal |

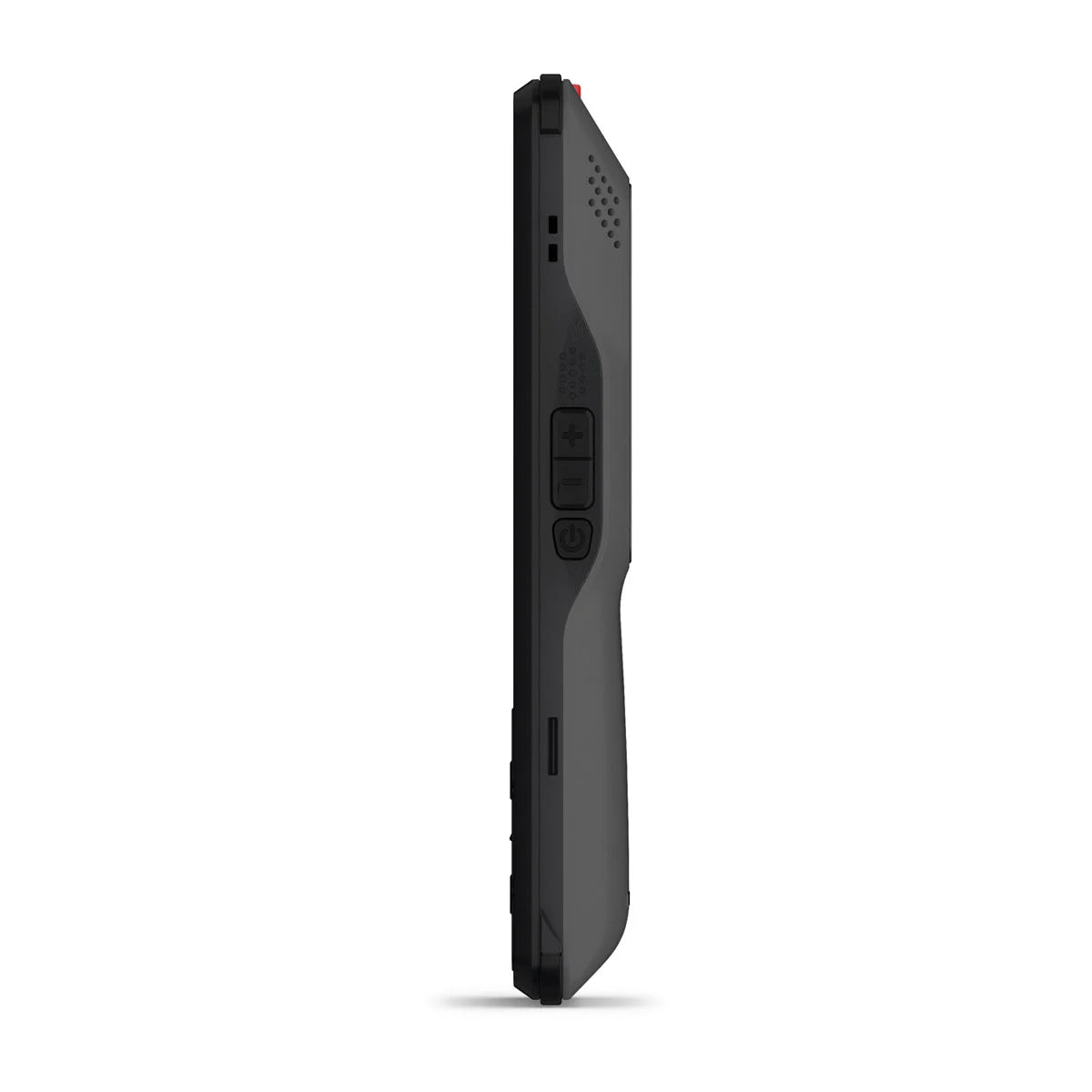

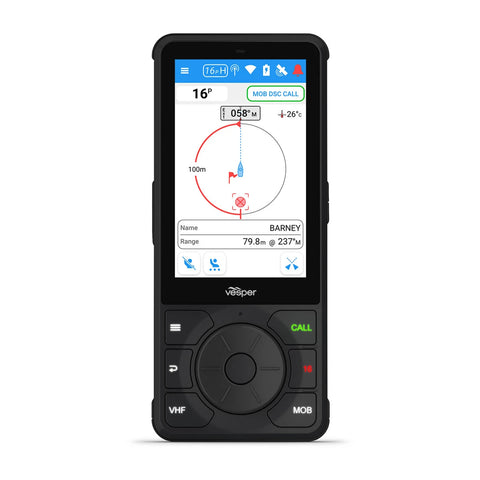

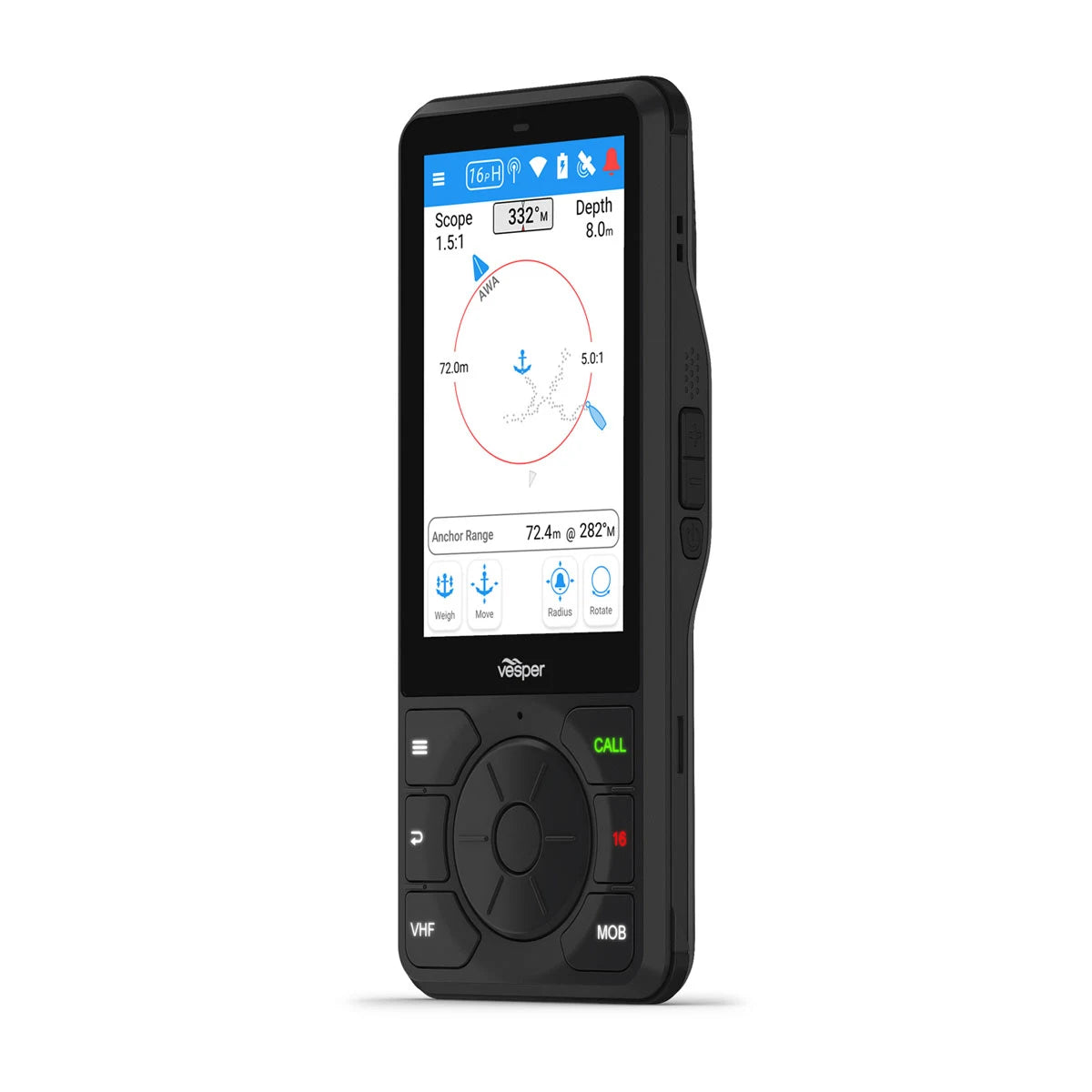

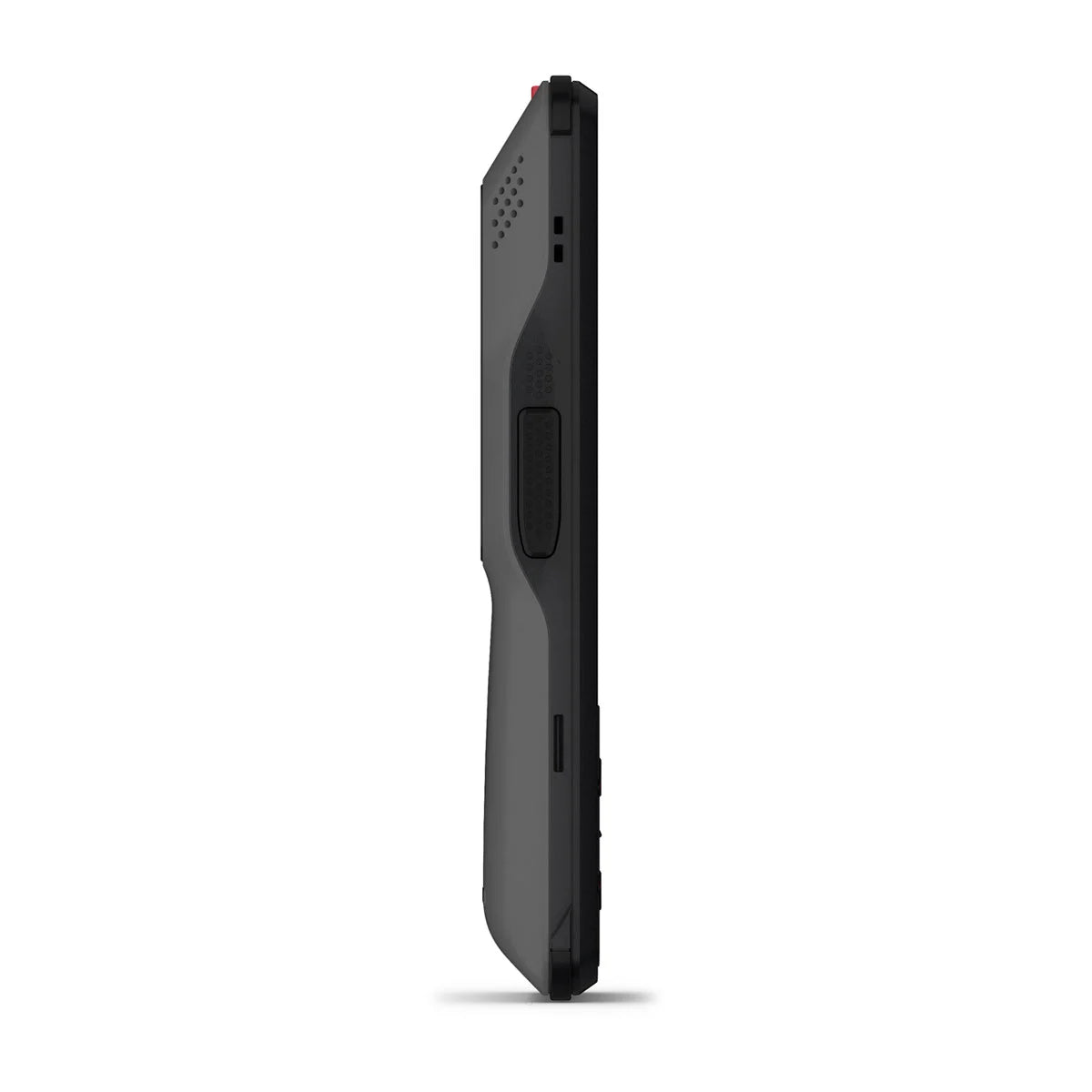

Portable Handset
