General |
|

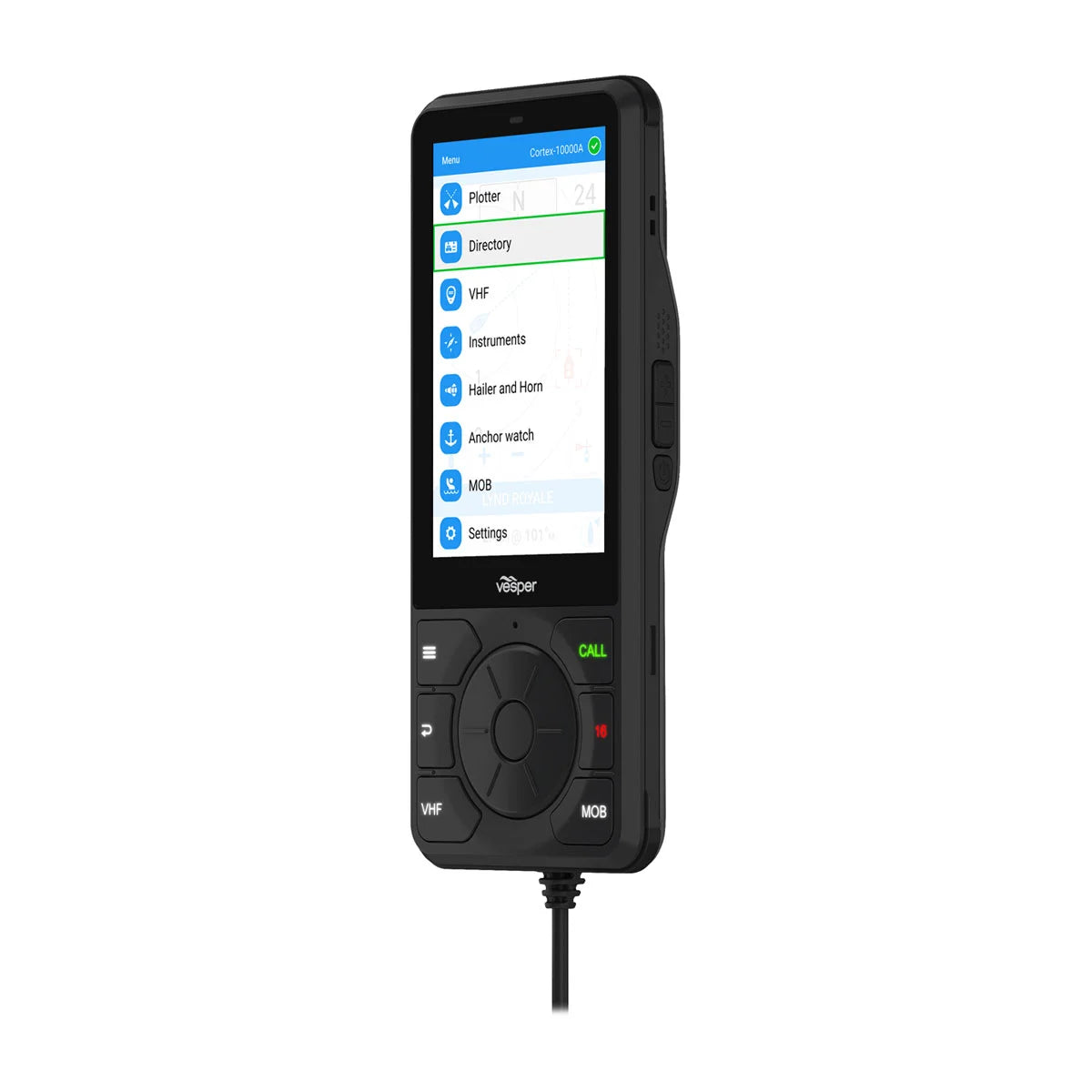

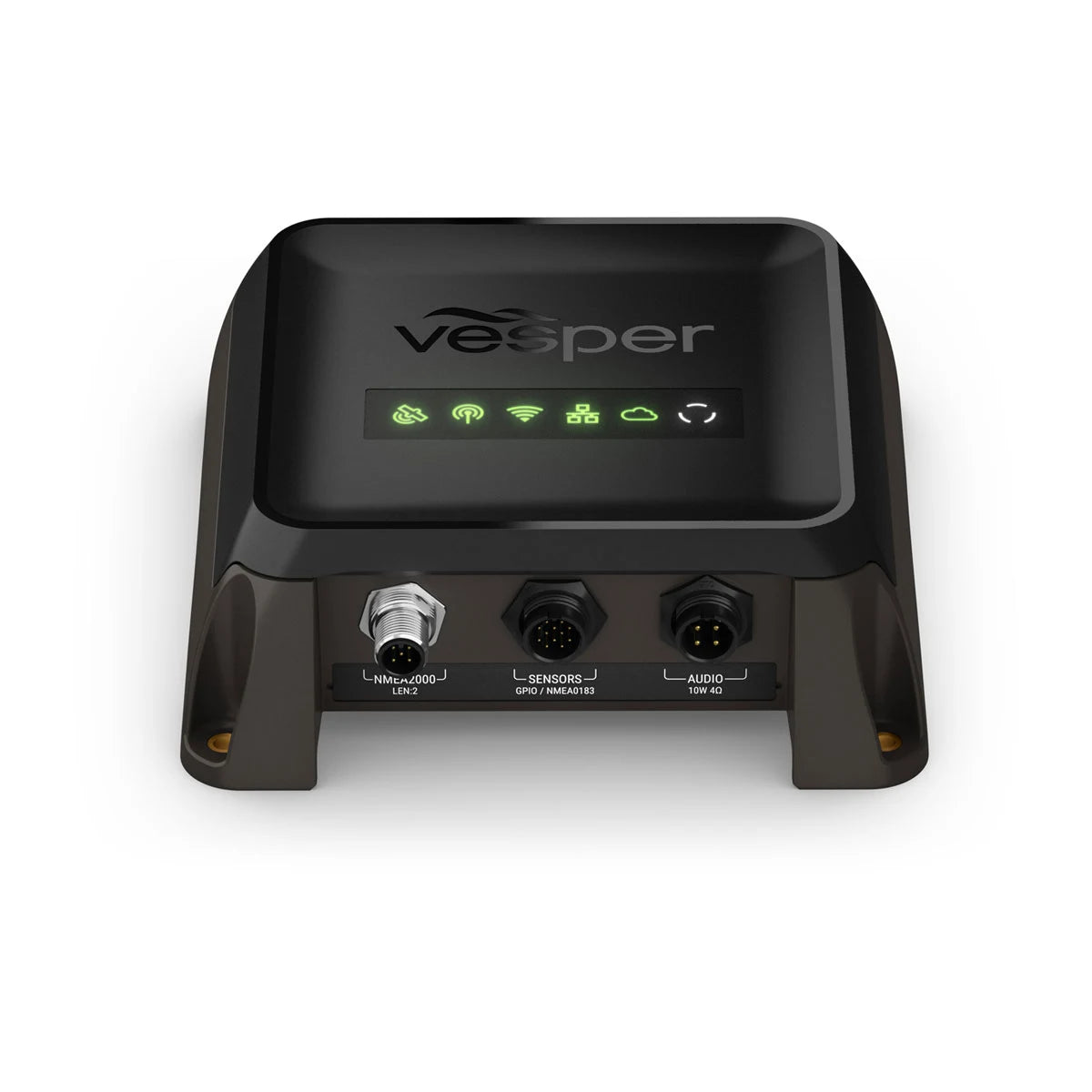

| Unit size | M1: 168 x 168 x 58.7 mm (6.6" x 6.6" x 2.3" ) H1/H1P: 164.8 x 71.8 x 21.4 mm (6.5" x 2.8" x 0.8") |
|---|---|
| Weight | M1: 770 g (1.7 lbs) |
| Operating voltage | 9.6 - 32 VDC |
| Water rating | see Additional |
| Display Type | color IPS LCD, capacitive touch |
| Display Size | 4" (102 mm) |
| Display resolution | 640 x 800 pixels |
| Operating temperature | -20° C to 55° C (-4° to 131° F) |
| Inland waterways (ATIS) | |
| Backlight | 600 nits |
VHF Features |
|
| Audio record and playback | |
|---|---|
| Auto squelch | |
| Dual/Tri watch | |
| Presets watch | |
| Loud hailer | |
| AIS target display | |
| AIS collision and MOB alarms | |
| Integrated AIS transponder | |
VHF Radio |
|
| Region | All U.S., Canadian and International marine channels; NOAA weather channels |
|---|---|
| VHF frequency range Tx | 156.025–162.025 MHz |
| VHF frequency range Rx | 156.025–163.275 MHz |
| VHF transmit power (max) | 25 W, 1 W (high, low) |
| Transmitter frequency tolerance | +/0.3 kHz |
| Adjacent channel power | 70 dB |
| Spurious emissions | -80 dBc (at 25 W)/0.25uW |
| Sensitivity (12 dB SINAD) | -116 dBm (=9 dBu/0.35 uV) |
| Adjacent channel selectivity | 80 dB |
| Spurious response | 70 dB |
| VHF intermodulation | 70 dB |
| Max antenna gain | 6 dBi |
DSC |
|
| Class | Class D |
|---|---|
| Sensitivity (1% BER) | -115 dBm |
| Adjacent channel selectivity | 80 dB |
| Spurious response | 70 dB |
| Intermodulation | 70 dB |
AIS Transponder Features |
|
| Anchor watch | |
|---|---|
| Remote station support | 5, H1/H1P |
AIS |
|
| Class | SOTDMA Class B |
|---|---|
| Long range position reports (Msg 27) | |
| Frequency range | 156.025 – 162.025 MHz |
| AIS power output | 5 W |
| AIS Sensitivity (20% PER) | -113 dBm |
| Adjacent channel selectivity | 80 dB |
| Spurious response | 70 dB |
| Intermodulation | 67 dB |
GNSS |
|
| Integrated GNSS receiver | |
|---|---|
| Constellations | GPS, GLONASS, BeiDou, Galilleo |
| Differential support | SBAS, AIS Msg 17 |
| Navigation rate | 10 Hz |
Sensors |
|
| NMEA 2000 Compatible | |
|---|---|
| NMEA 0183 Compatible | see Additional |
| Heading | |
| Barometer | |
| Battery voltage | |
| External sensor inputs | 5 |
Audio |
|
| Max speaker output power | 2 W, < 10% THD |
|---|---|
| Max external speaker output power | 10 W, < 1% THD, 4 Ω |
| Max hailer loudspeaker output power | 30 W, 4 Ω |
Tactical Features |
|
| Stealth Mode | |
|---|---|
Electrical Features |
|
| Typical current draw at 12 Vdc | M1: 12V: 700 mA, 6 A max H1/H1P: 12V: 200 mA, 1 A max |
|---|---|
| Compass-safe distance | 80 cm (31.5") |

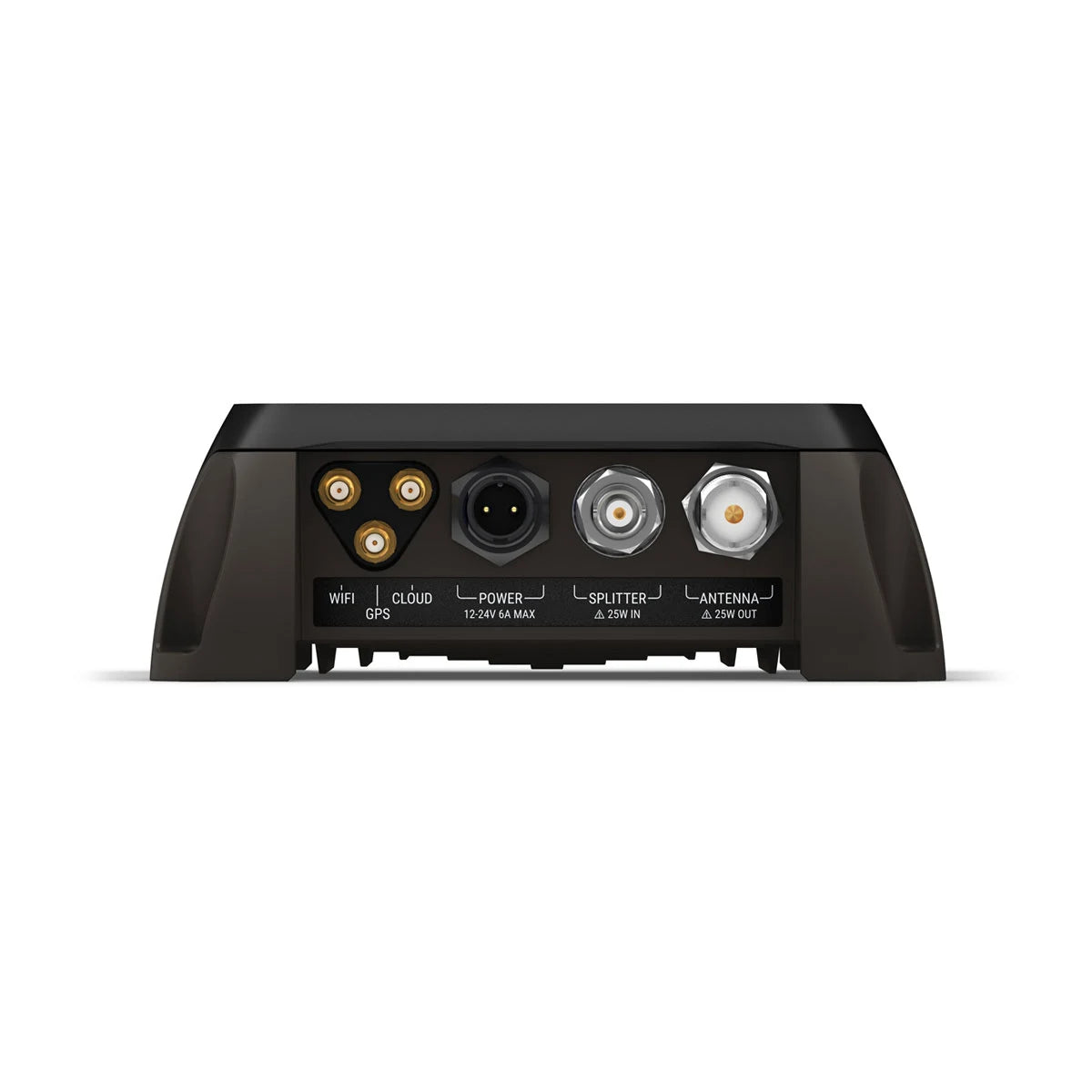

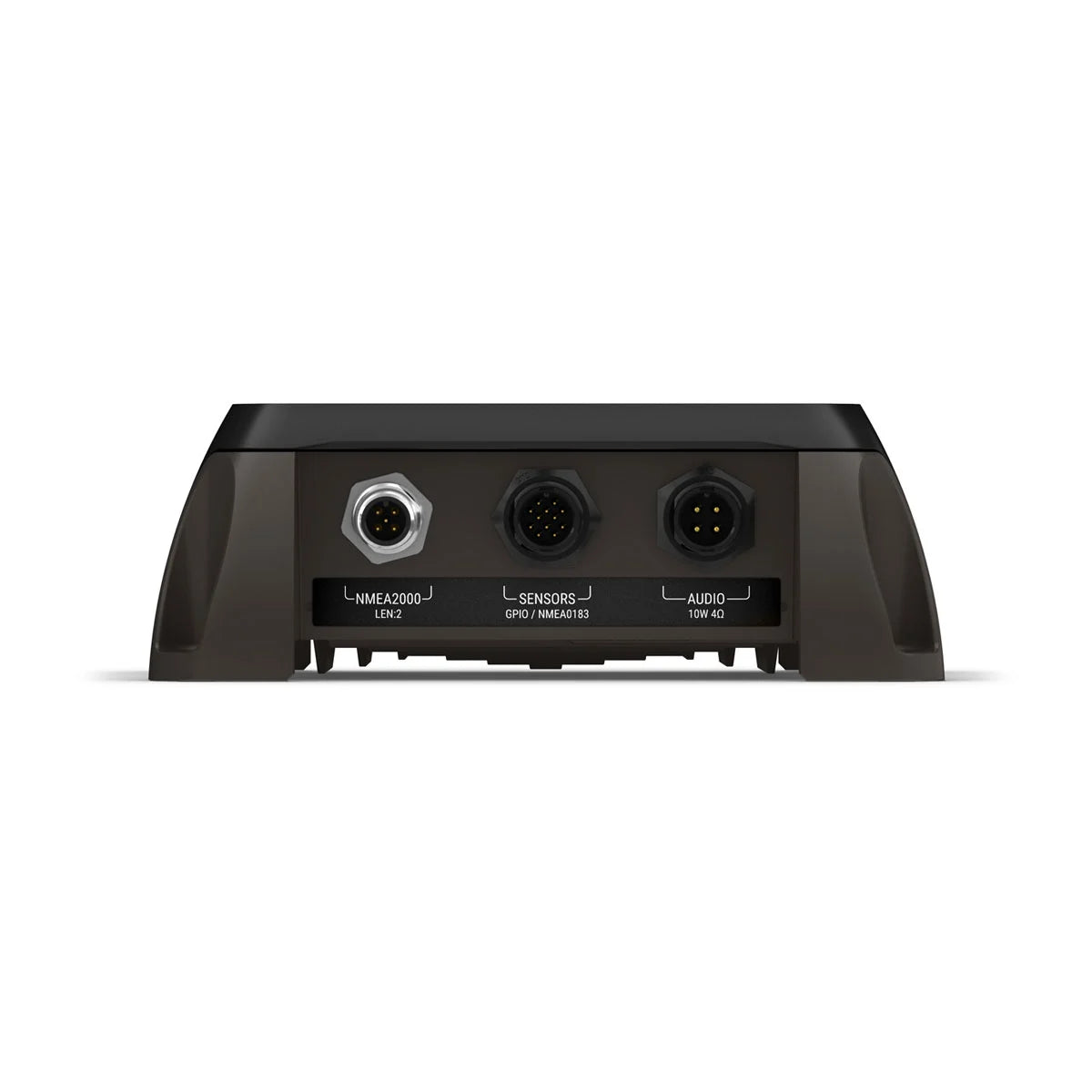

Networking & Connections |
|
| NMEA 2000® Gateway | Gateway translations to/from NMEA 0183 |
|---|---|
| Control outputs | 2 |
| Wireless Connectivity | Access Point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional) |
| Cloud connectivity | LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port |
| Wireless security | WPA2 Personal |
| External GNSS antenna connector | SMA |
| Ant connector | SO-239 (50 Ω) |
Additional |
|
| Additional |
|
|---|---|

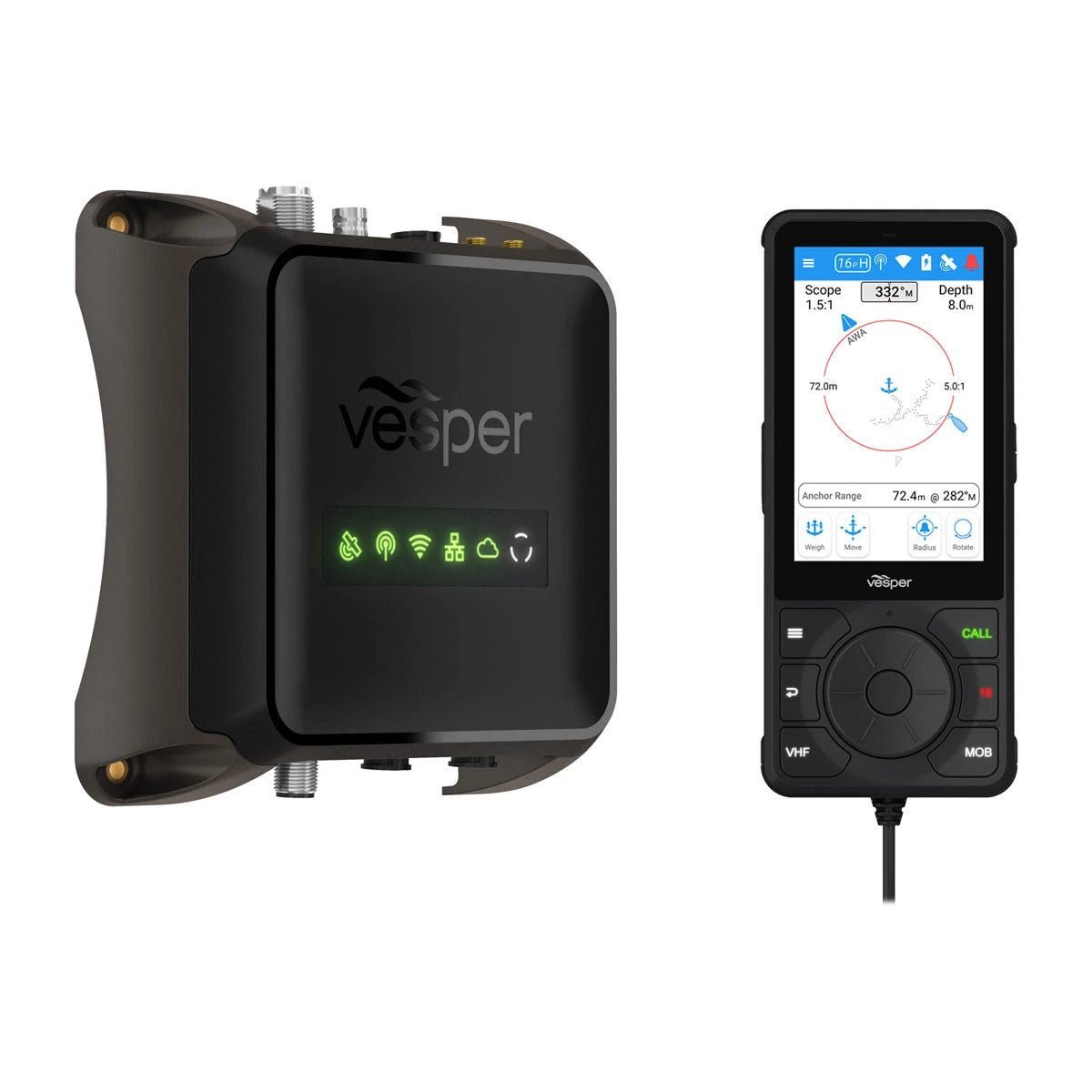

VHF Radio with smartAIS® Transponder and Remote Vessel Monitoring
