General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm) |
| Weight | GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| Water rating | IPX7 |
| Temperature range | GLS 10 Black Box: Operating: -15 C to 70 C LVS62 Transducer: Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 7" (0.18 m) |
Sonar Features |
|
| Frequency | 265 - 550 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Freshwater: Down and Forward: 500’ (152.0 m)Saltwater: Down and Forward: 350’ (106.0 m) |
| Sonar Type | Live |
| Target Separation @ 100' | 22" |

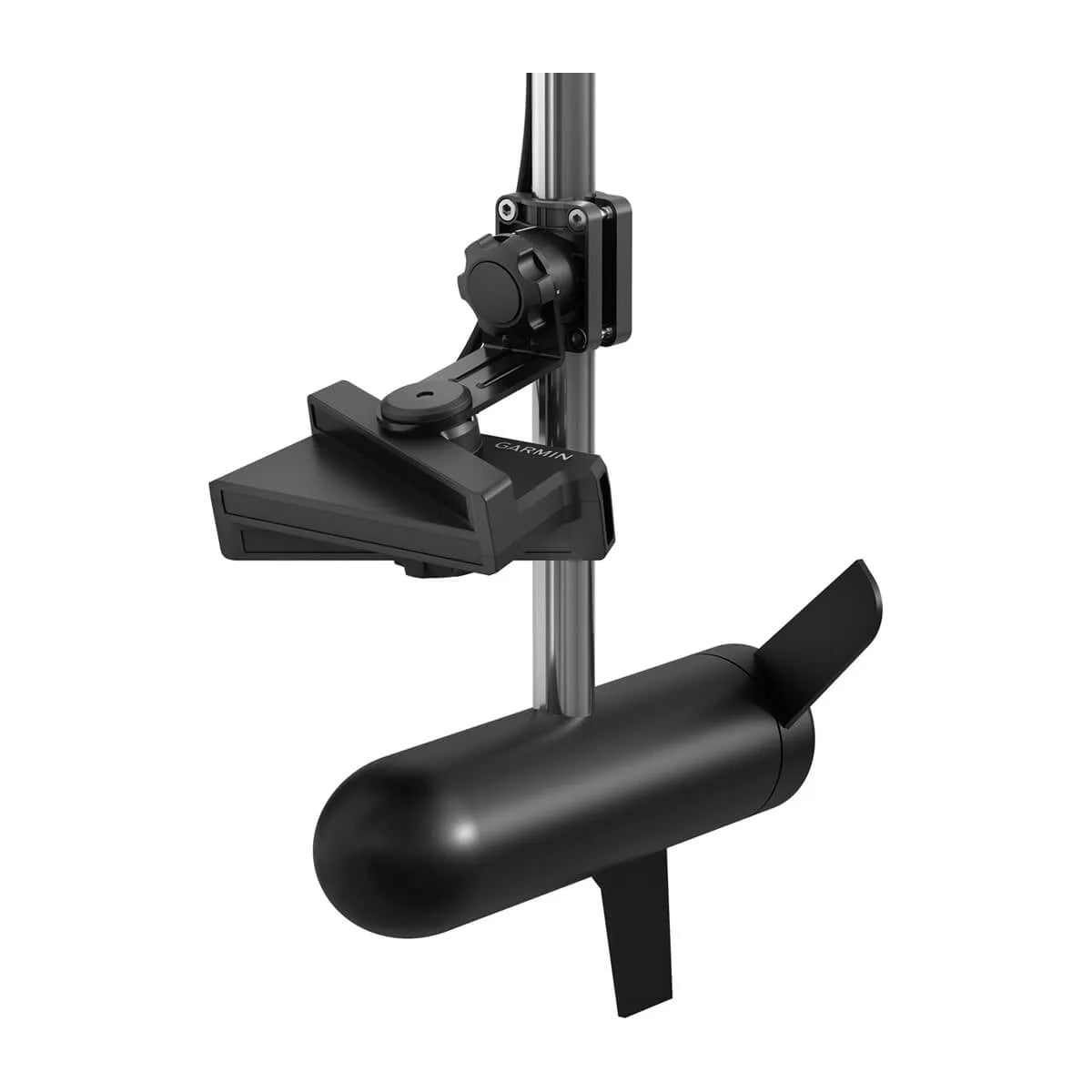

| Perspective Mode Mount Included | |
Networking & Connections |
|
| Garmin Marine Network Ports | 1 (small connector) |
|---|---|

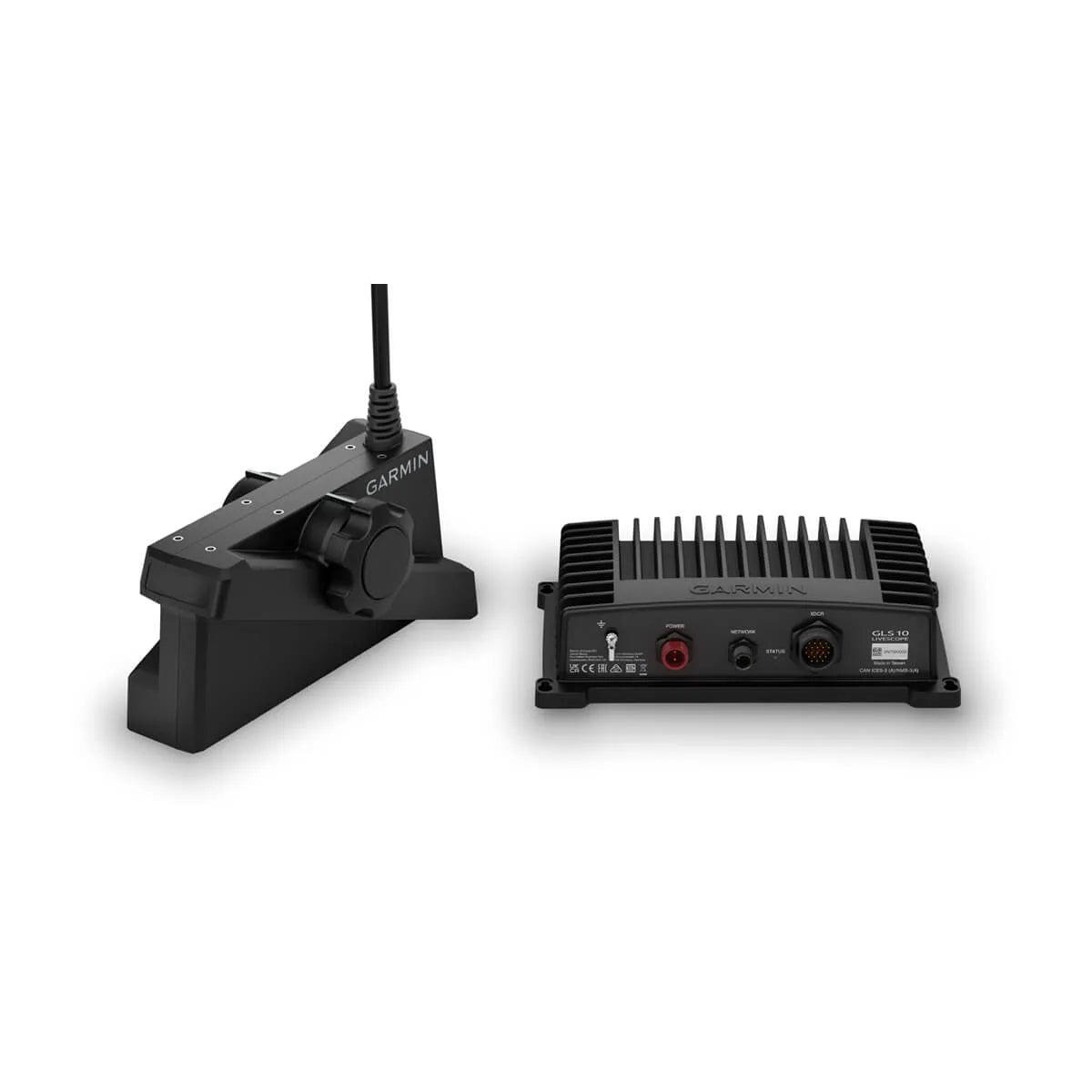

With GLS 10™ and LVS62 Transducer
